StarTech.com CMHOOKMW 1.5U Multi-Directional Server Rack Cable Management D-Ring Hook, 6 × 10 cm, Steel, Black
Brand:
StarTech.com
StarTech.com CMHOOKMW 1.5U Multi-Directional Server Rack Cable Management D-Ring Hook, 6 × 10 cm, Steel, Black
€15.42 inc. VAT
CMHOOKMW
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
StarTech.com CMHOOKMW — 1.5U Multi-Directional D-Ring Cable Hook, 6 × 10 cm
1.5U6 × 10 cm D-ringFaces in or outBlack steel

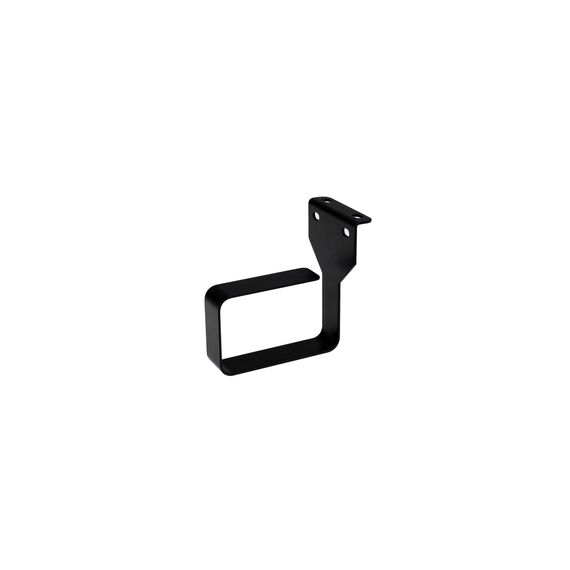

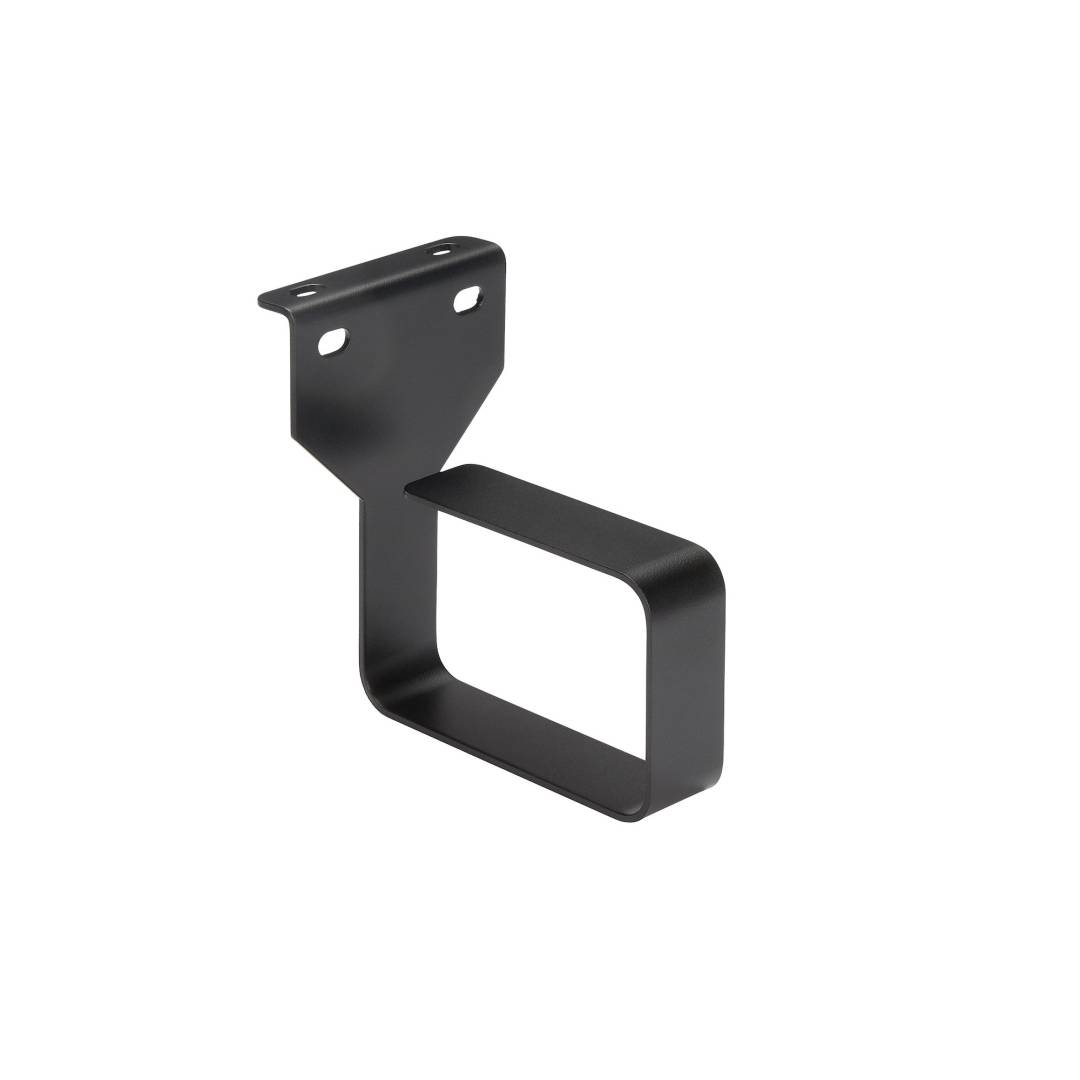

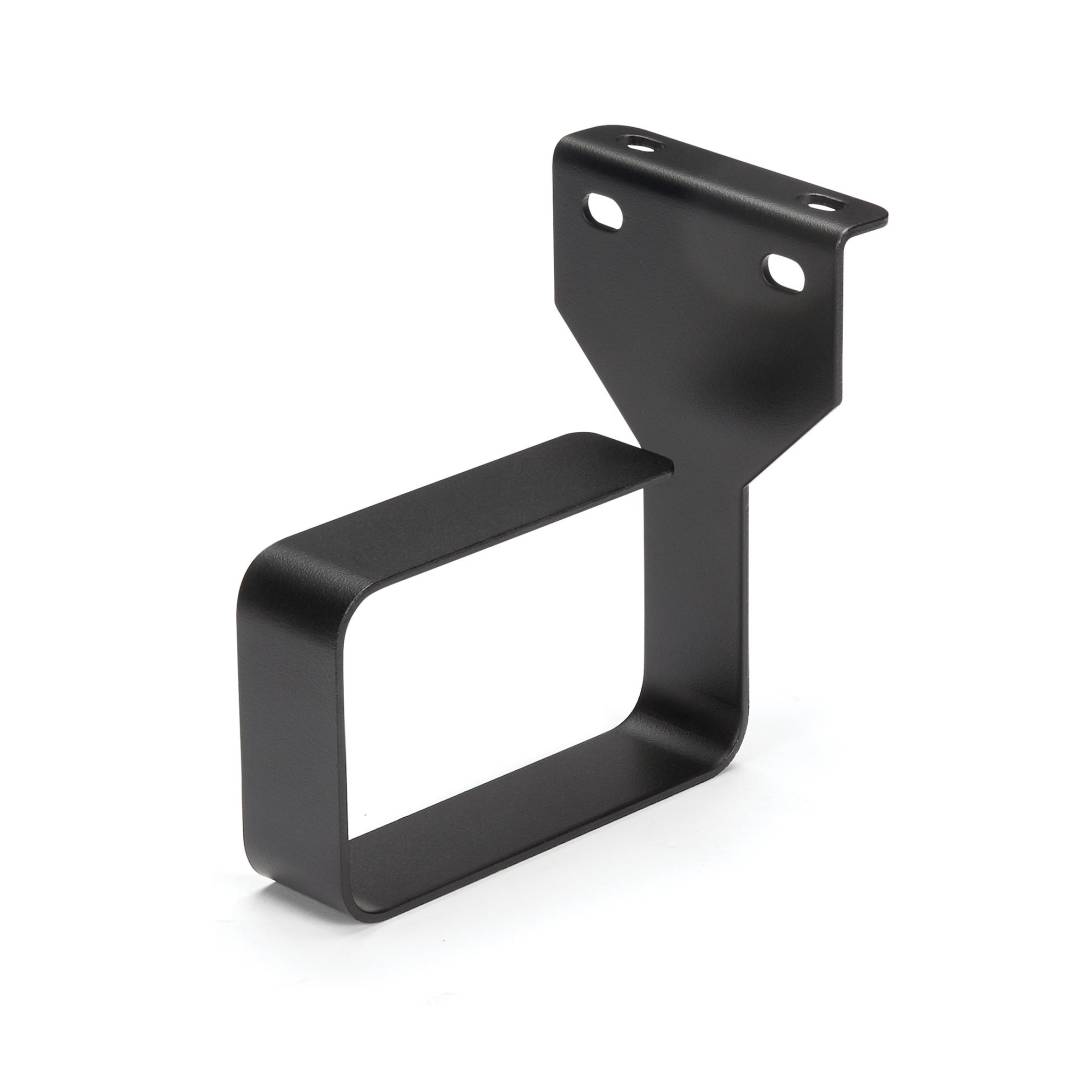

The StarTech.com CMHOOKMW is a 1.5U steel D-ring cable management hook with a 6 × 10 cm ring, for routing bundles of network and power cables vertically or horizontally in 2-post and 4-post 19" and 10" racks. A right-angled bracket with two sets of holes lets you mount it facing into the rack or out towards the front.
Unlike a full-width 1U panel, a single D-ring can go exactly where the cable run needs support: on the side rail next to a patch panel, at the edge of a 2-post relay rack, or at intervals down a vertical run.
StarTech.com lists the hook as 1.5U tall and conforming to EIA RS-310-D rack spacing. It ships with the two M5 screws and two M5 cage nuts needed to fit it.
Before you order: This hook is 1.5U tall and comes with M5 hardware. If your rack uses M6 cage nuts, fit it with your own M6 screws and nuts.

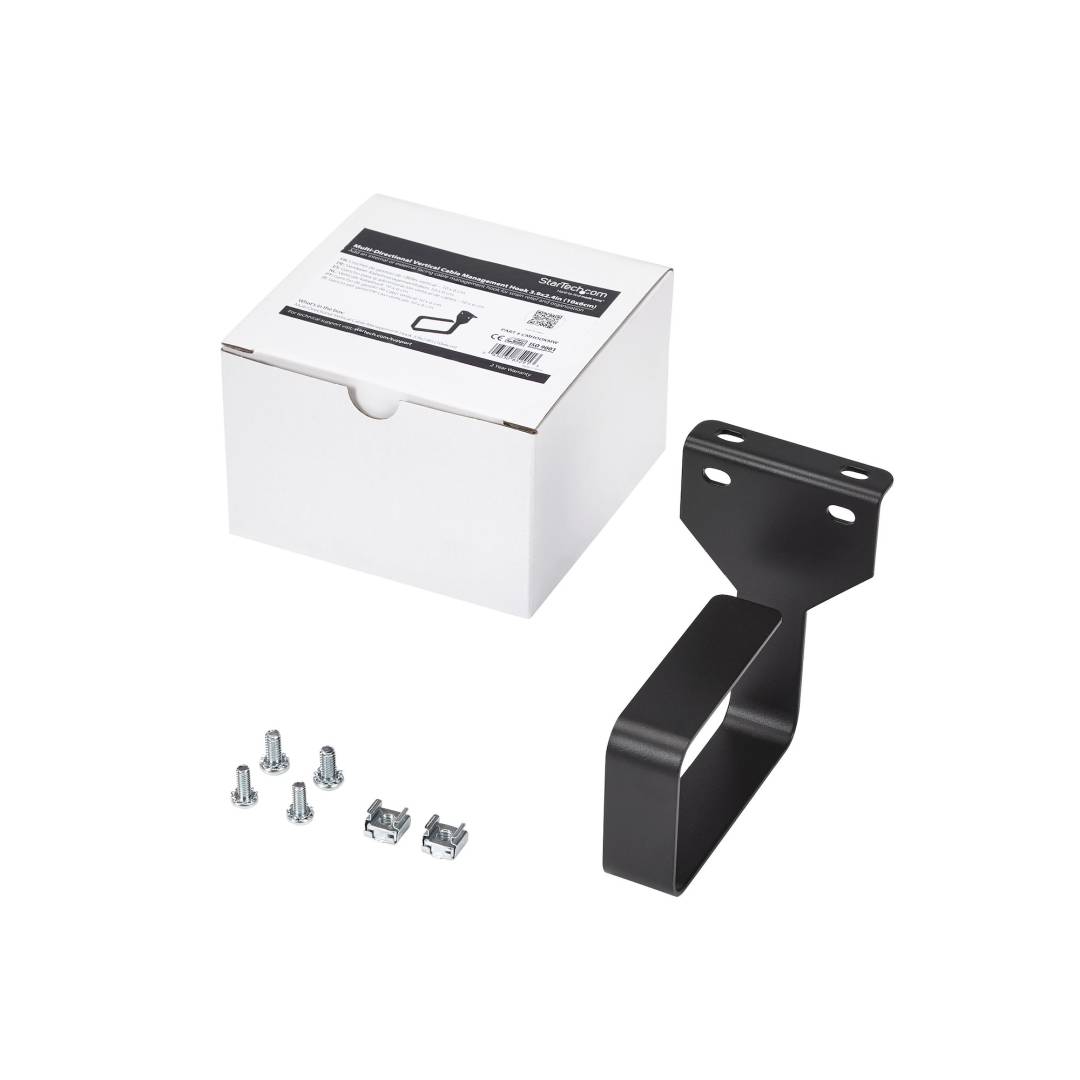

What's in the Box
- 1 × StarTech.com CMHOOKMW D-ring cable hook, black steel
- 2 × M5 screws
- 2 × M5 cage nuts
What It Means in Practice

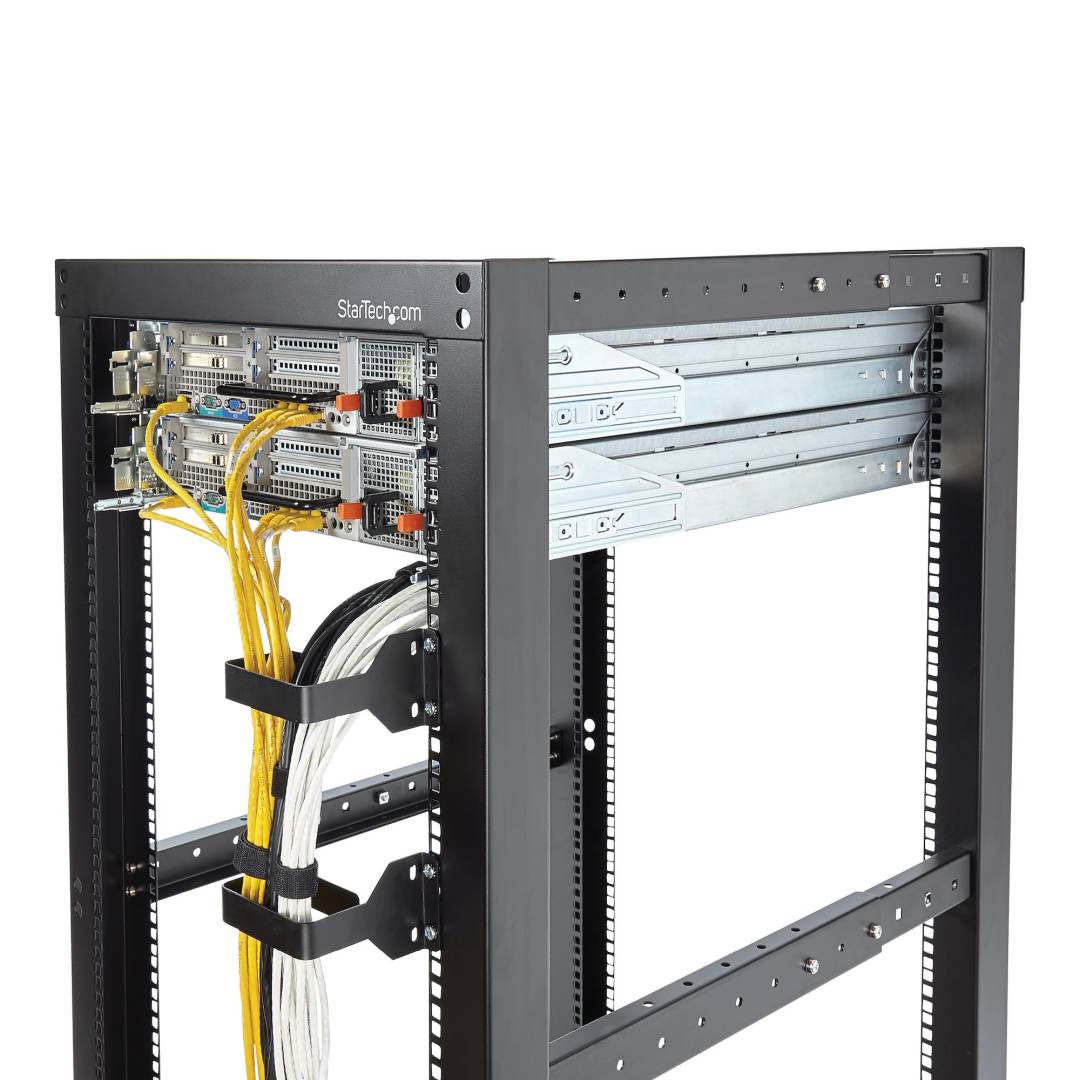

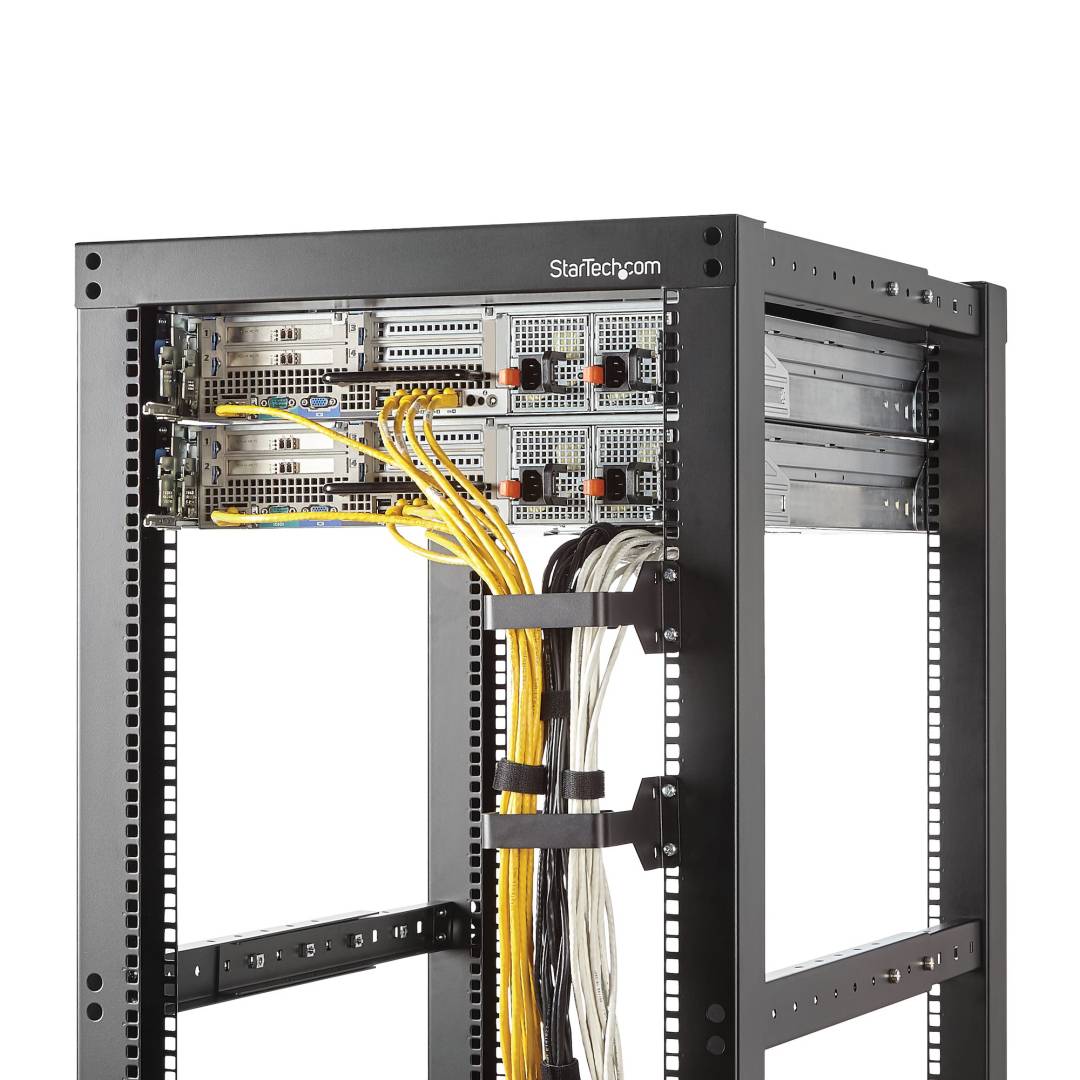

- Space several hooks down the side of a rack to carry a vertical bundle from the patch panels to the switches.
- The 6 × 10 cm ring takes a sizeable bundle of patch cords — more than a single plastic ring on a 1U panel.
- Mount it facing out for front-of-rack patching, or facing in to guide cables towards the rear.
- On 2-post relay racks, hooks on both uprights keep cords off the floor.
What Will Not Work
- It is a single hook, not a full-width 1U panel — order several for long runs.
- The included hardware is M5; M6 racks need your own M6 screws and cage nuts.
- It has no cover or brush strip.
- It is not rated to carry equipment weight.
Key Features
6 × 10 cm D-ring
A large steel ring for thick bundles of patch cords and power leads.
Multi-directional mount
Right-angled bracket with dual hole sets: faces into the rack or out to the front.
2-post and 4-post racks
Fits 19" and 10" racks with EIA RS-310-D rail spacing.
Hardware included
Two M5 screws and two M5 cage nuts in the box.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Single D-rings are the flexible complement to 1U cable panels: panels tidy the horizontal run in front of each device, while hooks carry the bundle down the side of the rack. Browse our rack accessories for horizontal cable panels and cage-nut sets.
✓ Buy it if you need a strong, adjustable support point for cable bundles in a 2-post or 4-post rack.
✕ Skip it if you want a full-width 1U panel in front of a patch panel or switch.
→ Also consider Intellinet 711074 or DIGITUS DN-97602 (full-width 1U cable management panels, black).
Tell us your rack model and cable count and we will suggest how many hooks you need.
Features - StarTech.com - CMHOOKMW
Colour
black
More Details
Product Code
V932919
EAN Code
0065030852913
Manufacturer
StarTech.com
