StarTech.com ST1000SMPEX Mini PCIe Gigabit Ethernet Network Card RJ45 Daughter Board Realtek RTL8111H TAA

Brand:
StarTech.com
StarTech ST1000SMPEX Mini PCIe Gigabit Ethernet Card
StarTech.com ST1000SMPEX Mini PCIe Gigabit Ethernet Network Card RJ45 Daughter Board Realtek RTL8111H TAA
€37.98 inc. VAT
Buy
ST1000SMPEX
€31.92 €35.47
€37.98 inc. VAT
Ships from EU stock: 15 item(s)
+ −
Add to wish list Ask a question
Product Code
V931854
EAN Code
0065030846554
Manufacturer
StarTech.com

Quick Specs

Interface
Mini PCIe
Ports
1× RJ45 1 Gbps
Controller
Realtek RTL8111H
Slot
Mini PCIe (not M.2)
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

StarTech.com ST1000SMPEX — Mini PCIe Gigabit Ethernet Network Card

Gigabit EthernetMini PCIeRealtek RTL8111HRJ45 daughter board

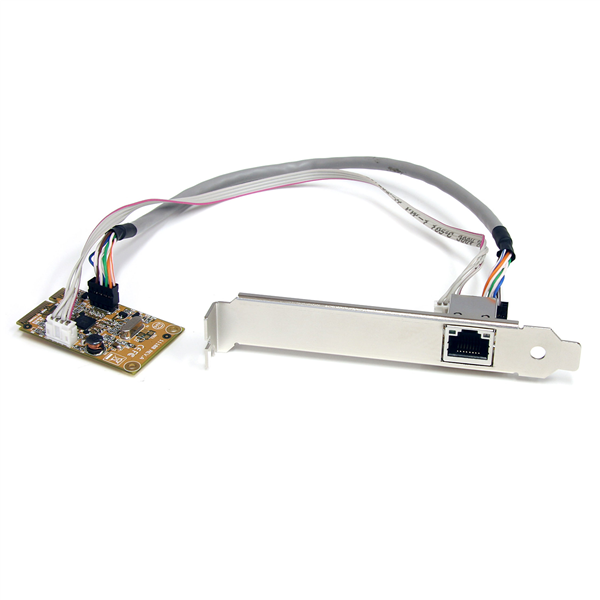

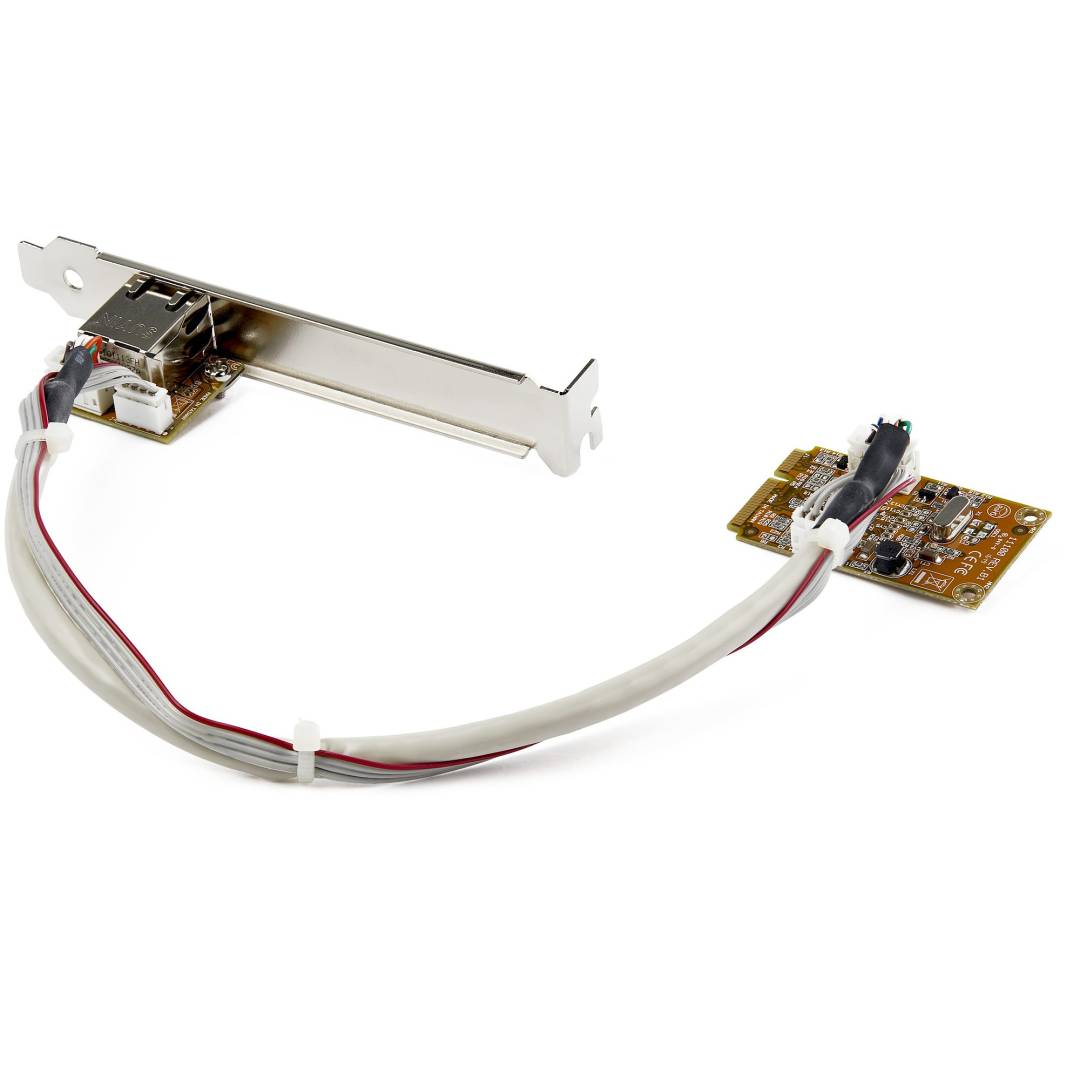

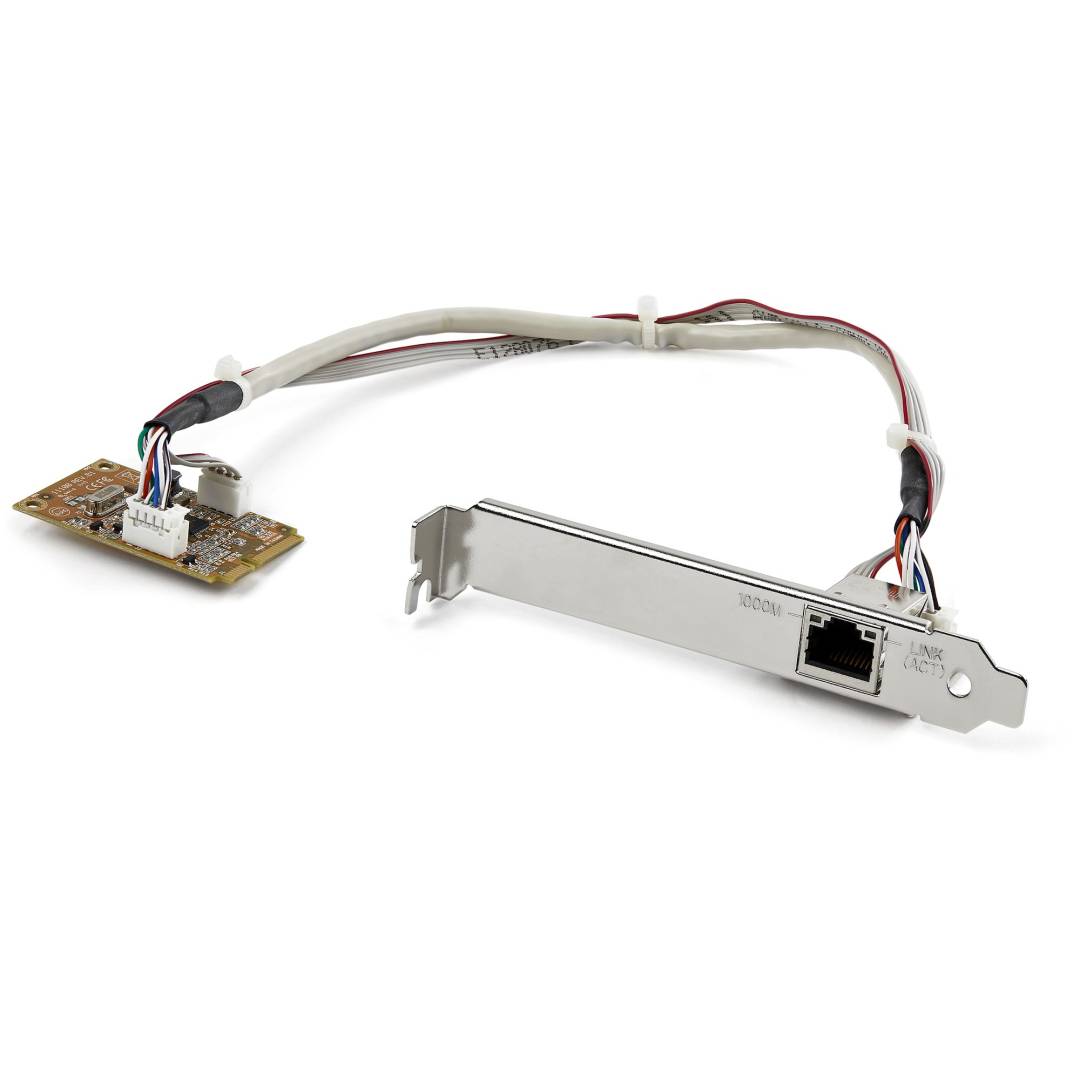

The StarTech.com ST1000SMPEX is a Mini PCIe Gigabit Ethernet card that adds a Gigabit RJ45 port to a mini PC, embedded board or industrial PC through a Mini PCIe slot. The Mini PCIe card connects by cable to a small RJ45 daughter board that mounts in a low-profile bracket opening, so a system without a free PCIe slot can still get a Gigabit port. It uses the Realtek RTL8111H controller and connects at 10/100/1000 Mbps. A dedicated network card is the usual fix when the onboard port has failed, when the machine needs a second, separate network, or when it should move to a faster link than the motherboard offers.

Compatibility — check before buying:
Check the slot: the card needs a free full-size Mini PCIe slot (not M.2, not mSATA). It links at up to 1 Gbps with standard Cat5e cabling. It needs a free Mini PCIe slot (not M.2, not mSATA) and a free low-profile bracket opening in the case for the RJ45 board. Operating systems listed by StarTech.com: not published in the datasheet. Send us the PC or server model and we confirm the fit.

Best For

✓ Replacing a failed onboard LAN port
✓ Adding a second network to a PC
✓ Small office servers
✓ Separate camera or storage networks
✓ Older PCs and industrial PCs
✓ Slim SFF desktops

Key Features


Gigabit Ethernet
Up to 1000 Mbps full duplex per port with automatic fallback to 100/10 Mbps.

Mini PCIe card

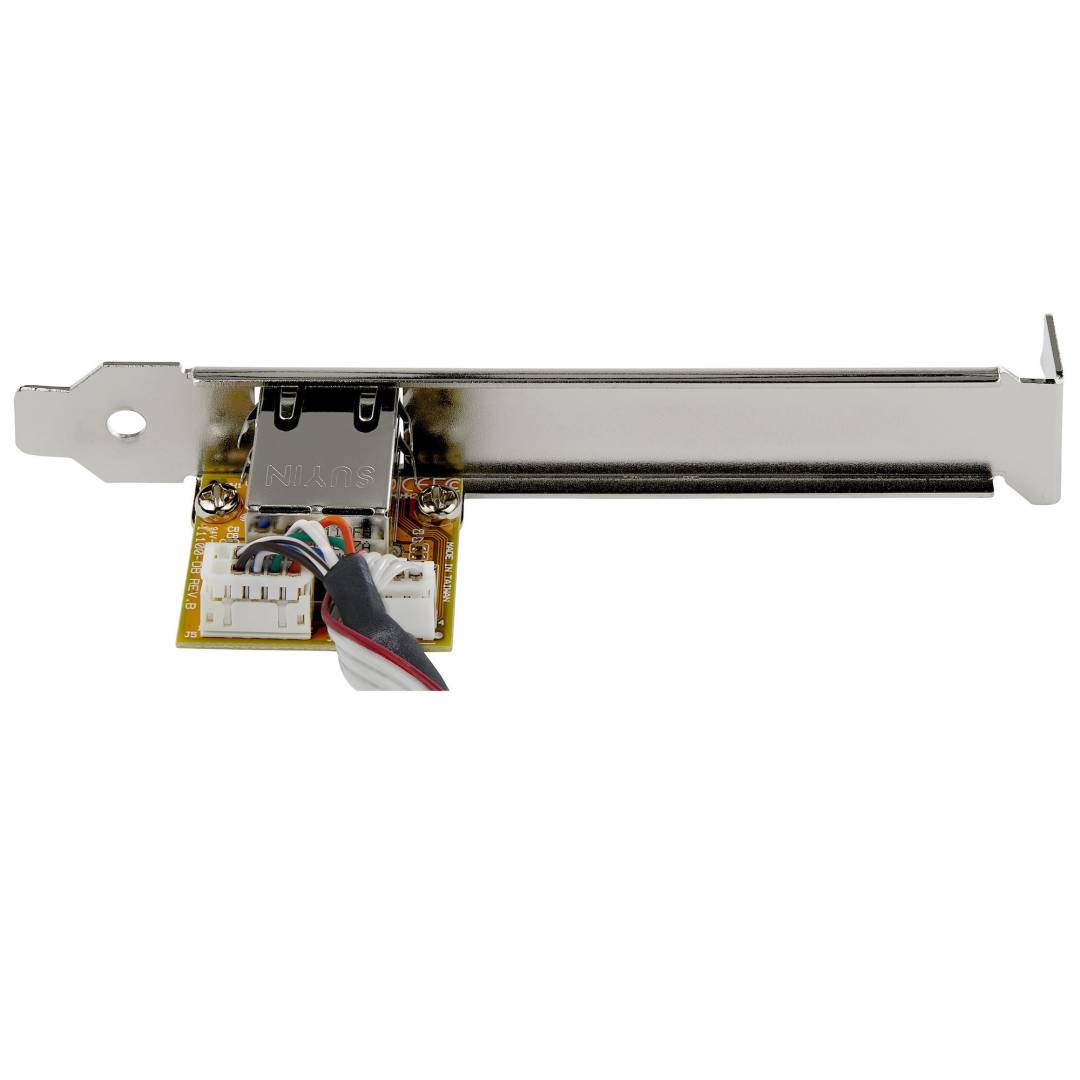

Installs in a Mini PCIe slot; the RJ45 port sits on a separate board in a bracket opening.

Network features
Supports Wake-on-LAN, 9K jumbo frames, 802.1Q VLAN, Auto-MDIX.

Complete kit
Mini PCIe card, RJ45 daughter board, low-profile bracket, LED and data cables, driver CD.

Technical Specifications

Identification
Brand StarTech.com
Product Mini PCI Express Gigabit Ethernet Network Adapter NIC Card – TAA
Part Number ST1000SMPEX
EAN / GTIN 0065030846554
Network
Ports 1× RJ45 Gigabit Ethernet
Speeds 10/100/1000 Mbps
Controller Realtek RTL8111H
Features Wake-on-LAN, 9K jumbo frames, 802.1Q VLAN, Auto-MDIX
Host Interface
Bus Mini PCIe
Brackets Low-profile bracket for the RJ45 daughter board
RJ45 port On a separate daughter board, connected by cable
Compatibility
Operating Systems not published in the datasheet
Physical
Dimensions 51 × 8 × 30 mm (Mini PCIe card)
Weight 46 g
In the Box
Included Mini PCIe card, RJ45 daughter board, low-profile bracket, LED cable, data cable, driver CD, instruction manual
Not Included Network cable
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term StarTech.com publishes a 2-year warranty for this part number in its official datasheet. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Will it fit my computer?
It needs a free full-size Mini PCIe slot (not M.2, not mSATA). Low-profile bracket for the RJ45 daughter board
Is Gigabit fast enough?
For office work, internet, cameras and most small servers, yes. For multi-gig NAS transfers choose a 2.5G or 10G card.
Which operating systems are supported?
StarTech.com lists: not published in the datasheet.
Can I keep using the onboard network port?
Yes. The card adds its own port; the onboard port keeps working, so you can run separate networks or keep one as a backup.
Singular Expert Insight
We suggest the ST1000SMPEX for mini PCs, embedded boards and industrial systems with a free Mini PCIe slot but no room for a standard network card. For a normal PCIe slot, the ST1000SPEX2LT is simpler to install. Browse more network cards or network switches. Local support in Cyprus comes with every order.

Buyer’s Guide

Buy it if

Your system has a free Mini PCIe slot and needs an extra Gigabit port.

Skip it if

Your board has M.2 slots only.

Also consider

Delock 95272 — M.2 2242 2.5G network module.
