StarTech.com PEX1PCI1 PCI Express to PCI/PCI-X Adapter Card, Low-Profile Support, 250 MB/s

Brand:
StarTech.com

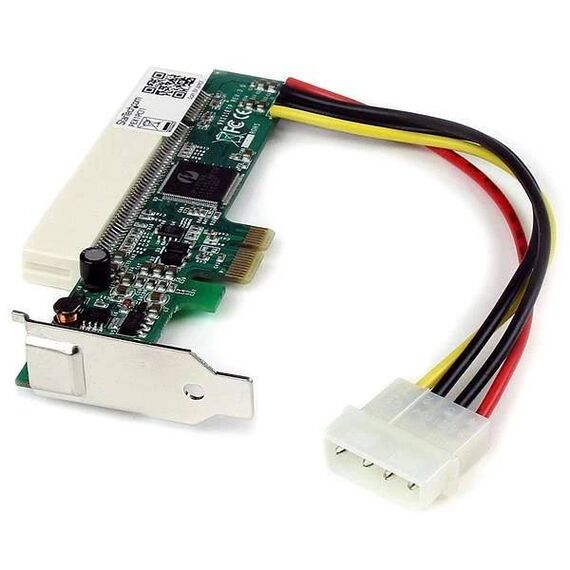

StarTech PEX1PCI1 PCIe to PCI Adapter
StarTech.com PEX1PCI1 PCI Express to PCI/PCI-X Adapter Card, Low-Profile Support, 250 MB/s
€69.25 inc. VAT
Buy
PEX1PCI1
€58.19
€69.25 inc. VAT
Ships from EU stock: 11 item(s)
+ −
Add to wish list Ask a question
Product Code
V930807
EAN Code
0065030834629
Manufacturer
StarTech.com

Quick Specs

Chipset
Pericom PI7C9X118SL
Host interface
PCI Express x1
Adapter interface
PCI / PCI-X, 5 V / 3.3 V
Maximum bandwidth
Up to 250 MB/s
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

StarTech.com PEX1PCI1 PCI Express to PCI/PCI-X Adapter Card

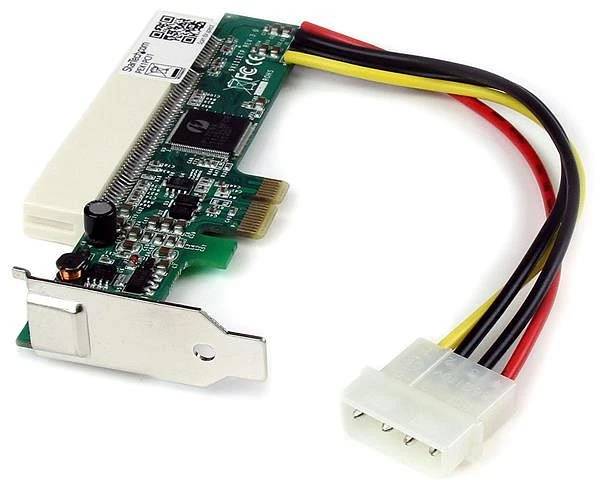

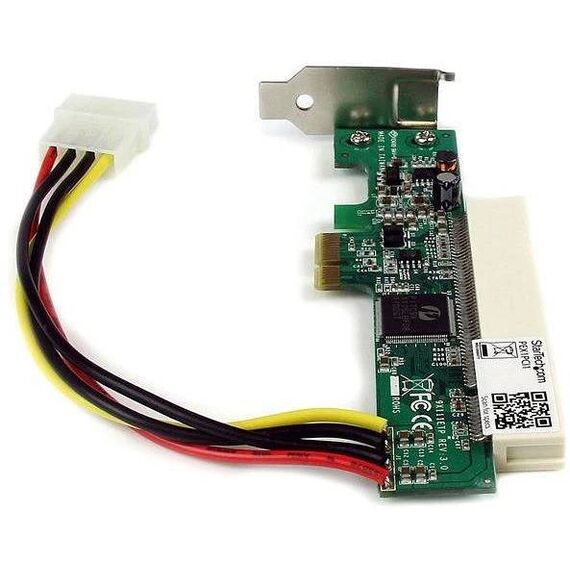

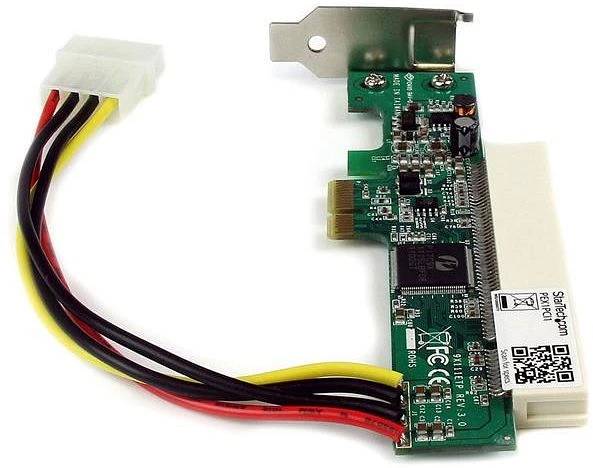

The StarTech.com PEX1PCI1 connects a PCI or PCI-X expansion card to a PCI Express x1 slot in a newer desktop or server system. It supports low-profile PCI cards, 5 V or universal 3.3 V/5 V cards, and includes an LP4 power connector plus a spare full-profile bracket. No additional drivers or software are required.
Pericom PI7C9X118SL PCI Express x1 PCI / PCI-X, 5 V / 3.3 V Up to 250 MB/s

The StarTech.com PEX1PCI1 connects a PCI or PCI-X expansion card to a PCI Express x1 slot in a newer desktop or server system. It supports low-profile PCI cards, 5 V or universal 3.3 V/5 V cards, and includes an LP4 power connector plus a spare full-profile bracket. No additional drivers or software are required.

Best For
✓ Modules & Extensions shoppers
✓ Customers comparing confirmed specifications
✓ Business or home setups needing a grounded configuration
✓ Buyers who want clear model-level details

Key Features


Commercial Fit
The main advantage is straightforward legacy-card support: it bridges PCI Express x1 to PCI/PCI-X and accommodates supported 5 V or universal 3.3 V/5 V cards without additional drivers or software.

Chipset
Chipset: Pericom PI7C9X118SL

Power Connector
1 x LP4, 4-pin large-drive power connector

Package Dimensions
175 x 144 x 33 mm (6.9 x 5.7 x 1.3 in)

Technical Specifications

Product Type PCI Express to PCI / PCI-X slot adapter card
Host Interface PCI Express x1
Adapter Interface PCI / PCI-X, 5 V / 3.3 V
PCI Slot 1 x PCI, 5 V, 32-bit slot
Chipset Pericom PI7C9X118SL
Maximum Bandwidth Up to 250 MB/s
Supported PCI Card Voltage 5 V or universal 3.3 V / 5 V PCI cards
Unsupported PCI Cards 32-bit 3.3 V-only PCI cards
Power Connector 1 x LP4, 4-pin large-drive power connector
Card Form Factor Standard profile adapter card | supports low-profile/half-height PCI cards
PCI Express Specification PCI Express Base Specification 1.0a
PCI Specification PCI Specification 2.2
Bridge Specification PCI Express to PCI/PCI-X Bridge Specification 1.0
Driver Requirement No drivers or software required
Operating System Compatibility OS independent
Product Colour Green
Material Steel
Product Dimensions 135 x 70 x 20 mm (5.3 x 2.8 x 0.8 in)
Product Weight 49 g (1.7 oz)
Package Quantity 1
Package Dimensions 175 x 144 x 33 mm (6.9 x 5.7 x 1.3 in)
Package Weight 112 g (4.0 oz)

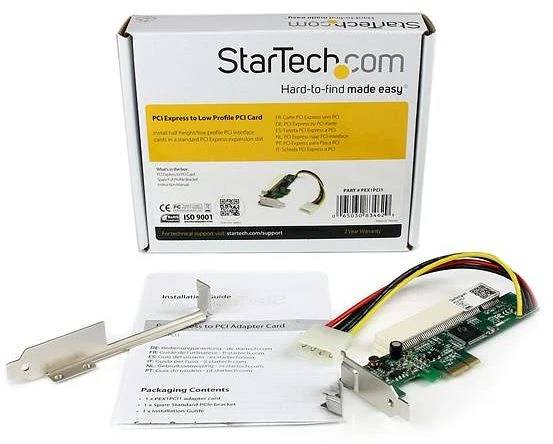

Included in Package PCI Express to PCI card | spare full-profile bracket | instruction manual | PCI Express to PCI card, spare full-profile bracket, instruction manual
Compliance and Certifications TAA, CE, RCM, RoHS and REACH, WEEE
Warranty 2 years
Technical Support Free lifetime technical support
Operating temperature 0 °C to 85 °C
Product name PCI Express to PCI Adapter Card - TAA
Manufacturer StarTech.com
Model / product ID PEX1PCI1
EAN / UPC 0065030834629
Bus type PCI Express
MTBF 143,897 hours
SKU / EAN PEX1PCI1 | 0065030834629

Frequently Asked Questions

What should I know before buying?
Check the expansion card voltage before purchase. This adapter does not support 32-bit 3.3 V-only PCI cards, and the host system must provide a suitable PCI Express x1 slot and LP4 power connection.
What connectivity does it offer?
PCI Express x1
What is it compatible with?
5 V or universal 3.3 V / 5 V PCI cards
Singular Expert Insight
The main advantage is straightforward legacy-card support: it bridges PCI Express x1 to PCI/PCI-X and accommodates supported 5 V or universal 3.3 V/5 V cards without additional drivers or software.

Buyer’s Guide

Buy it if
A practical choice for desktop or server users who need to retain a compatible low-profile PCI or PCI-X expansion card while using a system with an available PCI Express x1 slot.
Skip it if
Check the expansion card voltage before purchase. This adapter does not support 32-bit 3.3 V-only PCI cards, and the host system must provide a suitable PCI Express x1 slot and LP4 power connection.
