StarTech.com 2U Rack Depth Adapter Brackets, 10 cm (4 in) Mounting Depth Offset, 59 kg Load in 4-Post Racks, Steel, Black
Brand:
StarTech.com
StarTech.com 2U Rack Depth Adapter Brackets, 10 cm (4 in) Mounting Depth Offset, 59 kg Load in 4-Post Racks, Steel, Black
€54.47 inc. VAT
RDA2U
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
StarTech.com 2U Rack Depth Adapter Brackets, 10 cm Offset
2U · 19-inch10 cm offset59 kg (4-post)Black

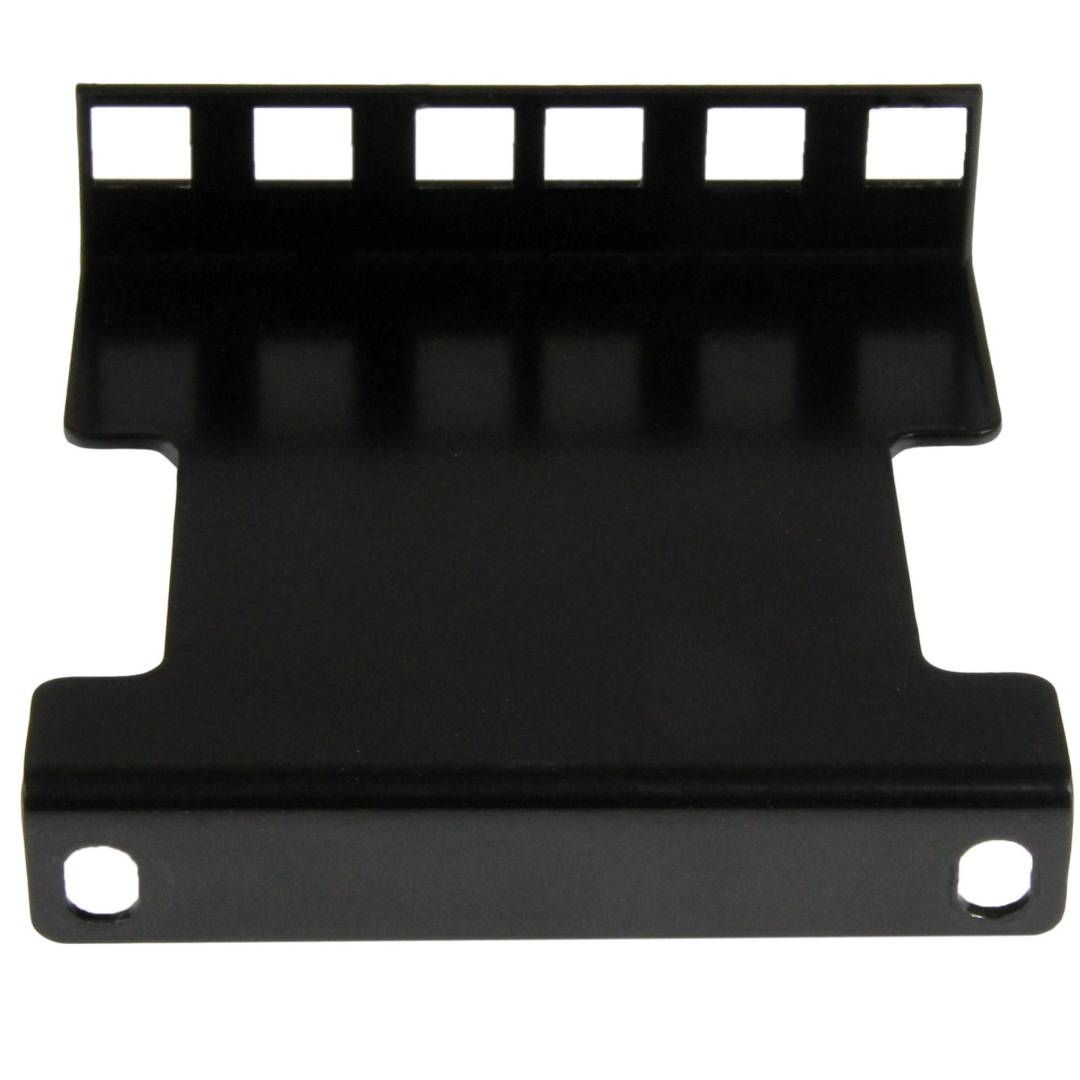

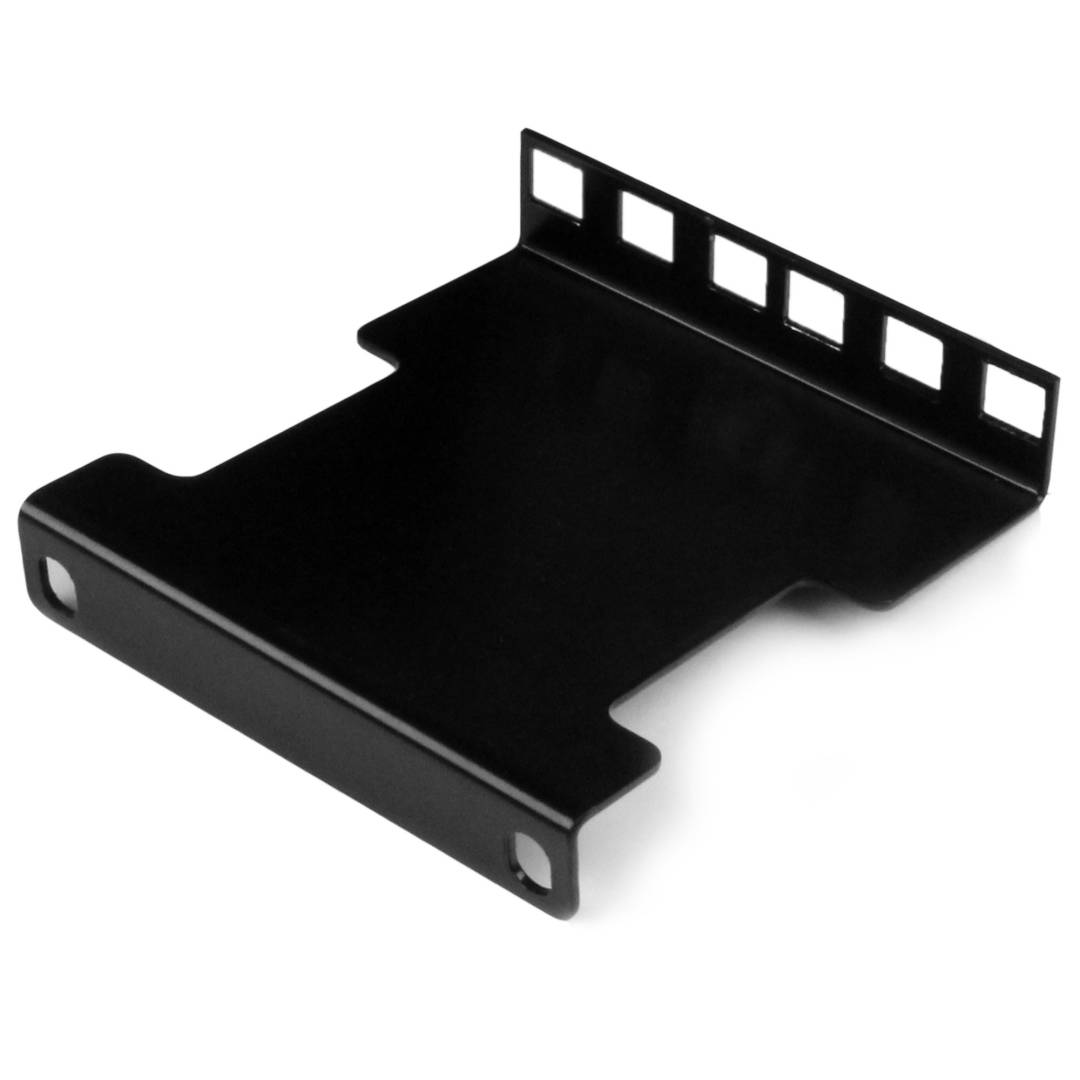

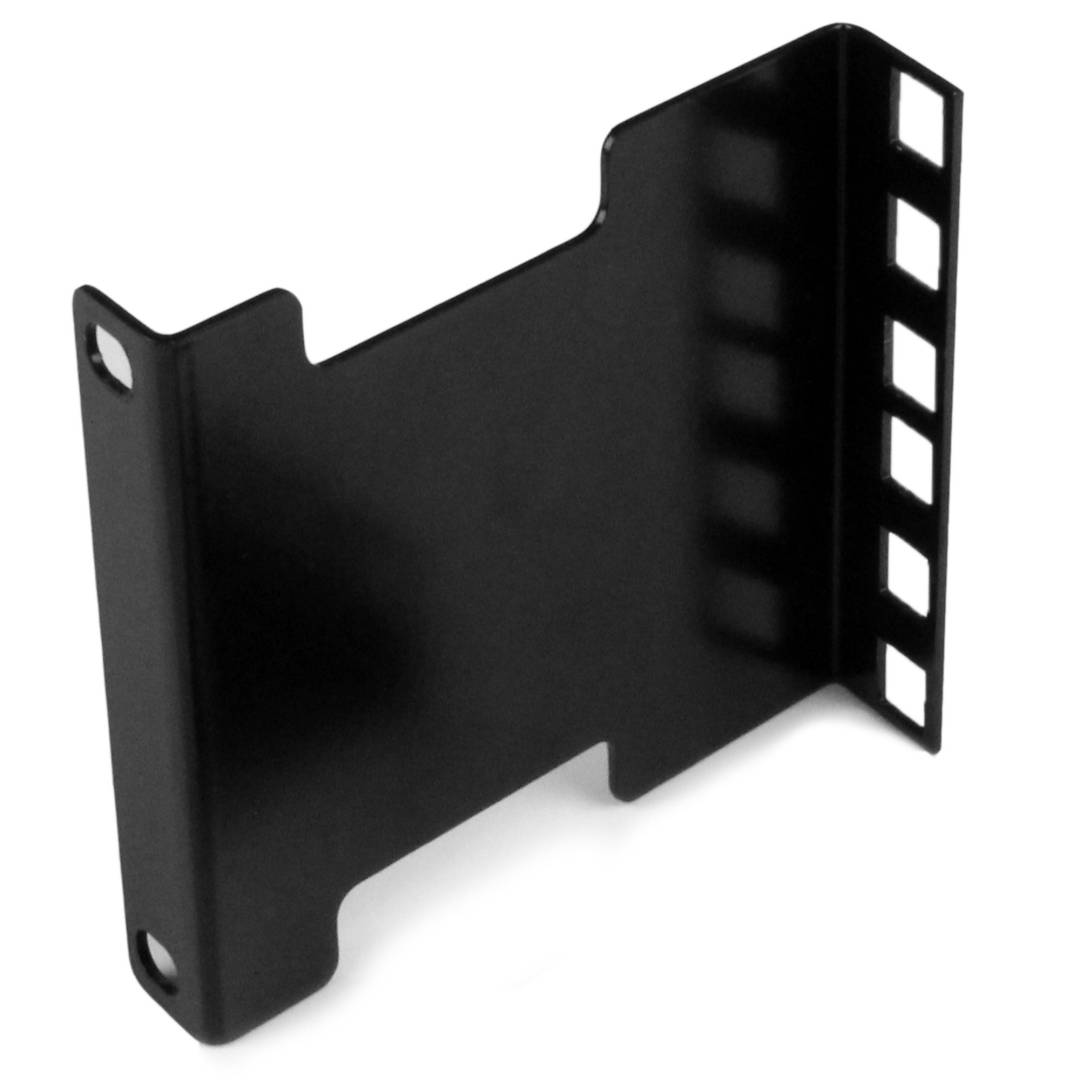

The StarTech.com RDA2U is a pair of 2U rack depth adapter brackets that move the mounting point of 19-inch equipment forward or back by 10 cm (4 in), carrying up to 59 kg in a 4-post rack. It is for installers who need to align equipment with a door, recess a device behind others, or bridge the gap when rails do not reach.
The brackets attach to the existing rack rails and create a new 19-inch mounting point offset by exactly 10 cm.
Before you order: The supplied screws and cage nuts are 10-32 (US imperial), not metric. For M6 racks, use your own M6 cage nuts and screws. In a 2-post rack the load limit drops to 9 kg.
What's in the Box

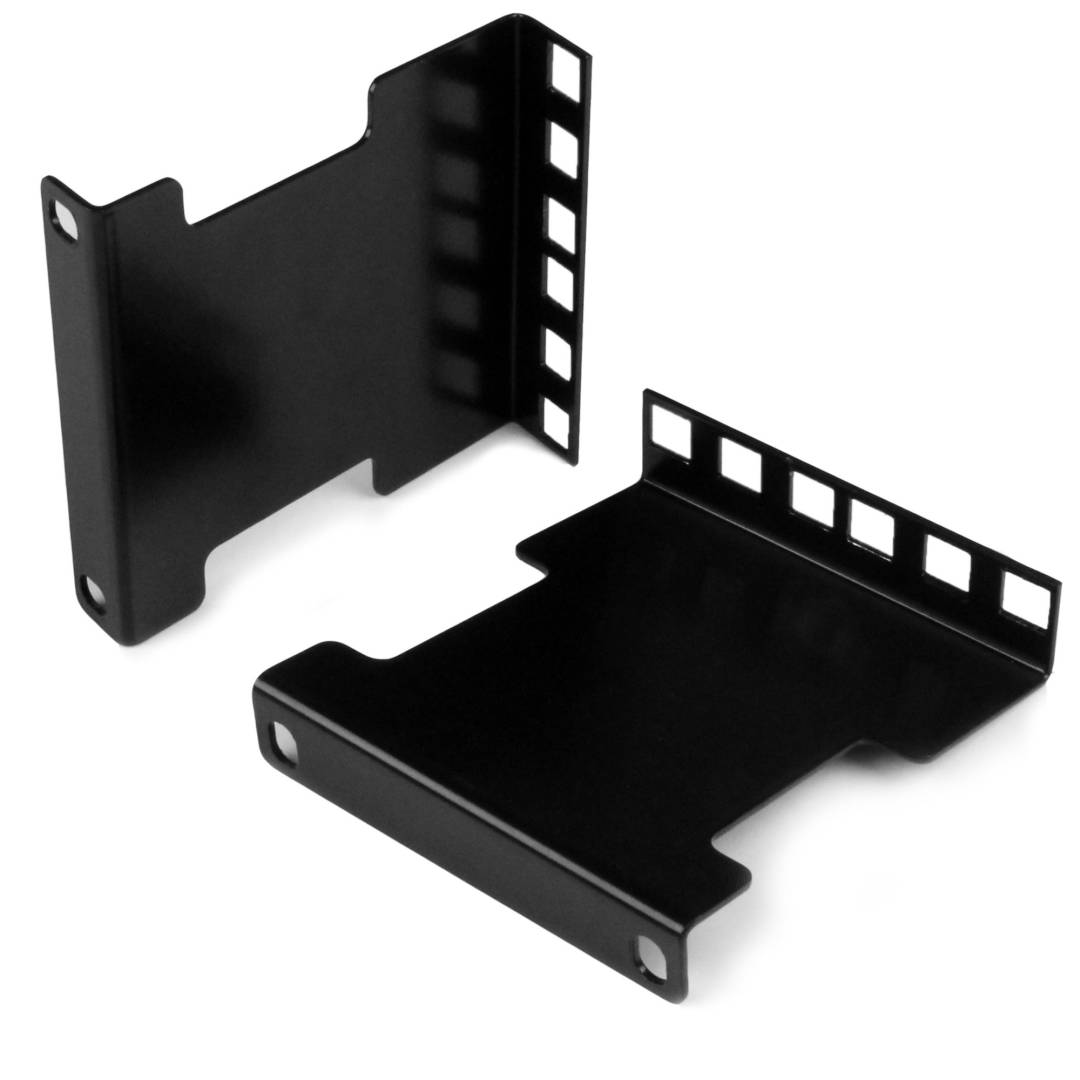

- 2 x depth adapter brackets
- 4 x 10-32 x 5/8 in screws
- 4 x 10-32 cage nuts
- Instruction manual
What It Means in Practice
- A fixed 10 cm offset - useful to recess a patch panel or bring a device forward to the door line.
- Up to 59 kg in a 4-post rack; only 9 kg in a 2-post rack.
What Will Not Work
- The included 10-32 hardware will not fit M6 or M5 square holes - use metric cage nuts in European racks.
- The offset is fixed at 10 cm and cannot be adjusted.
- It is not rated above 9 kg in a 2-post rack.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Depth adapters solve the awkward cases: a device that sits too far back for the door, or rails that fall short. Remember the hardware in the box is imperial. Metric cage nuts are in our rack accessories.
✓ Buy it if you need to shift 19-inch equipment by 10 cm in a 4-post rack.
✕ Skip it if you need an adjustable offset or more than 9 kg in a 2-post rack.
→ Also consider M6 cage nuts to use with metric racks.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - StarTech.com - RDA2U
Colour
black
More Details
Product Code
V933743
EAN Code
0065030865449
Manufacturer
StarTech.com
