StarTech.com UNIRAILS1U — Universal 1U Rails for Equipment That Came Without Its Own
1U · 19-inch420–1100 mm depth25 kg loadUniversal fit

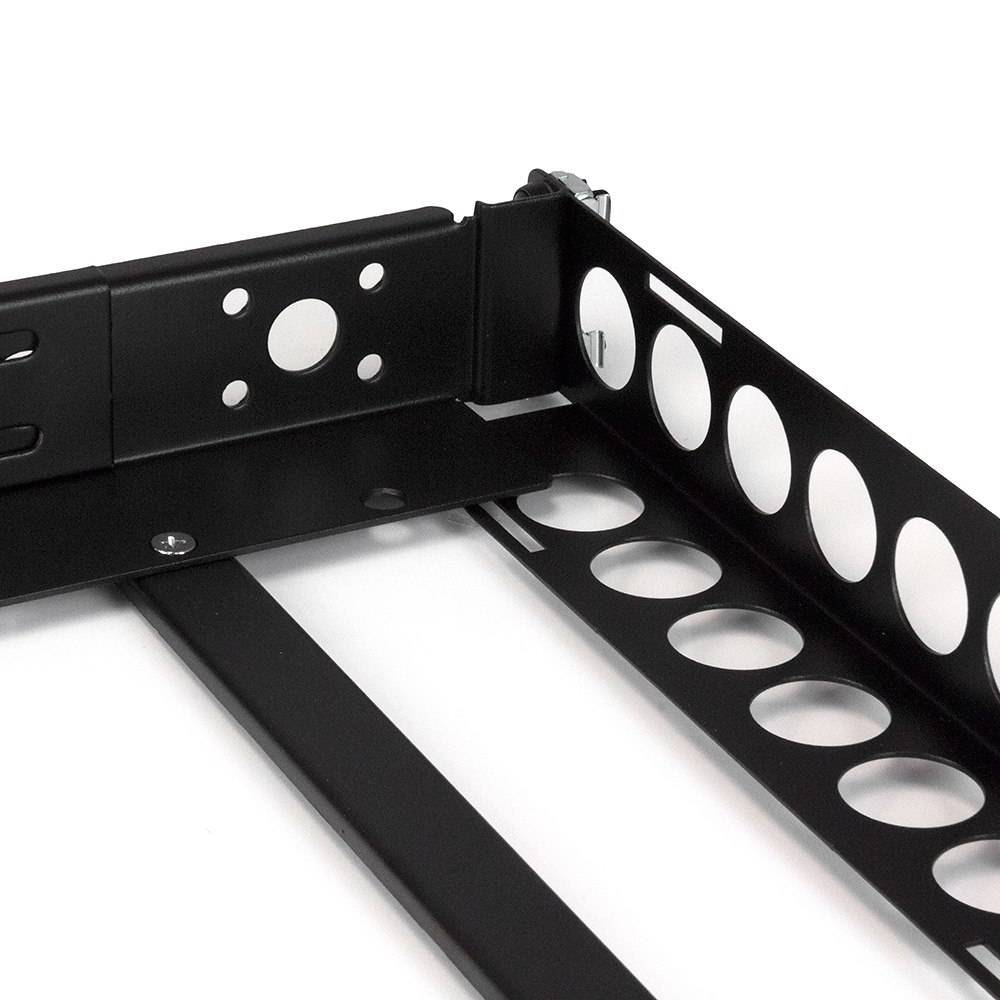

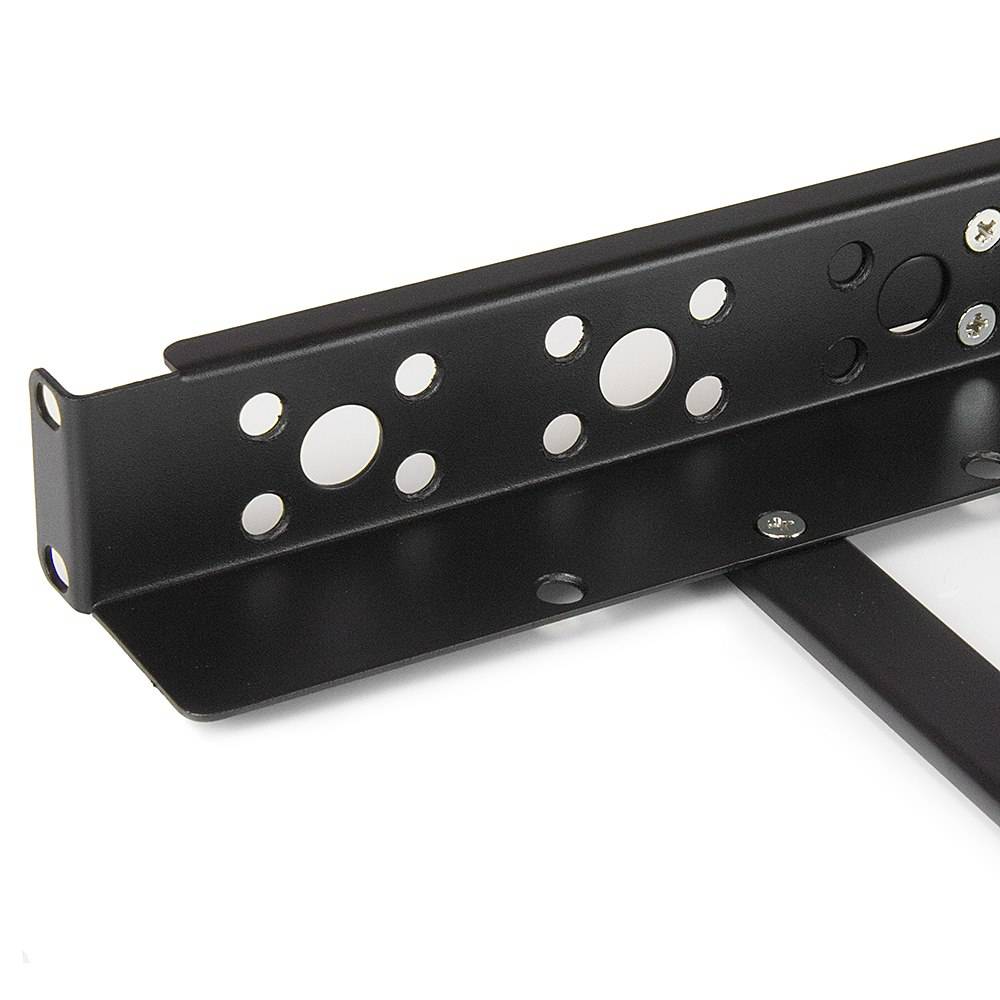

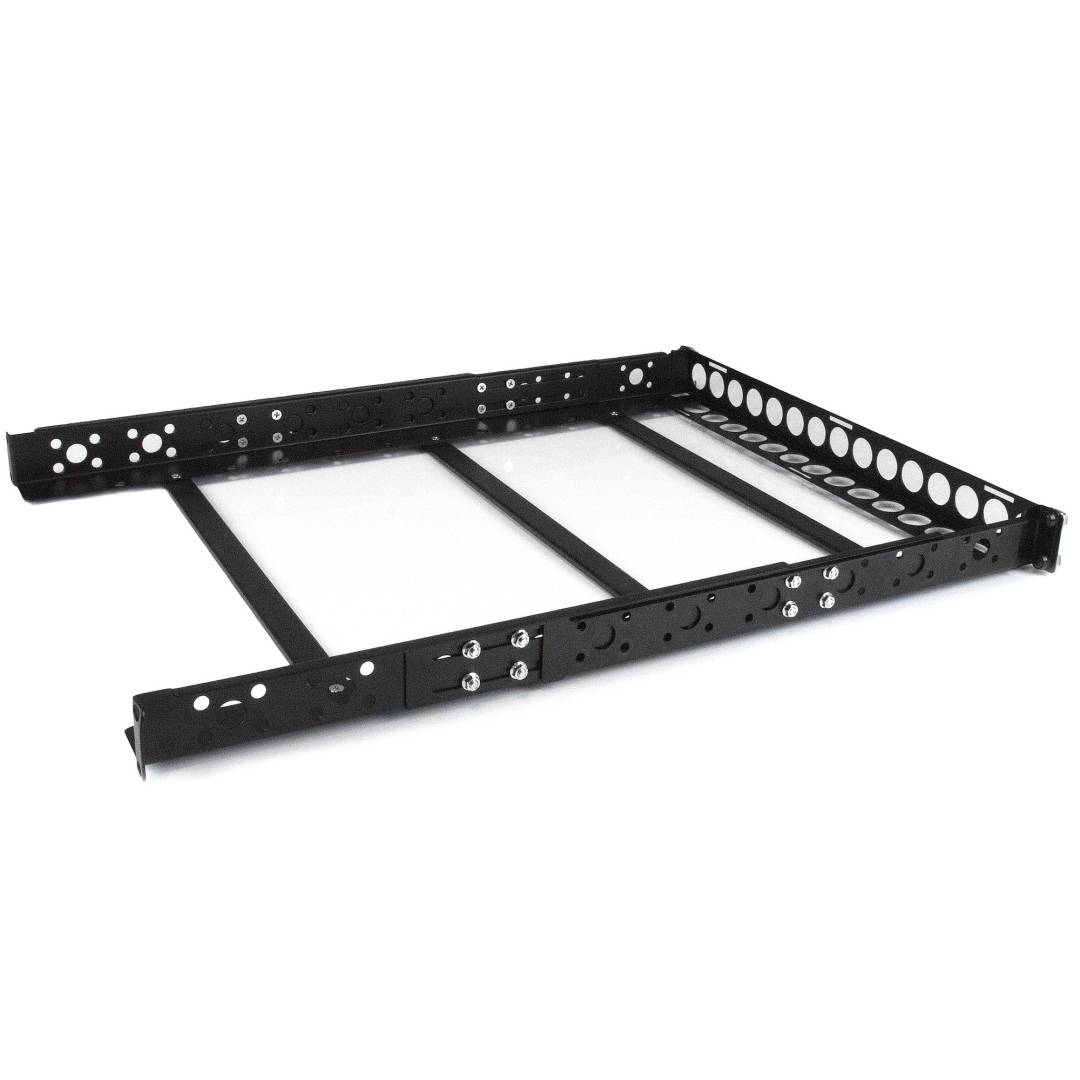

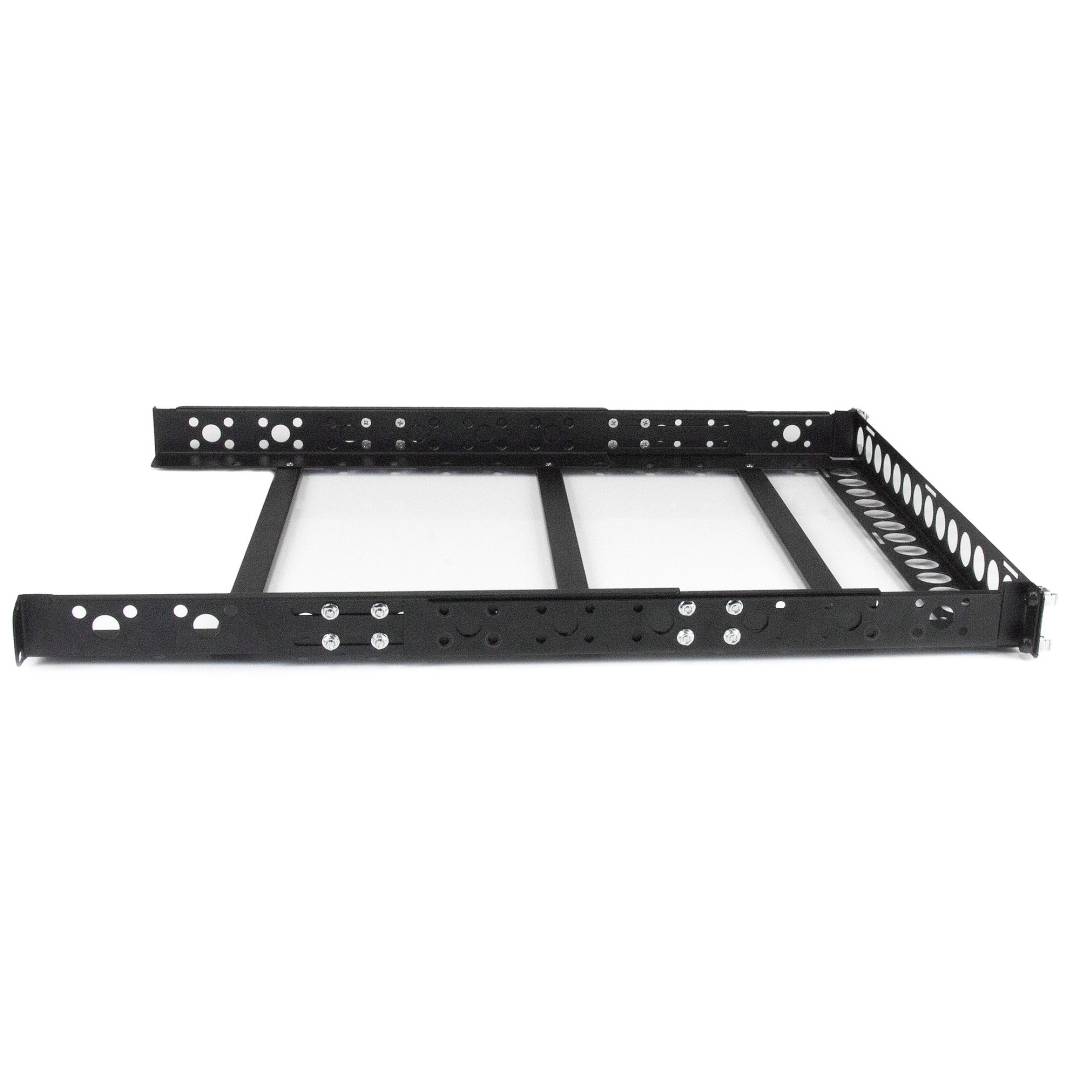

The StarTech.com UNIRAILS1U is a set of 1U universal rack rails with an adjustable mounting depth from 420 mm to 1.1 m and a 25 kg static load rating, for mounting servers, appliances or older OEM equipment whose original rail kit is missing or discontinued.
Instead of relying on a vendor-specific slide kit, the two L-shaped rails fix to the front and rear posts of a 19-inch rack and the equipment rests on them. StarTech states they suit non-rackmount equipment and discontinued OEM gear from brands such as Dell, IBM, HP and Apple. The rear section includes a removable panel for cable management.
Before you order: The rails need both front and rear posts at a spacing between 420 mm and 1.1 m, so they are for 4-post racks and cabinets, not 2-post relay racks.
What's in the Box
- 1 × set of universal rack rails (left and right)
- 8 × M5 panel screws
- 8 × M5 cage nuts
- 1 × M5 wrench
What It Means in Practice
- The device rests on the rails, so it slides in but is not on ball-bearing slides — you pull it out fully to service it.
- Measure your post-to-post depth before ordering: 420 mm minimum, 1.1 m maximum.
- 25 kg per 1U covers most 1U servers, firewalls and appliances.
- Secure the device front ears to the rack as well, where it has them.
What Will Not Work
- 2-post racks — there is no rear post to fix to.
- Loads above 25 kg.
- Rack depths under 420 mm (shallow wall cabinets).
- Tool-less or ball-bearing slide operation — these are static rails.
Key Features
Wide depth range
Adjusts from 420 mm to 1.1 m to fit most 4-post cabinets.
Universal fit
Replaces missing OEM rails on servers and appliances.
Cable management
Removable rear panel for routing cables.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Universal rails are the practical answer when a used or older server arrives without its rail kit. Measure post-to-post depth first, then check our rack accessories range for blanking panels to fill the gaps around it.
✓ Buy it if you need to mount a 1U device up to 25 kg in a 4-post rack and have no vendor rails.
✕ Skip it if you have a 2-post rack or need tool-less slide-out servicing.
→ Also consider a depth-adjustable 1U 4-point shelf such as EFB 691653TS.80 for heavier loads.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - StarTech.com - UNIRAILS1U
Colour
black
More Details
Product Code
V931772
EAN Code
0065030845526
Manufacturer
StarTech.com
