StarTech.com USB 3.0 Ethernet Adapter / USB 3.0 Network Adapter NIC with USB Port / USB to RJ45 / USB Passthrough (USB31000SPTB) / Network adapter / USB 3.0 / Gigabit Ethernet / black | USB31000SPTB
StarTech.com USB 3.0 Ethernet Adapter / USB 3.0 Network Adapter NIC with USB Port / USB to RJ45 / USB Passthrough (USB31000SPTB) / Network adapter / USB 3.0 / Gigabit Ethernet / black / for P/N: TB33A1C | USB31000SPTB
Description

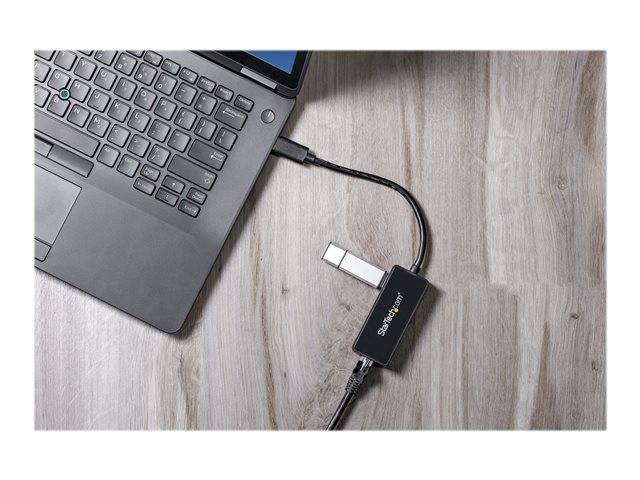

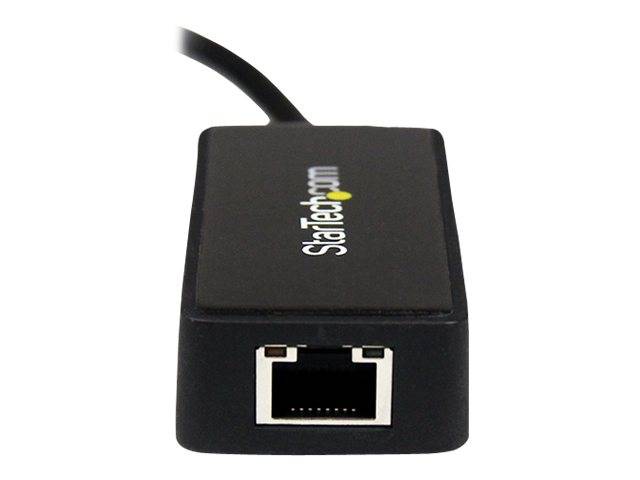

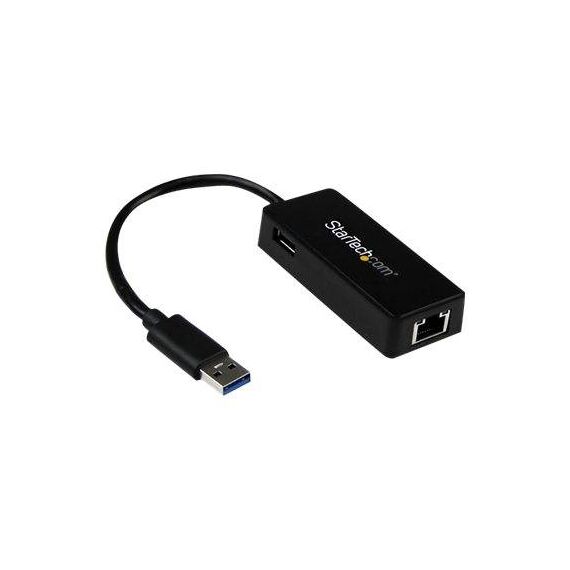

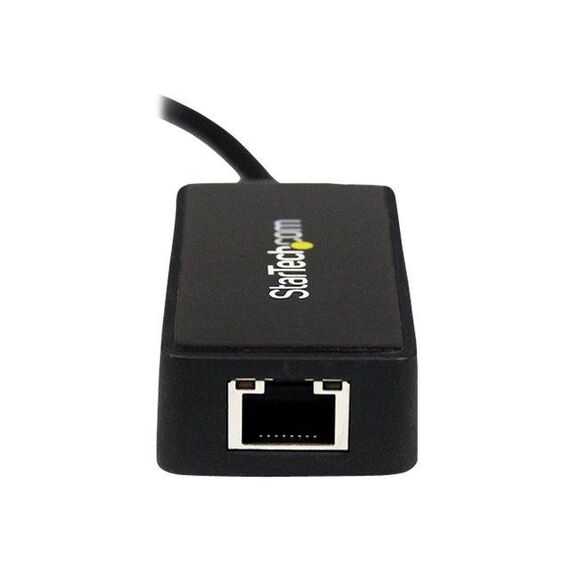

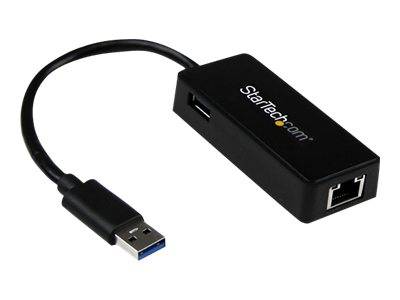

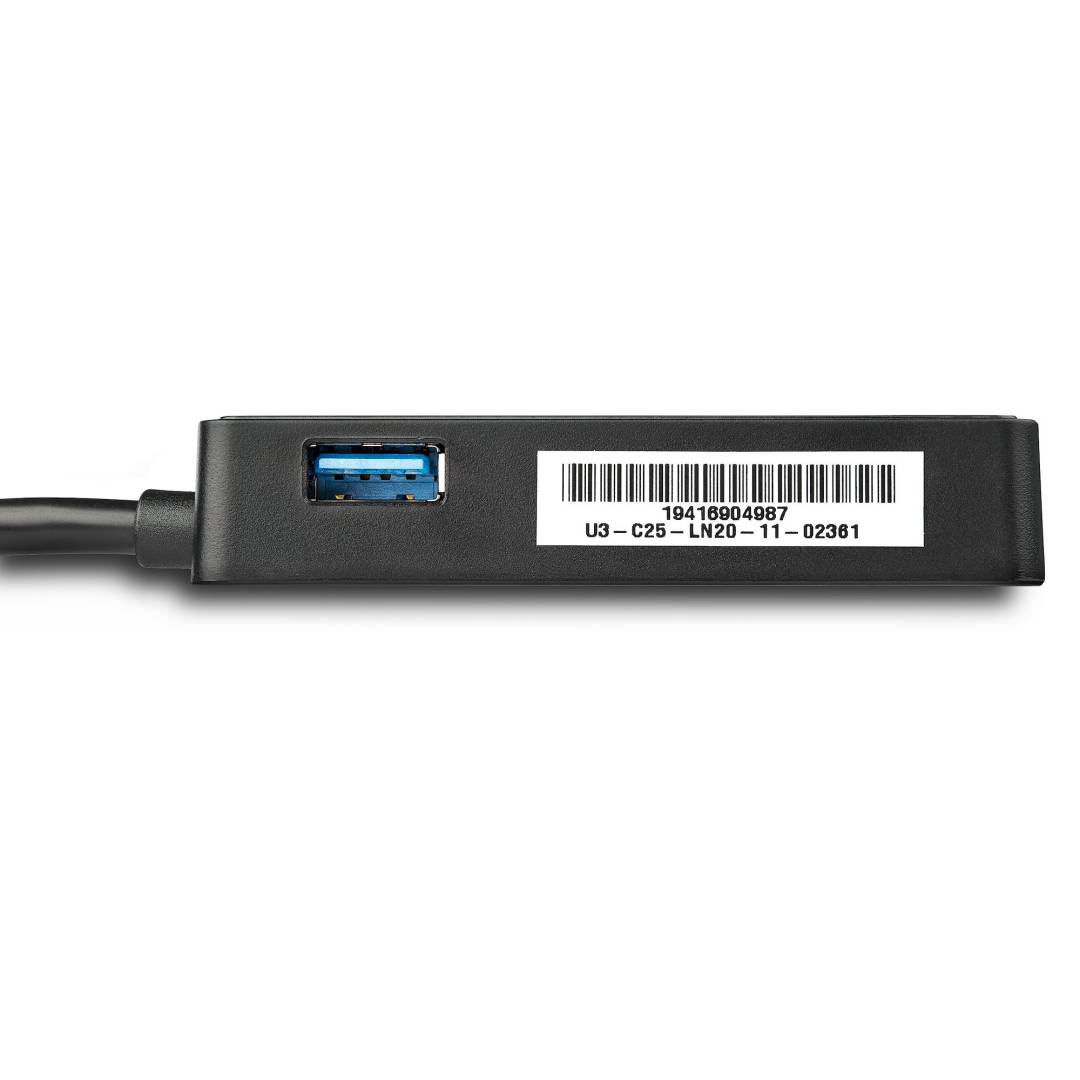

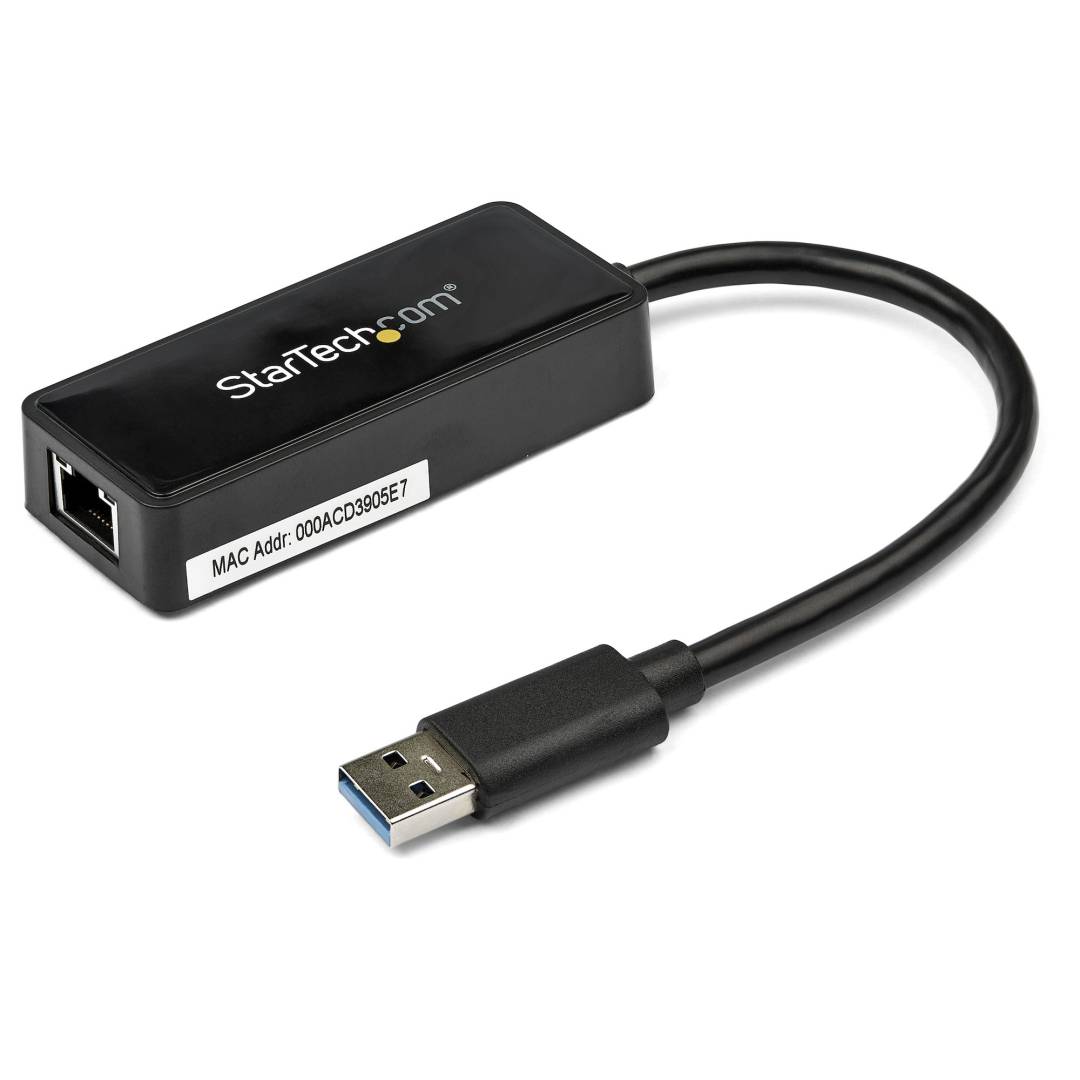

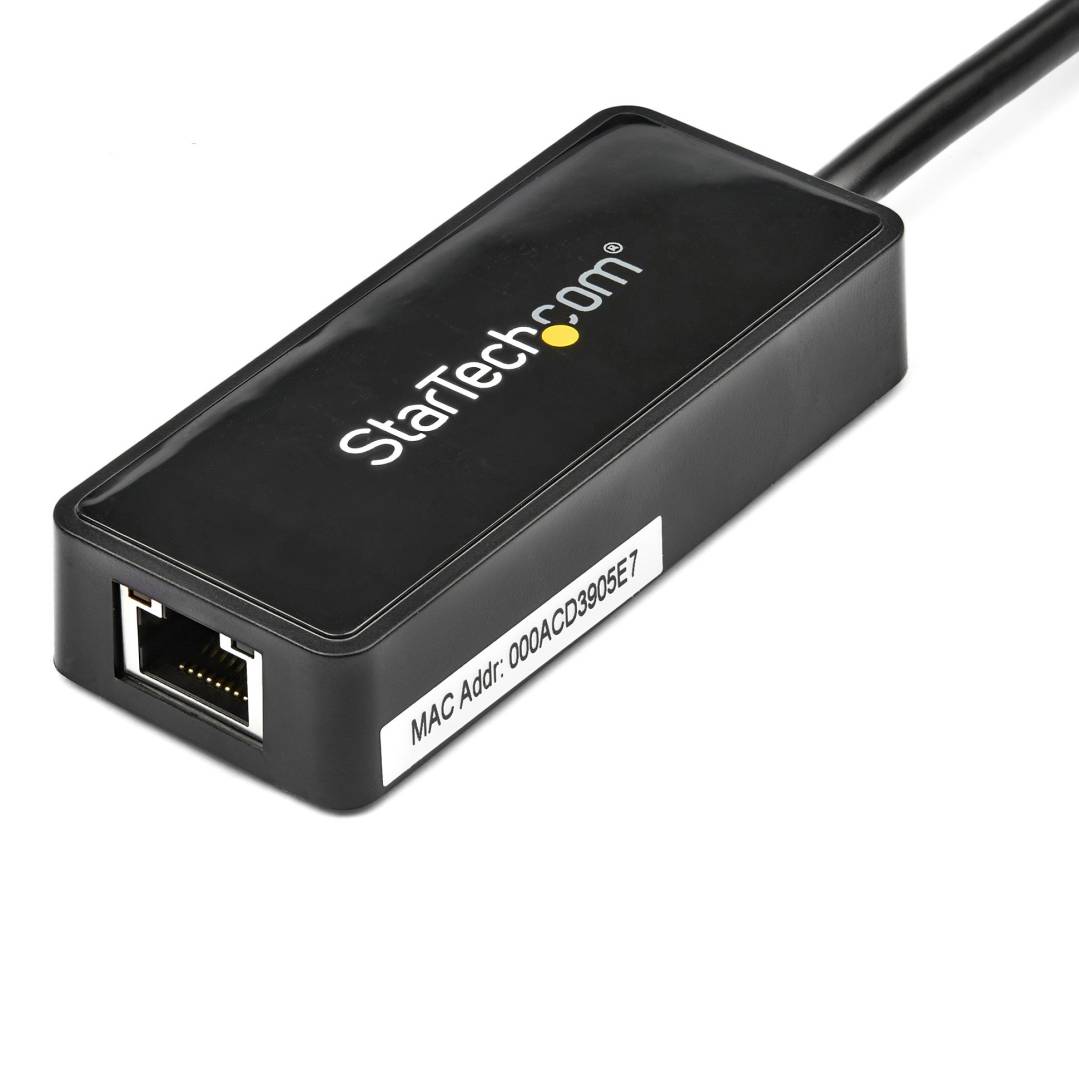

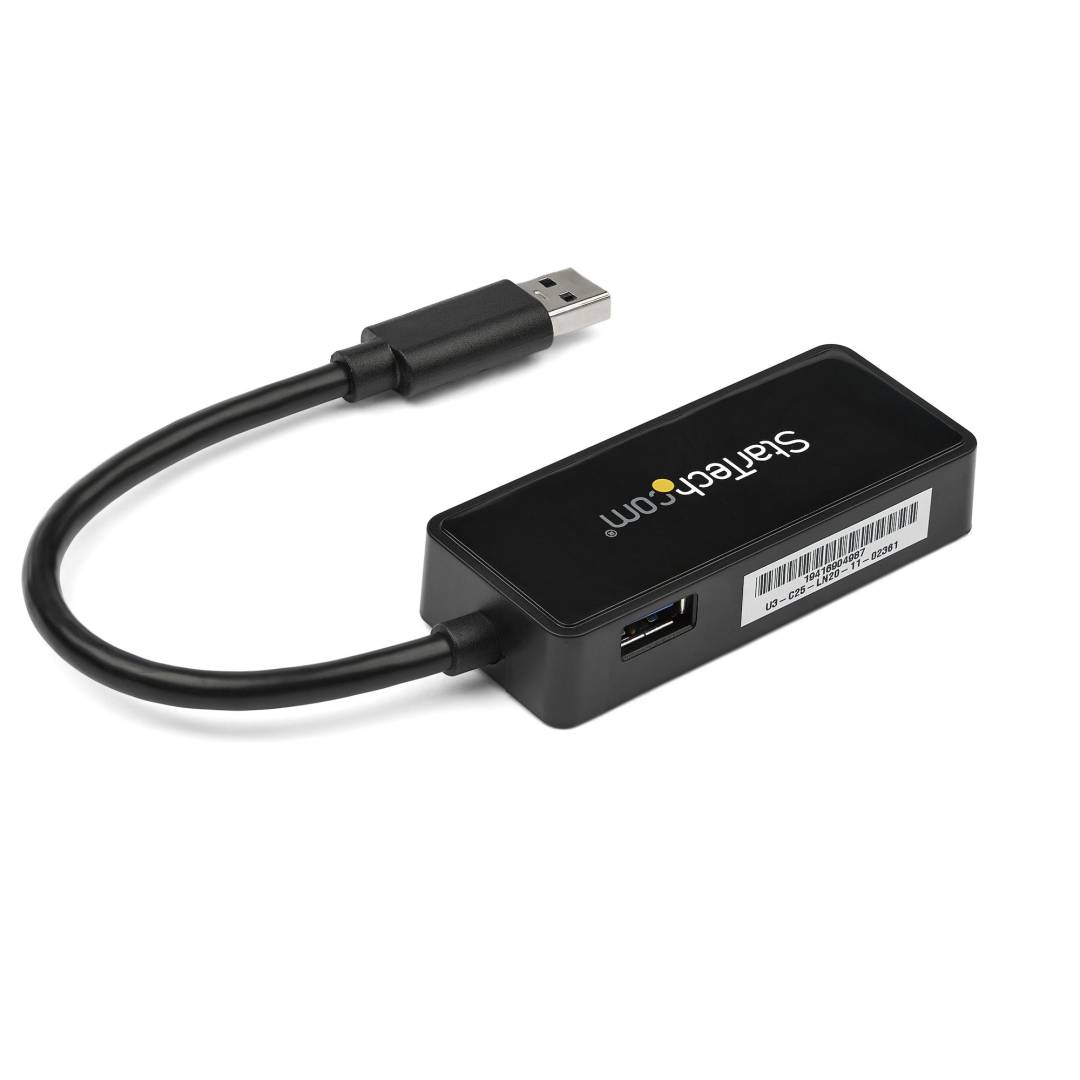

Add a Gigabit Ethernet port and a USB 3.0 pass-through port to your laptop through a single USB 3.0 port. The USB31000SPTB USB 3.0 to Gigabit Ethernet Adapter lets you add a Gigabit network port to your laptop or Ultrabook computer through a USB 3.0 port, and features an integrated USB 3.0 pass-through port that keeps your USB port available for use with other peripherals. The RJ45 port supports 10/100/1000 Mbps Ethernet and is fully compatible with IEEE 802.3i/u/ab standards. The network adapter is the ideal laptop accessory for your Microsoft Surface Pro 4, Surface Pro 3, Surface 3, Surface Pro 2 or Surface Book.An ideal replacement LAN adapter or laptop accessory, this compact USB 3.0 NIC leverages the 5 Gbps speed of USB 3.0 to provide full gigabit bandwidth and also offers backward compatibility with USB 2.0 systems (speed limited by USB bus).The adapter supports features such as IPv4/IPv6 packet Checksum Offload Engine (COE) and TCP large send offload to reduce the load on your CPU. Jumbo Frames, full-duplex operation with 802.3x flow control and VLAN tagging are also supported, making this an efficient and full-featured USB network adapter.
Product Specification
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | SuperSpeed USB 3.0 |
| Ports | Gigabit Ethernet |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |

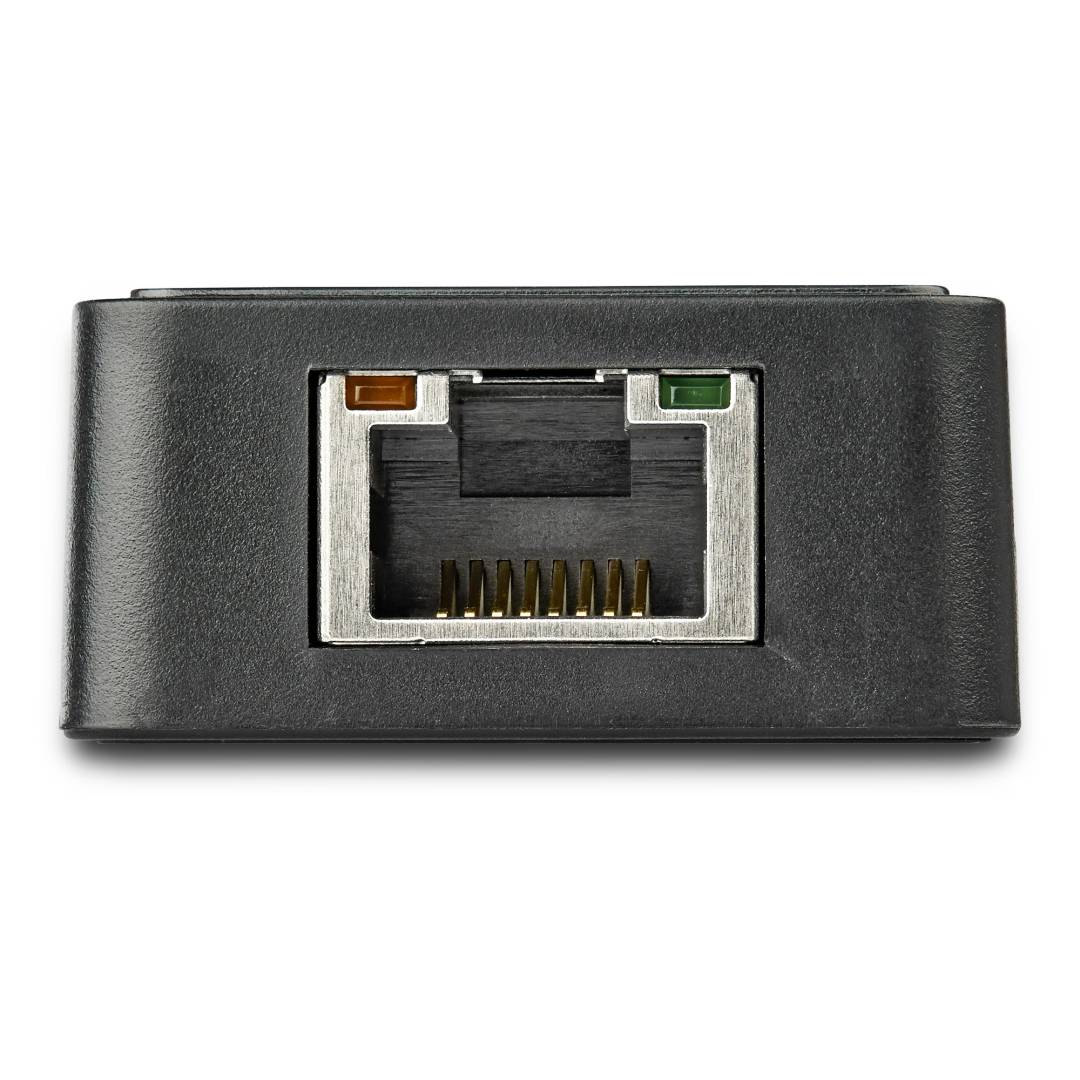

| Status Indicators | Port transmission speed, link/activity |
| Features | Flow control, full duplex capability, auto-uplink (auto MDI/MDI-X), USB powered, IPv4 and IPv6 Large Send Offload and Checksum Offload (LSO/TCO), Jumbo Frames support, VLAN Tagging (not supported in MacOS) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x |
| Processor | AX88179 - ASIX |

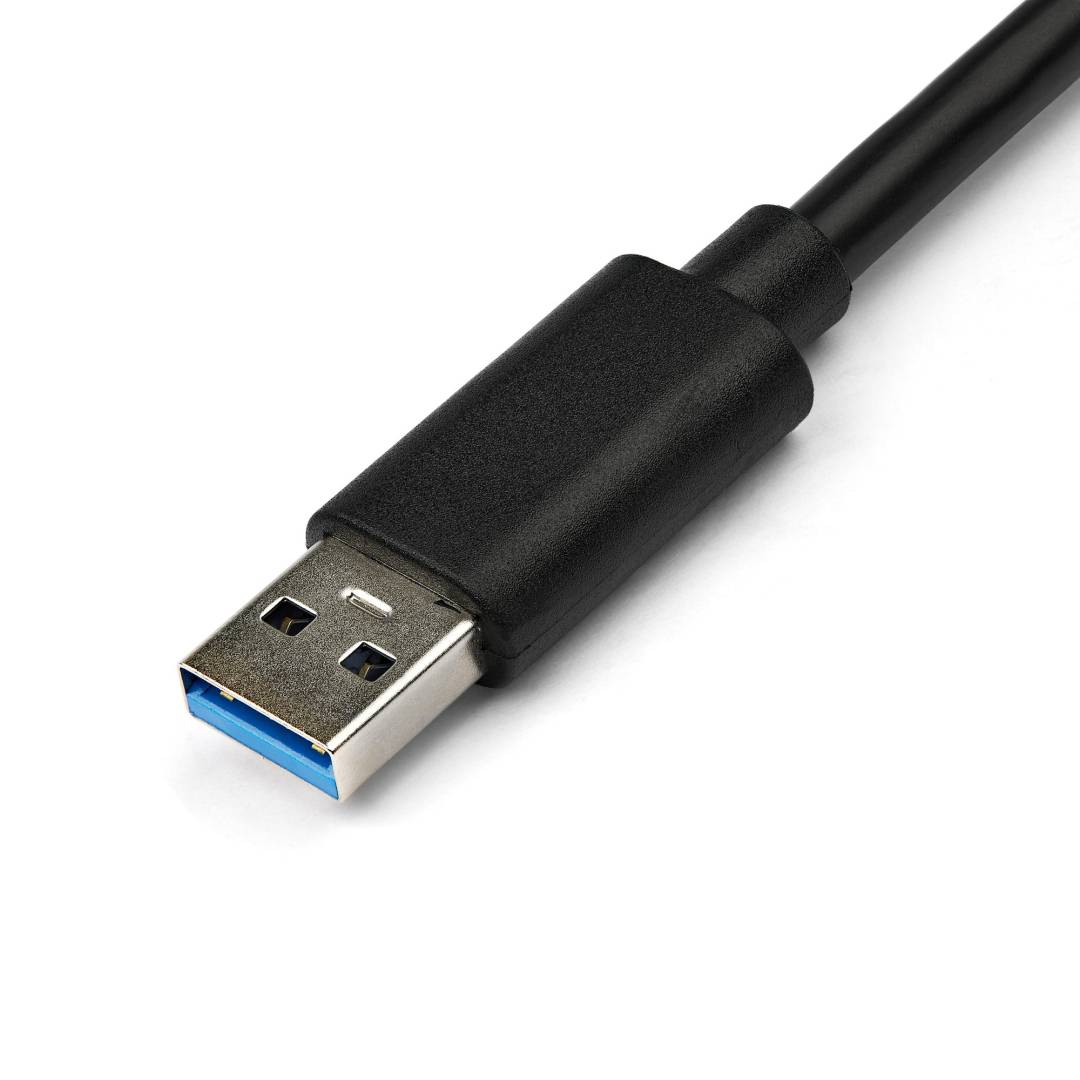

| Interfaces | 1 x 1000Base-T - RJ-45 - female ¦ 1 x USB 3.0 - 9 pin USB Type A - female |
| Cables Included | 1 x USB cable (integrated) - 15.24 cm |
| Compliant Standards | FCC, RoHS |
| Colour | Black |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Linux Kernel 2.6.25 - 4.11.x LTS versions, Google Chrome OS 55 or later, Microsoft Windows Server 2019, Apple MacOS X 10.6 - 10.14 |
| Width | 3.5 cm |
| Depth | 8.2 cm |
| Height | 1.7 cm |
| Weight | 50 g |
| Service & Support | Limited warranty - 2 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 85% |
| Designed For | P/N: TB33A1C |
