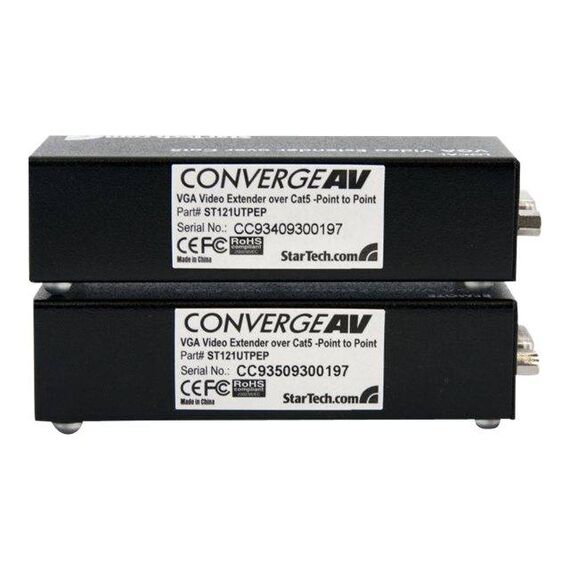

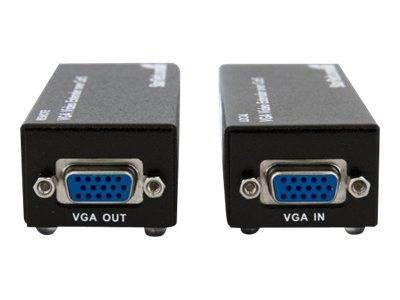

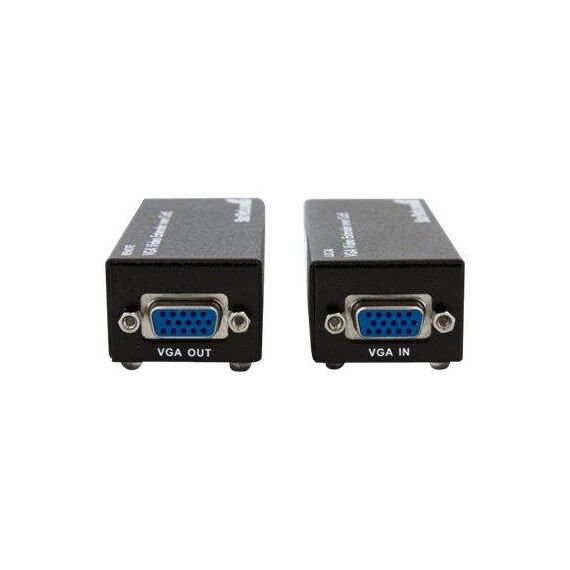

StarTech.com VGA Over CAT5 Extender 250 ft (80m) 1 Local and 1 Remote Unit / VGA Video Over Ethernet Extender Kit (ST121UTPEP) / Video extender / up to 80m | ST121UTPEP
StarTech.com VGA Over CAT5 Extender 250 ft (80m) 1 Local and 1 Remote Unit / VGA Video Over Ethernet Extender Kit (ST121UTPEP) / Video extender / up to 80 m / for P/N: SVA12M2NEUA, SVA12M5NA | ST121UTPEP
Description

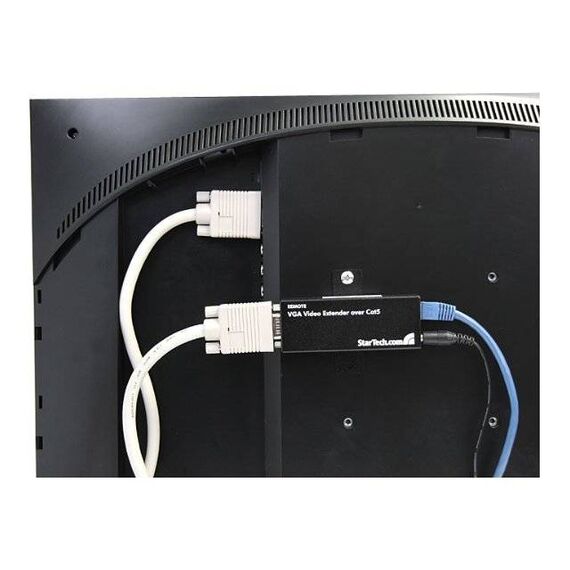

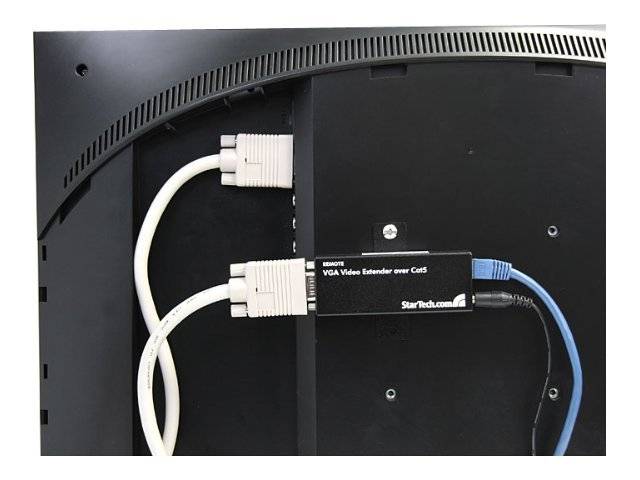

Extend a VGA signal to a remote display using Cat5 cabling. The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5 or better UTP cable, terminated with RJ45 connectors).Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application.To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles.
Product Specification
| Device Type | Video extender |
| Form Factor | External |
| Colour | Black |
| Connectivity Technology | Wired |
| Max Resolution | 1920 x 1200 |
| Max Transfer Distance | 80 m |
| Interfaces | 1 x VGA - HD-15 |
| Cables Included | 1 x VGA cable |
| Compliant Standards | FCC, RoHS |
| Power Device | External power adapter |
| Width | 10 cm |
| Depth | 13.8 cm |
| Height | 2.5 cm |
| Weight | 36 g |
| Service & Support | Limited warranty - 2 years |
| Designed For | P/N: SVA12M2NEUA, SVA12M5NA |
