Techly IDATA-HDMI-4K4 HDMI 1.4 Splitter 1x4 4K 30Hz with Cascading and 3D Black

Brand:
Techly
techly 1 x 4 HDMI Splitter 4K x 2K Videoaudio IDATAHDMI4K4
Techly IDATA-HDMI-4K4 HDMI 1.4 Splitter 1x4 4K 30Hz with Cascading and 3D Black
€108.44 inc. VAT
Buy
IDATA-HDMI-4K4
€91.13
€108.44 inc. VAT
Ships from EU stock: 8 item(s)
+ −
Add to wish list Ask a question
Product Code
04:260025
EAN Code
8057685306653
Manufacturer
Techly
Quick Specs
Type
1x4 HDMI splitter
Connectors
1x HDMI in · 4x HDMI out
Key spec
4K 30Hz · 1080p 60Hz · 10.2 Gbps
Compatibility
HDMI 1.4 · 3D · CEC
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

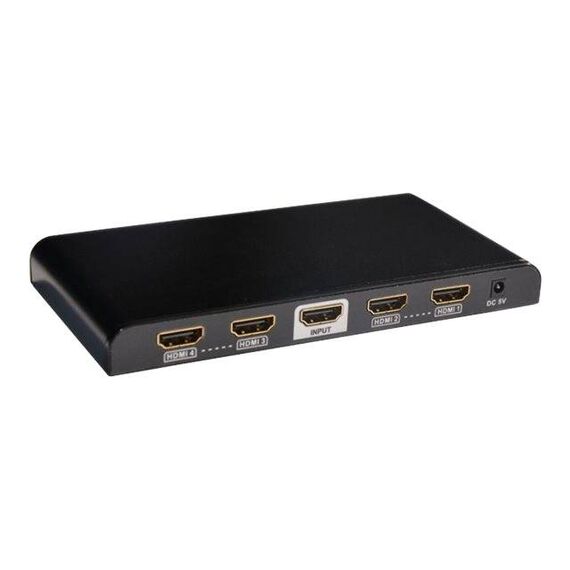

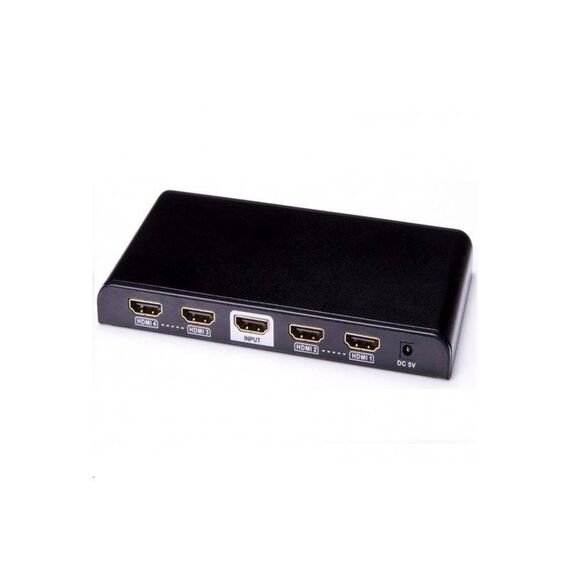

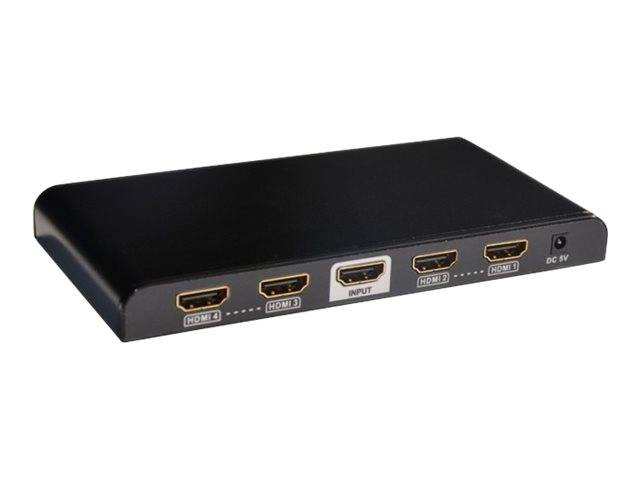

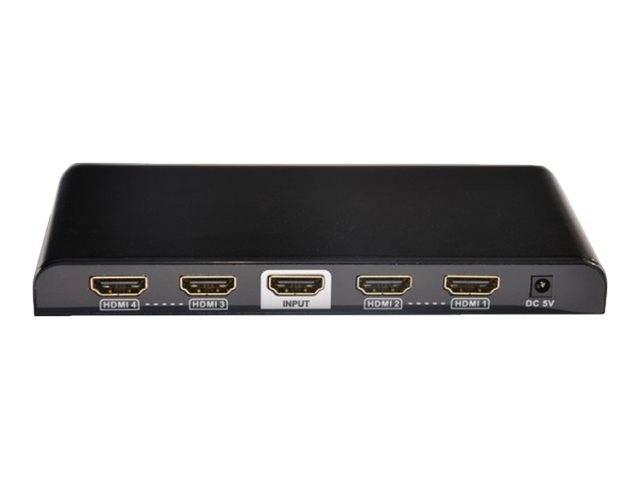

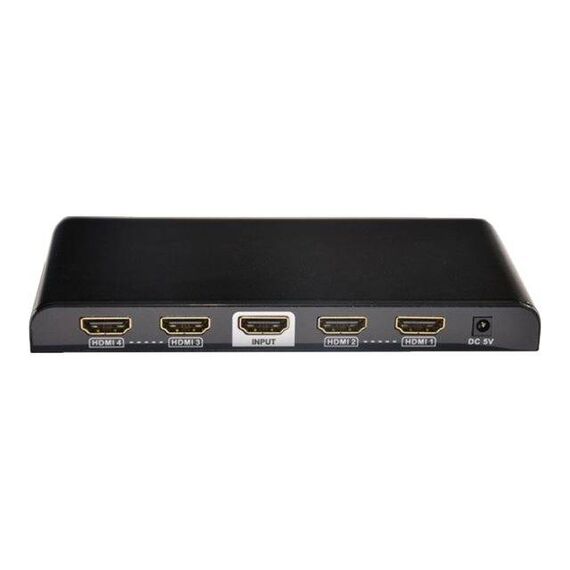

Techly IDATA-HDMI-4K4 HDMI Splitter, 1 In 4 Out, 4K x 2K

4K 30Hz1 in · 4 out3D · CECCascadable

The Techly IDATA-HDMI-4K4 is a 1x4 HDMI 1.4 splitter that shows the same picture from one source on four displays at up to 3840 x 2160 (4K at 30 Hz) or Full HD at 60 Hz. It is aimed at shop windows, waiting rooms and classrooms fed from a Blu-ray player, set-top box, media player or PC.

The splitter passes practically every HDMI audio format, including Dolby TrueHD and DTS-HD Master Audio, supports 3D and CEC, and can be cascaded for more screens. Its metal housing is powered by the included 5V/1A adapter.

Compatibility note: As an HDMI 1.4 device with 10.2 Gbps bandwidth, the IDATA-HDMI-4K4 carries 4K at up to 30 Hz only — 4K 60Hz and HDR are not supported. HDCP 2.2-protected 4K streaming sources may therefore not display.

Key Features


Four identical outputs
One HDMI input is duplicated to four HDMI outputs simultaneously, ideal for signage and multi-screen presentations where every display shows the same content.

Full HD audio pass-through
LPCM, Dolby AC3, DTS 7.1, DSD, Dolby TrueHD and DTS-HD Master Audio pass through to the displays or connected AV equipment unchanged.

Long runs and cascading
Techly specifies up to 30 m from the source to the splitter and up to 25 m from the splitter to each monitor, and several units can be cascaded for larger installations.

Technical Specifications

Identification
Part Number IDATA HDMI-4K4 (IDATA-HDMI-4K4)
EAN / GTIN 8057685306653
MPN IDATA HDMI-4K4 (supplier code 306653)
Brand Techly
Video & Signal
HDMI standard HDMI 1.4
Max resolution 3840 x 2160 (4K x 2K) — 30 Hz maximum at 10.2 Gbps; 1080p at 50/60 Hz
Bandwidth 10.2 Gbps
3D Yes — 1080p/24 Hz, 720p/50 Hz and 720p/60 Hz 3D
Colour Deep Color 30/36-bit, xvYCC
HDCP HDCP 1.x — Techly lists 1.2 on the product page and 1.3 in the datasheet; no HDCP 2.2
CEC Supported
Audio
Formats LPCM, Dolby AC3, DTS 7.1, DSD, Dolby TrueHD, DTS-HD Master Audio
Ports & Distance
Input 1 x HDMI Type A female
Outputs 4 x HDMI Type A female
Distance Up to 30 m source to splitter, up to 25 m splitter to display
Cascading Supported
Physical & Power
Housing Metal, black
Dimensions 156 x 79 x 17 mm
Weight 205 g (0.411 kg packed)
Power supply 5V / 1A adapter (included)
Operating temperature -10 °C to 55 °C
Compliance & Package
Certifications CE, FCC, RoHS, WEEE
In the box 4-way HDMI splitter, 5V/1A power supply, instruction manual

Frequently Asked Questions

Can the Techly IDATA-HDMI-4K4 play 4K Netflix or 4K Blu-ray?
Only in limited cases. The splitter supports 4K at 30 Hz and HDCP 1.x, while most 4K streaming apps and UHD Blu-ray players require HDCP 2.2 and 4K 60Hz, so those sources may fall back to Full HD or show no picture. For such sources choose an HDMI 2.0 splitter.
Is the IDATA-HDMI-4K4 good for Full HD signage?
Yes. It passes 1080p at 60 Hz to four screens with long cable runs, which makes it a cost-effective choice for menu boards, shop windows and waiting-room displays.
What is the difference between the IDATA-HDMI-4K4 and the IDATA HDMI2-4K4?
Both are Techly 1x4 splitters. The IDATA-HDMI-4K4 is HDMI 1.4 (4K 30Hz, 10.2 Gbps), while the IDATA HDMI2-4K4 is the HDMI 2.0 version for 4K 60Hz sources.
Singular Expert Insight
The Techly IDATA-HDMI-4K4 makes sense for Full HD signage and legacy sources where four long cable runs matter more than 4K refresh rate. For 4K 60Hz, HDR or HDCP 2.2 content, step up to an HDMI 2.0 splitter such as the Equip 332717 or Club 3D CSV-1380. Compare them in our video splitters range.
✓ Buy it if you split Full HD or 4K 30Hz content to four screens and need long cable runs or cascading.
✕ Skip it if you need 4K 60Hz, HDR or HDCP 2.2 streaming sources.
→ Also consider Equip 332717 or Club 3D CSV-1380 for HDMI 2.0 4K 60Hz.

Features - Techly - IDATA-HDMI-4K4

Colour
black
More Details
Product Code
04:260025
EAN Code
8057685306653
Manufacturer
Techly
Technical specifications
Resolution
4K (UHD)
