iiyama ProLite TF1734MC-B8X 17-inch Open-Frame Touch Monitor

Brand:
Iiyama

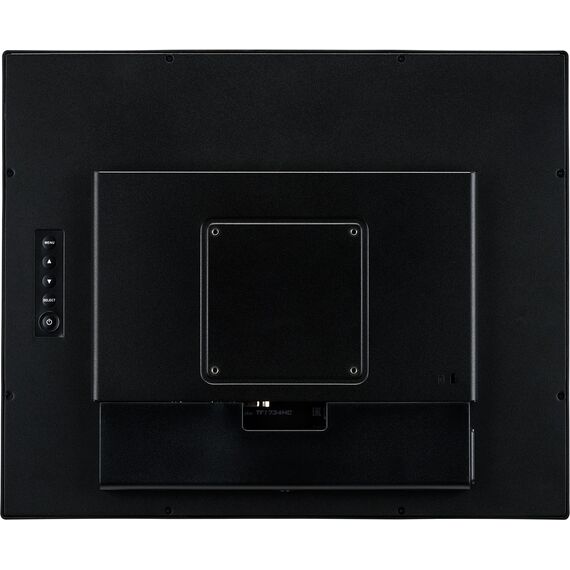

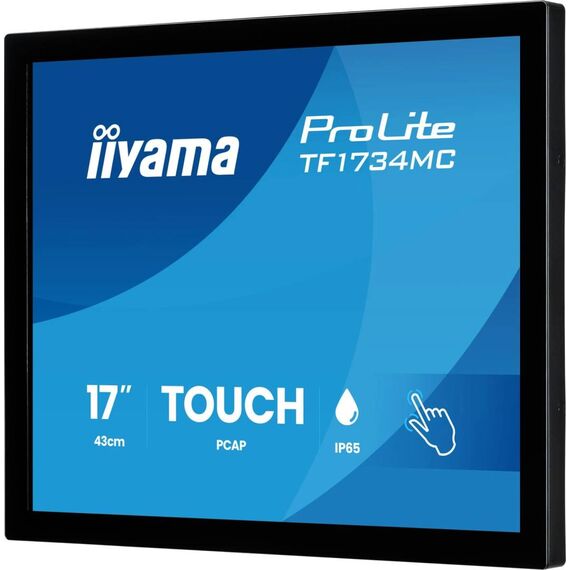

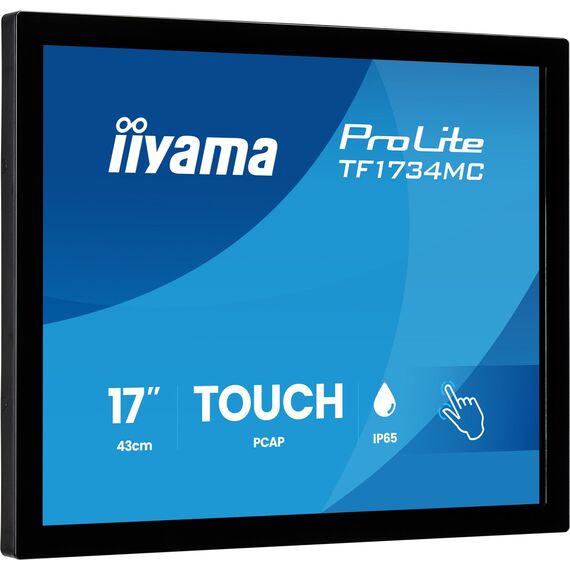

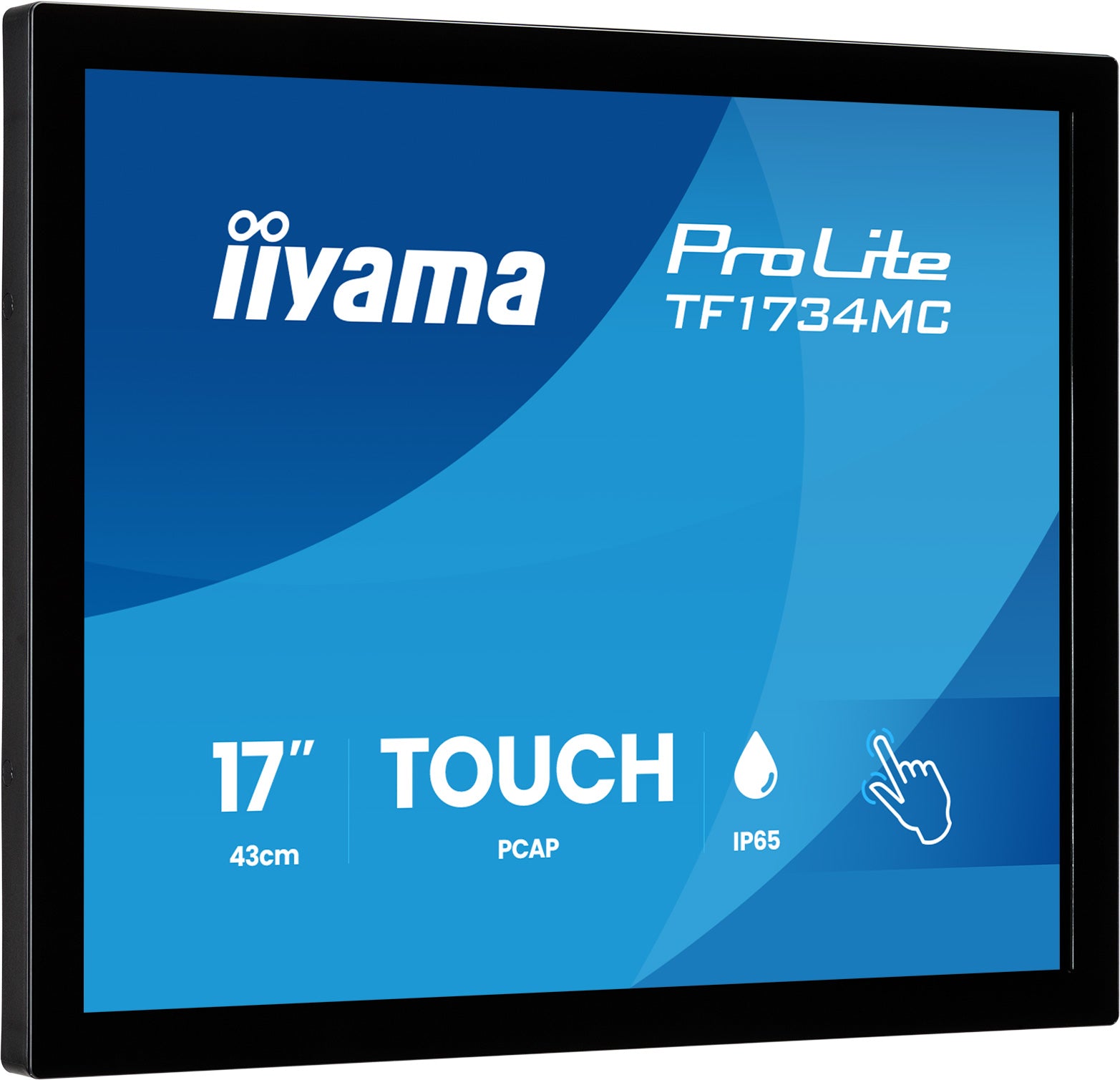

Black iiyama ProLite TF1734MC-B8X 17-inch open-frame touchscreen, angled front and rear VESA views without optional brackets
iiyama ProLite TF1734MC-B8X 17-inch Open-Frame Touch Monitor
€697.65 inc. VAT
Buy
TF1734MC-B8X
€586.26
€697.65 inc. VAT
Ships from EU stock: 11 item(s)
+ −
Add to wish list Ask a question
Product Code
CS06619
EAN Code
4948570127818
Manufacturer
Iiyama
Intended Use
Touchscreen
Quick Specs
Panel
17 TN /1280×1024
Touch
10-point PCAP /USB
Video
HDMI +DP +VGA
Integration
Open frame /front IP65
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

17-inch touch integration behind edge-to-edge glass

17-inch TN /1280×102410-point PCAP /USBFront-only IP65Through-glass up to6mm

The black iiyama ProLite TF1734MC-B8X is an open-frame touch monitor for integration into kiosks, retail equipment and custom interactive installations. A17-inch5:4 TN panel provides1280×1024 at up to75Hz. Projected-capacitive touch and an anti-fingerprint glass surface support frequent interaction, while HDMI, DisplayPort and VGA connect to a separate host.

Best For: Integrators building compact kiosks, retail interfaces and custom equipment around a17-inch5:4 touch display.
Before you order: This open-frame monitor needs a suitable enclosure, mount and separate computer; a desktop stand is not supplied. Connect USB as well as video for touch. IP65 applies only to the front face. Check host OS/app support, ventilation and the mounting drawing before integration. Optional external brackets are separate.

What's in the Box

  • TF1734MC-B8X open-frame monitor with cable cover and cover screw.
  • Supplied external AC adapter, power, USB, HDMI and DisplayPort cables; manufacturer lists1.8m cables.
  • Quick start and safety guides. Computer, desktop stand, mounting kit, VGA cable and stylus are not listed as supplied.

What It Means in Practice

  • Use HDMI or DisplayPort for digital video, or VGA for a compatible analogue host; add USB for touch data.
  • Test the intended gestures with the host OS and application. Up to10 touch points require supported software.
  • For a protective glass overlay up to6mm, configure the monitor touch-through-glass setting and validate the actual glass and installation.
  • Use a suitable VESA100×100mm mount or optional open-frame brackets. Follow the drawing and manual screw requirements rather than choosing screws by appearance.
  • Provide cooling and cable clearance inside the enclosure. Front protection does not protect rear connections or replace a properly designed installation.

What Will Not Work

  • A17-inch TN5:4 display, not IPS, Full HD or a complete kiosk computer.
  • IP65 is front-only;the rear and connectors are not a sealed waterproof enclosure.
  • Through-glass touch needs compatible material, settings and testing;it is not a universal guarantee for every overlay.
  • The manual does not specify unrestricted24/7 use in every environment.

Key Features


Integration format
An open-frame body and VESA100×100mm support custom equipment designs;external mounting brackets are optional.

Responsive touch surface
PCAP supports up to10 points, palm rejection and finger, suitable stylus or latex-glove operation with supported software.

Protective front
Edge-to-edge3mm glass, anti-fingerprint treatment and front-only IP65 suit properly designed commercial installations.

Host flexibility
HDMI,DisplayPort and VGA video plus a separate USB touch connection support modern and legacy host equipment.

Technical Specifications

Exact model /EAN TF1734MC-B8X /4948570127818
Panel /format 17-inch43cm TN /5:4
Resolution /maximum timing 1280×1024 /75Hz
Touch Projected capacitive,up to10 points with supported OS;USB interface
Glass /through-glass 3mm anti-fingerprint surface /overlay up to6mm with appropriate setup
Touch accuracy /palm rejection ±2mm /supported
Brightness 300cd/m² typical with touch,240cd/m² default;350cd/m² panel without touch
Contrast /response 1000:1 /5ms black-white-black typical
Viewing angles /colours 170°horizontal,160°vertical /16.7million
Video inputs 1×HDMI,1×DisplayPort,1×VGA
Front protection IP65,front face only
Installation orientation Landscape,portrait and face-up per manual
Mounting VESA100×100mm;open-frame brackets optional
Dimensions /net weight 369×307×47.5mm /3.6kg excluding AC adapter
Power supply External12VDC;supplied adapter inputAC100–240V50/60Hz
Power use 13W typical,1.5W standby maximum,0.3W off maximum
Operating environment 0–40°C,20–80%RH non-condensing
Condition New

Frequently Asked Questions

Does it include a desktop stand?
No stand is listed. This is an open-frame display requiring a suitable installation and mounting hardware.
Is the panel IPS?
No. The exact17-inch TF1734MC-B8X uses TN technology. Other sizes in the family differ.
Is it completely waterproof?
No. IP65 applies only to the front face,not the complete enclosure or rear connectors.
Can touch work behind a glass cover?
The manufacturer specifies touch through glass up to6mm. Configure the relevant touch setting and test the intended overlay and host.
Does HDMI carry touch input?
No. A separate USB connection is required alongside the video cable.
Singular Expert Insight

The main buying decision is integration, not just diagonal size. Check the369×307×47.5mm body, VESA points, enclosure ventilation and rear connector access against the design. Test the touch application and any protective overlay before committing to an enclosure or rolling out multiple units.

Buyer’s Guide

✓ Buy it if You need a compact17-inch PCAP open-frame display for a properly designed commercial installation.
✕ Skip it if You need a ready-to-use desktop stand, IPS widescreen, an integrated computer or full-enclosure waterproofing.
→ Also consider Mount and enclosure design, cooling, glass overlay, OS support, USB routing and front-only protection.
