Thrustmaster Raceline LC Upgrade Load Cell Brake Pedal Kit for Raceline Pedals LTE III Black

Brand: Thrustmaster
Thrustmaster Raceline LC Upgrade Load Cell Pedal Kit
Thrustmaster Raceline LC Upgrade Load Cell Brake Pedal Kit for Raceline Pedals LTE III Black
€221.08 inc. VAT
Buy
4060385
€185.78
€221.08 inc. VAT
Ships from EU stock: 183 item(s)
+ −
Add to wish list Ask a question
Product Code04:536046 EAN Code3362934004620 ManufacturerThrustmaster
Quick Specs
SENSOR
Load Cell — 24-bit resolution
Up to 220 lb / 100 kg capacity · 11° travel
PRESSURE
4 configs: 55–220 lb / 25–100 kg
Preload dial ±11 lb / 5 kg increments
COMPATIBLE WITH
Raceline Pedals LTE + III
Upgrade kit only — not a standalone set
PLATFORM
PC · PS5 · PS4 · Xbox
Works with all TM FF wheel bases (excl. T500)
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Thrustmaster Raceline LC Upgrade · EAN 3362934004620

Precision Under Pressure. Load Cell Braking for Your Raceline Pedals.

Upgrade your Raceline Pedals LTE or III with a high-sensitivity Load Cell brake pedal — 24-bit resolution, up to 220 lb / 100 kg capacity, and 4 pressure configurations for any driving style.

SENSOR
Load Cell 24-bit
MAX CAPACITY
220 lb / 100 kg
PRESSURE CONFIGS
4 (no tools)

The Thrustmaster Raceline LC Upgrade (part number 4060385, EAN 3362934004620) is a complete Load Cell brake pedal upgrade kit for the Raceline Pedals LTE and Raceline Pedals III pedal sets — turning a 2-pedal configuration into a full 3-pedal Raceline Pedals III LC setup. The Load Cell sensor measures the pressure applied to the pedal rather than the pedal's travel, delivering more realistic and consistent braking with 24-bit resolution and up to 220 lb / 100 kg capacity. Compatible with PC (Windows 10/11), PS5, PS4, and Xbox consoles. Available now from singular.com.cy with fast delivery across Cyprus.

⚠ Upgrade Kit — Not a Standalone Pedal Set: The Raceline LC Upgrade requires an existing Raceline Pedals LTE or Raceline Pedals III to function. It is not compatible with older Thrustmaster pedal sets (T3PA, T-LCM, TTRP, or similar). On consoles, it requires a Thrustmaster Force Feedback racing wheel base (T500 excluded).

Key Features

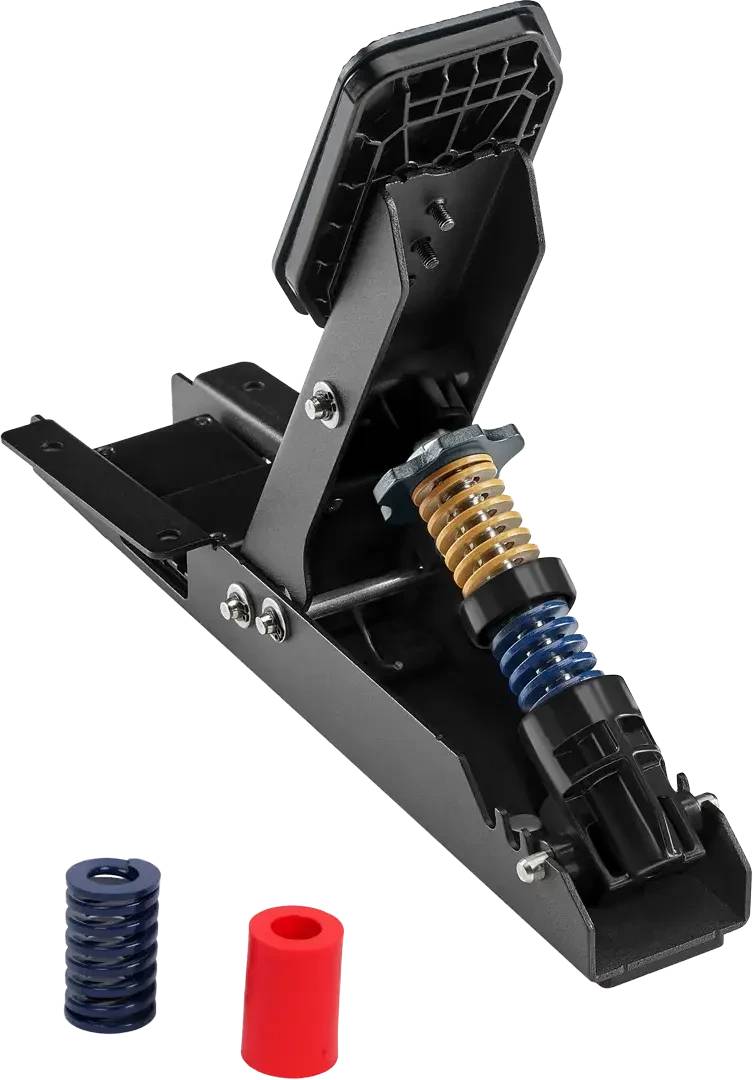

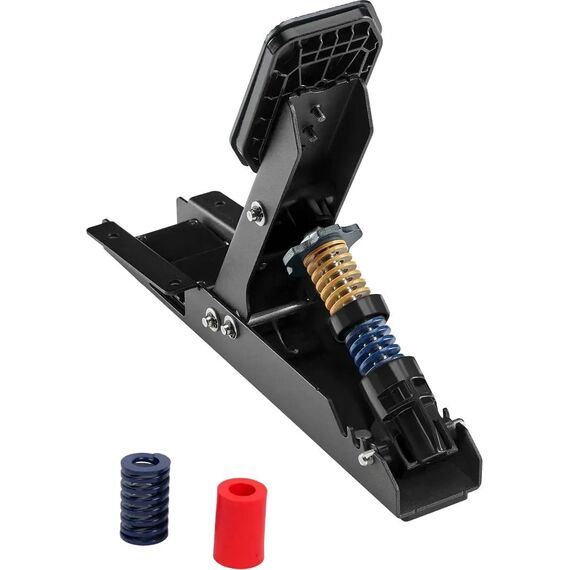

Load Cell Precision Braking
A Load Cell sensor measures the pressure applied to the pedal — not its travel distance. Unlike potentiometers, it responds to muscle memory rather than foot position, delivering more consistent and realistic braking. The 24-bit resolution transmits every gram of pressure over an 11° travel angle.

4 Adjustable Pressure Configurations
Adjust the maximum braking force from 55 to 220 lb (25 to 100 kg) across 4 configurations — no tools required, just swap springs and the elastomer buffer. The preload dial lets you fine-tune in increments of ±11 lb / 5 kg to perfectly match your driving style or cockpit setup.

EQUALIZER & Advanced Software Settings
Via the My Thrustmaster Panel (PC) or the T598 Race Dash screen, unlock pedal travel adjustment, dead zones, and fully customisable response curves with the EQUALIZER. Tune brake sensitivity for trail braking, threshold braking, or heavy simulations.

Technical Specifications

Identification
Part Number 4060385
EAN / GTIN 3362934004620
MPN 4060385
Load Cell Sensor
Sensor Type Load Cell — measures pressure applied, not pedal travel
Capacity Up to 220 lb / 100 kg
Resolution 24-bit — captures every gram of pressure variation
Travel Angle 11°
Pressure Adjustment
Configurations 4 presets: 55 / 110 / 165 / 220 lb (25 / 50 / 75 / 100 kg) — no tools needed
Preload Fine-Tuning Preload dial — ±11 lb / 5 kg increments
Springs Included 3 springs + 1 elastomer buffer (for all 4 configs)
Software
EQUALIZER Pedal travel, dead zones, response curve customisation
PC Software My Thrustmaster Panel — free, Windows 10/11
Console Settings Via T598 Race Dash screen (when used with T598)
Box Contents

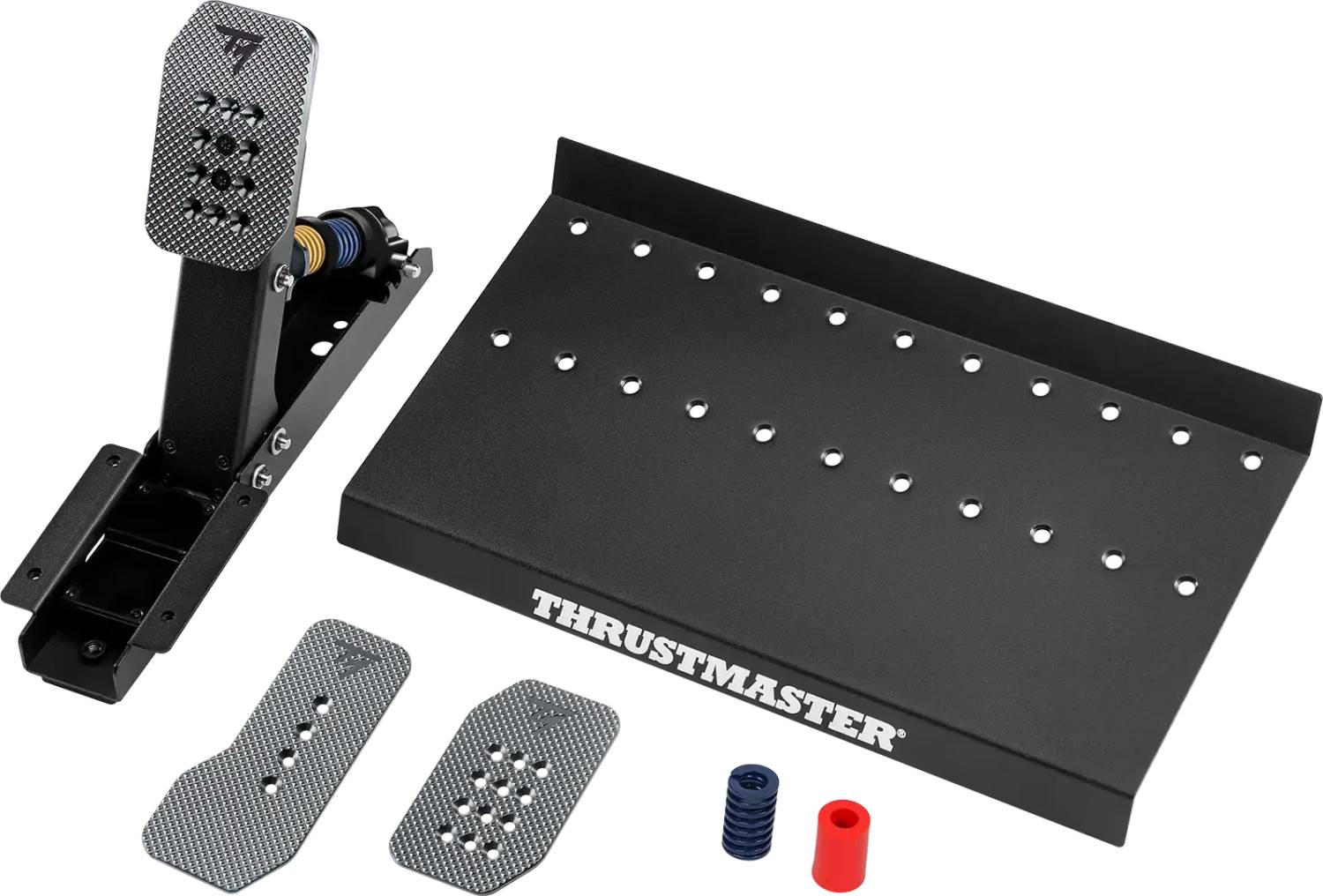

Included 1× Load Cell brake pedal LC, 1× carpet grip, 1× metal top plate (3 pedals), 1× gas metal pedal head, 1× clutch metal pedal head, 1× clutch spring, 2× 2.5mm–3.5mm jack cables, 1× RJ45 cable, 1× triple 3.5mm–RJ12 cable, 1× USB-C pedal cable, 1× Torx wrench
Physical
Weight 5.1 lb / 2,320 g
Dimensions 350 × 360 × 210 mm (W × D × H)
Colour Anthracite / Black (metal construction)
Compatibility
Compatible Pedal Sets Raceline Pedals LTE, Raceline Pedals III — upgrade kit only, not standalone
Console Wheel Bases All Thrustmaster Force Feedback bases — T500 excluded
PC Connection USB (Windows 10/11) — compatible with all Thrustmaster bases
Platforms PC, PlayStation 5, PlayStation 4, Xbox Series X|S, Xbox One
Not Compatible T3PA, T-LCM, TTRP, or non-Raceline pedal sets
Availability Typically in stock with fast delivery across Cyprus.

Frequently Asked Questions

Can the Raceline LC Upgrade be used as a standalone pedal set?
No. The Raceline LC Upgrade is an upgrade kit that requires an existing Raceline Pedals LTE or Raceline Pedals III set. It cannot function on its own. If you need a complete 3-pedal set with Load Cell already included, see the Thrustmaster Raceline Pedals III LC.
What is the difference between a Load Cell and a potentiometer brake pedal?
A potentiometer brake measures how far you push the pedal (travel/position). A Load Cell measures how hard you push (force/pressure). Load Cell braking is more realistic because real car brakes respond to pressure, not pedal travel. It also promotes muscle memory — your foot learns how hard to push rather than where to stop — for more consistent braking lap after lap.
Is the Raceline LC Upgrade compatible with all Thrustmaster wheels?
On consoles (PS5, PS4, Xbox), it works with all Thrustmaster Force Feedback racing wheel bases, with the exception of the T500. On PC (Windows 10/11), it connects via USB-C and is compatible with all Thrustmaster racing wheel bases. Compatibility details are available on the Thrustmaster support website.
Singular Expert Insight
Braking is where sim racing lap time is made and lost — and Load Cell sensors represent the single highest-impact upgrade available to most pedal sets. The Raceline LC Upgrade is the cleanest path to Load Cell braking for Raceline Pedals LTE and III owners: the kit is tool-free to configure, the 4-range pressure adjustment covers everything from casual desktop setups to full cockpit rig builds, and the EQUALIZER software lets you fine-tune response curves rather than accepting factory defaults. For anyone already on a Raceline pedal set, this is the logical next step before a full rig rebuild.

Should You Buy the Raceline LC Upgrade?

✓ Buy it if…
  • You already own Raceline Pedals LTE or Raceline Pedals III
  • You want more consistent, realistic braking in sim racing
  • You play on PC, PS5, PS4, or Xbox with a TM Force Feedback wheel
✗ Skip it if…
  • You do not own Raceline Pedals LTE or III — this kit cannot be used standalone
  • You use a T500 RS wheel base — not compatible on console
→ Also consider…
  • Raceline Pedals III LC — complete 3-pedal set with Load Cell brake included from the start
  • Raceline Pedals LTE — the 2-pedal set this kit upgrades
