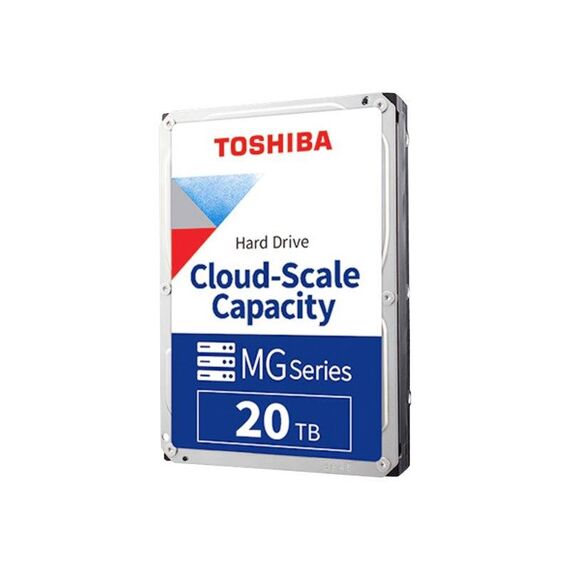

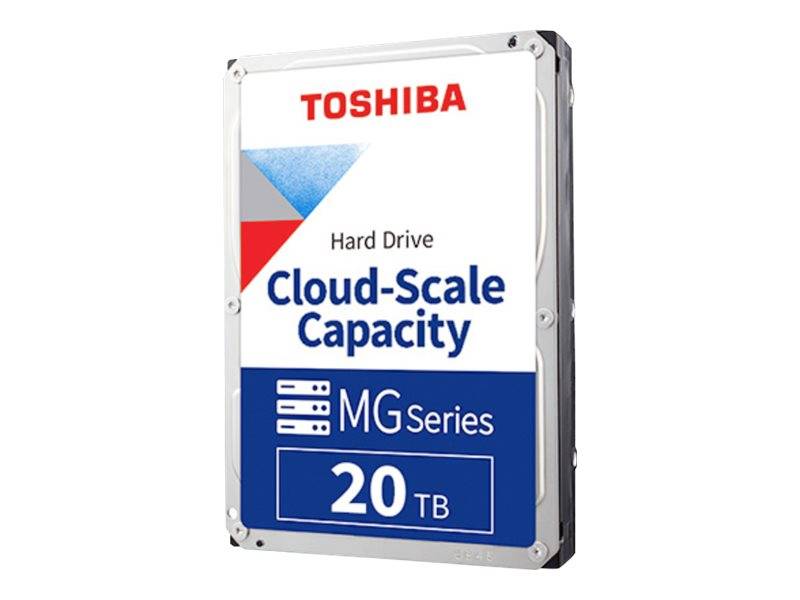

Toshiba MG10 Series MG10ACA20TE / Hard drive / Enterprise / 20 TB / internal / 3.5" / SATA 6Gb/s / 7200 rpm / buffer: 512 MB | MG10ACA20TE
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Hard drive - internal |
| Capacity | 20 TB |
| Form Factor | 3.5" |
| Interface | SATA 6Gb/s |
| Buffer Size | 512 MB |
| Features | 24x7 continuous operation, advanced format 512e, Persistent Write Cache technology, Conventional magnetic recording (CMR), Helium Sealed-Drive Design, workload up to 550 TB per year, Flux Control Microwave Assisted Magnetic Recording (FC-MAMR) |
| Weight | 720 g |
| Performance | Performance |
| Drive Class | Enterprise |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 268 MBps |
| Spindle Speed | 7200 rpm |
| Reliability | Reliability |
| MTBF | 2,500,000 hours |
| 24x7 Operation | Yes |
| Non-Recoverable Errors | 1 per 10^15 |
| Load / Unload Cycles | 600,000 |
| Expansion & Connectivity | Expansion & Connectivity |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | 3.5" |
| Power | Power |
| Power Consumption | 9.3 Watt (active (typical)) ¦ 4.38 Watt (idle) ¦ 8.11 Watt (random read/write) |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 55 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Shock Tolerance (operating) | 50 g @ 2 ms |
| Shock Tolerance (non-operating) | 200 g @ 2 ms |
| Vibration Tolerance (operating) | 0.75 g @ 5-300 Hz |
| Vibration Tolerance (non-operating) | 3 g @ 5-500 Hz |
| Sound Emission | 32 dB |
Features - Toshiba - MG10ACA20TE
Form Factor
- 3.5"
- Internal
Capacity
20TB
Interface
- SATA
More Details
Product Code
07:128523
EAN Code
4260557512487
Manufacturer
Toshiba
