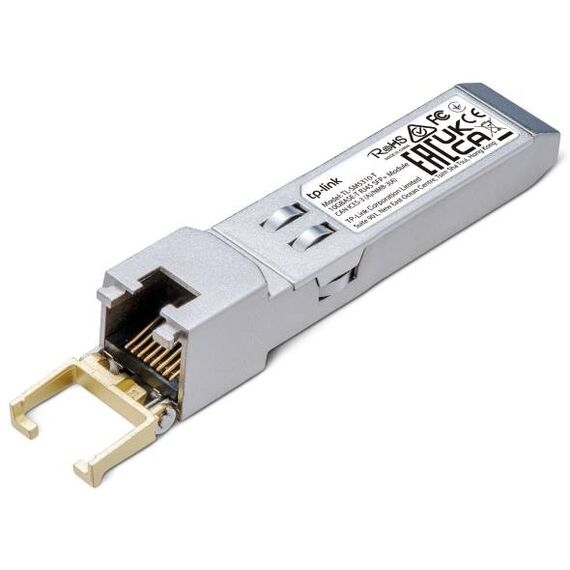

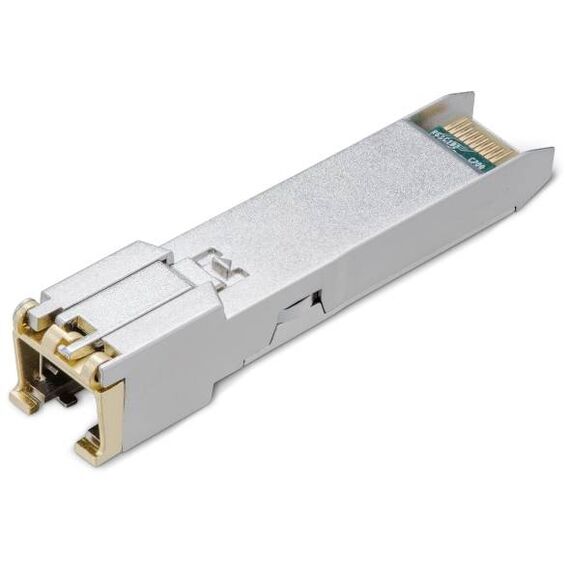

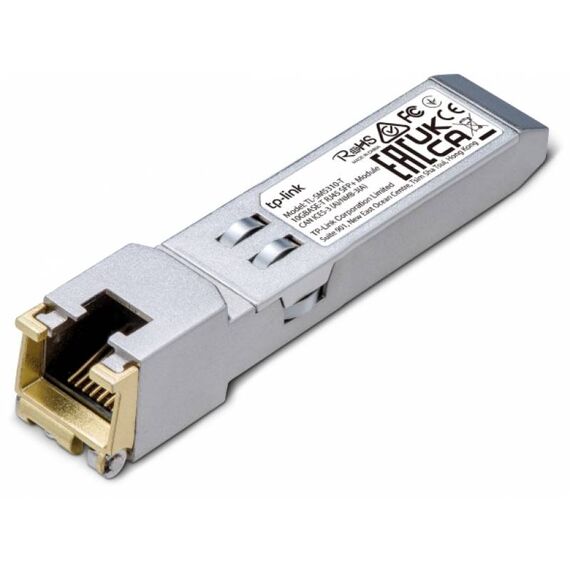

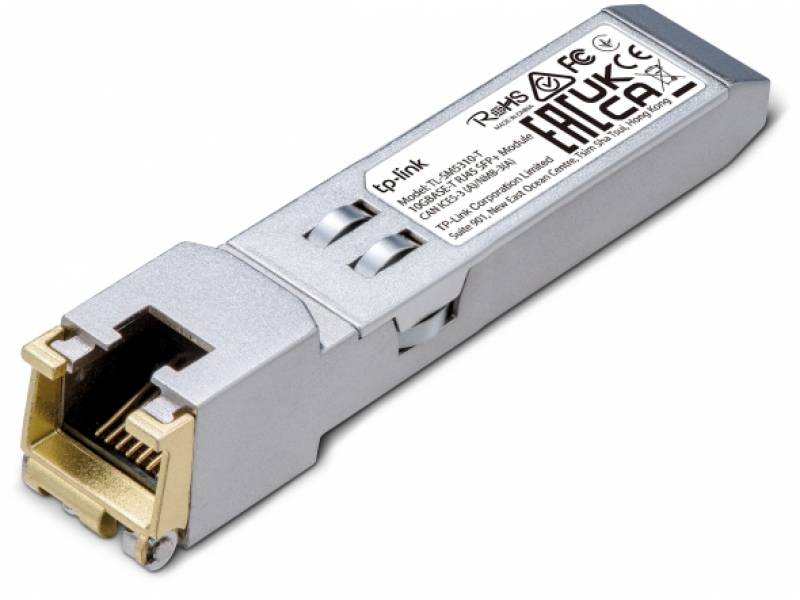

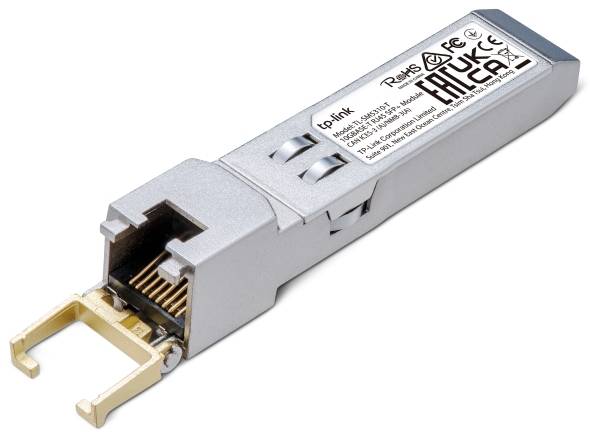

TP-Link Omada SM5310-T — Multi-Gig RJ-45 SFP+ Module
10GBASE-T5G / 2.5G / 1GRJ-4530 m at 10G
The TP-Link Omada SM5310-T is an SFP+ module with an RJ-45 port that runs at 10, 5, 2.5 or 1 Gbps, so a fibre switch can connect a server, NAS, access point or workstation over copper cable. At 10G it reaches 30 m on Cat6a; at 1–5G it reaches 100 m on Cat5e. Diagnostics report module temperature and voltage. In practice, a copper module is the quickest way to connect a nearby device that only has an RJ-45 port, without buying a media converter. Use fibre for anything beyond the copper reach shown in the table.
Compatibility — check before buying:
The 100 m reach applies only at 1–5G: at 10G the limit is 30 m and needs Cat6a or better. TP-Link does not list 100 Mbps, so a 10/100 device will not link through it. It needs an SFP+ port; TP-Link publishes a compatibility list for its own switches and notes that 1G use may need configuration on the switch. Not sure? Send us your device model and the cable run and we check it before you order.
Best For
✓ 10G servers or NAS near an SFP+ switch
✓ Multi-gig access points at 2.5G or 5G
✓ Omada switches with SFP+ ports
✓ Workstations on 10GBASE-T
✓ Using spare SFP+ cages as RJ-45 ports
✓ Short copper runs in the rack
Key Features
Four speeds in one module
Runs at 10G, 5G, 2.5G or 1G, so the same module serves a 10G server today and a multi-gig access point tomorrow.
Copper instead of fibre
Turns an SFP or SFP+ cage into an RJ-45 port, so the switch can reach a server, NAS, camera recorder or other device over twisted-pair cable. Check the cable grade and reach in the table before you plan the run.
Hot-swappable
Modules plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch to remove it.
Plan both ends together
A link only comes up when both ends use the same standard, speed and media. Order the far-end module, the cable and any spares in one go and the link works on day one.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The SM5310-T is the copper module we suggest for multi-gig devices on an SFP+ switch. Keep 10G runs short and on Cat6a; for anything beyond 30 m at 10G, a pair of fibre optics is the more reliable link. For Omada switches, check TP-Link’s compatibility list or send us the model. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status and we help you find out whether it is the module, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.
Buyer’s Guide
Buy it if
You need a 10G or multi-gig RJ-45 port from an SFP+ cage, within 30 m at 10G.
Skip it if
The device runs only at 10/100, the 10G run is over 30 m, or the port is 1G SFP only.
Also consider
A pair of 10G SR fibre optics for longer runs.
