TP-Link Omada SX3016F 16-Port 10G SFP+ L2+ Managed Aggregation Switch, Dual Redundant Power

Brand:
TP-LINK

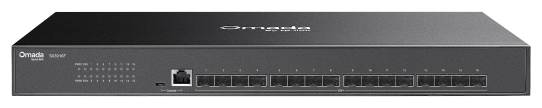

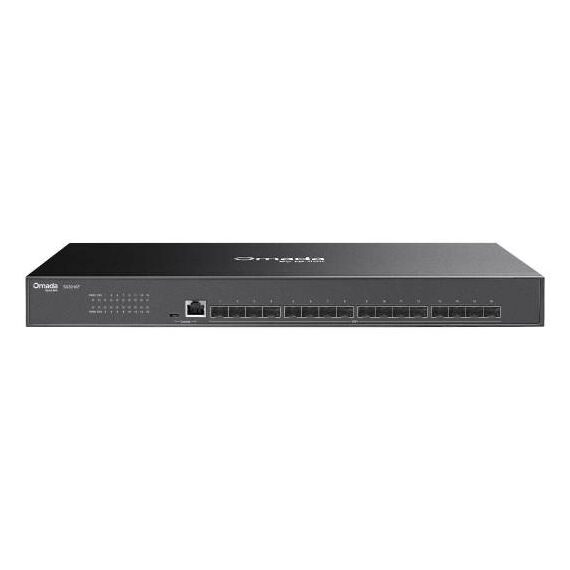

TP-Link Omada SX3016F managed Ethernet switch
TP-Link Omada SX3016F 16-Port 10G SFP+ L2+ Managed Aggregation Switch, Dual Redundant Power
€903.85 inc. VAT
Buy
SX3016F
€759.54 €843.93
€903.85 inc. VAT
Ships from EU stock: 6 item(s)
+ −
Add to wish list Ask a question
Product Code
CJ89196
EAN Code
1210002611718
Manufacturer
TP-LINK

Quick Specs

Optical ports
16 × 10G SFP+
Switching capacity
320 Gbps
Routing
L2+ · static routes
Power resilience
Dual fixed 1+1 PSU
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

TP-Link Omada SX3016F 16-Port 10G SFP+ Switch

16 × 10G SFP+320 GbpsL2+ · static routes

Aggregate sixteen 10G fibre links in a rack-mounted switch with 320 Gbps switching capacity and two fixed internal power supplies backing each other up. The SX3016F combines Layer 2 control, static routing and ERPS ring protection with standalone or Omada-managed administration.

Compatibility — check before buying:
SFP+ slots need appropriate optical modules and cabling. ISP features are configured in standalone mode; centralized functions require an Omada controller.

Key Features


Ports selected for the network
Sixteen 10G SFP+ data slots provide a fibre aggregation layer; console ports are separate management connections.

Traffic control
VLAN separates traffic, IGMP Snooping manages multicast and eight QoS queues prioritise traffic within the supported management mode.

Choose the management mode
Standalone web management handles local setup. A compatible Omada controller adds centralized configuration, monitoring and remote cloud access.

Technical Specifications

Identification
Brand TP-Link Omada
Model / MPN SX3016F
EAN / GTIN 1210002611718
Hardware Features
Interface 16× 10G SFP+ Slots; 1× RJ45 Console Port; 1× Micro-USB Console Port
Fan Quantity 1
Physical Security Lock Yes
Power Supply 1+1 Redundant Power Supply (Internal Fixed); 100-240 V~ 50/60 Hz
Dimensions ( W x D x H ) 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Mounting Rack Mountable
Max. Power Consumption 32.3 W max @ 220V/50Hz 25 °C; 32.7 W max @ 110V/60Hz 25 °C
Max. Heat Dissipation 110 BTU/hr (220 V/50 Hz); 111.18 BTU/hr (110 V/60 Hz)
Performance
Packet Buffer Memory 24 Mbit
Jumbo Frame 9 KB
Switching Capacity 320 Gbps
Packet Forwarding Rate 238.08 Mpps
MAC Address Table 32 K
Software Features
Quality of Service 8 priority queues; 802.1p CoS/DSCP priority; Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR; Bandwidth Control: Port/Flow-based Rating Limiting; Smoother Performance; Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2 and L2+ Features 128 IP Interfaces: Support IPv4/IPv6 Interface; Static Routing: 48 IPv4/IPv6 Static Routes; Static ARP: 128 static entries; 512 ARP Entries; Proxy ARP; Gratuitous ARP; DHCP Server; DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay; DHCP L2 Relay; Link Aggregation; Spanning Tree Protocol; Loopback Detection; 802.3x Flow Control; Mirroring
L2 Multicast Supports 4,000 (IPv4, IPv6) IGMP groups; IGMP Snooping; IGMP Authentication; Multicast VLAN Registration (MVR); MLD Snooping; Multicast Filtering: 256 profiles and 16 entries per profile
Advanced Features Automatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot ScheduleISP Features:; L2PT (Layer 2 Protocol Tunneling) ; Device Link Detect Protocol (DLDP); PPPoE ID Insertion; ERPS; 802.3ah Ethernet Link OAM; DDM; sFlow
VLAN VLAN Group (802.1q VLAN): Max 4K VLAN Groups; 802.1Q Tagged VLAN; MAC VLAN: 30 Entries; Protocol VLAN: Protocol Template 16, Protocol VLAN 12; Private VLAN; GVRP; VLAN VPN (QinQ): Port-Based QinQ, Selective QinQ; Voice VLAN
Access Control List Time-based ACL; MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type; IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS; Combined ACL; Packet Content ACL; IPv6 ACL; Policy: Mirroring, Redirect, Rate Limit, QoS Remark; ACL applies to Port/VLAN
Security IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard; IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard; DoS Defend; Static/Dynamic Port Security: Up to 64 MAC addresses per port; Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode; 802.1X - Port base authentication - MAC-based authentication - VLAN Assignment - MAB - Guest VLAN - Radius authentication and accountability support; AAA (including TACACS+); Port Isolation; Secure web management through HTTPS with SSLv3/TLS 1.2; Secure Command Line Interface (CLI) management with SSHv1/SSHv2; IP/Port/MAC-based access control
IPv6 IPv6 Dual IPv4/IPv6; Multicast Listener Discovery (MLD) Snooping; IPv6 ACL; IPv6 Interface; Static IPv6 Routing; IPv6 neighbor discovery (ND); Path maximum transmission unit (MTU) discovery; Internet Control Message Protocol (ICMP) version 6; TCPv6/UDPv6; IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs MIB II (RFC1213); Interface MIB (RFC2233); Ethernet Interface MIB (RFC1643); Bridge MIB (RFC1493); P/Q-Bridge MIB (RFC2674); RMON MIB (RFC2819); RMON2 MIB (RFC2021); Radius Accounting Client MIB (RFC2620); Radius Authentication Client MIB (RFC2618); Remote Ping, Traceroute MIB (RFC2925); Support TP-Link private MIB
Management Features
Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later); Omada Hardware Controller (Requires built-in version 5.15.20 or later); Omada Software Controller (Requires built-in version 5.15.20 or later)
Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features Web-based GUI; Command Line Interface (CLI) through the console port, telnet; SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP Auto Install; Dual Image, Dual Configuration; CPU Monitoring; Password Recovery; SNTP; System Log
Others
Certification CE, FCC
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: -5 ℃ to 45 ℃ (23 ℉ to 113 ℉); Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing
Practical conditions and additional specifications
Copper SFP+ installation limit Manufacturer recommends four SM5310-T modules, one in each SFP+ port group
ISP feature mode Standalone configuration only
Enclosure Metal

What's in the Box

SX3016F switch
Power cords and console cable
Rackmount kit and rubber feet
Quick installation guide

What Will Not Work

SFP+ slots need appropriate optical modules and cabling. ISP features are configured in standalone mode; centralized functions require an Omada controller.
Optical modules and fibre cables are selected separately. Controller-based services require a compatible Omada Controller; Zero-Touch Provisioning requires the cloud-based controller.

Frequently Asked Questions

Does cloud management work without a controller?
No. Centralized cloud functions require a compatible Omada controller; standalone web management is available separately.
Does it provide sixteen copper RJ45 data ports?
No. Its data interfaces are SFP+ slots; the RJ45 console port is for management.
Are the two power supplies hot-swappable modules?
The manufacturer specifies two fixed internal supplies with 1+1 redundancy, not removable hot-swap power modules.
Singular Expert Insight
The linked SM5110-SR modules are for multimode 850nm links; choose fibre type and reach before buying optics. See the Omada 10G SR modules

Buyer’s Guide

Buy it if

The verified port layout and management features match your network plan.

Skip it if

You require different port speeds, PoE capability or optical reach.

Also consider

The linked SM5110-SR modules are for multimode 850nm links; choose fibre type and reach before buying optics.
