TP-Link Omada ES220GMP 20-Port Gigabit Easy Managed Switch, 16× PoE+ 250W, 2× RJ45 and 2× SFP Uplinks

Brand:
TP-LINK

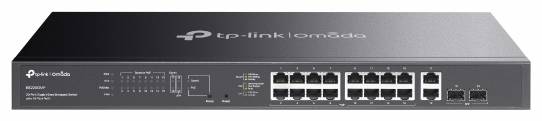

TP-Link Omada ES220GMP managed Ethernet switch
TP-Link Omada ES220GMP 20-Port Gigabit Easy Managed Switch, 16× PoE+ 250W, 2× RJ45 and 2× SFP Uplinks
€301.44 inc. VAT
Buy
ES220GMP
€253.31 €281.46
€301.44 inc. VAT
Ships from EU stock: 3 item(s)
+ −
Add to wish list Ask a question
Product Code
CN29511
EAN Code
8885020625943
Manufacturer
TP-LINK

Quick Specs

PoE ports
16 × Gigabit PoE+
PoE budget
250 W · max 30 W/port
Uplinks
2 × RJ45 + 2 × SFP
Switching capacity
40 Gbps
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

TP-Link Omada ES220GMP 20-Port PoE+ Switch 250W

16 × Gigabit PoE+250 W · max 30 W/port2 × RJ45 + 2 × SFP

Connect and power a surveillance or small-business network from sixteen Gigabit PoE+ ports, with a shared 250W budget and four separate uplink connections. The ES220GMP adds VLAN, multicast control and PoE recovery tools in a rack-mount metal enclosure.

Compatibility — check before buying:
The 250m extension mode reduces the affected port speed to 10 Mbps. The 250W PoE budget is a laboratory rating and actual available power depends on clients and conditions.

Key Features


Ports selected for the network
Sixteen IEEE 802.3af/at PoE+ ports share 250W; two extra RJ45 and two SFP ports provide uplinks.

Traffic control
VLAN separates traffic, IGMP Snooping manages multicast and eight QoS queues prioritise traffic within the supported management mode.

Choose the management mode
Standalone web management handles local setup. A compatible Omada controller adds centralized configuration, monitoring and remote cloud access.

Technical Specifications

Identification
Brand TP-Link Omada
Model / MPN ES220GMP
EAN / GTIN 8885020625943
Hardware Features
Interface 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+); 2× 10/100/1000 Mbps RJ45 Port; 2× Gigabit SFP Slot; Auto-Negotiation/Auto MDI/MDIX
Fan Quantity 2
Installation Rackmountable
Physical Security Lock Yes
Power Supply 100–240V AC, 50/60Hz
PoE Ports (RJ45) Standard: 802.3af PoE and 802.3at PoE+ compliant; PoE Ports: 16 ports; PoE Budget: 250W available for all PoE+ ports, 30W max per port; Fast PoE & Perpetual PoE; PoE Auto Recovery; Up to 250m PoE transmission distance
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm)
Surge Protection ±6kV
Performance
Packet Buffer Memory 4 Mbit
Jumbo Frame 15 KB
Switching Capacity 40 Gbps
Packet Forwarding Rate 29.76 Mpps
MAC Address Table 8K
Software Features
Quality of Service Port-based/802.1p/DSCP QoS; 8 Priority Queues; Priority Schedule Mode- WRR (Weighted Round Robin); Queue Weight Config; Bandwidth Control- Port-Based Rating Limit; Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control
L2 Features Static Link Aggregation; Loop Prevention / Loopback Detection; Flow Control- 802.3x Flow Control; Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both; Port Statistics- Port Mirror Status- Traffic Statistics; 802.1ab LLDP
L2 Multicast IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave
VLAN MTU VLAN; Port-Based VLAN; 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID
Transmission Method Store-And-Forward
Management Features
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management Omada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features Web-based GUI; DHCP Client; Cable Diagnostics; Automatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Unified Configuration
Others
Certification FCC, CE
Environment Operating Temperature: -5℃~50℃ (23℉~122℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
Practical conditions and additional specifications
Extended PoE conditions Up to 250 m at 10 Mbps; actual distance depends on cable quality
Recovery by management mode PoE Auto Recovery: standalone; manual recovery: controller mode
QoS / priority mode Standalone mode
PoE budget conditions 250W laboratory rating; actual budget varies with client limitations and environment
Cloud service licensing Essentials is free; Standard advanced services require a licence
Product weight 2.4 kg
Flash memory 64 Mbit
Standby consumption 12.2W @110V/60Hz
Maximum loaded consumption 289.7W @110V/60Hz, 250W PD
Maximum heat 984.88BTU/h @110V/60Hz
MTBF 310550.7h @25°C
Acoustic reference 33.4–48.5dBA @1m/25°C
Surge / ESD Ethernet ±6kV; AC differential/common ±4kV; ESD air/contact ±8/±4kV

What's in the Box

ES220GMP switch
Power cord
Mounting brackets, rubber feet and screws
Installation guide

What Will Not Work

The 250m extension mode reduces the affected port speed to 10 Mbps. The 250W PoE budget is a laboratory rating and actual available power depends on clients and conditions.
PoE is limited to the sixteen specified ports and shared budget; optical modules are not specified as included.

Frequently Asked Questions

Does cloud management work without a controller?
No. Centralized cloud functions require a compatible Omada controller; standalone web management is available separately.
Is the 250m link still Gigabit?
No. Extended PoE mode reduces the relevant port to 10 Mbps; cable quality affects achievable distance.
Can all sixteen ports supply 30W simultaneously?
No. The per-port limit is 30W, but all ports share the 250W total budget.
Singular Expert Insight
For a smaller network that does not need PoE, compare the fanless ES208G. Compare the fanless 8-port switch

Buyer’s Guide

Buy it if

The verified port layout and management features match your network plan.

Skip it if

You require different port speeds, PoE capability or optical reach.

Also consider

For a smaller network that does not need PoE, compare the fanless ES208G.
