TP-Link Omada SG5428XF 24-Port Gigabit SFP Lite L3 Stackable Managed Switch, 4× 10G SFP+ and Dual Power

Brand:
TP-LINK

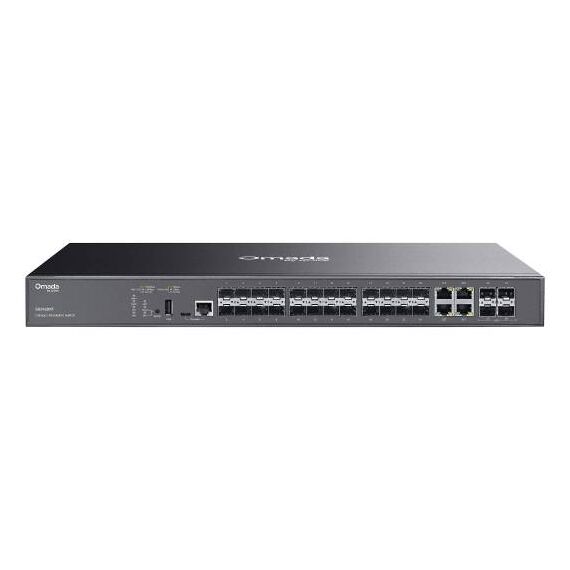

TP-Link Omada SG5428XF managed Ethernet switch
TP-Link Omada SG5428XF 24-Port Gigabit SFP Lite L3 Stackable Managed Switch, 4× 10G SFP+ and Dual Power
€1238.96 inc. VAT
Buy
SG5428XF
€1,041.14 €1,156.82
€1,238.96 inc. VAT
Ships from EU stock: 4 item(s)
+ −
Add to wish list Ask a question
Product Code
CP96593
EAN Code
1210002602389
Manufacturer
TP-LINK

Quick Specs

Access ports
20 × SFP + 4 × combo
Uplinks
4 × 1/10G SFP+
Routing
Lite L3 · RIP / OSPF
Physical stacking
Up to 4 units · 80 Gbps
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

TP-Link Omada SG5428XF 24-Port SFP L3 Switch

20 × SFP + 4 × combo4 × 1/10G SFP+Lite L3 · RIP / OSPF

Build a fibre aggregation layer with twenty dedicated Gigabit SFP slots, four Gigabit RJ45/SFP combo ports and four 10G SFP+ uplinks. The SG5428XF adds Lite L3 routing, physical stacking of up to four units and dual internal power supplies for a network that can grow beyond one switch.

Compatibility — check before buying:
Each RJ45/SFP combo pair is one logical port. Uplinks used for stacking are not simultaneously separate uplinks; only one 10G RJ45 SFP+ module can be inserted at a time.

Key Features


Ports selected for the network
Twenty SFP slots, four logical RJ45/SFP combo ports and four 1/10G SFP+ ports support access, uplinks or stacking.

Traffic control
VLAN separates traffic, IGMP Snooping manages multicast and eight QoS queues prioritise traffic within the supported management mode.

Choose the management mode
Standalone web management handles local setup. A compatible Omada controller adds centralized configuration, monitoring and remote cloud access.

Technical Specifications

Identification
Brand TP-Link Omada
Model / MPN SG5428XF
EAN / GTIN 1210002602389
Hardware Features
Interface 20× 100/1000 Mbps SFP Slots; 4× Gigabit RJ45/SFP Combo Ports; 4× 1/10 Gbps SFP+ Slots; 1× USB 2.0 Port; 1× RJ45 Console Port; 1× USB Type-C Console Port
Fan Quantity 1 Fan
Power Supply 100-240 V~50/60 Hz
Dimensions ( W x D x H ) 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Mounting Rackmountable
Max. Power Consumption 28.3 W (220V/50Hz @ 25 °C); 28.98 W (110V/60Hz @ 25 °C)
Max. Heat Dissipation 96.503 BTU/hr (220V/50Hz @ 25 °C); 98.822 BTU/hr (110V/60Hz @ 25 °C)
Performance
Switching Capacity 128 Gbps per Unit
Stacking Stacking Number: 4; Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports); Stacking Bandwidth: Up to 80 Gbps (4 stacking ports)
Packet Forwarding Rate 95.23 Mpps
MAC Address Table 16 K
Packet Buffer Memory 12 Mbit
Jumbo Frame 9 KB
Software Features
Quality of Service Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR); Bandwidth Control - Rate Limit - Storm Control; Voice VLAN ; User-Defined OUI ; Smoother Performance; Action for Flows - QoS remark (802.1P Remark, DSCP Remark)
L3 Features IP Interfaces:- IPv4: Max 128, IPv6: Max 128; ARP- Static Entries 512- Dynamic Entries 3,600; ND Dynamic Entries 3,600 ; Static Route- IPv4: Max 512, IPv6: Max 128; Host Route- IPv4: Max 1,024, IPv6: Max 890; Network Route- IPv4: Max 1,796, IPv6: Max 450; RIP: Version v1/v2; RIPng; OSPF: Version V2/V3; Proxy ARP; DHCP Server:- Max 64 IP Pools- Max 8,000 Leases- Max 1,000 Manual Binding Entries; DHCP Relay:- Relayed Interface- Relayed VLAN
L2 and L2+ Features Link Aggregation; Spanning Tree Protocol; Port-based and VLAN-based Loopback Detection; 802.3x Flow Control; ERPS; Mirroring; RSPAN; MAC Address Table ; Multicast - IGMP Snooping - MLD Snooping - L2 Multicast Table: Max 2,000 - Fast Leave - Multicast VLAN Registration (MVR) - Static Multicast Groups - Multicast Filtering
Advanced Features Automatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot ScheduleISP Features:; 802.3ah Ethernet Link OAM ; L2PT (Layer 2 Protocol Tunneling) ; Device Link Detect Protocol (DLDP); DDM; sFlow
VLAN Max 4K VLAN Group (802.1q VLAN); 802.1Q Tagged VLAN; MAC VLAN Entries: 60; Multicast VLAN; Management VLAN; VLAN VPN (QinQ): Max 256 entries; GVRP; Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries; Voice VLAN; Private VLAN
Security Port Isolation; CPU-Defend; ARP Inspection (Dynamic ARP Inspection); DoS Defend; IP-MAC-Port Binding-1,024 Entries- DHCP Snooping- ARP Scanning- ARP Detection- IPv4 Source Guard; IPv6-MAC-Port Binding-1,024 Entries- DHCPv6 Snooping- ND Snooping- ND Detection- IPv6 Source Guard; DHCP Filter; Static/Dynamic Port Security- Up to 64 MAC addresses per port; Broadcast/Multicast/Unknown-unicast Storm Control- kbps/ratio control mode; 802.1X- Port base authentication- Mac base authentication- VLAN Assignment- MAB- Guest VLAN- RADIUS authentication and accountability support; AAA (including TACACS+); Secure web management through HTTPS with SSLv3/TLS 1.2; Secure Command Line Interface (CLI) management with SSHv2; IP/Port/MAC-based access control
Management Features
Omada App Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later); Omada Hardware Controller (Requires built-in version 5.15.20 or later); Omada Software Controller (Requires built-in version 5.15.20 or later)
Cloud Access Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of the Omada Cloud-Based Controller.
Management Features Web-based GUI; Command Line Interface (CLI) through console port, telnet; SNMPv1/v2c/v3- Trap/Inform- RMON (1, 2, 3, 9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP Auto Install; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; Password Recovery; SNTP; System Log; IEEE 802.3az Energy Efficient Ethernet (EEE)
Others
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: -5 °C to 45 °C (23 °F to 113 °F); Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing
Practical conditions and additional specifications
Dual internal power Two fixed internal supplies provide mutual backup
CPU / DRAM / flash Dual-core ARM 1.2GHz; DDR4 2GB; NOR/NAND 4/512MB
Forwarding bandwidth 64Gbps
Compatible stack models SG5428XF/SG5428X/SG5428XMPP/SG5452X/SG5452XMPP
Shared routing resources IPv4/IPv6 interfaces 128/128; static routes 512/128; host routes 1024/890; network routes 1796/450; IPv4/IPv6 share resources
SDM ACL allocations IPv4/MAC/combined/IPv6: Default 300/600/300/0; IPv4 Access 0/600/600/0; IPv6 Access 0/600/0/250; Omada 0/0/400/200
Source Guard / RA Guard IPv4 Source Guard 127 Default/IPv4 SDM; IPv6 Source Guard 127 IPv6 SDM; RA Guard 30
DHCP / OSPF limits DHCP excluded ranges 100; OSPFv2 processes 4; OSPFv3 instance 1
LAG / spanning tree / ERPS LACP/static LAG 64×8; MSTP 16; ERPS 16; STP/RSTP/MSTP
Multicast / OUI limits IGMPv1/v2/v3; MLDv1/v2; filters 256×16; voice OUI 64
Additional security ARP/ND inspection 1024; DHCPv4/v6 legal servers 200/200; RADSEC; PAP/EAP-MD5/TLS/TTLS/PEAP
QoS rate granularity 64kbps
Standby power 9.51/9.45W @220V50Hz/110V60Hz,25°C
Surge / ESD Ethernet common ±6kV; AC differential/common ±4kV; ESD air/contact ±15/±8kV
MTBF reference 428537/393412h @25/40°C
Certifications CE/FCC/RoHS
10G copper module limit One SM5310-T at a time
Maintenance and diagnostics CPU/memory monitor; SNMP traps/informs IPv4/IPv6; configuration import/export; TFTP/USB backup; remote log; Ping/Ping6/Tracert/Tracert6; LLDP-MED; sFlow; OAM/EFM; EEE

What's in the Box

SG5428XF switch
Power cords and console cable
Rackmount kits and rubber feet
Quick installation guide

What Will Not Work

Each RJ45/SFP combo pair is one logical port. Uplinks used for stacking are not simultaneously separate uplinks; only one 10G RJ45 SFP+ module can be inserted at a time.
Optical modules and fibre cables are selected separately. Controller-based services require a compatible Omada Controller; Zero-Touch Provisioning requires the cloud-based controller.

Frequently Asked Questions

Does cloud management work without a controller?
No. Centralized cloud functions require a compatible Omada controller; standalone web management is available separately.
Are combo connections separate extra ports?
No. A combo RJ45/SFP pair shares one logical Gigabit port; use one connection type at a time.
Can all uplinks remain available while stacking?
Stacking uses the 10G SFP+ ports. Ports allocated to the stack must be counted in your uplink plan.
Singular Expert Insight
The manufacturer lists SM5110-SR among its 10G optical accessories. The linked pack fits multimode 850nm links, not single-mode LR cabling. See compatible Omada SR optics

Buyer’s Guide

Buy it if

The verified port layout and management features match your network plan.

Skip it if

You require different port speeds, PoE capability or optical reach.

Also consider

The manufacturer lists SM5110-SR among its 10G optical accessories. The linked pack fits multimode 850nm links, not single-mode LR cabling.
