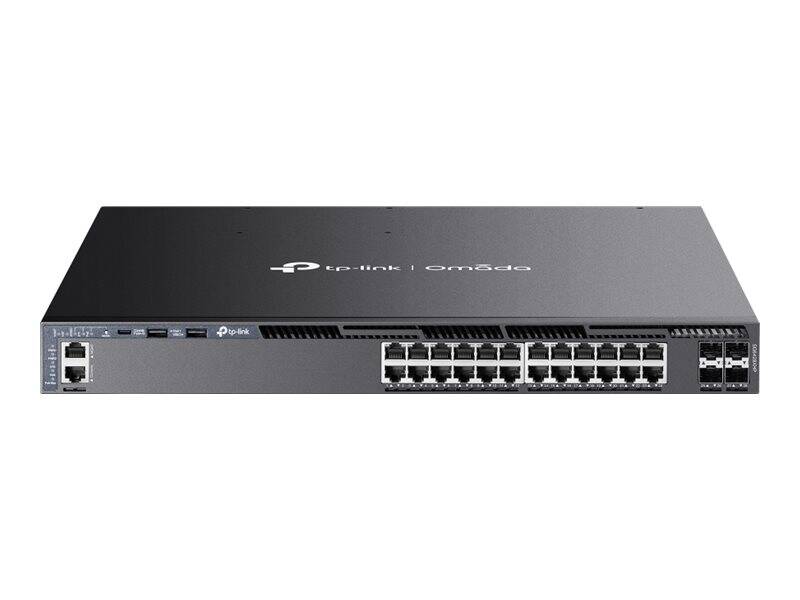

TP-Link Omada SG6428XHP — 24-Port Gigabit PoE+ Layer 3 Managed Switch with 4×10G SFP+
24 × 1G PoE+4 × 10G SFP+720W PoE · Dual PSUOSPF Layer 3 · Stackable
The TP-Link Omada SG6428XHP is a 1U Layer 3 managed switch with 24 Gigabit copper PoE+ ports and 4 × 10G SFP+ uplinks. With a 720W PoE budget, redundant hot-swappable power supplies, full Layer 3 (OSPF, ECMP, VRRP) and Omada SDN cloud management, it is a resilient, cost-effective access-and-aggregation switch for growing campuses. Typically in stock with fast delivery across Cyprus.
Compatibility — check before buying:
Access ports are 24 × 1G copper with PoE+ (802.3at/af, up to 30W) from a 720W budget; uplinks are 4 × 10G SFP+ — transceivers and DACs are sold separately. It ships with redundant hot-swappable PSUs and field-replaceable fans. It supports Omada SDN management (cloud, hardware or software controller) with Zero-Touch Provisioning, full Layer 3 (OSPF/ECMP/VRRP) and stacking up to 8 units (80 Gbps stack bandwidth). Note: routing is OSPF-class, without BGP. 1U rack-mountable.
Best For
✓ Gigabit PoE+ campus access with 10G uplinks
✓ Powering APs, IP phones and cameras
✓ Resilient access with dual redundant PSUs
✓ Omada SDN-managed networks
✓ Routed access (OSPF/VRRP)
✓ Stacked high-availability access
Key Features
24 × Gigabit PoE+ (720W)
Twenty-four 1G copper ports deliver 802.3at PoE+ (up to 30W each) from a generous 720W budget — powering APs, phones and cameras.
4 × 10G SFP+ Uplinks
Four 10G SFP+ ports connect to the core or aggregation layer and double as stacking links (transceivers sold separately).
Dual PSU & Full Layer 3
Redundant hot-swappable PSUs plus full Layer 3 — static, RIP, OSPF, ECMP, VRRP — with 128 Gbps switching for a resilient routed access layer.
Omada SDN & Stacking
Centralised Omada SDN management (cloud/controller) with Zero-Touch Provisioning, plus stacking of up to 8 units.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The SG6428XHP is strong value for resilient PoE+ access — 24 ports at 720W with dual redundant PSUs, 10G SFP+ uplinks and full OSPF routing under Omada SDN. It covers OSPF/VRRP but not BGP, and it’s PoE+ (30W) not PoE++, so match it to standard-power endpoints; optics are separate. Explore more in our managed switches category and power Wi-Fi access points over its PoE+ ports.
Buyer’s Guide
Buy it if
You need resilient 24-port Gigabit PoE+ access (720W) with dual PSUs, 10G SFP+ uplinks and OSPF Layer 3 under Omada SDN management.
Skip it if
You need 90W PoE++, BGP routing, or multigig/25G uplinks — choose a higher-tier platform.
Also consider
The TP-Link Omada SG6654XHP (48-port) for higher density, or the SX6632YF for 25G aggregation. Transceivers sold separately.
Features - TP-LINK - SG6428XHP(UN)
Standard
24-Port
Port Speed
- 1 Gbps,
- 10 Gbps
More Details
Product Code
04:462213
EAN Code
4895252501438
Manufacturer
TP-LINK
