TP-Link Omada ES210GMP V1 Managed 8-Port Gigabit PoE+ Switch 123W
Brand:
TP-LINK
ES210GMP
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
TP-Link Omada ES210GMP V1 Managed Gigabit Ethernet Switch | 8x PoE+ | 123W | Priority queues: 8 VLAN groups: 32 VLANs supported: 4000 | DHCP
The TP-Link Omada ES210GMP V1 is a managed Gigabit Ethernet switch for business networks that need PoE power and flexible uplinks. It offers 10 ports in total, including 8 PoE+ ports, a 123 W PoE budget, cloud management, VLAN support and a fanless metal design.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Switch - 10 ports - Managed |
| Subtype | Gigabit Ethernet |
| Enclosure Type | Desktop, wall-mountable |
| Ports | 8 x 10/100/1000 (PoE+) + 1 x 10/100/1000 + 1 x combo Gigabit SFP/RJ-45 (uplink) |
| Interfaces | 8 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W | 1 x 10/100/1000 Base-T RJ-45 uplink | 1 x 1000Base-T / 1000Base-X RJ-45/SFP uplink | 8 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W 1 x 10/100/1000 Base-T RJ-45 uplink 1 x 1000Base-T / 1000Base-X RJ-45/SFP uplink |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 123 W |
| Performance | Switching capacity: 20 Gbps | Packet forwarding rate: 14.88 Mpps | Packet buffer size: 4 Mbit |
| Capacity | Priority queues: 8 | VLAN groups: 32 | VLANs supported: 4000 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 15KB |
| Routing Protocol | IGMP | IGMPv2 | IGMPv3 |
| Remote Management Protocol | DHCP |
| Features | Cloud managed | long range PoE+ up to 250m | QoS | PoE Auto Recovery | port isolation | loop prevention | VLAN support | IGMP snooping | fanless | metal housing | traffic prioritisation | SDN | reset button | security lock slot (cable lock sold separately) | firmware upgradable | automatic device discovery | Cable Diagnostics Function | DHCP client | ZTP | store and forward | auto-negotiation | auto-uplink (auto MDI/MDI-X) | port-based priority | DSCP based QoS | scheduler | WRR | bandwidth control | rate limit | Broadcast Storm Control | Multicast Storm Control | Unknown Storm Control | Unicast Storm Control | Static Link Aggregation | loopback detection | flow control | port mirroring | fast leave | VLAN Tagging | 6KV Surge protection | 8KV ESD Protector (air-gap discharge) | 4KV ESD Protector (contact discharge) |
| Compliant Standards | IEEE 802.3af | IEEE 802.3at | IEEE 802.1p | IEEE 802.1ab (LLDP) | IEEE 802.3x | IEEE 802.1Q | IEEE 802.3ab | IEEE 802.3i | IEEE 802.3u |
| Flash Memory | 64 MB |
| Status Indicators | PoE max | link/activity | power |
| Power Device | External power adapter |
| Power Provided | DC 53.5 V - 2.43 A |
| Included Accessories | 4 rubber feet |
| Width | 20.9 cm |
| Depth | 12.6 cm |
| Height | 2.6 cm |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Country of origin | CN |
| Power | External power adapter |
| Package Contents | 4 rubber feet |
| Management Protocol | DHCP |
| SKU / EAN | ES210GMP | 8885020620955 |
SINGULAR RECOMMENDS
For who
Suitable for small business or office networks that need managed Gigabit switching with PoE+ ports and flexible uplink options.
Real reason to buy it
A practical managed PoE+ switch with 8 powered ports, a 123 W budget and cloud-managed control for network setups that need tidy central administration.
Know before

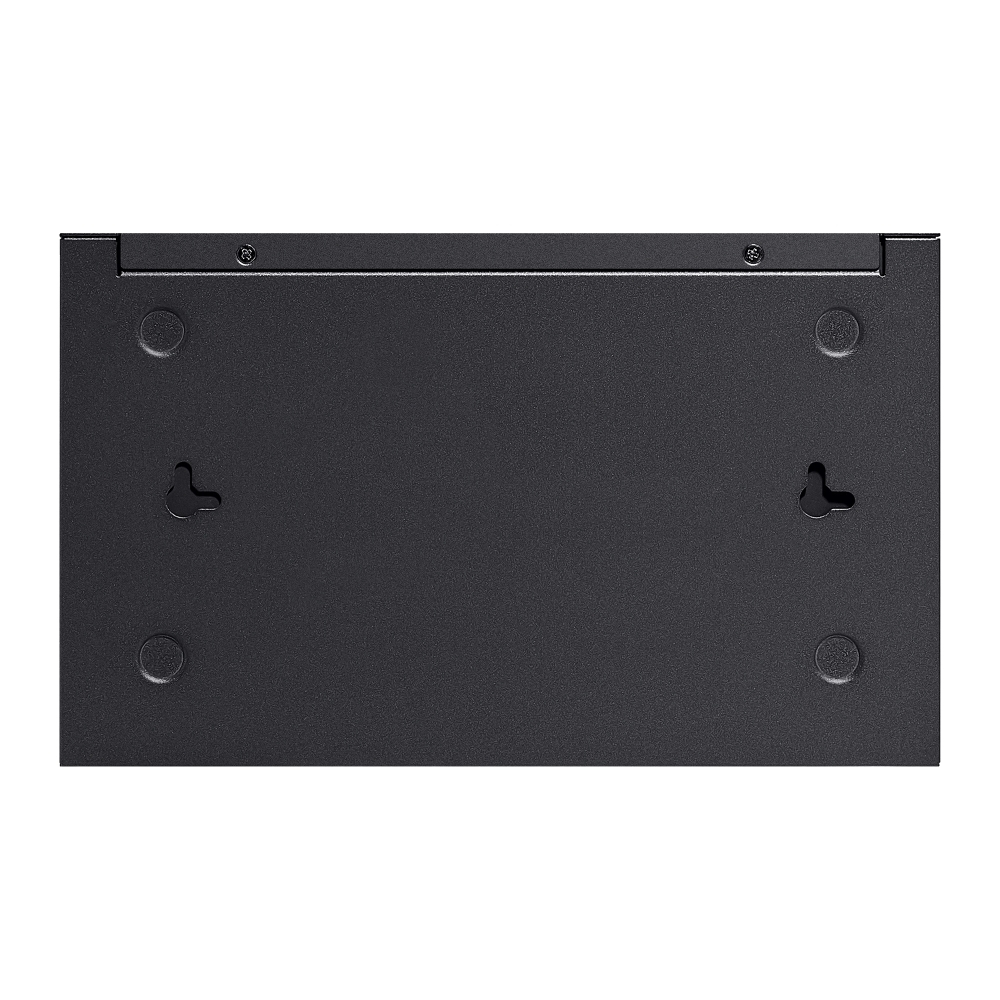

This unit is a desktop or wall-mountable switch and uses an external power adapter. The security lock slot is for a cable lock sold separately, and the package includes 4 rubber feet.
Features - TP-LINK - ES210GMP
Standard
8-Port
Port Speed
- 1 Gbps
More Details
Product Code
CL74976
EAN Code
8885020620955
Manufacturer
TP-LINK
