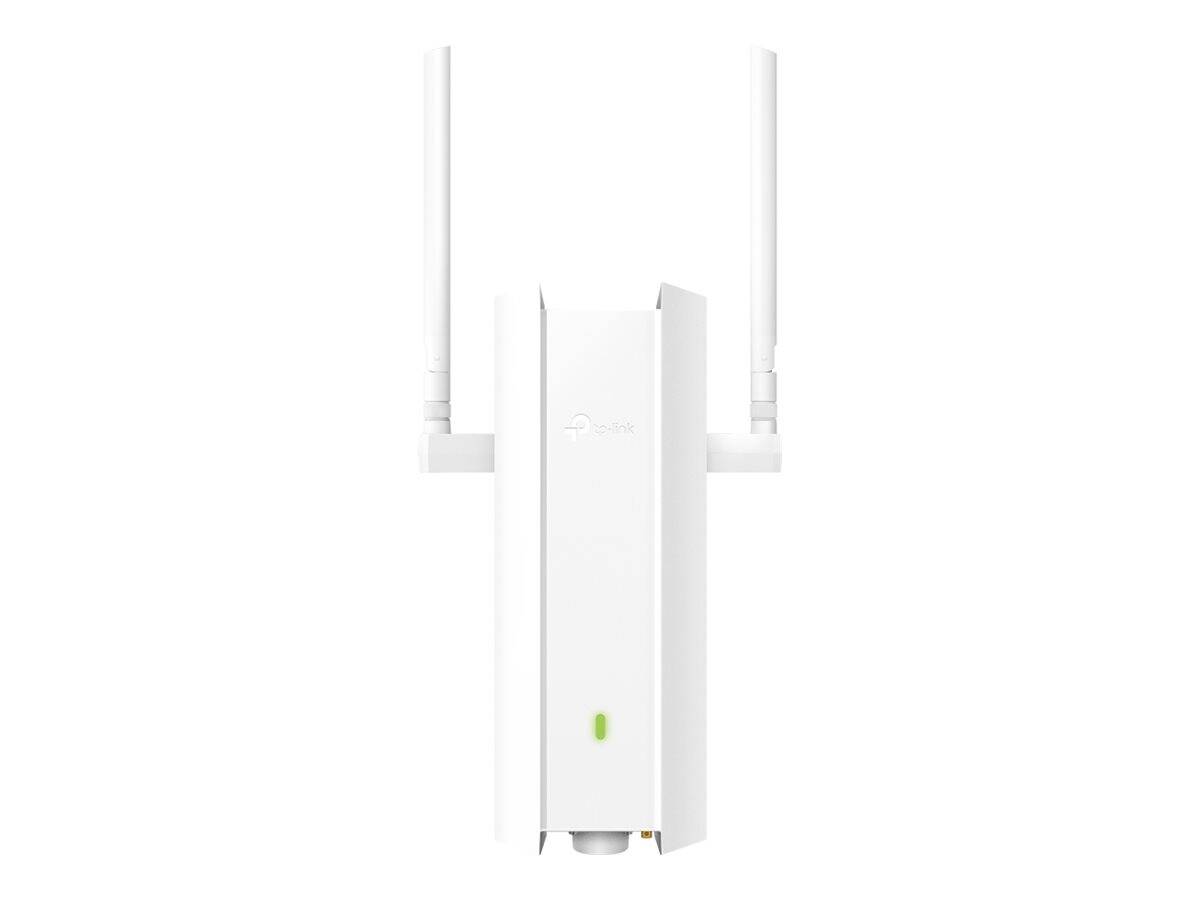

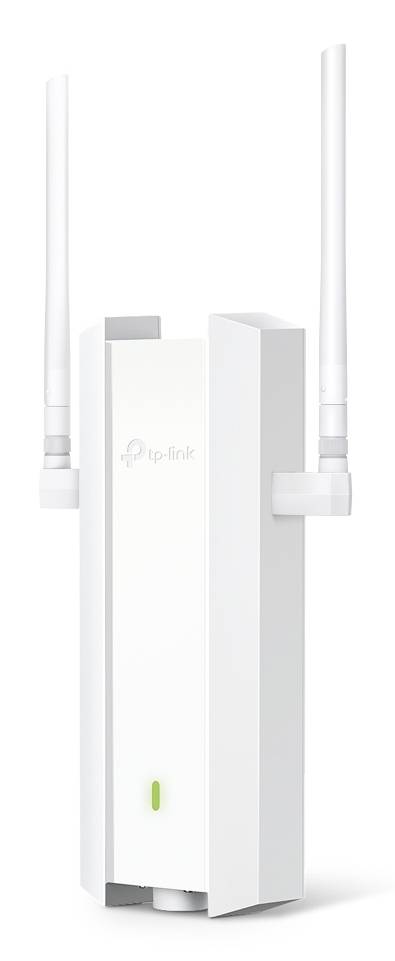

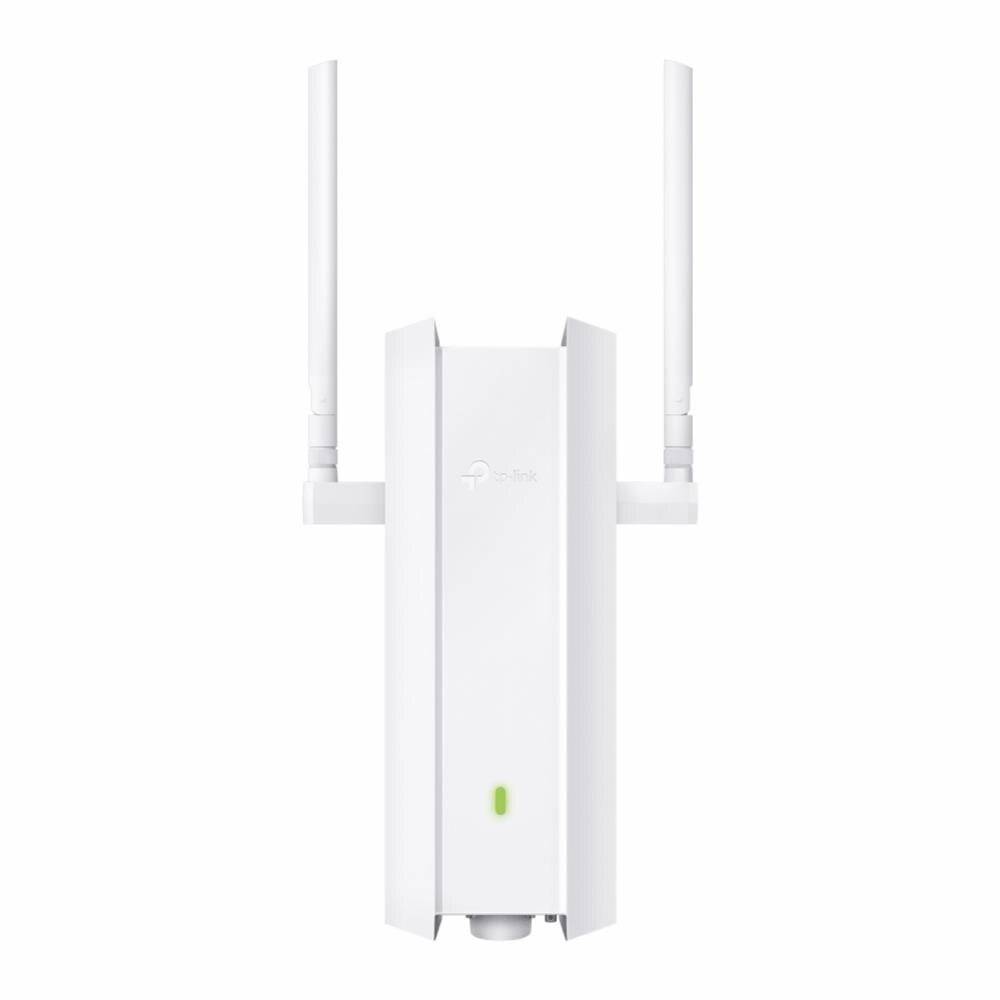

TP-Link Omada EAP625-Outdoor HD V1 - Radio access point - Wi-Fi 6 - Bluetooth - 2.4 GHz, 5 GHz - cloud-managed - wall / pole mountable | EAP625-OUTDOOR HD
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Outdoor |
| Width | 28.04 cm |
| Depth | 18.22 cm |
| Height | 5.69 cm |
| Weight | 886 g |
| Networking | |

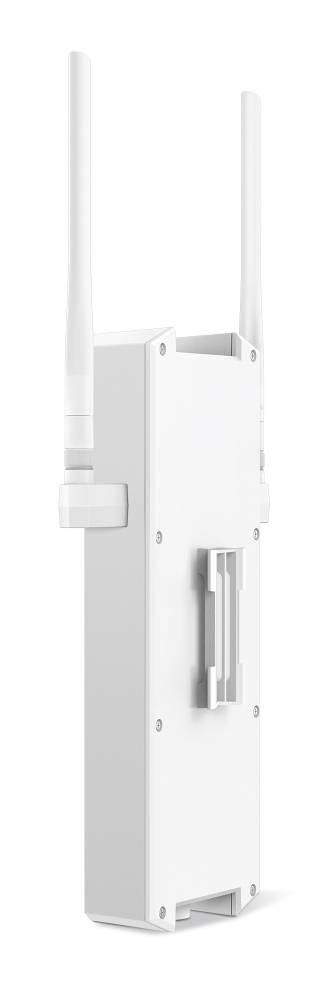

| Form Factor | Wall / pole mountable |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 1.8 Gbps |
| Line Coding Format | 1024 QAM, OFDMA |
| Data Link Protocol | Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Spread Spectrum Method | OFDMA |
| Network / Transport Protocol | NTP |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, RADIUS |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1201 Mbps |
| Capacity | Maximum number of configured SSIDs: 16 ¦ Number of concurrent clients: 1000+ ¦ Maximum MAC filters: 4000 |
| Wi-Fi Rating | AX1800 |
| Status Indicators | Status |
| Features | Syslog support, E-mail alert, MAC address filtering, firmware upgradable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), RADIUS support, static IP mode, reset button, weatherproof, dynamic IP mode, Captive Portal, MU-MIMO technology, beamforming technology, band steering, rate limit, Wireless Scheduler, MAC address authentication, VLAN management, seamless roaming, Airtime Fairness, 2x2 MU-MIMO technology, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), client isolation, waterproof, schedule reboot, load balance network mode, Guest Network, Omada Mesh technology, network access control, rogue AP detection, 6KV lightning protection (common mode) |
| Encryption Algorithm | WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal |
| Authentication Method | Secure Shell (SSH), RADIUS, Radio Service Set ID (SSID) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Aerial | |
| Antenna | External |
| Antenna Qty | 2 |
| Directivity | Omni-directional |
| Expansion / Connectivity | |

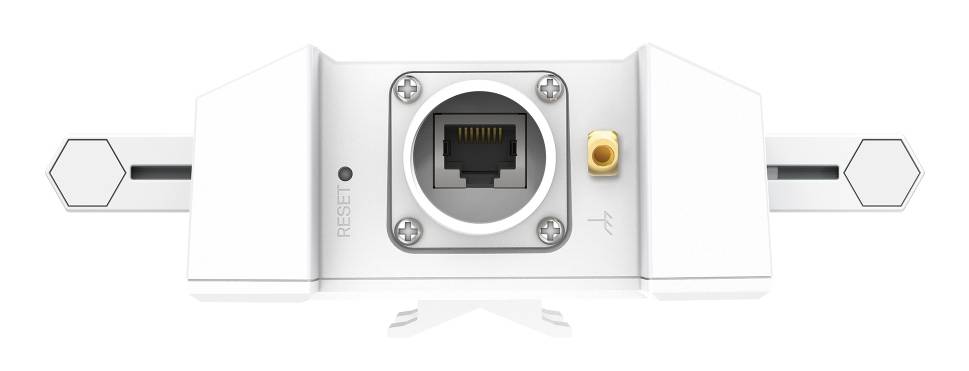

| Interfaces | 1 x 1000Base-T (PoE+) - RJ-45 |
| Miscellaneous | |
| Included Accessories | 2 aerials, pole/wall mount kit, waterproof kit |
| Cables Included | 1 x power cable |
| Compliant Standards | FCC, RoHS, IP67 |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | External power adapter (not included) |
| Voltage Required | 48 V |
| Software / System Requirements | |
| OS Required | Linux, Microsoft Windows XP / Vista / 7 / 8 / 10 / 11 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - TP-LINK - EAP625-OUTDOOR HD
More Details
Product Code
03:230546
EAN Code
4895252506327
Manufacturer
TP-LINK
