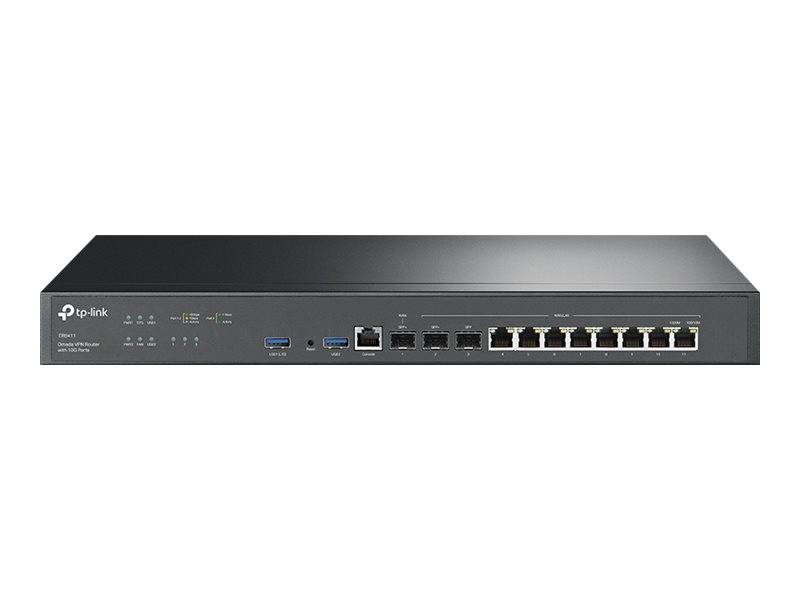

TP-Link Omada ER8411 V1 / Router / 10 GigE / rack-mountable | ER8411
Brand: TP-LINK
ER8411
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Router |
| Enclosure Type | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Performance | NAT upload throughput (Static IP): 9445.82 Mbps ¦ NAT download throughput (Static IP): 9449.26 Mbps ¦ NAT upload throughput (DHCP): 9426.83 Mbps ¦ NAT download throughput (DHCP): 9426.20 Mbps ¦ NAT upload throughput (PPPoE): 9413.96 Mbps ¦ NAT download throughput (PPPoE): 9102.01 Mbps ¦ NAT upload throughput (L2TP): 4230.62 Mbps ¦ NAT download throughput (L2TP): 4169.53 Mbps ¦ NAT upload throughput (PPTP): 3933.86 Mbps ¦ NAT download throughput (PPTP): 3821.97 Mbps ¦ Upload forwarding rate (66-byte packet size): 1080 Mbps ¦ Download forwarding rate (66-byte packet size): 1030 Mbps ¦ VPN throughput (256-bit AES+SHA1 IPSec): 2140.45 Mbps ¦ VPN throughput (256-bit AES+SHA2 IPSec): 2080.20 Mbps ¦ OpenVPN throughput: 1665.64 Mbps ¦ VPN unencrypted throughput (L2TP): 5013.50 Mbps ¦ VPN encrypted throughput (L2TP): 2274.74 Mbps ¦ VPN throughput (SSL): 1511.10 Mbps |
| Capacity | Concurrent sessions: 2300000 ¦ New sessions per second: 20000 ¦ OpenVPN tunnels: 500 ¦ IPSec VPN tunnels: 300 ¦ L2TP VPN tunnels: 300 ¦ PPTP VPN tunnels: 300 ¦ OpenVPN tunnels: 110 |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, NTP, ICMP/IP, IPSec, PPPoE, ARP, FTP, DHCP, DNS, IPv6 |
| Routing Protocol | IGMPv2, static IP routing, IGMPv3 |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, ICMP |
| Encryption Algorithm | DES, Triple DES, MD5, MPPE, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2, SHA-2, IKEv1 |
| Features | Network monitoring, NAT support, VLAN support, Syslog support, ALG support, VPN passthrough, URL filtering, Ethernet Passthrough port, Access Control List (ACL) support, Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), virtual server support, DHCP server, reset button, port triggering, Stateful Packet Inspection Firewall (SPIF), IP-MAC binding, DHCP client, static routing, VPN Server, Generic Attribute Registration Protocol (GARP), Denial of Service (DoS), Ping of Death, IGMP proxy, per port bandwidth control, 2 fans, ARP inspection, 4KV Surge protection, Software Defined Networking (SDN), Web Filtering, VPN client, policy based routing, Hotspot Access Point Capability, Perfect Forward Secrecy (PFS), Zero-touch provisioning (ZTP), L2TP over IPSec, DMZ support, MAC clone, schedule reboot, OpenVPN client, PPTP VPN client, OpenVPN server, IPTV support, load balance network mode, device discovery, Address Reservation, session rate limiting, USB backup |
| Compliant Standards | IEEE 802.1Q, UPnP, FCC, RoHS |
| Processor | 2.2 GHz |
| RAM | 4 GB DDR4 SDRAM |
| Flash Memory | 256 MB |
| Status Indicators | Power, system, WAN, LAN, fan, USB |
| Communications | Communications |
| Digital Signaling Protocol | H.323, SIP |
| IP Telephony | IP Telephony |
| VoIP Protocols | H.323, SIP |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | WAN: 1 x 10GBase-X - SFP+ ¦ WAN / LAN: 1 x 10GBase-X - SFP+ ¦ WAN / LAN: 1 x 1000Base-X - SFP (mini-GBIC) ¦ WAN / LAN: 8 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Console: 1 x RJ-45 ¦ USB 3.0: 1 x - LTE ¦ USB 3.0: 1 x |
| Power | Power |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Installed Qty | 2 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 26.36 Watt |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x power cable |
| Mounting Kit | Included |
| Software / System Requirements | Software / System Requirements |
| OS Required | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10, Microsoft Windows 11 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44 cm |
| Depth | 22 cm |
| Height | 4.4 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
