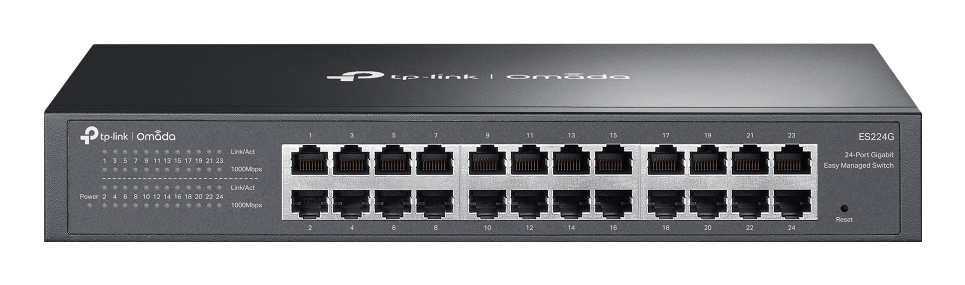

TP-Link Omada ES224G 24-Port Gigabit Managed Switch | L2

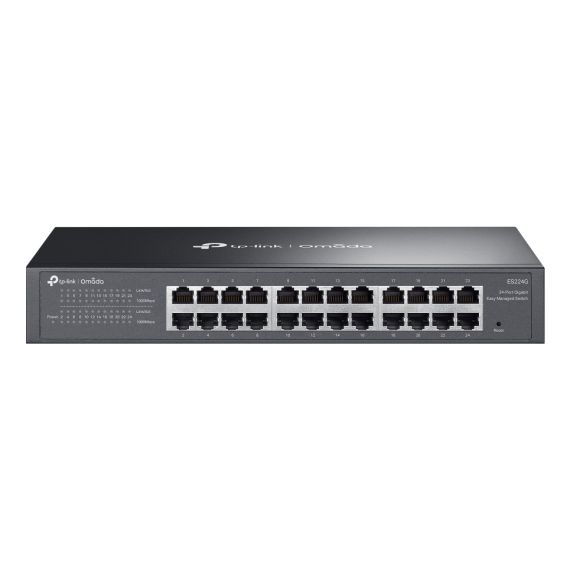

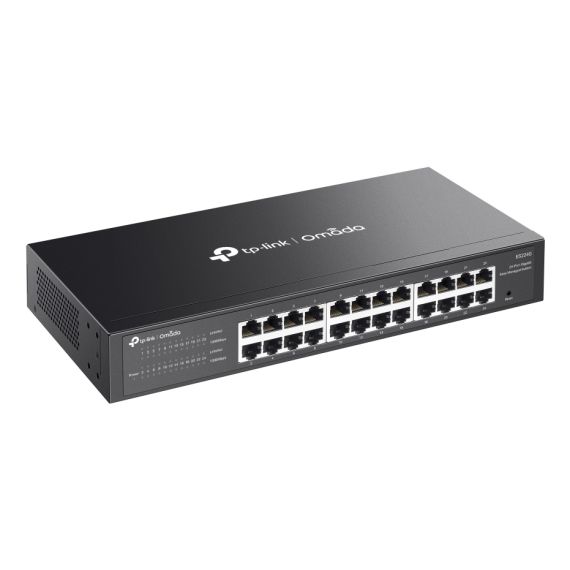

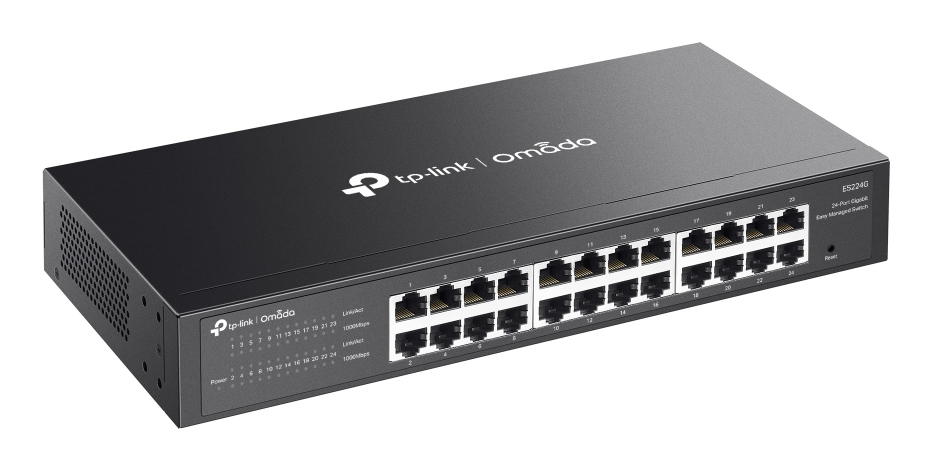

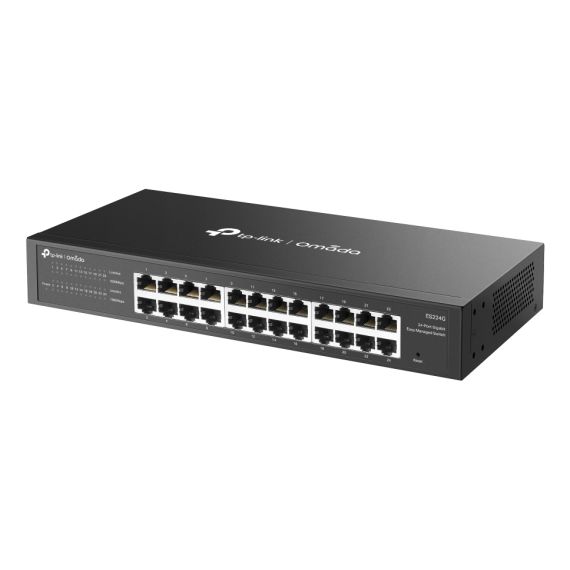

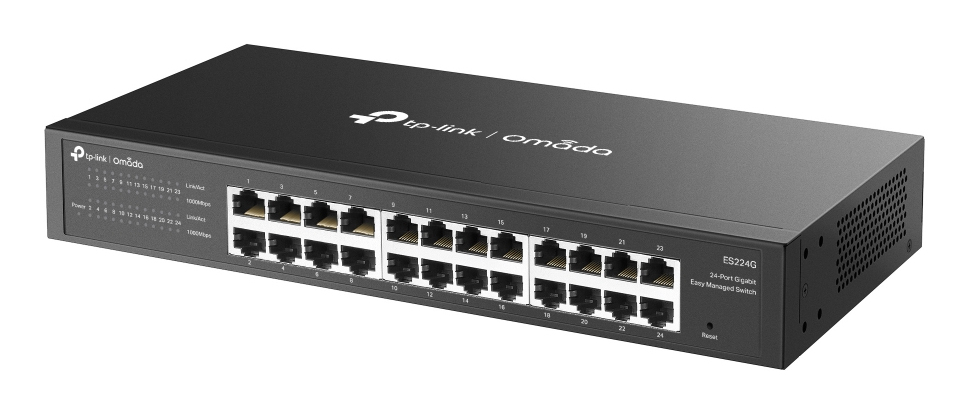

The TP-Link Omada ES224G is a 24-port Gigabit managed L2 switch for network setups that need simple central control and reliable wired connectivity. It supports web-based management, VLANs, QoS, IGMP snooping and broadcast storm control, with a fanless design, metal casing and rack mounting support.
Technical Specifications
| Specification | Detail |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Ports | 24 x Gigabit Ethernet (10/100/1000) |
| Gigabit copper ports | 24 |
| MAC address table | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Forwarding rate | 35.7 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 15 |
| Packet buffer memory | 4 MB |
| VLAN support | Yes |
| QoS support | Yes |
| Web-based management | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
| Broadcast storm control | Yes |

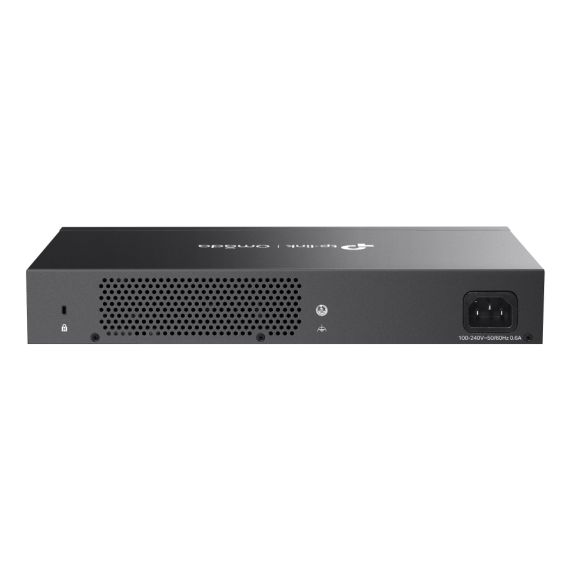

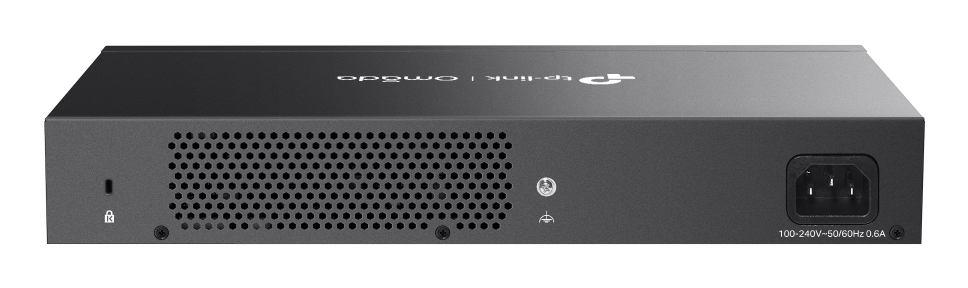

| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| Dimensions | 294 x 140 x 44 mm |
| Operating temperature | -5 - 50 °C |
| Operating relative humidity | 10 - 90 % |
| Storage temperature | -40 - 70 °C |
| Storage relative humidity | 5 - 90 % |
| Cables included | AC |
| Rack mount kit | No |
| SKU / EAN | ES224G | 1210002600705 |
SINGULAR RECOMMENDS
For who
For small offices, shops or home networks that need a managed 24-port Gigabit switch with VLANs, QoS and straightforward web-based administration.
Real reason to buy it
It combines 24 Gigabit ports, L2 management and Omada cloud-friendly administration in a fanless metal design for quiet networking.
Know before
A rack mount kit is not included. The switch is AC powered and the product information confirms rack mounting, but not a supplied rack kit.
