TP-Link Omada SG2005P-PD V1.6 - Switch - smart - 1 x 10/100/1000 (PoE++) + 4 x 10/100/1000 (PoE+) - wall-mountable, pole-mountable - PoE++ (64 W) | SG2005P-PD

Description
Features
Reviews

Product Features

Enhanced connectivity
With a total of 5 ports, including 1 PoE++ and 4 PoE+ ports, the TP-Link Omada SG2005P-PD V1.6 offers versatile connectivity options for a variety of devices, ensuring efficient power and data delivery.
Robust security features
Equipped with features like Access Control List (ACL) support, IP/Mac/Port Binding (IPMB), and DoS attack prevention, this switch ensures a secure network environment, protecting against unauthorized access and various types of attacks.
Comprehensive network management
Support for numerous remote management protocols, including SNMP, RMON, and SSH, alongside cloud management capabilities, allows for easy and efficient monitoring and management of the network infrastructure.
Durable and reliable design
Designed to withstand harsh environmental conditions, the TP-Link Omada SG2005P-PD V1.6 features a weatherproof, dustproof, and UV resistant casing, making it suitable for outdoor installations.
Advanced networking capabilities
With support for up to 4000 VLAN groups, Quality of Service (QoS) for traffic prioritization, and advanced routing protocols, this switch is capable of handling complex network configurations and ensuring smooth operation.

Special Fetures

5 Gigabit Ethernet ports including 1 PoE++ and 4 PoE+ for flexible network configurations
Supports up to 4000 VLAN groups for extensive network segmentation
Advanced security features including ACL, IPMB, and DoS prevention
Cloud managed for easy remote network monitoring and management
Weatherproof, dustproof, and UV resistant casing for outdoor deployment

Product Specification

Device Type	Switch - 5 ports - smart
Enclosure Type	Wall-mountable, pole-mountable
Subtype	Gigabit Ethernet
Ports	1 x 10/100/1000 (PoE++) + 4 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)	PoE++
PoE Budget	64 W
Max Transfer Distance	100 m
Performance	Switching capacity: 10 Gbps ¦ Packet forwarding rate: 7.44 Mpps ¦ Packet buffer size: 4.1 Mbit
Capacity	Priority queues: 8 ¦ IPv6 interfaces: 32 ¦ IPv4 interfaces: 32 ¦ Static routes: 32 ¦ Multicast groups: 511 ¦ Total link aggregation groups: 8 ¦ Multicast filters: 256 ¦ Layer 2 multicast filtering entries per profile: 16 ¦ VLAN groups: 4000 ¦ MAC VLAN address entries: 12 ¦ Access control entries: 230 ¦ IPv6 MAC port binding entries: 512 ¦ IPv4 source guard entries: 253 ¦ IPv6 source guard entries: 183 ¦ MAC addresses per port: 64
MAC Address Table Size	8K entries
Jumbo Frame Support	9KB
Routing Protocol	IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol	RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, ICMP, DHCP, IPv4, IPv6, RSTP, RADIUS, MIB, TCP/IP, UDP
Encryption Algorithm	SSL 3.0, TLS 1.2
Authentication Method	Secure Shell (SSH), RADIUS, PAP, Secure Shell v.2 (SSH2), EAP-MD5
Features	Flow control, network monitoring, BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, reset button, Cable Diagnostics Function, bandwidth control, Device Link Detection Protocol (DLDP) support, fanless, weatherproof, DHCP relay, Port Security, Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), port isolation, Multicast filtering function, Class of Service (CoS), Strict Priority (SP), cloud managed, Type of Service (ToS), Storm Control, system log, ARP inspection, Link Aggregation, rate limit, Software Defined Networking (SDN), fast leave, Authentication, Authorization and Accounting (AAA), Voice VLAN, IP/Mac/Port Binding (IPMB), Guest VLAN, proxy ARP, Zero-touch provisioning (ZTP), Energy-Efficient Ethernet (EEE), BPDU Filter, Weighted Round Robin (WRR), loopback detection, dustproof, waterproof, MAC Access Bypass (MAB), Unknown Storm Control, queue scheduling support, schedule reboot, DSCP prioritisation, device discovery, Media Endpoint Discovery (LLDP-MED), 4KV lightning protection (common mode), path maximum transmission unit (MTU) discovery, ND detection, UV resistant casing, long range PoE+ up to 200m
Compliant Standards	IEEE 802.3u, IEEE 802.3i, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bt
Status Indicators	System, link/activity, PoE max, PoE activity
Expansion / Connectivity

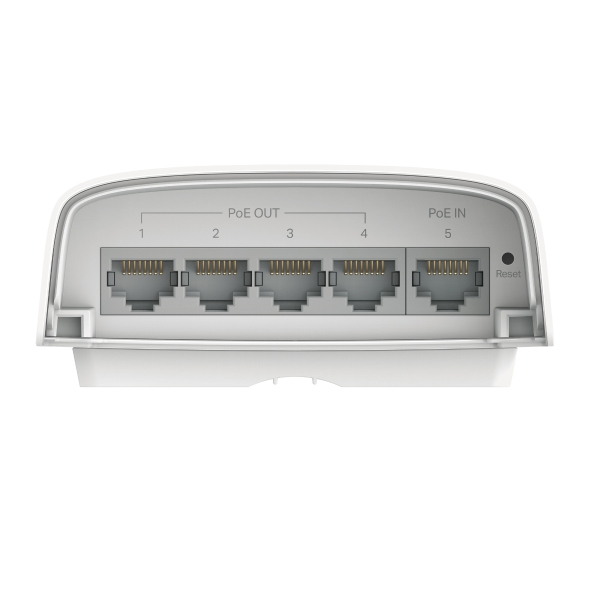

Interfaces	1 x 10/100/1000 Base-T RJ-45 PoE++ - 30 W ¦ 4 x 10/100/1000 Base-T RJ-45 PoE+
Miscellaneous

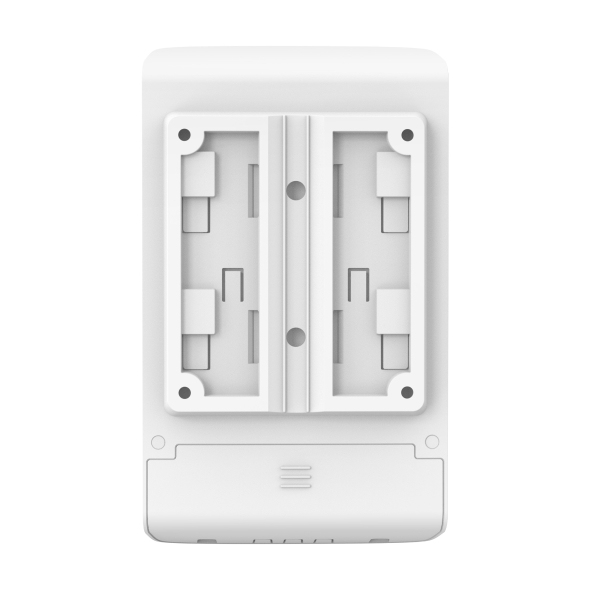

Included Accessories	Mounting kit
Compliant Standards	FCC, RoHS, IP55
Software / System Requirements
OS Required	UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11
Dimensions & Weight
Width	10 cm
Depth	3.85 cm
Height	17 cm
Environmental Parameters
Min Operating Temperature	-40 °C
Max Operating Temperature	60 °C
Humidity Range Operating	10 - 90% RH (non-condensing)
Min Storage Temperature	-40 °C
Max Storage Temperature	70 °C
Humidity Range Storage	5 - 90% RH (non-condensing)
