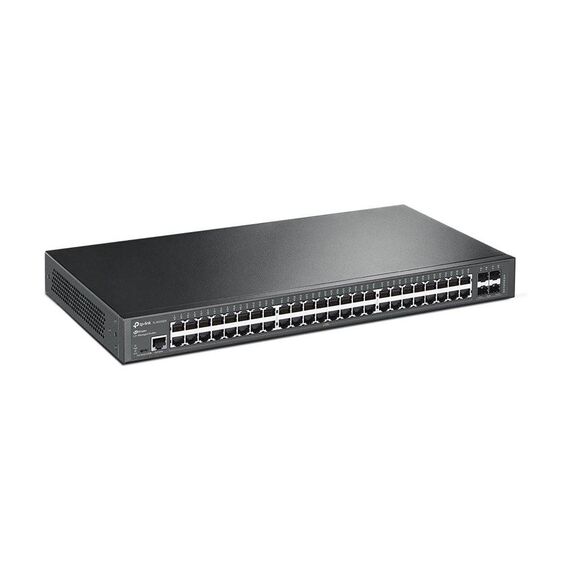

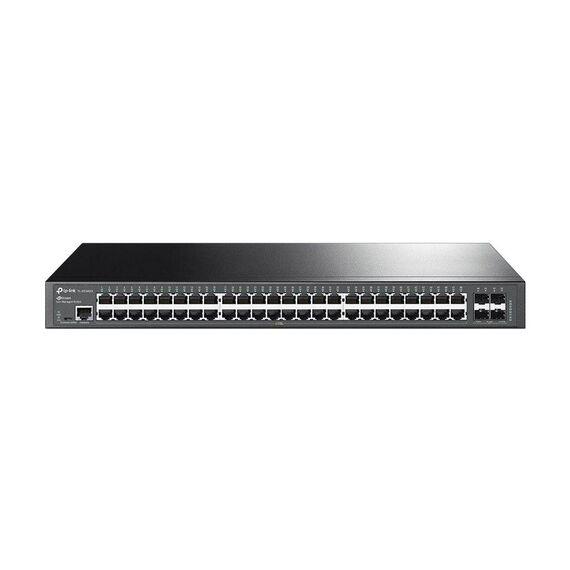

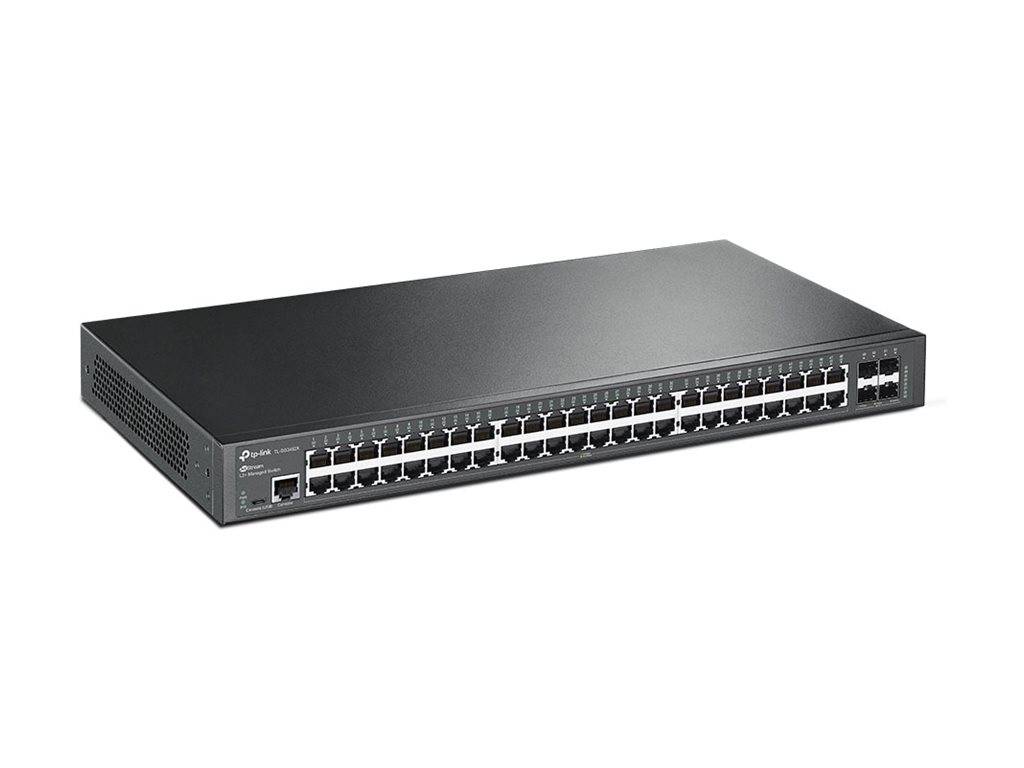

TP-Link JetStream TL-SG3452X V1 - 48-Port L2+ Managed Switch with 4 x 10G SFP+
The TP-Link JetStream TL-SG3452X V1 is a rack-mountable managed switch with 48 Gigabit RJ-45 ports and 4 x 10G SFP+ uplink ports. It is built as an L2+ switch and is designed for network setups that need flexible management, higher uplink capacity and support for Omada SDN cloud management.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Switch - 48 ports - L2+ - Managed |
| Ports | 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Interfaces | 48 x 1000Base-T RJ-45 | 4 x 10GBase-X SFP+ | 1 x console RJ-45 | 1 x micro-USB console | 48 x 1000Base-T RJ-45 4 x 10GBase-X SFP+ 1 x console RJ-45 1 x micro-USB console |
| SubType | Gigabit Ethernet |
| Transmission Rate | 1Gbps |
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 130.94 Mpps |
| Packet Buffer Size | 12 Mbit |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9KB |
| RAM | 512 MB |
| Flash Memory | 32 MB |
| Power | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Standby Power Consumption | 13.38 Watt |
| Enclosure Type | Rack-mountable |
| Rack Mounting Kit | Included |
| Included Accessories | Rubber feet |
| Dimensions | 44 cm (W) | 22 cm (D) | 4.4 cm (H) |
| Weight | 4.096 kg |
| Remote Management Protocol | SNMP 1 | RMON 1 | RMON 2 | RMON 3 | RMON 9 | Telnet | SNMP 3 | SNMP 2c | HTTP | HTTPS | TFTP | SSH | CLI | ICMP | DHCP | RSTP |
| Authentication Method | SSH | RADIUS | TACACS+ | SSH2 |
| Encryption Algorithm | SSL 3.0 | TLS 1.2 |
| Routing Protocol | IGMPv2 | IGMP | IGMPv3 | static IPv4 routing | static IPv6 routing | MLDv2 | MLD | MSTP | RSTP | STP |
| Capacity | Priority queues: 8 | IPv4 routes (static): 16 | IPv6 routes (static): 16 | Static routes: 48 | ARP entries: 128 | Maximum aggregation groups: 8 | Ports per aggregation group: 8 | Layer 2 multicast filtering profiles: 256 | Layer 2 multicast filtering entries per profile: 16 | VLAN groups: 4000 | MAC VLAN address entries: 30 | VLAN templates: 16 | IP MAC port binding entries: 512 | IPv4 source guard entries: 100 | IPv6 MAC port binding entries: 512 | IPv6 source guard entries: 100 | Port security entries: 64 |
| Features | Flow control | VPN support | BOOTP support | ARP support | IGMP snooping | Syslog support | DoS attack prevention | port mirroring | store and forward | Broadcast Storm Control | IPv6 support | Multicast Storm Control | Unicast Storm Control | firmware upgradable | SNTP support | sFlow | DHCP snooping | ACL support | QoS | DHCP server | MLD snooping | Cable Diagnostics Function | bandwidth control | DLDP support | fanless | LLDP support | DHCP relay | LACP | Port Security | MVR | NDP | port isolation | CoS | SP | GVRP | 802.1x authentication | cloud managed | DSCP support | IP source guard | ARP inspection | BPDU | dual image support | SDN | AAA | LLDP-MED | VLAN group | guest access | ZTP | EEE | BPDU Filter | WRR | HOL Blocking Prevention | loopback detection | Advanced QoS | MAB | security slot (Kensington security lock compatible) |
| Compliant Standards | FCC | RoHS | IEEE 802.3u | IEEE 802.3i | IEEE 802.3z | IEEE 802.1D | IEEE 802.1Q | IEEE 802.3ab | IEEE 802.1p | IEEE 802.3x | IEEE 802.3ad (LACP) | IEEE 802.1w | IEEE 802.1x | IEEE 802.3ae | IEEE 802.1s | IEEE 802.3ah | IEEE 802.1ab (LLDP) |
| Status Indicators | Status |
| OS Required | Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11 | UNIX | Apple MacOS | Novell NetWare | Linux |
| Operating Temperature | 0 °C to 45 °C |
| Operating Humidity | 10 - 90% RH (non-condensing) |
| Storage Temperature | -40 °C to 70 °C |
| Storage Humidity | 5 - 90% RH (non-condensing) |
| Package Contents | Rubber feet |
| Security | SSL 3.0 | TLS 1.2 |
| Data Transfer Rate | 1Gbps |
| Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, ICMP, DHCP, RSTP |
| SKU / EAN | TL-SG3452X | 0840030702501 |
SINGULAR RECOMMENDS
For who
Suitable for businesses that need a managed 48-port Gigabit switch with 10G SFP+ uplinks and centralised Omada SDN management.
Real reason to buy it
It combines 48 Gigabit access ports with 10G uplinks, L2+ management and Omada SDN support in a rack-mountable form.
Know before
This is a rack-mountable managed switch with an internal power supply; the listing includes rubber feet and a rack mounting kit. It supports a wide range of management methods and OS environments.
Features - TP-LINK - SG3452X(UN)
Standard
48-Port
Port Speed
- 10/100 Mbps
- 1 Gbps
- 10 Gbps
More Details
Product Code
04:405570
EAN Code
0840030702501
Manufacturer
TP-LINK
