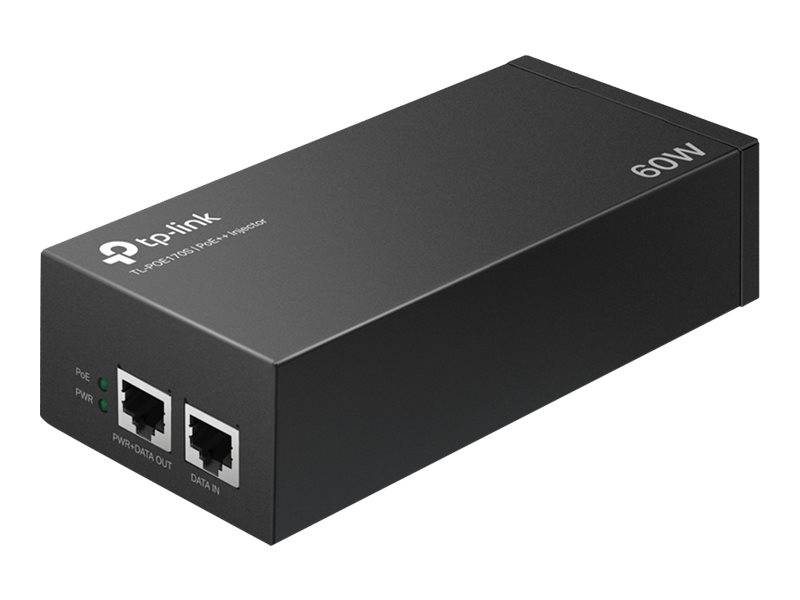

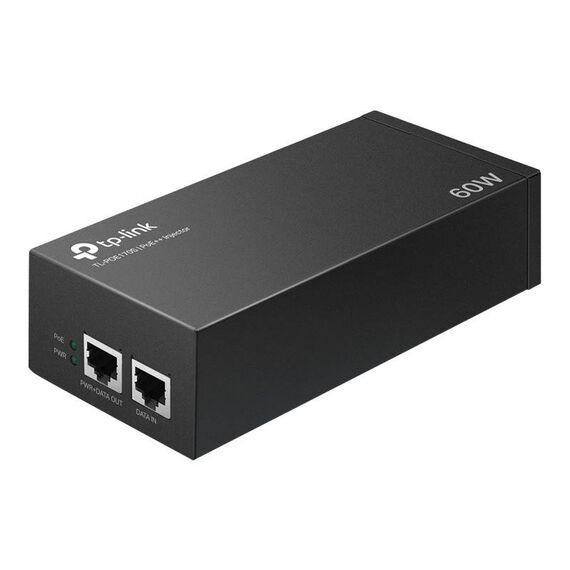

TP-Link TL-POE170S V1 / PoE injector / AC 100-240 V / 60 Watt / output connectors: 1 | TL-POE170S
Please sign in so that we can notify you about a reply
Special Features
- 2 Gigabit ports ensure faster transmission
- Complies with IEEE802.3af/at/bt standards, supplies up to 60 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug-and-Play installation, requires no configuration
- Integrated power supply
- Durable metal casing
Product Specification
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE++ (IEEE 802.3bt) |
| Power Device | Power Device |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Power Output Connectors Details | 1 x RJ-45 |
| Power Capacity | 60 Watt |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Miscellaneous | Miscellaneous |
| Features | Wall mountable, Auto-Sensing Technology |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, Plug and Play, FCC, RoHS |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15.5 cm |
| Depth | 7 cm |
| Height | 4.2 cm |
Features - TP-LINK - POE170S
More Details
Product Code
03:190012
EAN Code
4897098683897
Manufacturer
TP-LINK
