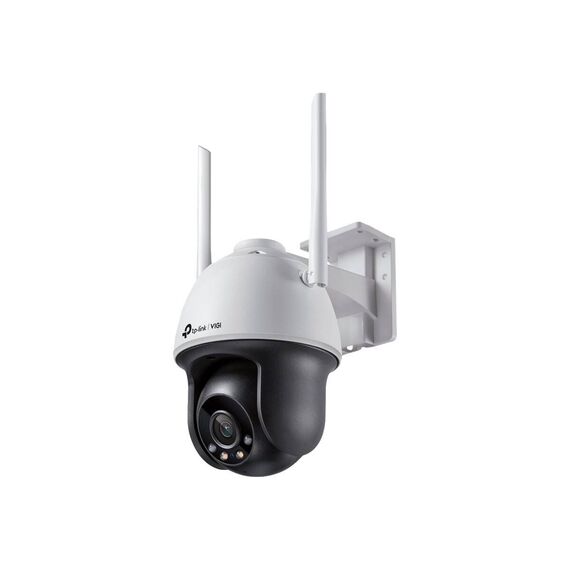

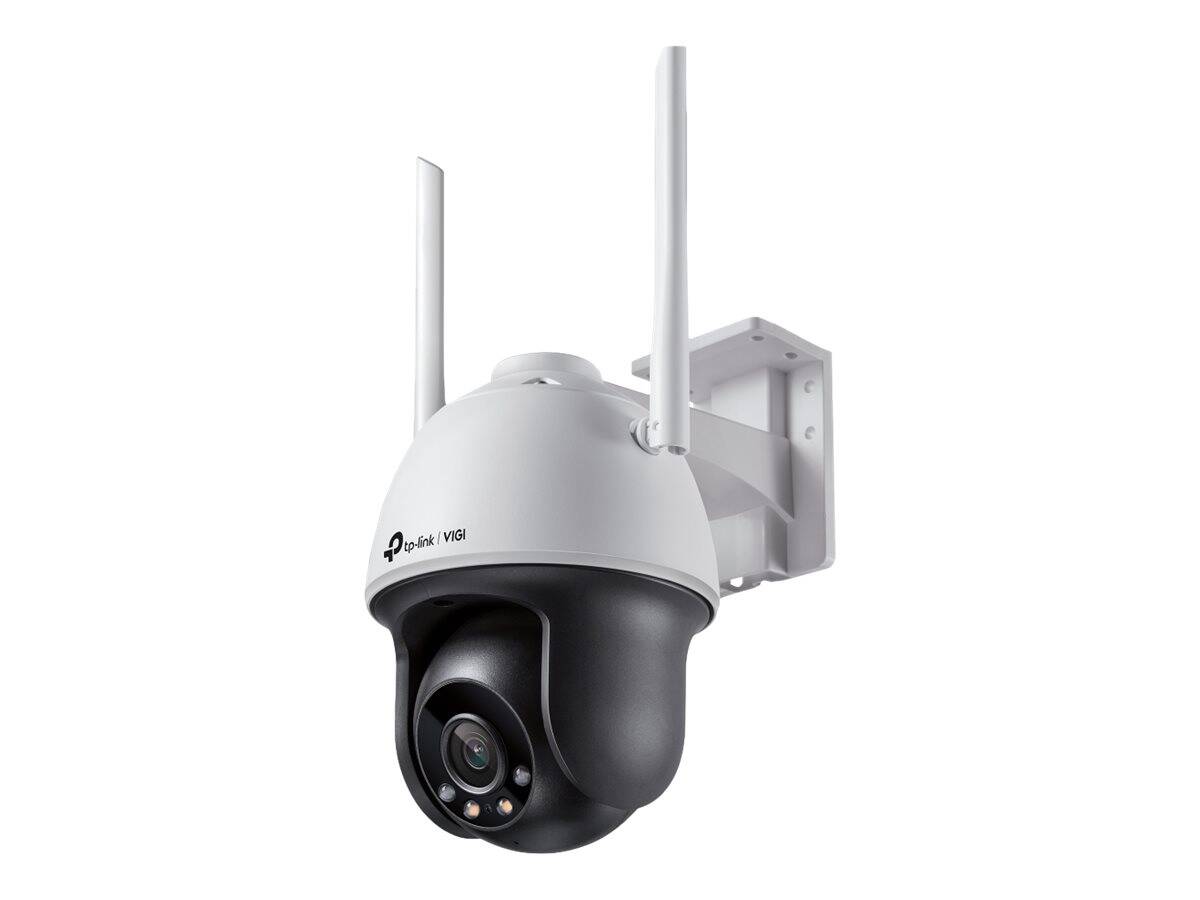

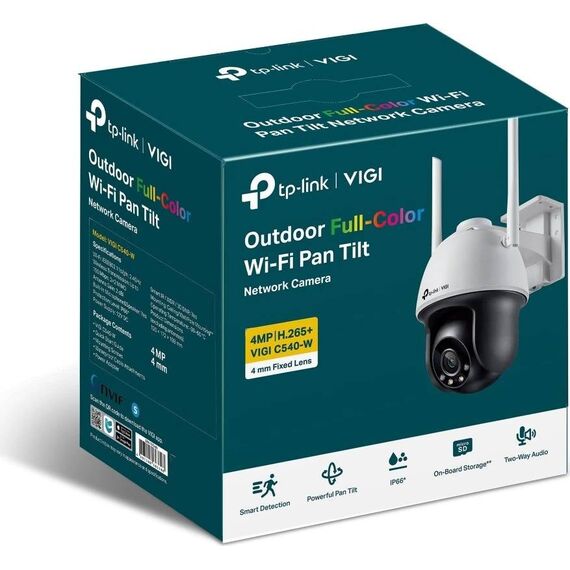

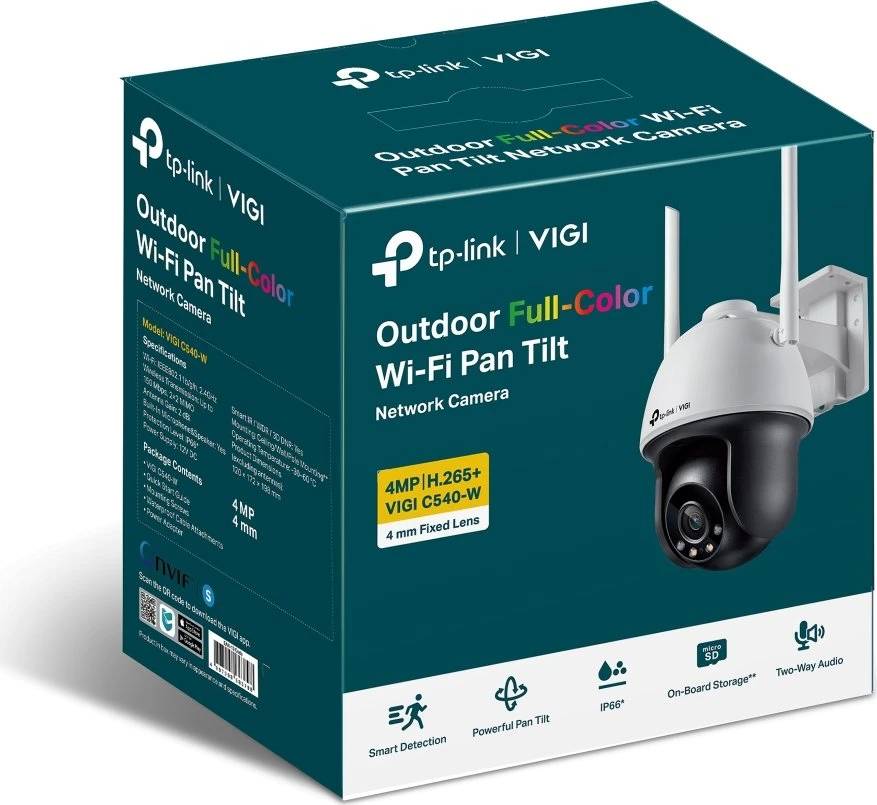

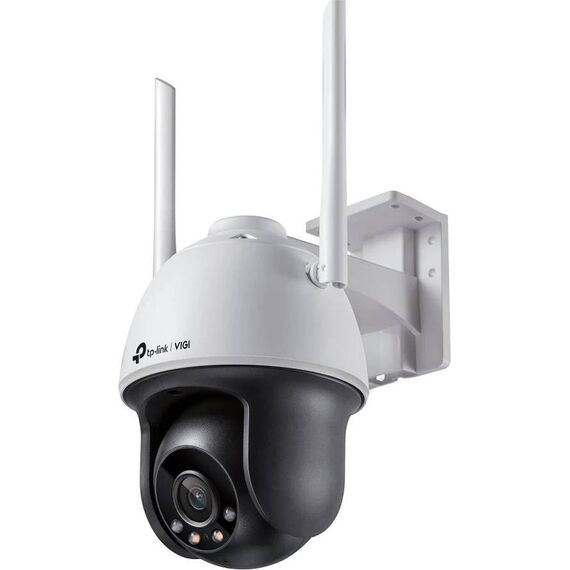

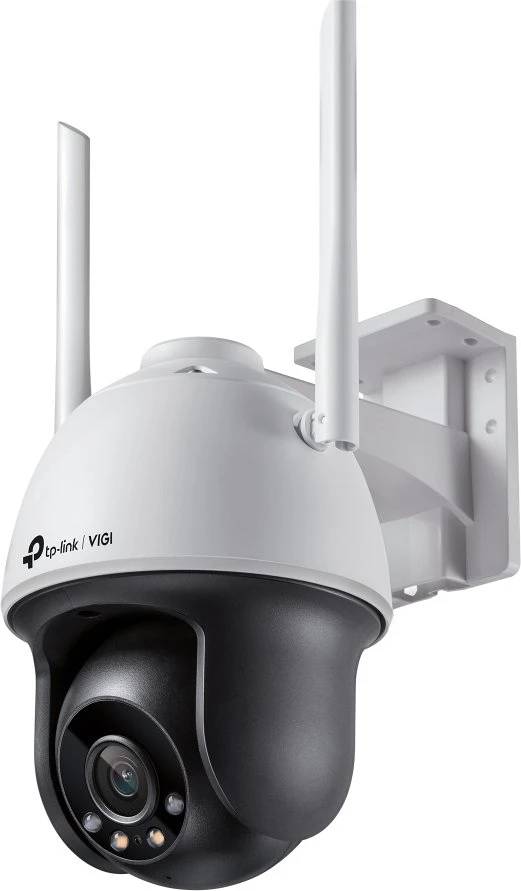

TP-Link VIGI C540-W V1 / Network surveillance camera / pan / tilt / turret / outdoor / weatherproof / colour (Day&Night) / 4 MP / 2560 x 1440 / M12 mount / fixed focal / audio / wireless / Wi-Fi / LAN 10/100 / H.264, H.265, H.265+, H.2 | VIGI C540-W(4MM)

VIGI C540-W(4MM)
133.56
(158.94 inc. VAT)
Out of stock
Find similar
Delivery
Payment options
Product Code04:441135 EAN Code4897098683798 ManufacturerTP-LINK

Product Features

  • Powerful pan tilt
    Cover every corner flexibly with VIGI's pan tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.
  • Clarity and colors, all in one
    Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
  • Smart detection
    Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
  • Active defense
    Warn potential intruders instantly with sound and light when abnormal events are detected.
  • Every Event is under your control
    VIGI camera intelligently detects activities, informs you instantly, and responds automatically by smart detection and two-way audio.
  • Flexible management and storage
    Take full control over your security via three management methods, VIGI NVR, App, and Security Manager. Local storage is available for each method, as well as on-board storage with an SD card slot.
  • Flexible installation
    Find the perfect vantage point by simply securing your camera to ceiling, pole or wall.

Special Features

  • 4MP high definition - the camera comes with 4MP - more than enough pixels to pick up some of the more discrete details
  • 24h full-color - obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs
  • Powerful pan tilt - customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property
  • Wireless outdoor connection - simple and quick deployment with Wi-Fi signals
  • Waterproof - reliable IP66 for stable outdoor performance
  • Smart detection (motion detection, area intrusion, line-crossing, video tampering) - receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera
  • H.265+ - without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality

Product Specification

Device Type Network surveillance camera
Audio Support Yes: built-in speaker, built-in microphone
Form Factor Turret
Camera Mount Type Wall mount, ceiling mount, pole mount
Connectivity Technology Wired, wireless
Width 12 cm
Depth 17.2 cm
Height 19.8 cm
Camera Camera
Type Colour - Day&Night - pan / tilt - outdoor - weatherproof
Digital Video Format H.264, H.265, H.265+, H.264+
Max Digital Video Resolution 2560 x 1440
Motion Detection Yes
Infrared LEDs Yes
Infrared Distance 30 m
Digital Video Capture Resolution 640 x 480, 320 x 240, 352 x 288, 1920 x 1080, 2304 x 1296, 2560 x 1440, 2048 x 1280
Frame Rate (max) 30 frames per second
Features Backlight Compensation (BLC), sharpness control, saturation control, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), ONVIF support, Privacy Mask Function, Digital Wide Dynamic Range (D-WDR), programmable white balance, Smart IR, reset button, password protection, auto tracking, 2-way voice communication, Region of Interest (ROI), intrusion detection, exposure control, plastic housing, digest authentication, Line Crossing Detection, IP address filtering, 3D digital noise reduction (DNR), Zoom compatible, HTTPs encryption, human detection, Smart Detection, instant notification, PoE support, password reset via e-mail, 2 video streams, video tampering detection
Image Sensor Image Sensor
Type 4 MP CMOS 1/3"
Lens Construction Lens Construction
Type M12 mount - fixed focal
Focal Length 4 mm
Lens Iris F/1.6
Horizontal Field of View (degree) 79
Vertical Field of View (degree) 43
Diagonal Field of View (degree) 93
Panning Panning
Range (degree) 0 to 360
Tilting Tilting
Range (degree) 0 to 120
Interfaces Interfaces
Network Interface Ethernet 10Base-T/100Base-TX
Network Protocols DHCP, DNS, HTTP, NTP, TCP/IP, UDP/IP, ICMP, RTSP, HTTPS, UPnP, TLS, SSL
Expansion / Connectivity Expansion / Connectivity
Ports LAN - RJ-45
Supported Memory Cards microSD Card
Miscellaneous Miscellaneous
Included Accessories Mounting hardware, waterproof cable attachments
Compliant Standards VCCI, BSMI, RoHS, IP66, KC, NCC, RCM, JRF, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, WPA2-PSK, WPA
Power Power
Power Requirements DC 12 V
Manufacturer Warranty Manufacturer Warranty
Service & Support Limited warranty - 3 years
Environmental Parameters Environmental Parameters
Min Operating Temperature -30 °C
Max Operating Temperature 60 °C

Features - TP-LINK - VIGI C540-W(4MM)

More Details
Product Code
04:441135
EAN Code
4897098683798
Manufacturer
TP-LINK
