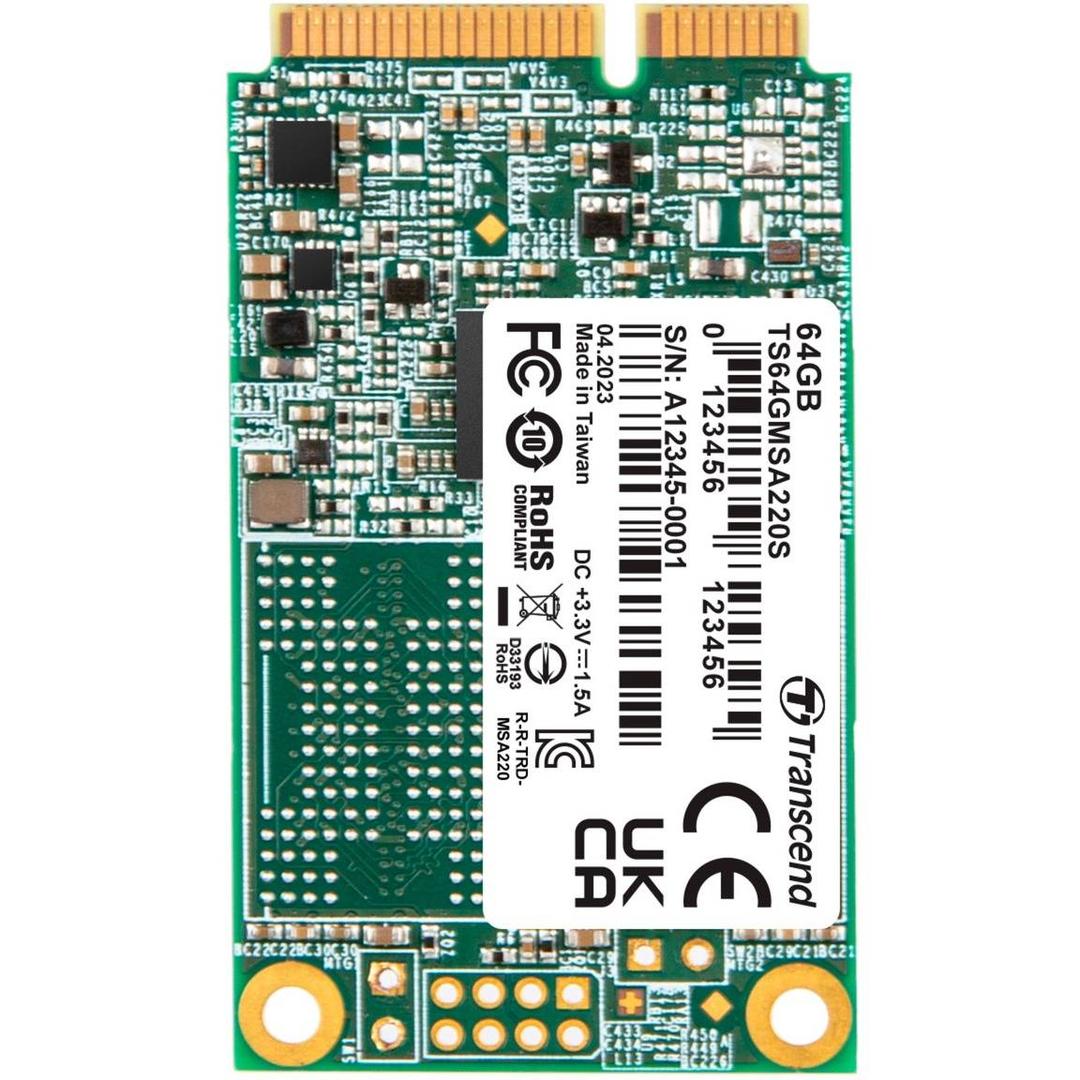

Transcend 220S / SSD / 64 GB / internal / mSATA / SATA 6Gb/s | TS64GMSA220S
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Solid state drive - internal |
| Capacity | 64 GB |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | mSATA |
| Interface | SATA 6Gb/s |
| Features | Native Command Queuing (NCQ), TRIM support, Advanced Garbage Collection, DevSleep mode, Advanced Global Wear Leveling, built-in BCH ECC, Block management, Security Command support, S.M.A.R.T. |
| Width | 50.8 mm |
| Depth | 29.85 mm |
| Height | 4.85 mm |
| Weight | 8 g |
| Performance | Performance |
| Drive Writes Per Day (DWPD) | 0.3 |
| SSD Endurance | 20 TB |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 550 MBps (read) / 350 MBps (write) |
| Maximum 4KB Random Write | 80000 IOPS |
| Maximum 4KB Random Read | 22000 IOPS |
| Reliability | Reliability |
| MTBF | 2,000,000 hours |
| Expansion & Connectivity | Expansion & Connectivity |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | mSATA |
| Power | Power |
| Voltage Required | 3.3 V |
| Software & System Requirements | Software & System Requirements |
| OS Required | Linux Kernel 2.6.31 or later, Microsoft Windows 7 or later |
| Miscellaneous | Miscellaneous |
| Compliant Standards | BSMI, FCC, KC, RCM, UKCA |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
Features - Transcend - TS64GMSA220S
Form Factor
- 2.5"
- Internal
Capacity
64GB
Interface
- mSata
More Details
Product Code
04:432582
EAN Code
0760557862383
Manufacturer
Transcend
