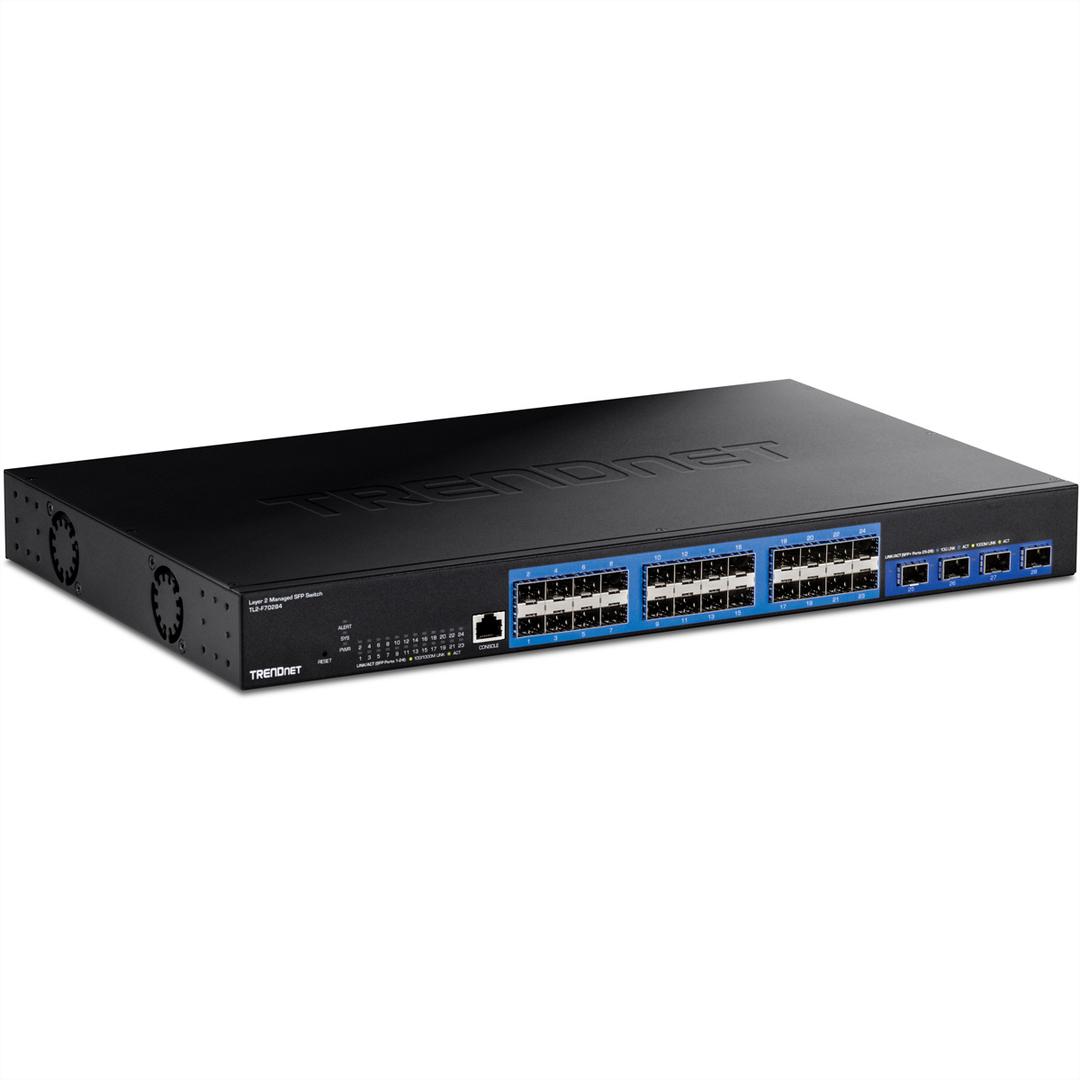

TRENDnet TL2-F70284 28-Port Layer 2 Managed SFP Switch, 24x Gigabit SFP + 4x 10G SFP+, Static Routing, 1U Rack

Brand:
Trendnet
TRENDnet 28-PORT LAYER 2 MANAGED SFP - SWITCH WITH 1 | TL2-F70284
TRENDnet TL2-F70284 28-Port Layer 2 Managed SFP Switch, 24x Gigabit SFP + 4x 10G SFP+, Static Routing, 1U Rack
€529.81 inc. VAT
Buy
TL2-F70284
€445.22 €494.69
€529.81 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
04:496131
EAN Code
0710931140996
Manufacturer
Trendnet

Quick Specs

Type
L2 managed SFP fibre switch
Ports
24x 1G SFP + 4x 10G SFP+
Switching
128 Gbps · static routing
Form factor
1U rackmount, 100-240V AC
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

TRENDnet TL2-F70284 — 28-Port Layer 2 Managed SFP Switch with 10G SFP+ Ports

24x Gigabit SFP4x 10G SFP+ uplinksL2 Managed + static routing1U rackmount

The TRENDnet TL2-F70284 is a 1U Layer 2 managed fibre switch with 24 Gigabit SFP slots and four 10G SFP+ uplinks, designed as a fibre aggregation switch for campuses, multi-building sites, FTTx distribution and CCTV fibre backbones.

It offers 128 Gbps switching, 802.1Q/private/voice VLANs, LACP, STP/RSTP/MSTP, IGMP/MLD snooping, ACLs, DHCP snooping and IPv4/IPv6 static routing, managed through web GUI, CLI (console, Telnet, SSH) or SNMP.

Before you order: All ports are SFP/SFP+ — there are no RJ45 data ports and no modules are included. The 24 access slots run at 100M/1G; the four uplinks at 1G/10G. Send us your fibre type and distances and we will pick the right modules.

What's in the Box

  • TL2-F70284 switch
  • Power cord
  • RJ-45 to RS-232 console cable (1.5 m)
  • Rackmount kit
  • Quick Installation Guide

What It Means in Practice

  • Terminate up to 24 Gigabit fibre runs from buildings, floors or camera cabinets and aggregate them at 10G to the core.
  • The 24 access slots also take 100Base-FX modules for legacy fibre links.
  • Inter-VLAN and static routing let it route between site VLANs for internal traffic.
  • Dual firmware image and DDM optics monitoring help with maintenance.

What Will Not Work

  • No RJ45 copper data ports; copper devices need 1000BASE-T SFP modules.
  • No PoE.
  • The 24 access slots do not run at 10G — only the 4 SFP+ uplinks do.
  • No dynamic routing (OSPF/BGP).
  • Not silent: 3 smart fans, up to 52.9 dBA — install in a rack or technical room.

Key Features


Fibre-dense
24x 100M/1G SFP plus 4x 1G/10G SFP+ in 1U.

L2 managed + routing
802.1Q, private, voice and multicast VLAN, LACP (8 groups), STP/RSTP/MSTP, IPv4/IPv6 static routing.

Security
ACLs, 802.1X, RADIUS/TACACS+, DHCP snooping, dynamic ARP inspection, port security, DoS protection.

Operations
Web GUI, CLI, SNMP v1/v2c/v3, RMON, LLDP, syslog, DDM, port mirroring, dual image.

Technical Specifications

Identification
Part Number TL2-F70284
Brand TRENDnet
Hardware version v1.0R
Type Layer 2 managed SFP switch
Ports
SFP 24x 100M/1G SFP slots
SFP+ 4x 1G/10G SFP+ slots
Console 1x RJ45 console
RJ45 data ports None
PoE No
Performance
Switching capacity 128 Gbps
Forwarding rate 95.2 Mpps
MAC address table 32K entries
Jumbo frames 12 KB
Buffer 2 MB
Management
Interfaces Web GUI (HTTP/HTTPS), CLI (console, Telnet, SSH), SNMP v1/v2c/v3
VLAN 802.1Q, protocol/MAC/private VLAN, voice VLAN, multicast VLAN, 256 groups
Redundancy STP, RSTP, MSTP, static + LACP (8 groups)
Multicast IGMP v1/v2/v3, MLD snooping
Routing IPv4/IPv6 static and inter-VLAN routing
Security ACL, 802.1X, DHCP snooping, ARP inspection, port security
Power & physical
Power Internal PSU, 100-240V AC
Max consumption 38.4 W
Cooling 3 smart fans, max 52.9 dBA
Form factor 19" 1U, rackmount kit included
Dimensions 440 x 270 x 44 mm
Weight 3.82 kg
Operating temperature 0 to 50°C
Certifications CE, FCC
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term 3-year limited manufacturer warranty (TRENDnet, EU) — claims handled through Singular

Frequently Asked Questions

Can the 24 SFP slots run at 10G?
No. They support 100M and 1G modules; only the four SFP+ uplink slots support 10G.
Can I connect copper devices?
Yes, with 1000BASE-T copper SFP modules in the SFP slots, but a copper access switch is usually cheaper for many RJ45 devices.
Is it suitable for a CCTV fibre backbone?
Yes — terminate each camera cabinet on a Gigabit SFP and uplink the recorder side at 10G.
Singular Expert Insight · Buyer's Guide
Pick the TL2-F70284 when fibre is the access medium: it gives 24 Gigabit fibre terminations and 10G uplinks with real L2 management in one rack unit. Budget for SFP and SFP+ modules for every link. See our network switches for copper and PoE access switches.
✓ Buy it if you need many Gigabit fibre ports with 10G uplinks and L2 management.
✕ Skip it if your devices are mainly copper RJ45 or you need PoE.
→ Also consider TRENDnet TL2-F7120 (12x 10G SFP+) for an all-10G core.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
