TRENDnet TI-ELC80 8-Port Industrial Fast Ethernet Mini Switch — Unmanaged, DIN Rail / Wall Mount, -40 to 75°C, IP30
Brand:
Trendnet
TRENDnet TI-ELC80 8-Port Industrial Fast Ethernet Mini Switch — Unmanaged, DIN Rail / Wall Mount, -40 to 75°C, IP30
€63.46 inc. VAT
TI-ELC80
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
8-Port Industrial Fast Ethernet in a Tiny, Rugged Body
8× 10/100 RJ45UnmanagedDIN Rail / Wall-40 to 75°C9.6–60V DC

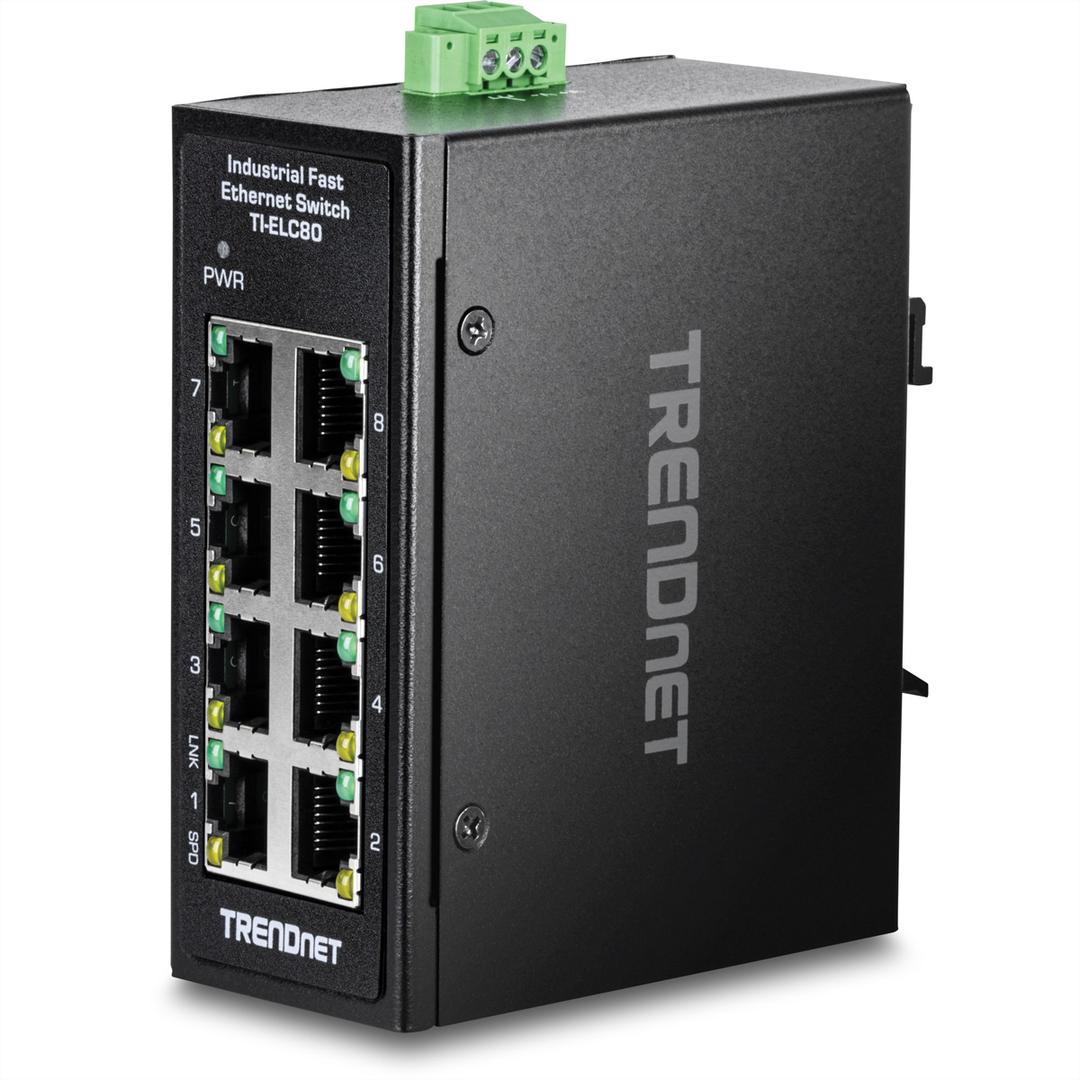

The TRENDnet TI-ELC80 packs eight 10/100 Fast Ethernet ports into a compact, fanless industrial mini switch built to survive where office gear can't. A hardened metal housing, a wide -40 to 75°C operating range and a flexible 9.6–60V DC input make it ideal for control cabinets, machinery, transport and outdoor enclosures. Everything is plug-and-play with auto MDI/MDI-X, and a DIN-rail plus wall-mount kit is included so it fits neatly wherever you need it.
Compatibility — check before buying:
Requires a 9.6–60V DC power source via the 3-pin terminal block (not AC mains) — a wide range that works with most industrial DC supplies. Connects any 10/100 device with a standard RJ45 cable. Compact enough to tuck into tight enclosures.
Best For
✓Adding rugged Fast Ethernet ports inside a control cabinet
✓Machinery, transport and outdoor enclosures
✓Tight spaces where a full-size switch won't fit
✓Wide-voltage DC installs from 9.6V up to 60V
Key Features
8× 10/100 in a Mini Body
Eight 10/100Base-TX ports with auto-negotiation and auto MDI/MDI-X in a housing just 100 × 81 × 40 mm — full connectivity where space is tight.
-40 to 75°C, Fanless & Rugged
A hardened metal housing rated -40°C to 75°C (95% humidity) with 6KV ESD protection and no moving parts keeps running through heat, cold and vibration.
Wide 9.6–60V DC Input
A 3-pin terminal block accepts anything from 9.6V to 60V DC, so it drops into almost any industrial power setup while drawing under 2W.
DIN-Rail + Wall Mount Included
Ships with both a DIN-rail clip and a wall-mount kit, so you can install it on a rail, a panel or a wall without buying extras.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
When you need a handful of rugged Fast Ethernet ports in a cabinet or a tight enclosure, the TI-ELC80 is a neat, dependable choice — the wide 9.6–60V input and -40 to 75°C range mean it drops into almost any industrial setup. Two things to weigh: the ports are 10/100 (not Gigabit), so if your devices are Gigabit-capable pick a Gigabit industrial model instead; and if your endpoints need power over the cable you'll want an industrial PoE switch, as this is non-PoE. Browse the full networking range to match it with the right DC supply and cabling.
Buyer’s Guide
Buy it if
You need compact, rugged Fast Ethernet in a cabinet,You have a wide-range DC supply (9.6–60V),You want DIN-rail or wall mounting included
Skip it if
Your devices are Gigabit and need >100 Mbps,You need PoE to power cameras or access points,You want managed features like VLANs/QoS
Also consider
An industrial Gigabit switch for higher speed,An industrial PoE switch to power devices,A DIN-rail DC power supply to drive it
Features - Trendnet - TI-ELC80
Colour
black
Standard
8-Port
Port Speed
- 10/100 Mbps
More Details
Product Code
04:495979
EAN Code
0710931162813
Manufacturer
Trendnet
