TRENDnet TI-XPG102 Industrial 10-Port M12 Gigabit PoE+ Railway Switch, EN 50155

Brand:
Trendnet
TRENDnet TI-XPG102 industrial M12 Gigabit PoE+ railway switch
TRENDnet TI-XPG102 Industrial 10-Port M12 Gigabit PoE+ Railway Switch, EN 50155
€725.2 inc. VAT
Buy
TI-XPG102
€609.41 €677.12
€725.20 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
04:603835
EAN Code
0710931162783
Manufacturer
Trendnet
Quick Specs
Data ports
8 PoE+ + 2 bypass, Gigabit
Connectors
M12 X-code data
PoE budget
200W @ 56V / 100W @ 24V
Environment
IP40, -40 to 75°C
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Industrial M12 Networking · 10 Gigabit Ports · EN 50155

8 × M12 PoE+2 × M12 bypass200W at 56V DC-40 to 75°C

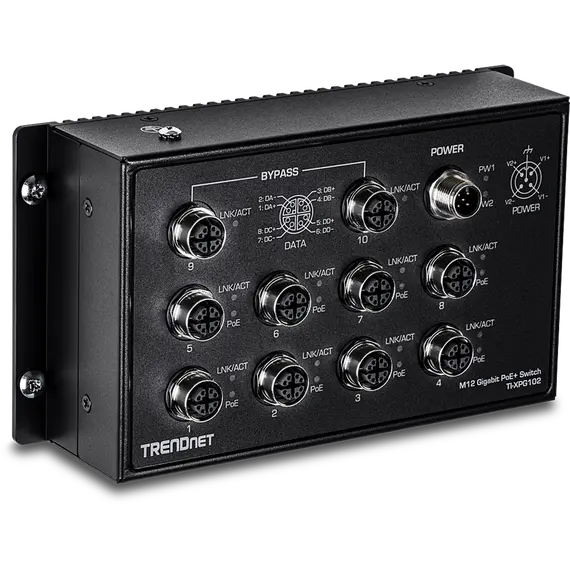

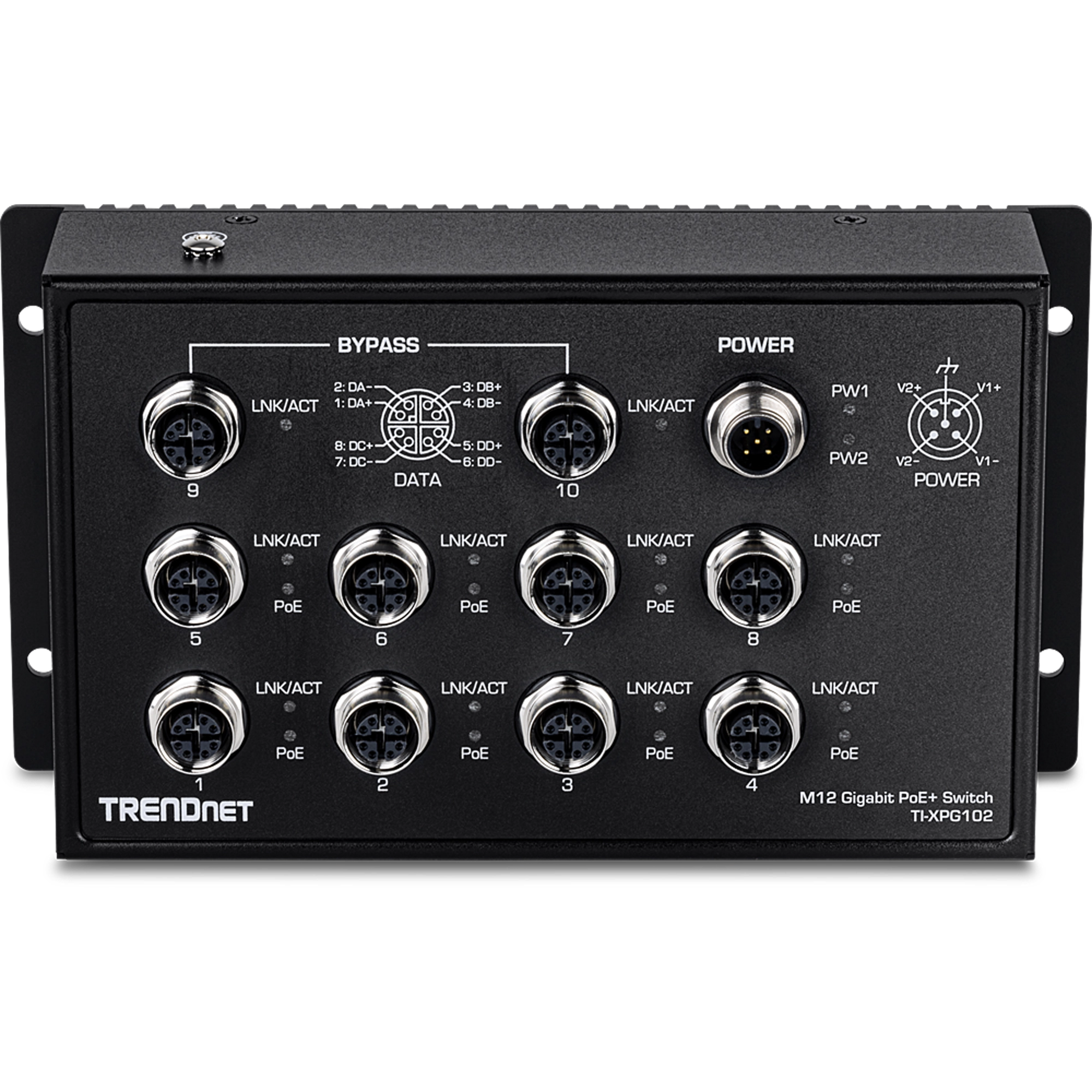

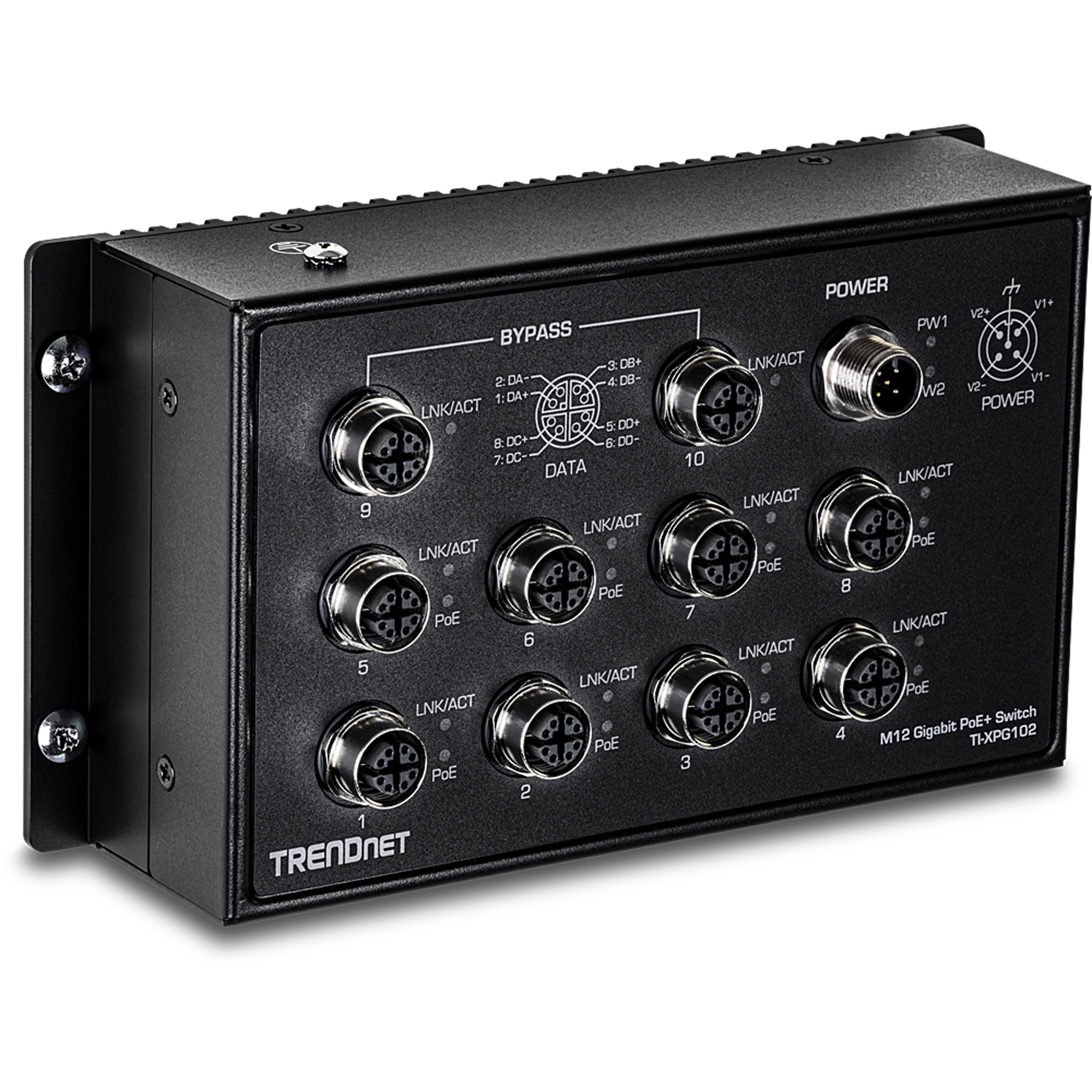

The TRENDnet TI-XPG102 is a compact industrial Ethernet switch for railway and moving-vehicle installations that need secure M12 connections. It combines eight Gigabit PoE+ data ports with two additional Gigabit bypass ports, in a wall-mount metal enclosure rated IP40.

Best For: Engineered railway, transport and industrial networks using M12 Ethernet cabling and a suitable DC power system.
Before you order: This switch uses M12 X-code data connectors, not ordinary RJ45 sockets. M12 cables and the power supply are sold separately. The total PoE budget is 200W at 56V DC and 100W at 24V DC; calculate the power demand of all connected devices.

What's in the Box

  • TI-XPG102 switch
  • Quick installation guide
  • Wall mount

What It Means in Practice

  • Eight PoE+ ports can provide data and power to compatible powered devices over suitable M12 cabling.
  • Two additional Gigabit ports provide the manufacturer's bypass function for network continuity when the switch loses power.
  • A 24–56V DC installation can support the switch, with the available PoE budget determined by the supply voltage.

What Will Not Work

  • An external power supply and M12 data/power cables must be sourced separately.
  • Eight ports at the 30W per-port limit would exceed the 200W total budget; plan the combined load.
  • IP40 does not provide water protection; choose installation protection appropriate to the site.

Key Features


M12 connections
X-code data ports suit applications where secure industrial connections matter.

PoE+ delivery
Eight ports support IEEE 802.3af/at powered devices, up to 30W per port within the total budget.

Industrial environment
The manufacturer specifies EN 50155 compliance and operation from -40 to 75°C.

Gigabit switching
Ten Gigabit data ports share a 20Gbps switching fabric; two offer bypass functionality.

Technical Specifications

Model TI-XPG102, Version V1
Data ports 8 × M12 X-code Gigabit PoE+; 2 × M12 X-code Gigabit with bypass
Power connector 1 × M12 A-code
PoE standards IEEE 802.3af / 802.3at
PoE per port Up to 30W, subject to total budget
Total PoE budget 200W at 56V DC; 100W at 24V DC
DC input 24–56V DC, redundant input
Switching capacity 20Gbps
Forwarding rate 14.88Mpps, 64-byte packets
MAC table / buffer 8K entries / 512KB
Jumbo frames 9KB
Enclosure IP40 metal, wall mount, grounding point
Operating temperature -40 to 75°C
Operating humidity Up to 95%, non-condensing
Dimensions 160 × 97 × 50mm
Weight 884g
Railway compliance EN 50155; EN 50121-3 / EN 50121-4 as listed by manufacturer
Power and cables Sold separately
Condition New

Frequently Asked Questions

Can I connect a normal RJ45 cable directly?
No. The data ports are M12 X-code; use suitable M12 cabling or the correct interface cable.
Is the power supply included?
No. The manufacturer lists the power supply and M12 cables separately.
Is 200W available at every input voltage?
No. The specified total is 200W at 56V DC and 100W at 24V DC.
Does bypass keep PoE devices powered during a power failure?
Bypass concerns the network path through the designated ports. It does not supply backup power to PoE devices.
Singular Expert Insight

Build the cabling and power plan around the switch before ordering. M12 connector coding, the input voltage and the combined PoE load determine whether the installation will work as intended.

Buyer’s Guide

✓ Buy it if your industrial or transport installation requires M12 Gigabit connectivity and PoE+ with the stated environmental ratings.
✕ Skip it if you need a plug-in office RJ45 switch with an included mains adapter.
→ Also consider the compatible M12 cables, correctly rated DC supply and site-specific mounting requirements.
