TRENDnet TI-G160 16-Port Industrial Gigabit DIN-Rail Switch

Brand:
Trendnet

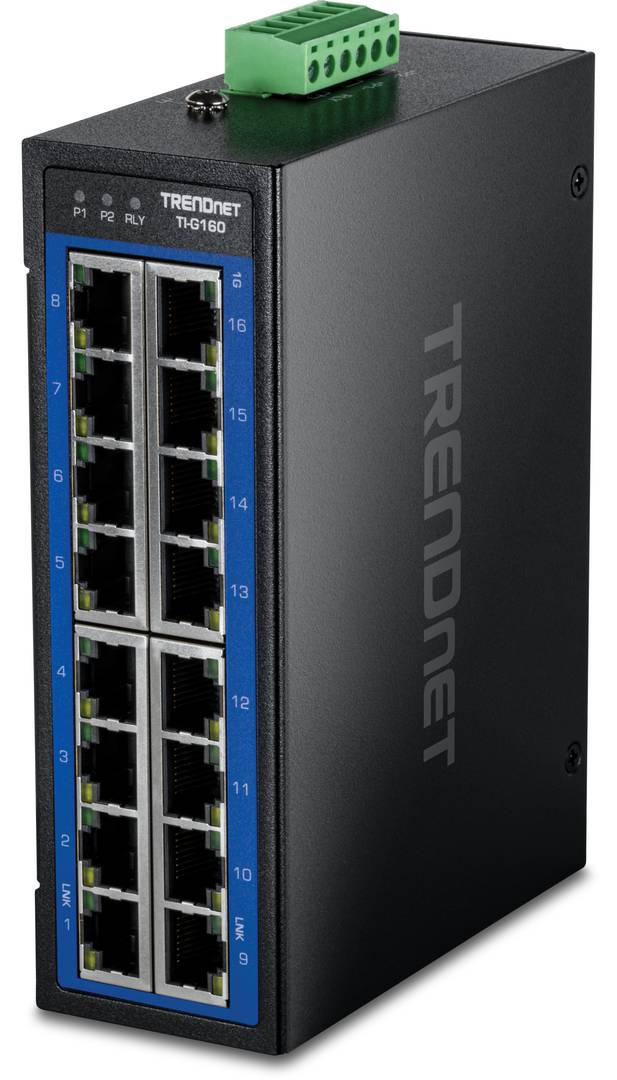

TRENDnet TI-G160 black industrial switch with sixteen Gigabit RJ45 ports, blue front panel and removable top terminal
TRENDnet TI-G160 16-Port Industrial Gigabit DIN-Rail Switch
€278.36 inc. VAT
Buy
TI-G160
€233.92 €259.91
€278.36 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
04:604338
EAN Code
0710931163360
Manufacturer
Trendnet
Quick Specs
Ports
16 × Gigabit
Management
Unmanaged
Power
Separate 12–56 V DC
Housing
IP50 metal
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Sixteen Gigabit connections for industrial cabinets

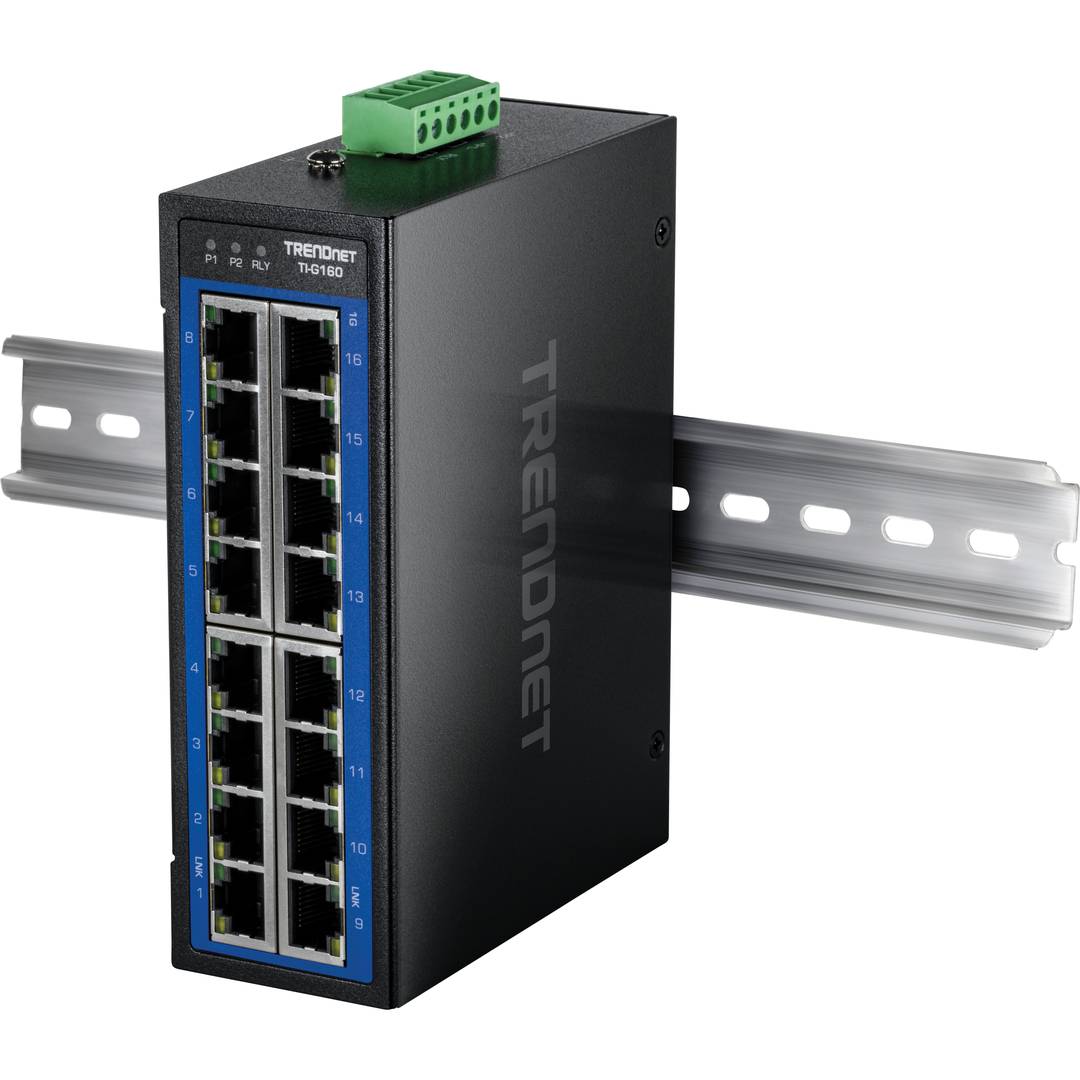

16 × Gigabit RJ45IP50 metal housingRedundant 12–56 V DCDIN rail / wall mounting

The TRENDnet TI-G160 is an unmanaged industrial Ethernet switch with sixteen 10/100/1000 Mbps RJ45 ports. Its compact metal housing, DIN-rail or wall mounting and -40°C to +75°C operating range suit protected industrial cabinets. Redundant external DC inputs and an alarm relay help monitor the power installation.

Best For: Industrial panels and protected building installations needing straightforward sixteen-port Gigabit connectivity.
Before you order: A separate suitable 12–56 V DC power supply is required; TRENDnet recommends TI-M6024. This exact model does not provide PoE output. IP50 is a dust-protection rating, not water protection. Install and ground it correctly in a suitable enclosure.

What's in the Box

  • TI-G160 switch and removable terminal block.
  • DIN-rail and wall-mount kit.
  • External DC power supply, cabinet DIN rail and Ethernet cables selected separately.

What It Means in Practice

  • Connect up to sixteen 10/100/1000 Mbps Ethernet devices without managed-switch configuration.
  • Mount using the included DIN-rail or wall hardware and leave cable access.
  • Use suitable external power sources for redundant inputs when redundancy is required.
  • Connect the alarm relay and grounding point according to the installation design.

What Will Not Work

  • No PoE output for cameras or access points.
  • No SFP fibre uplinks or 2.5G/10G ports.
  • No managed VLAN, web or SNMP configuration is established for TI-G160.
  • Redundant inputs do not provide battery backup; IP50 does not permit water exposure.

Key Features


Sixteen Gigabit ports
RJ45 10/100/1000 Mbps connections with 32 Gbps switching fabric.

Industrial housing
Compact IP50 metal construction for protected cabinets.

Power monitoring
Redundant DC inputs and power-failure alarm relay.

Flexible mounting
DIN-rail and wall mounting hardware included.

Technical Specifications

Exact model / conditionTI-G160 / New
Ports16 × 10/100/1000 Mbps RJ45
Switching / forwarding32 Gbps / 23.8 Mpps at 64-byte packets
MAC / buffer / jumbo8K entries / 512 KB / 9 KB
Ethernet standardsIEEE 802.3, 802.3u, 802.3ab, 802.3x
Power inputExternal 12–56 V DC, redundant inputs
Maximum consumption9 W at 56 V DC
Recommended PSUTI-M6024, sold separately

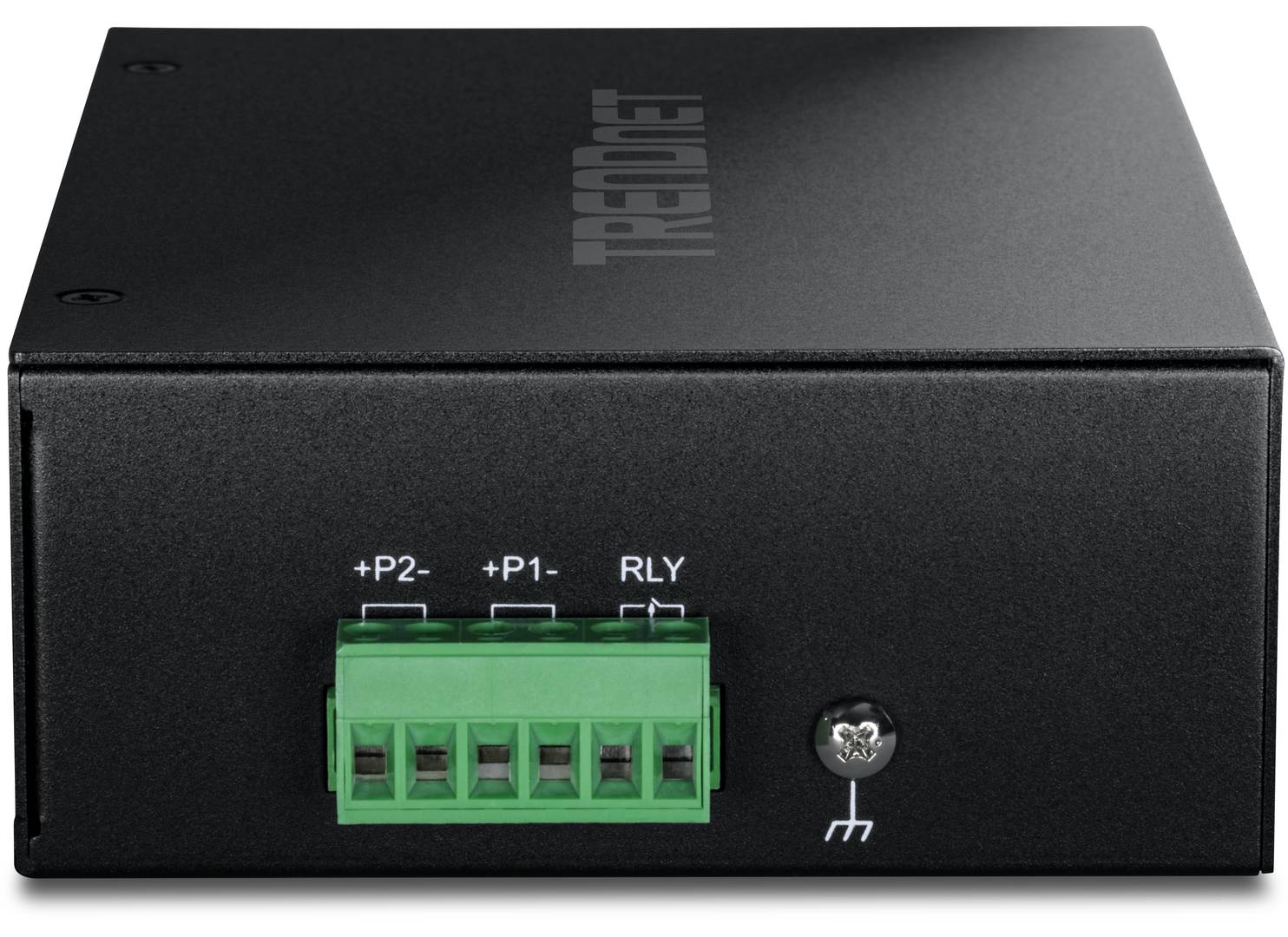

Terminal / alarmRemovable six-pin terminal; relay 1 A at 24 V DC
Terminal wiring0.34–2.5 mm², 12–24 AWG solid/stranded, 7–8 mm strip
Housing / mountingIP50 metal / DIN rail or wall
Protection6 kV contact ESD, 8 kV air, 2 kV surge
Dimensions / weight142 × 105 × 45.5 mm / 452 g
Operating environment-40°C to +75°C; up to 95% noncondensing humidity
CertificationsCE, FCC, LVD; shock and vibration tested
EAN0710931163360

Frequently Asked Questions

Does it include a power supply?
No. A separate suitable DC supply is required; the recommended model is TI-M6024.
Can it power PoE cameras?
No. TI-G160 does not provide PoE output. Use separately selected suitable power equipment.
Is it the managed TI-G160i?
No. This exact model is TI-G160, a straightforward unmanaged switch.
Can it be exposed to rain?
No. IP50 does not establish water protection. Use a suitable protected enclosure.
Singular Expert Insight

The power installation is as important as the port count. Two inputs improve resilience only when suitable external sources are actually fitted. Plan grounding, alarm wiring and environmental protection together, and keep PoE or managed-network requirements separate from this unmanaged model.

Buyer’s Guide

✓ Buy it if You need sixteen Gigabit copper ports in a protected industrial cabinet.
✕ Skip it if You need PoE output, fibre uplinks, managed VLANs or weatherproof outdoor mounting.
→ Also consider External PSU, redundant-source design, grounding, alarm wiring, enclosure and mounting space.
