Managed Gigabit connectivity for an industrial cabinet
4 × Gigabit PoE+120 W shared PoE2 × 100/1000 SFPDIN-rail IP40
The TRENDnet TI-PG743Bi is a seven-port industrial L2 managed switch with four Gigabit PoE+ outputs, one non-PoE Gigabit copper port and two SFP cages for compatible 100/1000 Mbps fiber modules. A 120 W shared PoE budget, local management and PoE alive checking support professionally planned camera, access-point and industrial network installations.
Best For: Industrial cabinets and managed networks needing four PoE+ devices, fiber links and DIN-rail mounting.

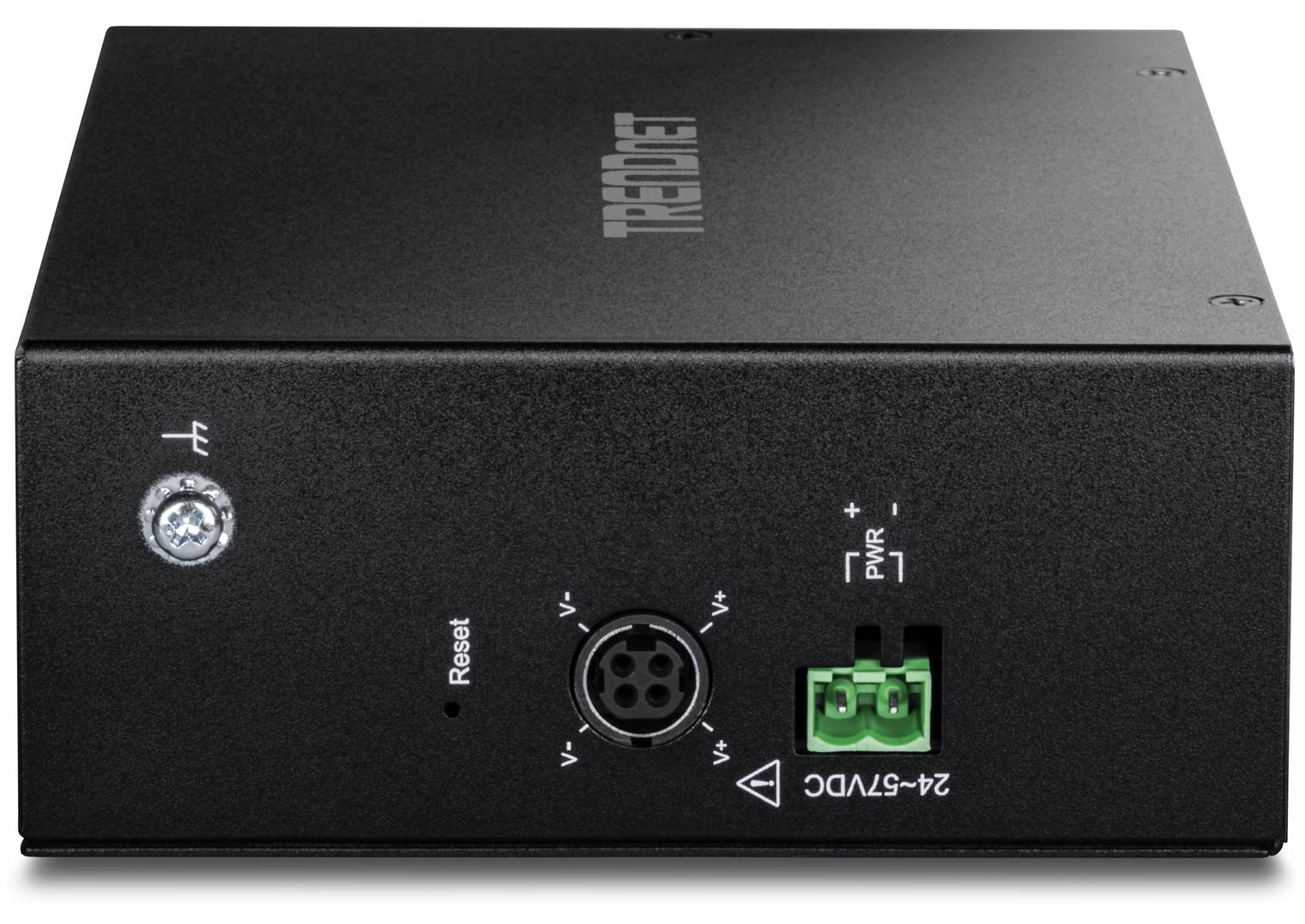

Before you order: A suitable DC power supply or adapter is sold separately. Use one 24–57 V DC source through the terminal block or four-pin DIN input: the inputs are not redundant. Size the supply for switch consumption and the intended PoE load, up to 134 W at full load. IP40 provides no water protection. Install and ground it appropriately and verify fiber-module compatibility.
What's in the Box
- TI-PG743Bi switch, removable terminal block and DIN-rail mounting bracket.
- DC supply or adapter, SFP modules, fiber, Ethernet cables and powered devices are separate.
What It Means in Practice
- Power up to four compatible PoE+ devices, each up to 30 W, within the shared 120 W budget.
- Use the additional copper port for a non-PoE Gigabit connection and the SFP cages for compatible 100/1000 Mbps fiber links.
- Configure VLANs, link aggregation, spanning tree and QoS for the actual network topology.
- Use PoE scheduling and alive checking where appropriate. Remote TRENDnet Hive management is an additional paid service.
What Will Not Work
- Seven total interfaces include only four PoE+ outputs.
- SFP cages are 100/1000 Mbps, not 10G SFP+.
- The two DC connector options do not provide redundant power.
- IP40 is not waterproof and does not make the switch suitable for exposed outdoor installation.
- No DC power supply or Hive subscription is included.
Key Features
Managed network controls
Local web management, CLI, SNMP, VLAN, LACP and STP/RSTP support integration.
Controlled PoE+
Four 30 W ports share 120 W, with scheduling, priority and powered-device alive checking.
Fiber options
Two SFP cages support compatible 100/1000 Mbps modules selected for the link.
Industrial mounting
Fanless IP40 metal enclosure, supplied DIN bracket and -40 to 75°C operating range.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Plan the DC supply and enclosure before counting ports. This model provides four PoE+ outputs and two fiber cages, while its two power connectors are alternatives rather than a redundant pair. Correct power sizing, grounding and fiber selection are essential parts of the installation.
Buyer’s Guide
✓ Buy it if You need a managed industrial DIN-rail Gigabit switch with four PoE+ outputs and suitable separate DC power.
✕ Skip it if You need redundant power, 10G uplinks, included mains supply or waterproof exposed installation.
→ Also consider Power budget, DC wiring, cabinet protection, grounding, SFP compatibility and management setup.
Features - Trendnet - TI-PG743BI
Colour
black
Interface
- Ethernet
Standard
7-Port
Port Speed
- 1 Gbps
More Details
Product Code
04:603795
EAN Code
0710931163230
Manufacturer
Trendnet
