TRENDnet TI-BG5091 Industrial 8-Port 2.5G PoE++ Switch
Brand:
Trendnet
TI-BG5091
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Industrial multi-gigabit PoE++ with a 10G uplink
8 × 2.5G PoE++1 × 10G SFP+48–57 V DC input480 W shared maximum
The TRENDnet TI-BG5091 combines eight 2.5G PoE++ copper ports and one 10G SFP+ uplink in a compact industrial switch. This exact non-B model requires external 48–57 V DC. Fast PoE, multiple power inputs and DIN-rail/wall mounting support planned industrial installations with compatible powered endpoints.
Best For: Protected industrial networks needing multi-gigabit powered endpoints and a compatible 10G uplink.
Before you order: Select a separate suitable 48–57 V DC supply. The maximum shared PoE budget is 480 W, with up to 95 W manufacturer PSE rating per port subject to shared capacity and compatibility. Supply capacity must also cover switch overhead; an optional 160 W adapter cannot deliver 480 W PoE. This non-B model does not support 24 V input. IP50 does not provide water protection.
What's in the Box
- TI-BG5091, removable terminal block and DIN-rail/wall mounting kit.
- External power supply/adapter selected separately for the actual input and PoE demand.
- SFP+/SFP module or compatible uplink cable and network cables separate.
What It Means in Practice
- Connect eight 10/100/1000/2500 Mbps copper devices and power compatible PoE devices within the shared budget.
- Use a compatible 1G or 10G module/link in the SFP+ cage.
- Design redundant external power sources and alarm wiring where required.
- Use Fast PoE for power delivery shortly after switch power-on without assuming a battery-backed installation.
What Will Not Work
- No 24 V input support for this exact model.
- Eight simultaneous 95 W loads exceed the 480 W shared limit.
- No configurable managed VLAN, SNMP or Layer 3 functions are established.
- No direct mains input, included PSU, built-in UPS or water protection.
Key Features
Multi-gigabit PoE++
Eight 2.5G ports, up to 95 W manufacturer PSE rating per port within total limits.
10G uplink
One SFP+ cage supporting compatible 1G/10G connections.
External DC power
48–57 V DC input, up to 480 W shared PoE with an adequately capable supply.
Industrial installation

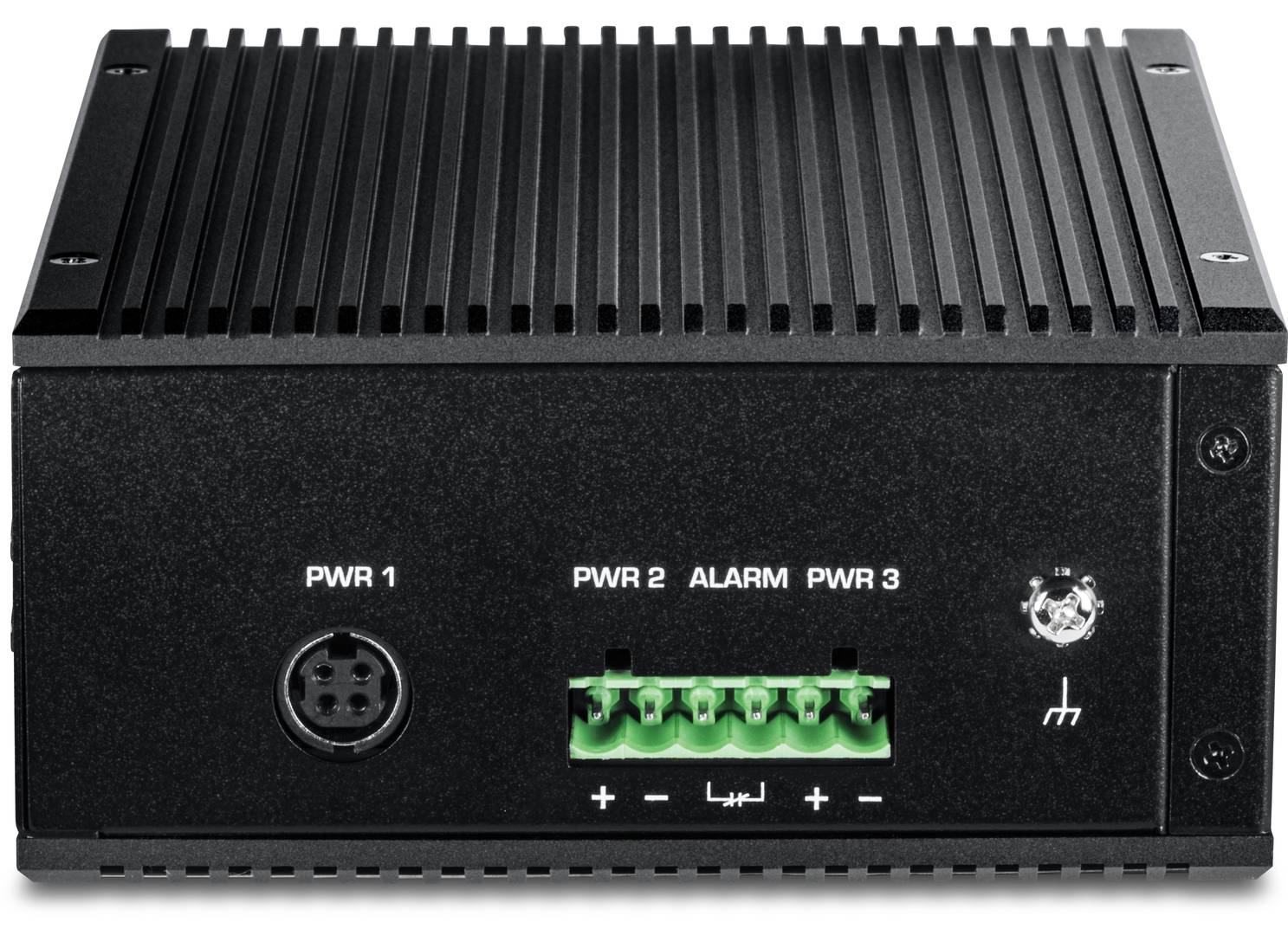

IP50 metal housing, multiple power inputs and power-failure alarm.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Treat the 480 W figure as an installation limit requiring adequate external power, not a promise from any listed adapter. Verify the 48–57 V input, supply headroom and combined endpoint draw, then plan the 10G uplink, grounding and protected mounting.
Buyer’s Guide
✓ Buy it if You need industrial 2.5G PoE++ access with suitable external 48–57 V DC power.
✕ Skip it if You need 24 V input support, managed network controls or an included mains PSU.
→ Also consider 48–57 V supply capacity, combined PoE draw, source redundancy, optics/cabling and mounting protection.
Features - Trendnet - TI-BG5091
Colour
black
Interface
- Ethernet
Standard
9-Port
Port Speed
- 2.5 Gbps,
- 10 Gbps
More Details
Product Code
04:604336
EAN Code
0710931163087
Manufacturer
Trendnet
