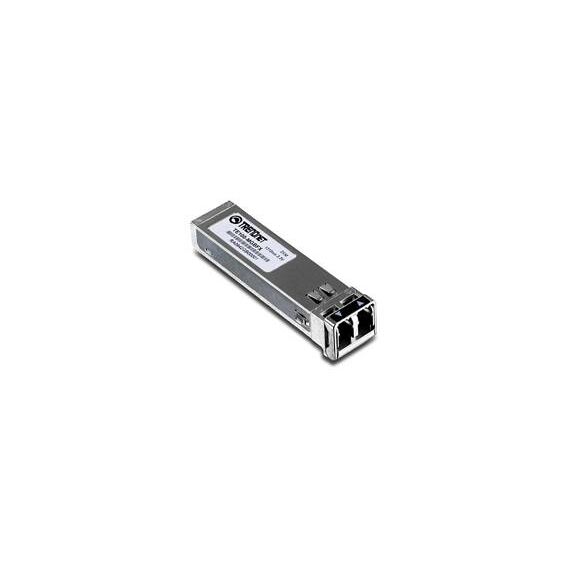

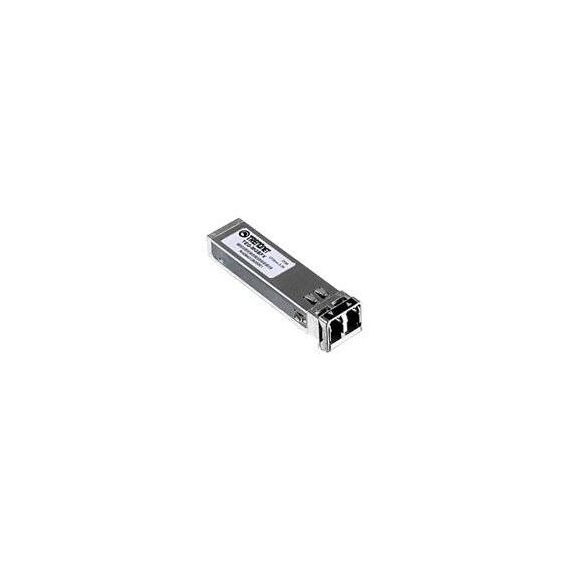

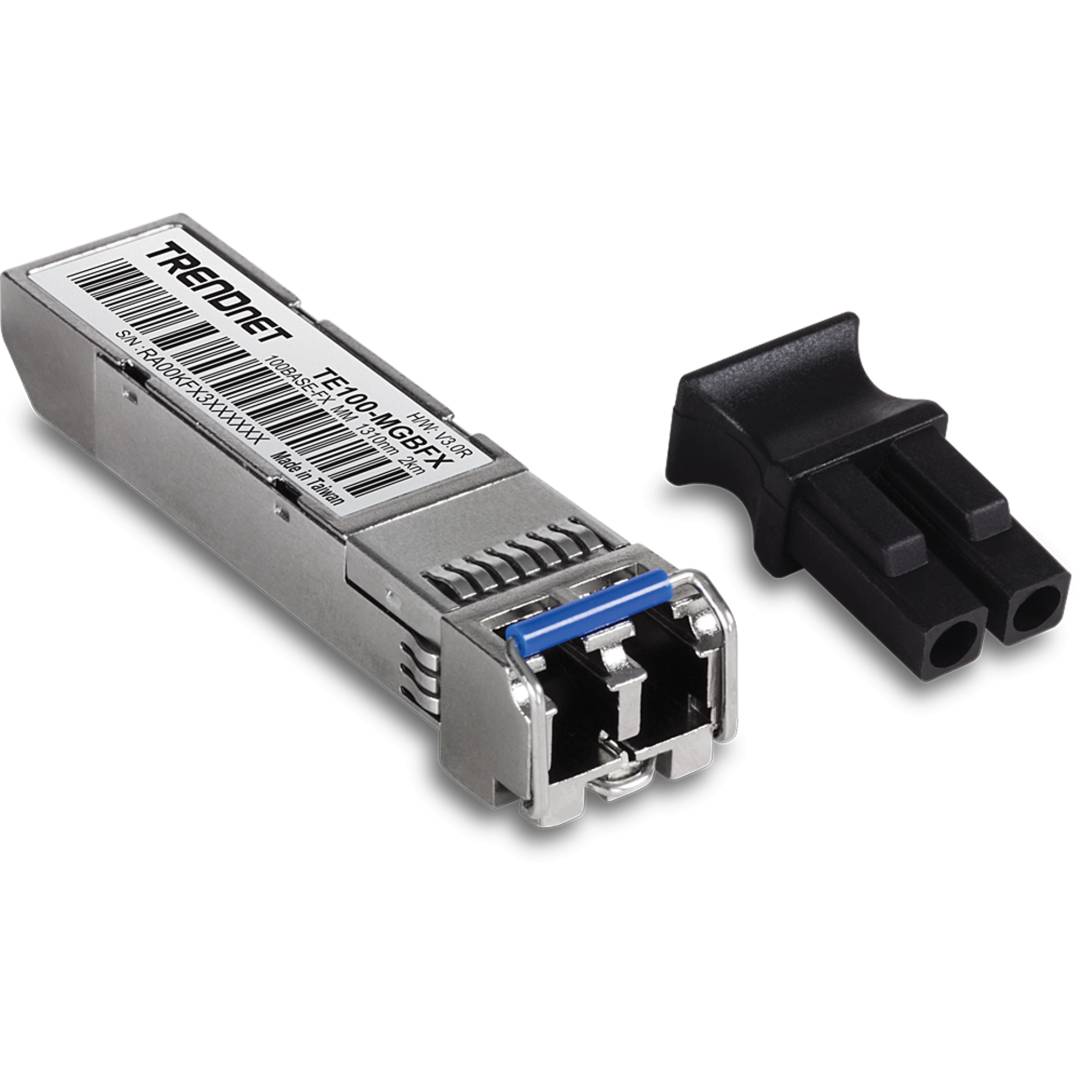

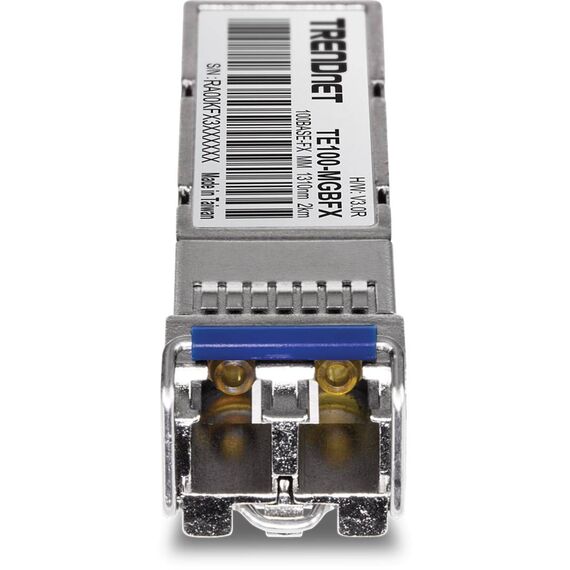

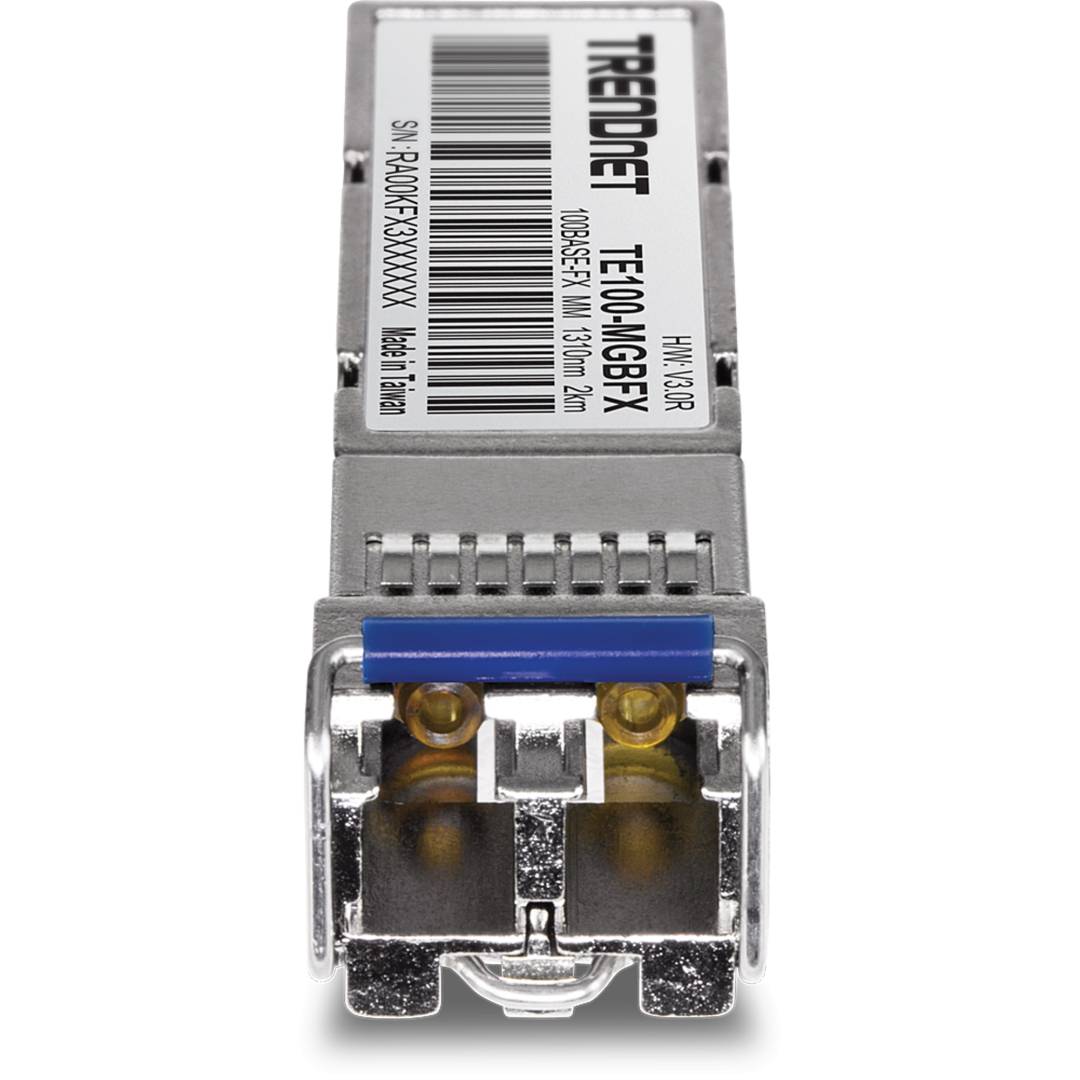

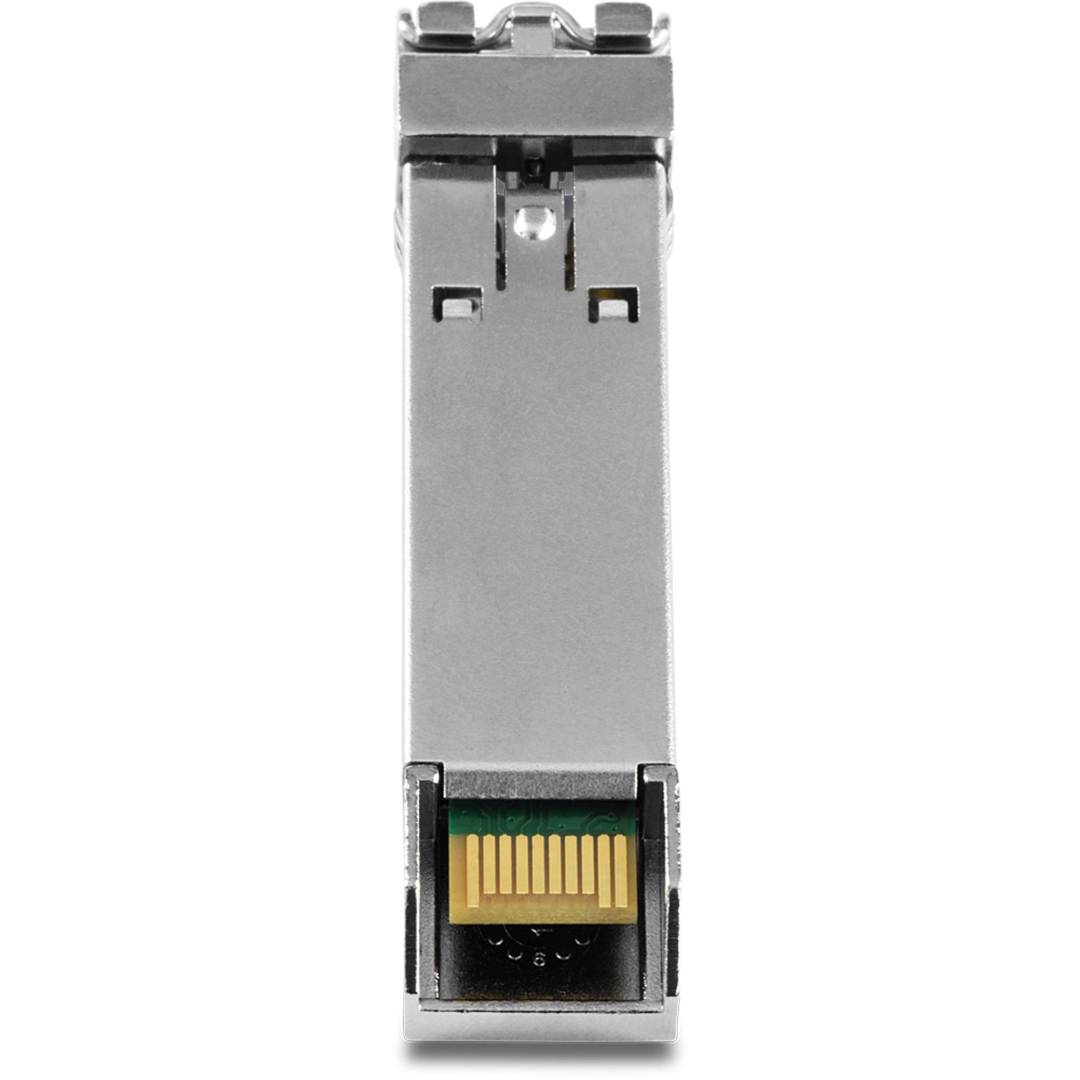

TRENDnet TE100-MGBFX — 100 Mbps Fast Ethernet SFP, Multimode 2 km
100 Mbps100BASE-FX1310 nm · LCUp to 2 km
The TRENDnet TE100-MGBFX is a Fast Ethernet SFP module: 100BASE-FX at 1310 nm over multimode fibre with an LC duplex connector, reaching up to 2 km. It is the module for SFP slots that run at 100 Mbps — typically industrial switches, media converters and older fibre links built for Fast Ethernet — where a Gigabit optic cannot run. In practice, multimode optics are the cheaper choice for links inside one building: most server rooms and floor risers already carry OM3 or OM4 fibre, and the module plus a short patch cord is all a port needs. Before you order, check the fibre grade printed on the cable jacket and the real length of the run, including patch panels.
Compatibility — check before buying:
This is a 100 Mbps module, not Gigabit: it will not link with a 1000BASE-SX module such as the look-alike TEG-MGBSX, and many Gigabit-only SFP ports will not run it at all. Check that your port supports 100BASE-FX. It uses 1310 nm on multimode fibre, so the far end must be another 100BASE-FX module. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your device model and the cable run and we check it before you order.
Best For
✓ SFP ports that run at 100 Mbps
✓ Industrial switches and media converters
✓ Legacy Fast Ethernet fibre links
✓ Multimode runs up to 2 km
✓ Replacing a failed 100BASE-FX module
✓ Campus links on older multimode fibre
Key Features
Fast Ethernet over 2 km
A 1310 nm 100BASE-FX optic carries 100 Mbps over multimode fibre up to 2 km, well beyond a Gigabit SX module’s reach.
Multimode fibre, short reach
Built for the short runs inside a building or data room over OM-grade multimode fibre. Reach depends on the fibre grade — check what is actually in your walls before you plan a link.
Hot-swappable
Modules and cables plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch or pull tab to remove it.
Plan both ends together
A link only comes up when both ends use the same standard, speed and media. Order the far-end part, the cable and any spares in one go and the link works on day one.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We supply the TE100-MGBFX mainly to keep existing Fast Ethernet fibre links and industrial equipment running. If both ends support Gigabit, a 1000BASE-SX module is the better choice for new links; for 2 km on Gigabit, single-mode LX optics are needed. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status and we help you find out whether it is the module, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.
Buyer’s Guide
Buy it if
Your SFP port or media converter runs 100BASE-FX and the link is on multimode fibre up to 2 km.
Skip it if
You need Gigabit, your port is Gigabit-only, or your fibre is single-mode.
Also consider
TRENDnet TEG-MGBSX for Gigabit multimode.
