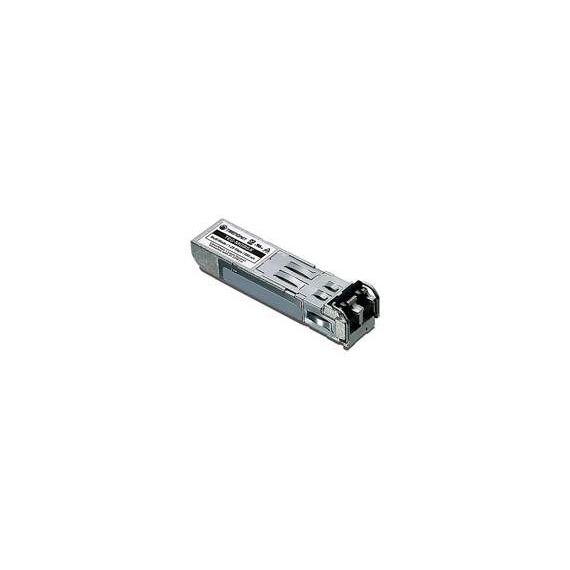

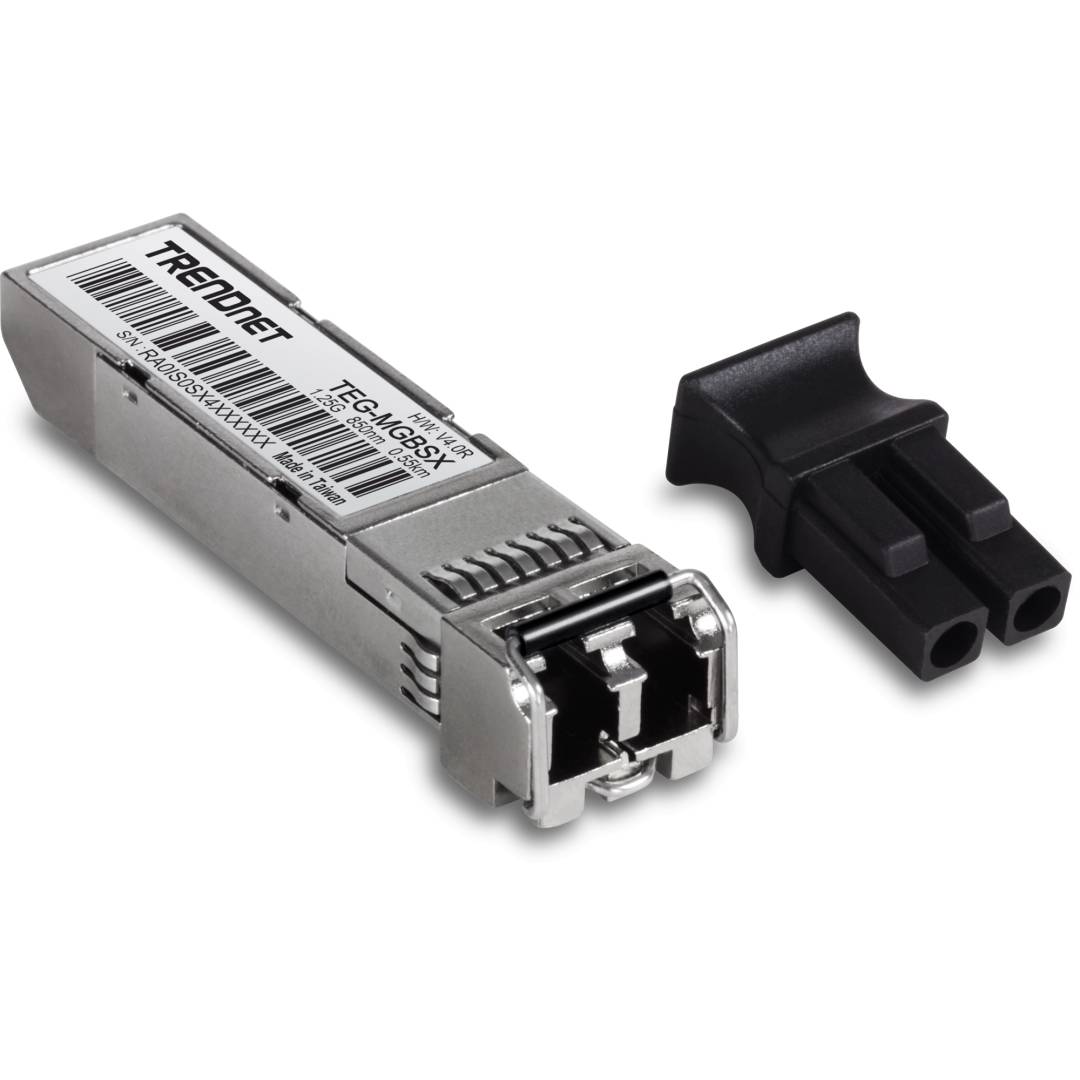

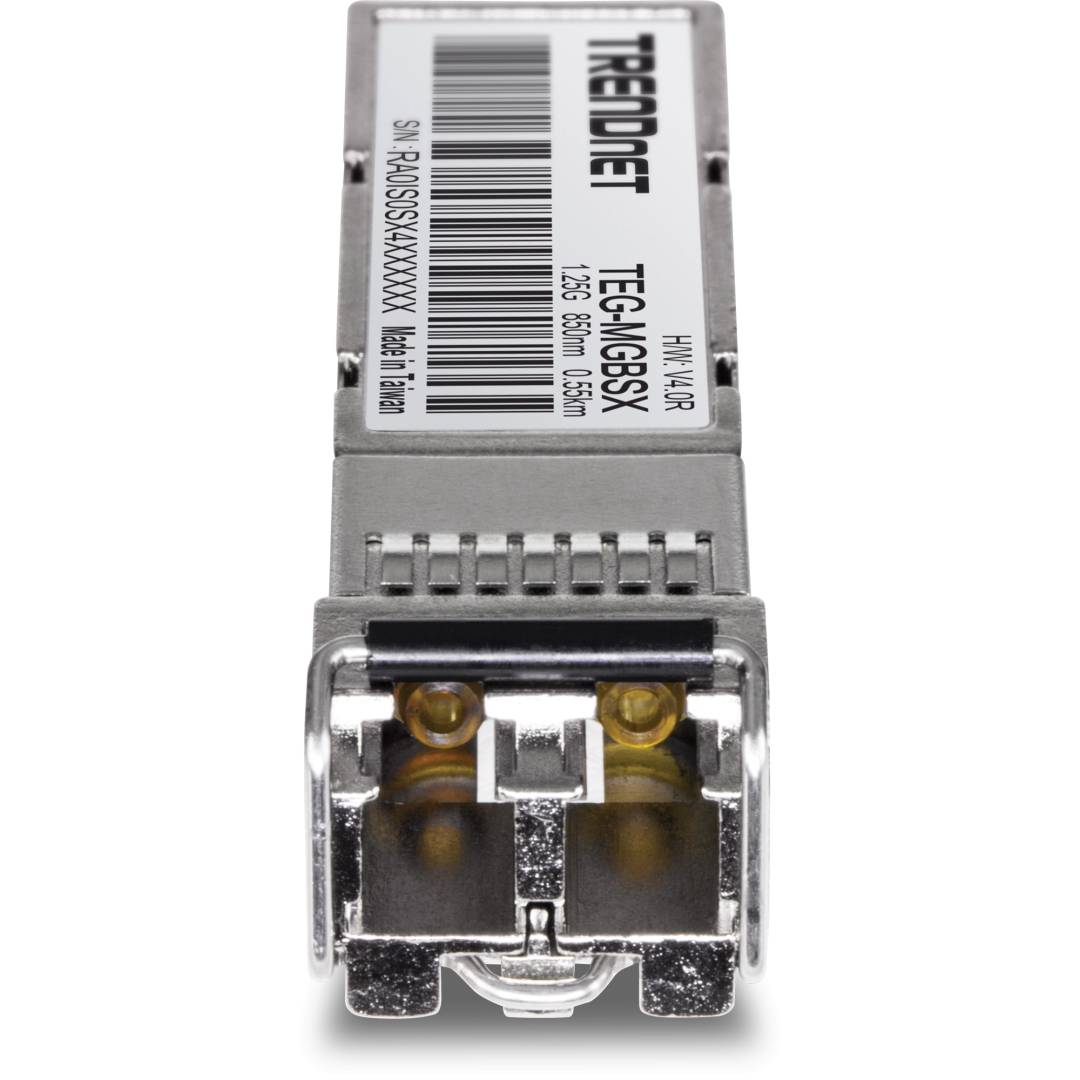

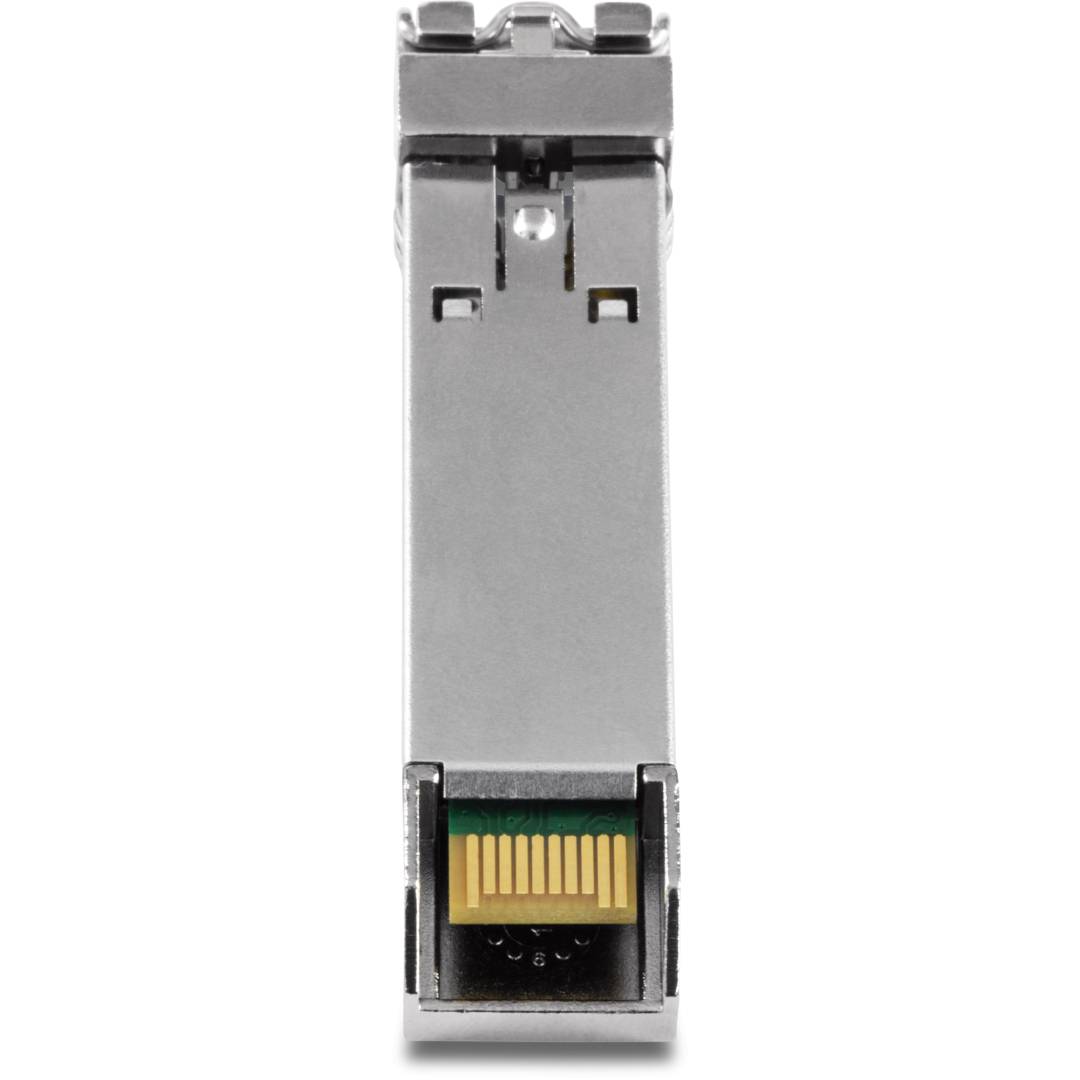

TRENDnet TEG-MGBSX SFP Transceiver 1000BASE-SX 850 nm LC Duplex Multimode up to 550 m Gigabit MSA Compliant
Brand:
Trendnet
TRENDnet TEG-MGBSX SFP Transceiver 1000BASE-SX 850 nm LC Duplex Multimode up to 550 m Gigabit MSA Compliant
€27.27 inc. VAT
TEG-MGBSX
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
TRENDnet TEG-MGBSX — 1G SX Multimode SFP, 550 m
1 Gbps1000BASE-SX850 nm · LCUp to 550 m
The TRENDnet TEG-MGBSX is a Gigabit SFP module for multimode fibre: 1000BASE-SX at 850 nm over an LC/UPC duplex connection, up to 550 m on 50/125 or 62.5/125 µm fibre. It is SFP MSA compliant with no vendor coding, the standard short-reach optic for TRENDnet switches and the many other switches and media converters that accept standard SFPs. In practice, multimode optics are the cheaper choice for links inside one building: most server rooms and floor risers already carry OM3 or OM4 fibre, and the module plus a short patch cord is all a port needs. Before you order, check the fibre grade printed on the cable jacket and the real length of the run, including patch panels.
Compatibility — check before buying:
It is MSA compliant without vendor coding, so switches that lock out third-party optics may refuse it. It needs multimode fibre and an SX module at the far end, and it is 1G — not the 100 Mbps TE100-MGBFX, which looks the same but will not link to it. TRENDnet also sells a 4-pack as TEG-MGBSX/4. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your device model and the cable run and we check it before you order.
Best For
✓ TRENDnet switches with SFP slots
✓ Switches that accept MSA optics
✓ Short fibre runs inside one building
✓ Server room and riser links
✓ Media converters with SFP slots
✓ Replacing a failed 1G SX module
Key Features
Standard Gigabit SX
An MSA-compliant 850 nm module for the many switches, media converters and NICs that accept standard SFP optics.
Multimode fibre, short reach
Built for the short runs inside a building or data room over OM-grade multimode fibre. Reach depends on the fibre grade — check what is actually in your walls before you plan a link.
Hot-swappable
Modules and cables plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch or pull tab to remove it.
Plan both ends together
A link only comes up when both ends use the same standard, speed and media. Order the far-end part, the cable and any spares in one go and the link works on day one.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The TEG-MGBSX is our everyday Gigabit multimode optic for TRENDnet and other open switches. Order one per end and check the fibre grade on the cable jacket. For links between buildings, TRENDnet’s single-mode TEG-MGBS10 is the LX choice. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status and we help you find out whether it is the module, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.
Buyer’s Guide
Buy it if
You need a 1G multimode link up to 550 m on a switch that accepts standard MSA SFPs.
Skip it if
Your fibre is single-mode, your port runs 100 Mbps only, or your switch only takes its own brand of optics.
Also consider
TRENDnet TEG-MGBS10 for single-mode links.
Features - Trendnet - TEG-MGBSX
More Details
Product Code
04:190300
EAN Code
0710931501605
Manufacturer
Trendnet
