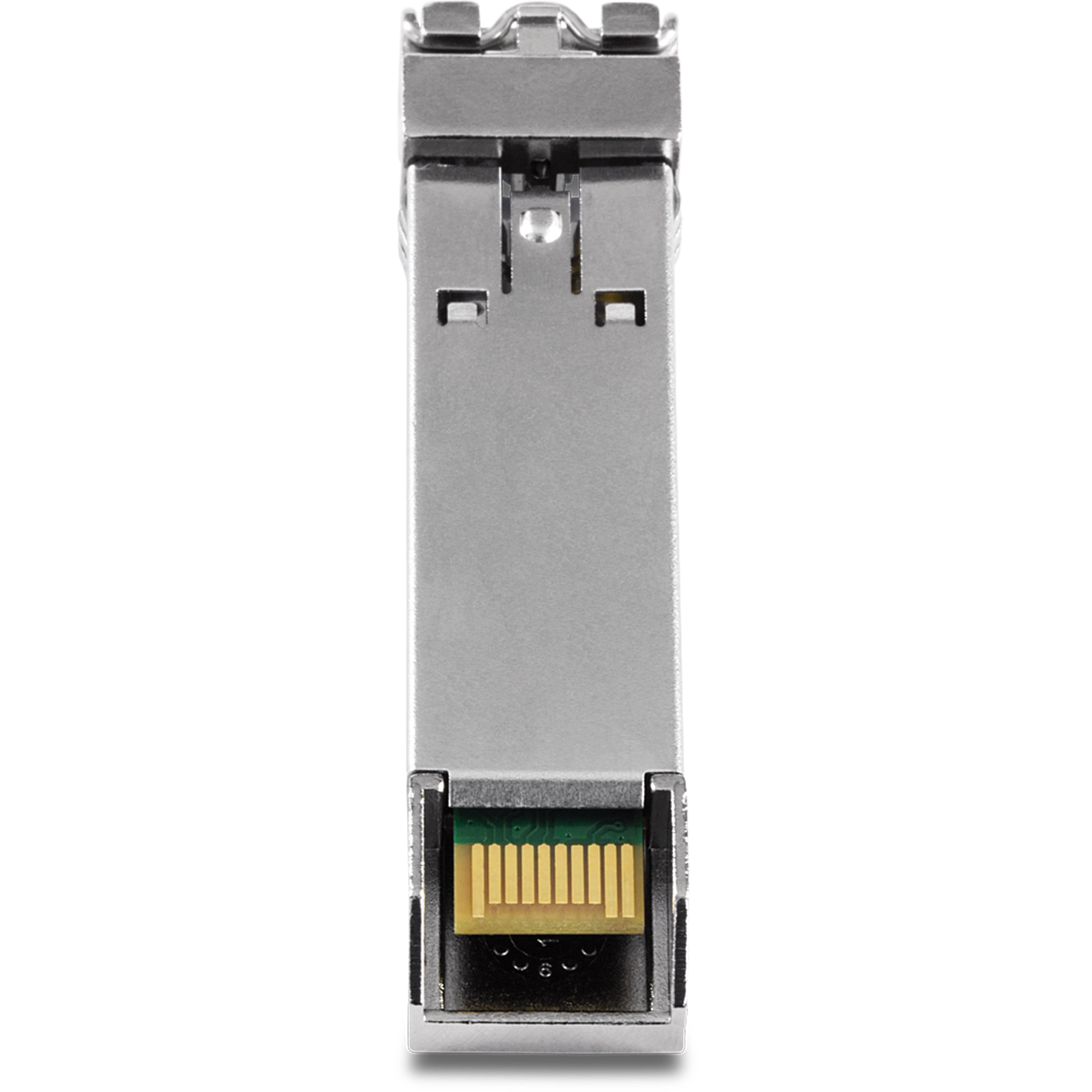

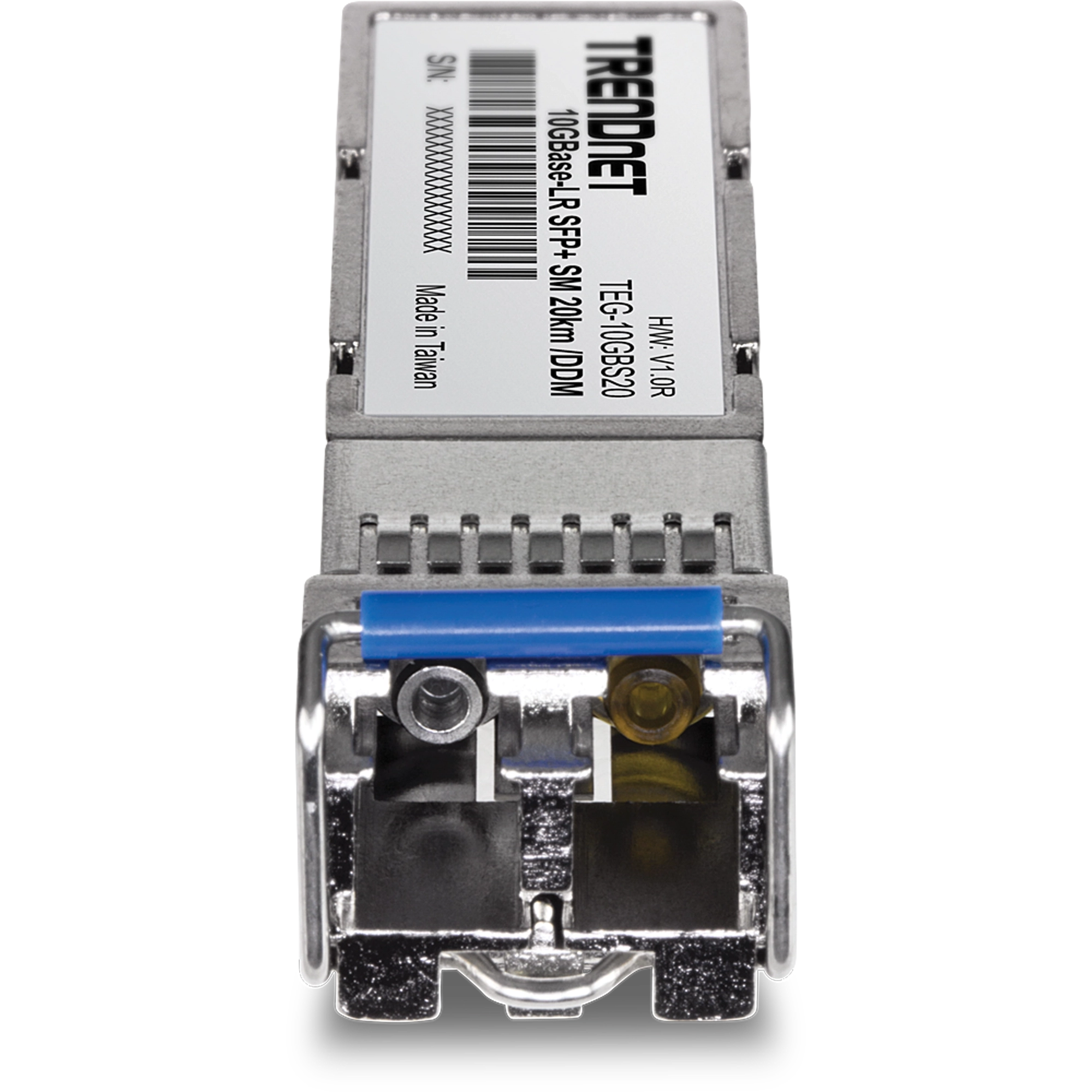

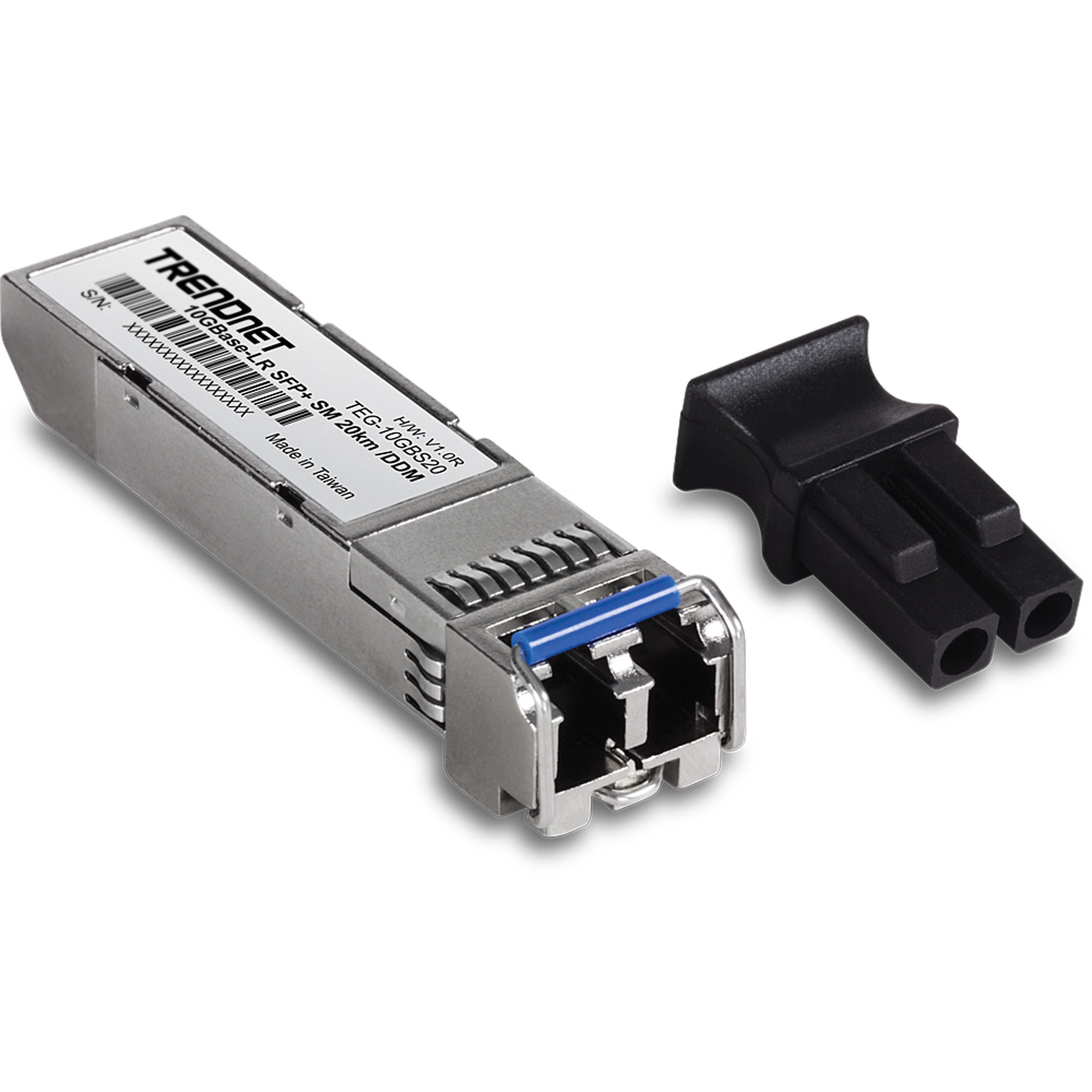

TRENDnet TEG-10GBS20 10Gbps SFP+ Single-Mode Transceiver, Duplex LC/UPC, 1310nm, 20km

Brand:
Trendnet
TRENDnet TEG-10GBS20 10G duplex LC single-mode SFP+ transceiver
TRENDnet TEG-10GBS20 10Gbps SFP+ Single-Mode Transceiver, Duplex LC/UPC, 1310nm, 20km
€91.8 inc. VAT
Buy
TEG-10GBS20
€77.14
€91.80 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
04:603834
EAN Code
0710931141184
Manufacturer
Trendnet
Quick Specs
Ethernet
10Gbps
Optical interface
Duplex LC/UPC, single-mode
Wavelength / reach
1310nm / up to 20km
Power / temperature
Max. 0.8W, 0 to 70°C
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

TRENDnet TEG-10GBS20 · 10G Single-Mode Fibre · Up to 20km

10Gbps EthernetDuplex LC/UPC1310nm single-modeDDM monitoring

The TRENDnet TEG-10GBS20 is an SFP+ optical transceiver for supported 10Gbps network links over single-mode fibre. Its duplex LC/UPC interface uses separate transmit and receive fibres at 1310nm, with a manufacturer-specified maximum reach of 20km and Digital Diagnostics Monitoring support.

Best For: Supported SFP+ switches and fibre converters linking buildings or network distribution points over single-mode fibre.
Before you order: Check both hosts and the optical link budget before choosing a 20km module. Use compatible 1310nm duplex optics at the far end and cross transmit to receive. This listing contains one module; the other endpoint and fibre cabling are separate requirements.

What's in the Box

  • One TEG-10GBS20 SFP+ module

What It Means in Practice

  • Connect two supported 10G endpoints through a duplex single-mode fibre path.
  • Use DDM readings where exposed by the host to help inspect module operation.
  • Allow for connector, splice and patch-panel loss when assessing the maximum link distance.

What Will Not Work

  • Not a single-fibre BiDi transceiver; it requires a duplex fibre connection.
  • Not a copper RJ45 module and not a guarantee of support in every SFP+ switch.
  • The 20km maximum does not guarantee every installed optical route will meet the required loss budget.

Key Features


10G optical connection
Supports 10Gbps Ethernet with a 10.31Gbps transceiver data rate.

Duplex LC interface
Separate transmit and receive connections use single-mode fibre at 1310nm.

Long-distance reach
Designed for links up to 20km when the optical budget and endpoint compatibility allow.

Diagnostic support
DDM and hot-pluggable construction support serviceable installations with suitable hosts.

Technical Specifications

Model TEG-10GBS20, Version V1
Ethernet application 10Gbps, 10GBASE-LR as listed by manufacturer
Form factor SFP+, MSA compliant
Optical connector Duplex LC/UPC
Fibre type Single-mode
Wavelength 1310nm
Maximum reach 20km, subject to optical link budget
Module data rate 10.31Gbps
Optical output -5 to +1dBm
Receiver sensitivity -15dBm
Monitoring Digital Diagnostics Monitoring (DDM)
Maximum consumption 0.8W
Operating temperature 0 to 70°C
Operating humidity Up to 95%, non-condensing
Dimensions 58 × 13.4 × 12.6mm
Weight 18g
Condition New

Frequently Asked Questions

Can it use one fibre strand?
No. This is a duplex LC module with separate transmit and receive fibres, unlike a simplex BiDi model.
Do I receive a matched pair?
No. The listing contains one transceiver; the far-end module is purchased separately.
Is it compatible with any third-party switch?
TRENDnet does not guarantee every third-party host. Check the switch's supported-module requirements.
Does 20km mean every 20km link will work?
No. Fibre loss, connectors, splices and the endpoint optical specifications must all fit the link budget.
Singular Expert Insight

Start with the installed fibre and the host compatibility list. Duplex single-mode cabling and suitable far-end optics matter more than the distance printed on the module alone.

Buyer’s Guide

✓ Buy it if you need a supported 10G duplex single-mode link with reach up to the stated 20km limit.
✕ Skip it if you have only one fibre strand, need copper Ethernet or require a different wavelength.
→ Also consider matching far-end optics and suitable duplex LC/UPC single-mode cabling.
