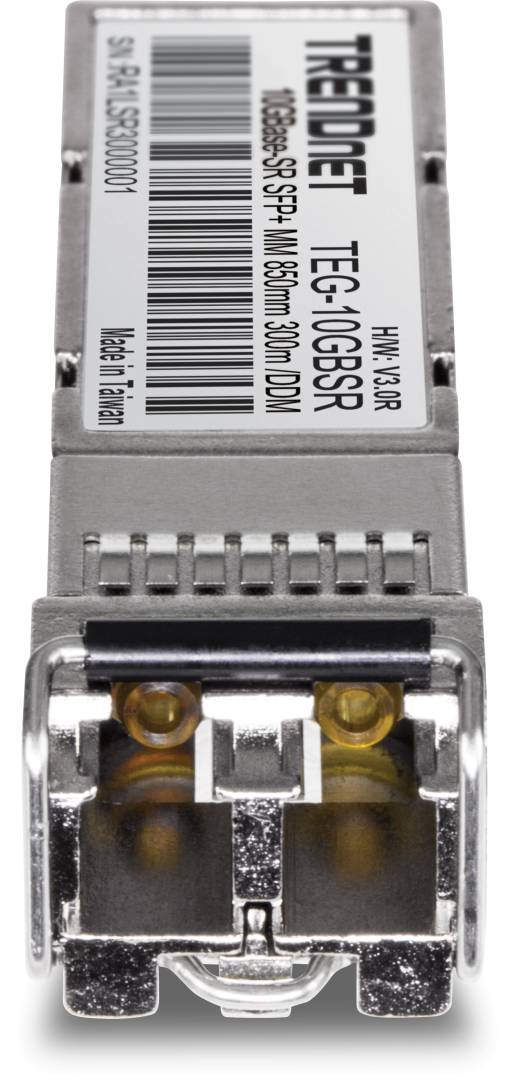

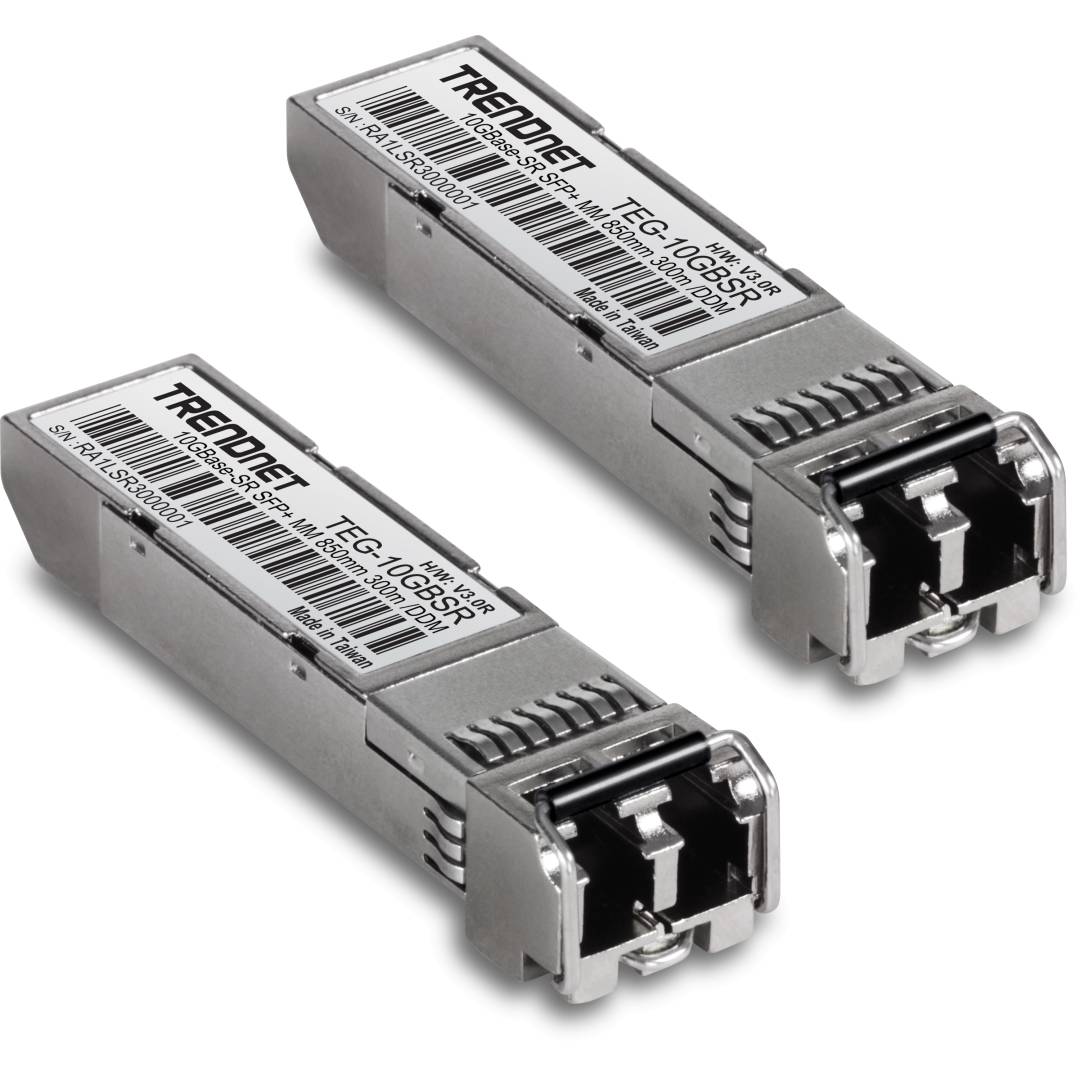

TRENDnet TEG-10GBSR — 10GBASE-SR SFP+ Multi-Mode Module, 2-Pack
10GBASE-SR · SFP+850nm · Duplex LC300m OM3 · 400m OM42 modules · DDM
The TRENDnet TEG-10GBSR/2 is a pack of two 10GBASE-SR SFP+ multi-mode fibre modules with duplex LC connectors, for 10 Gigabit links of up to 300m over OM3 or 400m over OM4 fibre between switches, servers and storage with SFP+ ports.
Two modules are exactly what one fibre link needs — one at each end. Each module supports Digital Diagnostic Monitoring (DDM), so a compatible switch can report transmit and receive optical power, temperature and voltage, which makes fault-finding on a fibre run much quicker.
Before you order: These are multi-mode (850nm) modules: they need multi-mode fibre (OM1-OM4) with duplex LC connectors and a 10GBASE-SR module at the other end. Some switch vendors lock their SFP+ ports to their own optics — send us your switch model and we will check.
What's in the Box
- 2 × TRENDnet TEG-10GBSR 10GBASE-SR SFP+ multi-mode LC modules
What It Means in Practice
- Typical use: uplink between two switches in different racks or floors, or a 10G link from a switch to a server or NAS.
- Reach depends on fibre grade: 400m on OM4, 300m on OM3, 82m on OM2, 33m on OM1 — check what fibre is already installed before planning a link.
- Hot-pluggable, so modules can be inserted or replaced without powering down the switch.
- DDM readings let you see a dirty connector or a damaged patch cord as a low receive level instead of guessing.
What Will Not Work
- They will not work over single-mode (OS1/OS2, yellow) fibre — that needs 10GBASE-LR modules.
- They will not link to a 10GBASE-LR or copper 10GBASE-T module; both ends must be 10GBASE-SR.
- They do not fit 1G-only SFP ports, and they are not RJ45 modules — you need fibre patch cords with LC connectors.
- Fibre patch cords are not included.
Key Features
10GBASE-SR at 850nm
IEEE 802.3ae, SFF-8431/8432/8472 and SFP+ MSA compliant, 8.5-10.5Gbps.
Up to 400m
400m on OM4 and 300m on OM3 multi-mode fibre.
Digital Diagnostics
DDM reports TX/RX optical power, temperature and voltage.
Metal, hot-pluggable
Metal enclosure, hot-swappable without powering down the host.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
For most in-building 10G fibre runs, SR over OM3/OM4 is the most cost-effective choice, and buying modules as a pair avoids mixing brands on one link. Make sure your switch accepts third-party optics before ordering.
✓ Buy it if you need a 10G link over existing multi-mode fibre with LC connectors, up to 300m on OM3 or 400m on OM4.
✕ Skip it if your fibre is single-mode (yellow) or your switch only accepts vendor-coded optics.
→ Also consider TRENDnet 10GBASE-LR SFP+ modules for single-mode fibre, or DAC cables for links inside one rack.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
