TRENDnet TEG-10GBS10D3 10Gbps BiDi SFP+ Module, Simplex LC, 10km, TX 1330nm / RX 1270nm

Brand:
Trendnet

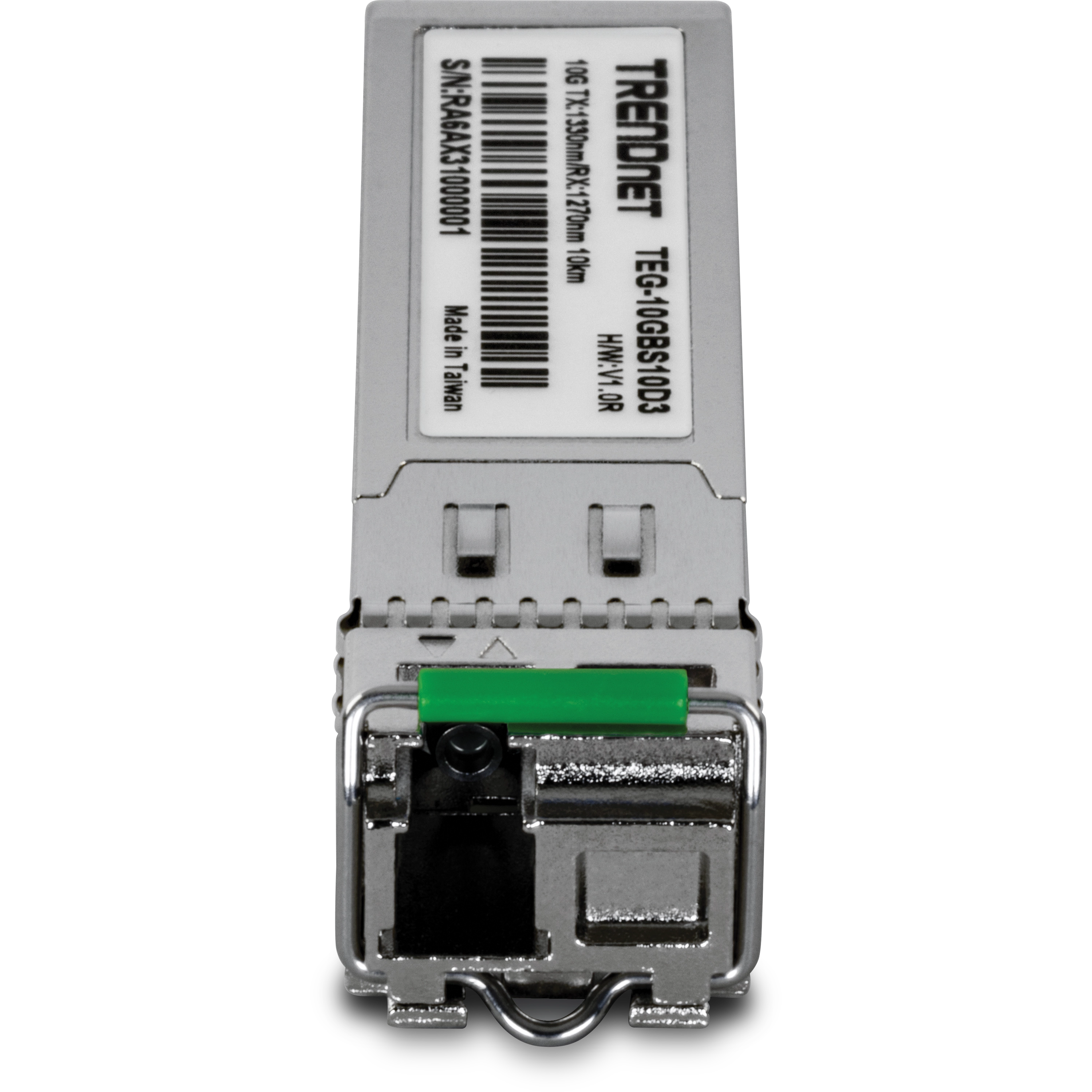

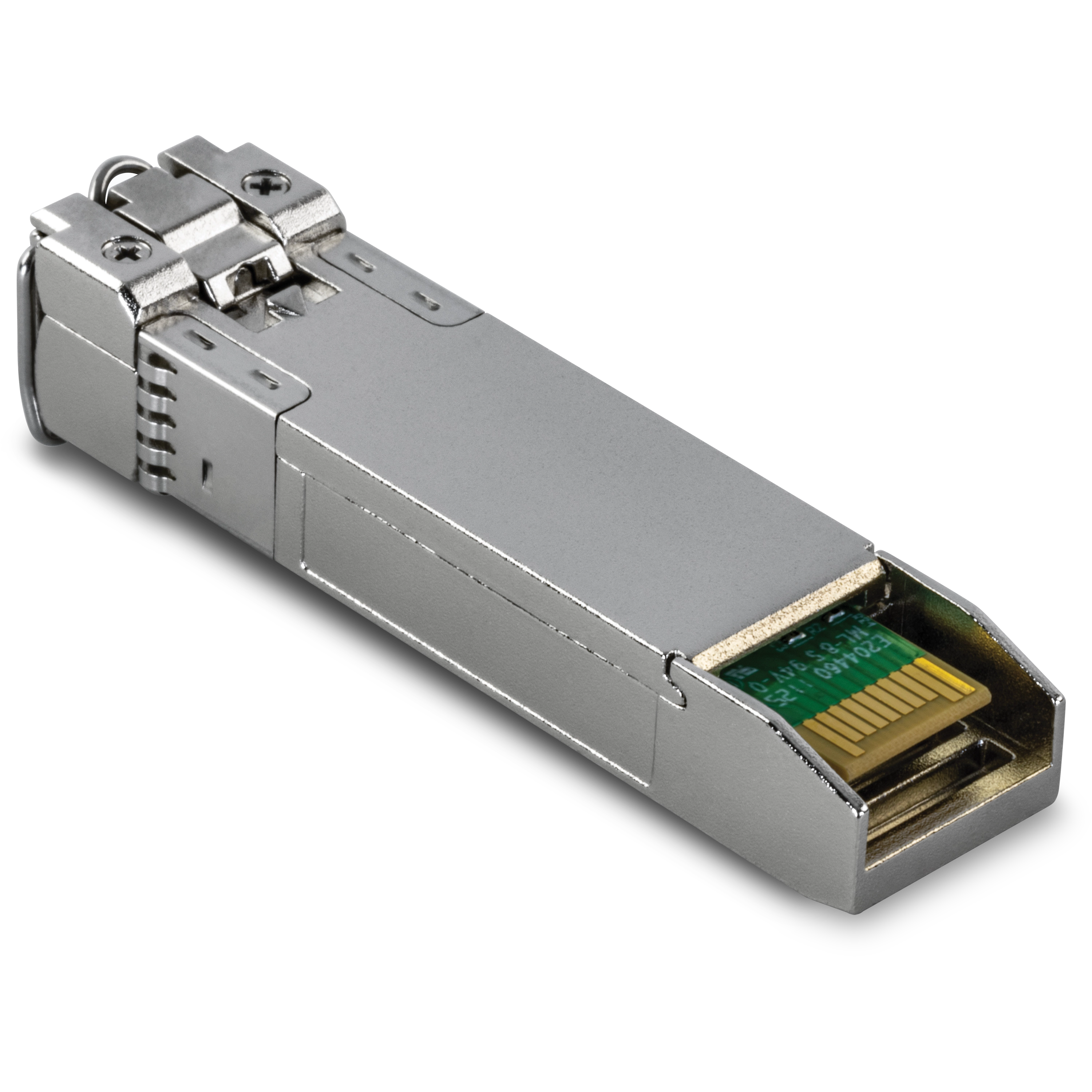

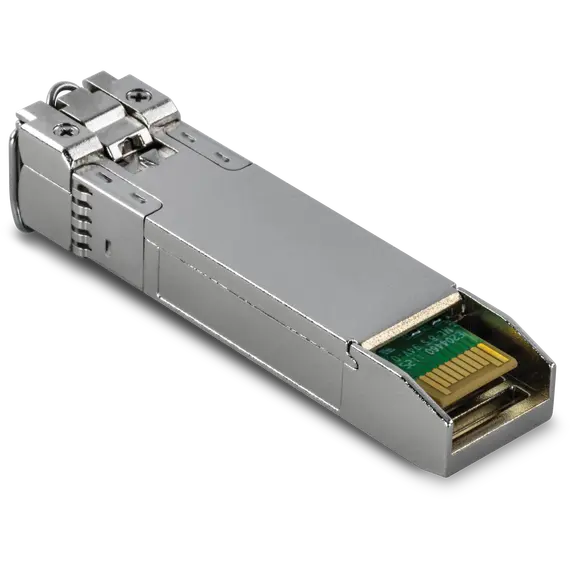

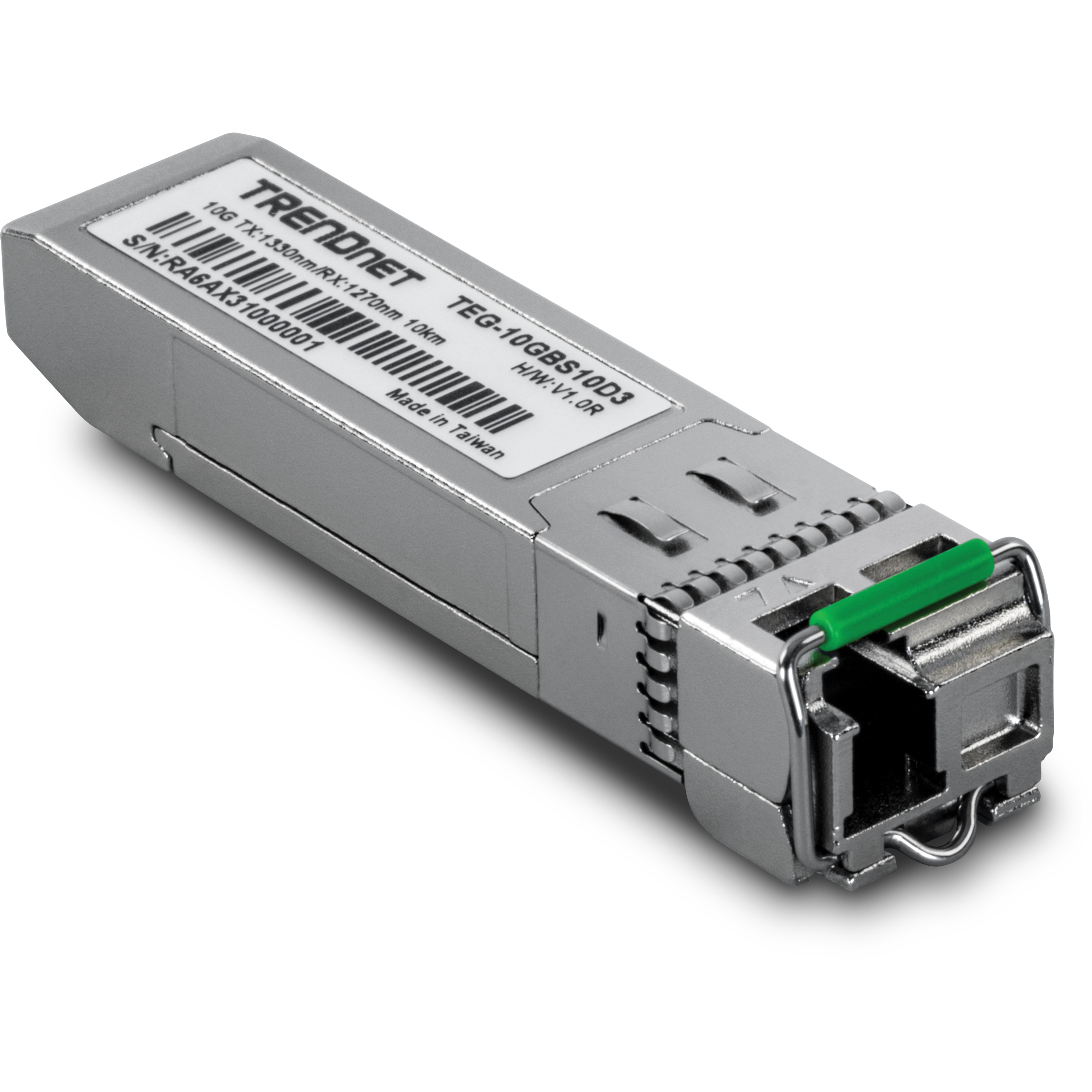

TRENDnet TEG-10GBS10D3 10G BiDi simplex LC SFP+ transceiver
TRENDnet TEG-10GBS10D3 10Gbps BiDi SFP+ Module, Simplex LC, 10km, TX 1330nm / RX 1270nm
€51.13 inc. VAT
Buy
TEG-10GBS10D3
€42.97
€51.13 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
04:603865
EAN Code
0710931141467
Manufacturer
Trendnet
Quick Specs
Ethernet
10Gbps
Fibre connection
Single-mode, simplex LC
Wavelengths
TX 1330 / RX 1270nm
Reach / partner
Up to 10km / TEG-10GBS10D2
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

TEG-10GBS10D3 · 10G BiDi · One Fibre, Two Wavelengths

10Gbps EthernetSimplex LC, single-modeUp to 10kmTX 1330 / RX 1270nm

The TRENDnet TEG-10GBS10D3 is a 10G BiDi SFP+ transceiver that sends and receives over one strand of single-mode fibre. It transmits at 1330nm and receives at 1270nm, working with the complementary TEG-10GBS10D2 module to form a link up to 10km.

Best For: Supported 10G SFP+ switches or fibre converters where a single available fibre strand needs to carry a bidirectional Ethernet link.
Before you order: Pair this module with TEG-10GBS10D2 at the other end, sold separately. Two identical TEG-10GBS10D3 modules are not the specified pair. Check host support, single-mode fibre, LC connection and the optical loss budget before ordering.

What's in the Box

  • One TEG-10GBS10D3 SFP+ module

What It Means in Practice

  • Two different wavelengths carry transmit and receive signals along one single-mode fibre strand.
  • The far end uses TEG-10GBS10D2, with transmit and receive wavelengths reversed.
  • DDM provides module monitoring through a compatible host.

What Will Not Work

  • The listing is one module; the complementary module and fibre cable are not included.
  • Not a duplex two-fibre LC module and not a copper RJ45 adapter.
  • Maximum distance depends on optical loss and installation quality, not cable length alone.

Key Features


Single-fibre operation
BiDi optics use two wavelengths to carry traffic in both directions on one strand.

10G SFP+ interface
Designed for supported MSA-compliant 10G SFP+ hosts.

Correct wavelength pairing
TX 1330nm and RX 1270nm require the complementary TEG-10GBS10D2.

Diagnostic monitoring
DDM supports optical module checks when the host exposes the relevant readings.

Technical Specifications

Model TEG-10GBS10D3, Version V1
Application 10Gbps single-mode BiDi Ethernet
Form factor SFP+, MSA compliant
Optical interface Simplex LC, single-mode fibre
Transmit wavelength 1330nm
Receive wavelength 1270nm
Required partner TEG-10GBS10D2
Maximum distance 10km, subject to optical link budget
Module data rate Up to 10.31Gbps
Monitoring Digital Diagnostics Monitoring (DDM)
Optical output -8.2 to +1dBm
Receiver sensitivity -14.4dBm
Maximum consumption 1W
Operating temperature 0 to 70°C
Operating humidity Up to 85%, non-condensing
Dimensions (L × W × H) 58 × 13.4 × 12.6mm
Weight 21.5g
Condition New

Frequently Asked Questions

Can I use two identical modules?
Use the specified complementary TEG-10GBS10D2 at the other end; it reverses the transmit and receive wavelengths.
How many fibre strands does it use?
One strand with a simplex LC connection. BiDi optics separate transmit and receive using different wavelengths.
Is the far-end module included?
No. This listing contains one transceiver, not a matched two-module kit.
Does any SFP port support it?
The host must support the intended 10G SFP+ mode and this module. Verify its compatibility requirements.
Singular Expert Insight

Start by checking both ends of the link. Matching speed alone is not enough: a BiDi connection needs complementary wavelengths, compatible hosts and an acceptable optical loss budget.

Buyer’s Guide

✓ Buy it if you need this end of a supported 10G single-fibre link paired with TEG-10GBS10D2.
✕ Skip it if you need a same-model duplex pair, copper Ethernet or a different wavelength combination.
→ Also consider the TEG-10GBS10D2 companion module and suitable single-mode LC cabling.
