TRENDnet TEG-3182WS 16×2.5G Managed Switch, 2×10G SFP+

Brand:
Trendnet

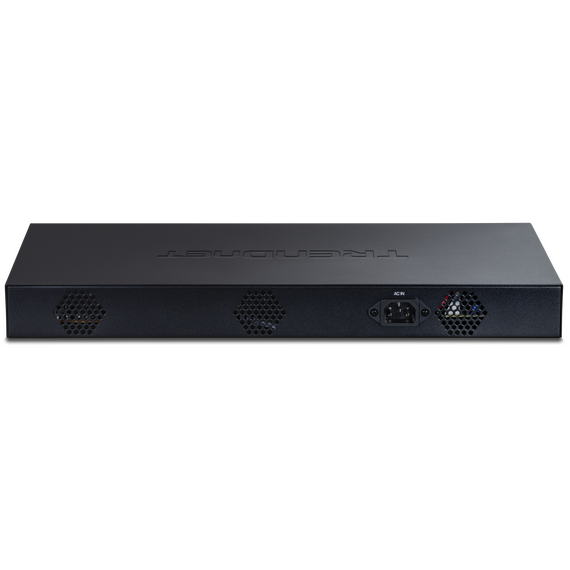

TRENDnet TEG-3182WS black managed switch with 16 RJ45 ports and two SFP+ ports
TRENDnet TEG-3182WS 16×2.5G Managed Switch, 2×10G SFP+
€429.02 inc. VAT
Buy
TEG-3182WS
€360.52 €400.58
€429.02 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
04:496128
EAN Code
0710931141207
Manufacturer
Trendnet
Quick Specs
Access ports
16×2.5G RJ45
Uplinks
2×1G/10G SFP+
Management
Web Smart L2+ / static routing
Design
Fanless 1U / no PoE
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Sixteen 2.5G access ports with two 10G uplinks and web management

16×2.5G RJ452×10G SFP+120Gbps switchingFanless / 1U

The TRENDnet TEG-3182WS is an 18-port Web Smart managed switch with sixteen 2.5G RJ45 ports and two dedicated 10G SFP+ ports. It combines 120Gbps switching capacity with VLAN, LACP, QoS and monitoring tools for a planned SMB network. Fanless metal construction and an included rackmount kit support quiet 1U installations.

Best For: Small and medium business networks connecting compatible multi-gigabit workstations, access points and storage to a suitable 10G backbone.
Before you order: For 2.5G, use compatible endpoints and suitable Cat5e or better cabling. SFP+/SFP transceivers or DAC cables are separate and must match the switch and remote equipment. This model does not supply PoE power. Local web management is available; optional TRENDnet Hive cloud management may incur additional fees.

What's in the Box

  • TRENDnet TEG-3182WS switch.
  • 1.8m power cord and rackmount kit.
  • Optical modules, DAC cables and Ethernet patch leads are not listed as included.

What It Means in Practice

  • Segment appropriate devices with VLANs and use QoS to prioritize selected traffic.
  • Connect compatible NAS or upstream switches through the two 10G SFP+ slots using suitable separately selected modules or DACs.
  • Use LACP where both devices support it; aggregation does not make one ordinary flow exceed the individual link rate.
  • Monitor traffic with SNMP, port mirroring and diagnostics, and plan addressing and management access before deployment.

What Will Not Work

  • Sixteen copper ports and two SFP+ slots make eighteen total ports; there are no eighteen RJ45 ports.
  • No PoE power delivery: powered devices need separate power or appropriate injectors.
  • Static/inter-VLAN routing is limited to the documented tables; full dynamic-routing protocols are not claimed.
  • 10G uplink hardware and cloud subscriptions are separate planning items.

Key Features


Multi-gigabit access
Sixteen RJ45 ports support 10/100/1000/2500Mbps links.

Two high-speed uplinks
Dedicated 1G/10G SFP+ slots link to compatible upstream or storage equipment.

Managed traffic controls
VLAN, LACP, QoS and multicast controls help organize a configured business network.

Fanless rack design
A metal 1U chassis with internal power supply avoids fan noise while still requiring ventilation.

Technical Specifications

Model / revision TRENDnet TEG-3182WS, V1
Total ports 18: 16 RJ45 + 2 SFP+
Copper ports 16× 10/100/1000/2500Mbps RJ45
Uplink ports 2× SFP+, 1Gbps / 10Gbps
2.5G cabling Cat5e or better, compatible endpoints required
Management class Web Smart, L2+
Switching capacity 120Gbps
Forwarding rate 89.28Mpps at 64-byte packets
RAM buffer 1.5MB
MAC table 16K entries
Jumbo frames Up to 12KB
Local management HTTP/HTTPS web GUI; limited CLI via Telnet/SSHv2
Monitoring SNMP v1/v2c/v3, RMON, LLDP, port mirroring, syslog
Cloud management TRENDnet Hive; additional fees may apply
Configuration Dual image and dual configuration
Link aggregation Static aggregation and IEEE802.3ad LACP
Spanning tree STP, RSTP, MSTP
VLAN support 802.1Q tagged, asymmetric, MAC/protocol-based, private, voice; GVRP
VLAN capacity Up to 256 groups, IDs 1–4094
QoS 802.1p CoS, DSCP, per-port bandwidth, strict priority/WRR
Multicast IGMP snooping v1/v2, MLD snooping v1, MVR; up to256 entries
Access control 802.1X, RADIUS, TACACS+, local authentication, IPv4/IPv6 ACL
Traffic protection DHCP snooping, dynamic ARP inspection, IP/MAC/port binding, DoS controls
Routing IPv4/IPv6 static routing and inter-VLAN routing
IP interfaces Up to 8
Routing table Up to32 IPv4/IPv6 entries
ARP table Up to128 entries
Diagnostics Virtual cable test, loopback detection, LEDs, reset button
Power input 100–240V AC, 50/60Hz, internal PSU
Maximum consumption 14.6W
Cooling Fanless
Housing / installation Black metal, rack mountable 1U
Dimensions 440×250×44mm
Weight 3.05kg
Operating temperature −5 to50°C
Operating humidity Up to95%, non-condensing
Certifications CE, FCC, UL
Power cord 1.8m included
Rackmount kit Included
Condition New

Frequently Asked Questions

Are all eighteen ports copper RJ45?
No. There are sixteen RJ45 ports and two dedicated SFP+ slots.
Can it power PoE cameras or access points?
No. Provide separate power or suitable PoE equipment.
Does it need a cloud subscription for local setup?
It provides local web management. Optional Hive cloud management may involve additional fees.
Are SFP+ modules included?
They are not listed in the manufacturer package contents; choose compatible modules or DACs separately.
Is it a full router?
It supports documented IPv4/IPv6 static and inter-VLAN routing, with up to8 interfaces and32 route entries; it does not replace every router function.
Singular Expert Insight

The useful balance here is sixteen multi-gigabit access links and two faster uplinks with practical management. Plan PoE separately and review VLAN, uplink and management requirements together. The 120Gbps switching figure is aggregate capacity, not the speed of any one port.

Buyer’s Guide

✓ Buy it if You need managed 2.5G access with two 10G SFP+ uplinks and a fanless rack chassis.
✕ Skip it if You need PoE output, eighteen copper ports or extensive dynamic-routing features.
→ Also consider Compatible SFP+/DAC hardware, endpoint speeds, cabling, rack depth and any Hive subscription.

Features - Trendnet - TEG-3182WS

Colour
black
Interface
  • Ethernet
Port Speed
  • 10/100 Mbps,
  • 1 Gbps,
  • 2.5 Gbps,
  • 10 Gbps
More Details
Product Code
04:496128
EAN Code
0710931141207
Manufacturer
Trendnet
