Eight 10G SFP+ links in a compact managed switch
8 × 1/10G SFP+160 Gbps switchingVLAN + static routingAdapter and rack kit
The TRENDnet TL2-F7080 is a compact managed switch for aggregating compatible 1G and 10G SFP+ links. Eight SFP+ cages, a 160 Gbps switching fabric and local web or CLI management support an organised business network. VLAN controls and IPv4/IPv6 static routing provide additional traffic-separation options. Link modules and cabling are selected separately.
Best For: Business fiber aggregation and compact racks needing eight managed 1/10G SFP+ connections.
Before you order: Choose compatible SFP/SFP+ transceivers and fiber or suitable DACs for both ends of each link. They are not included. The front RJ45 port is a serial console, not an Ethernet data port. This switch does not supply PoE. Leave ventilation clearance: it uses a smart fan and is not silent fanless equipment.
What's in the Box
- TL2-F7080, external 12 V DC 2.5 A power adapter and rack-mount kit.
- RJ45-to-RS-232 console cable, 1.5 m.
- Transceivers, fiber, DACs and optional ETH-F72 dual-unit mounting bracket are separate.
What It Means in Practice
- Aggregate compatible 1G or 10G optical links across eight SFP+ cages. Actual speed depends on modules and endpoints.
- Use VLANs, link aggregation and spanning tree to match the planned topology.
- Configure supported static IPv4/IPv6 and inter-VLAN routes when appropriate for the network.
- Manage locally over HTTP/HTTPS or CLI, with the supplied serial console cable for out-of-band access.
What Will Not Work
- The RJ45 console cannot connect an ordinary copper Ethernet client.
- No PoE output is provided.
- No 2.5G/5G link-speed or universal copper SFP+ module compatibility is promised.
- Static routing does not imply dynamic routing protocols.
- The optional ETH-F72 bracket for two units in 1U is not the included standard rack kit.
Key Features
Eight fast link slots
Eight SFP+ cages support compatible 1 Gbps or 10 Gbps links.
Managed traffic controls
VLAN, GVRP, Voice VLAN, LACP, QoS and multicast snooping support planned deployments.
Static routing options
IPv4/IPv6 static routes and inter-VLAN routing, within documented table limits.
Compact rack installation

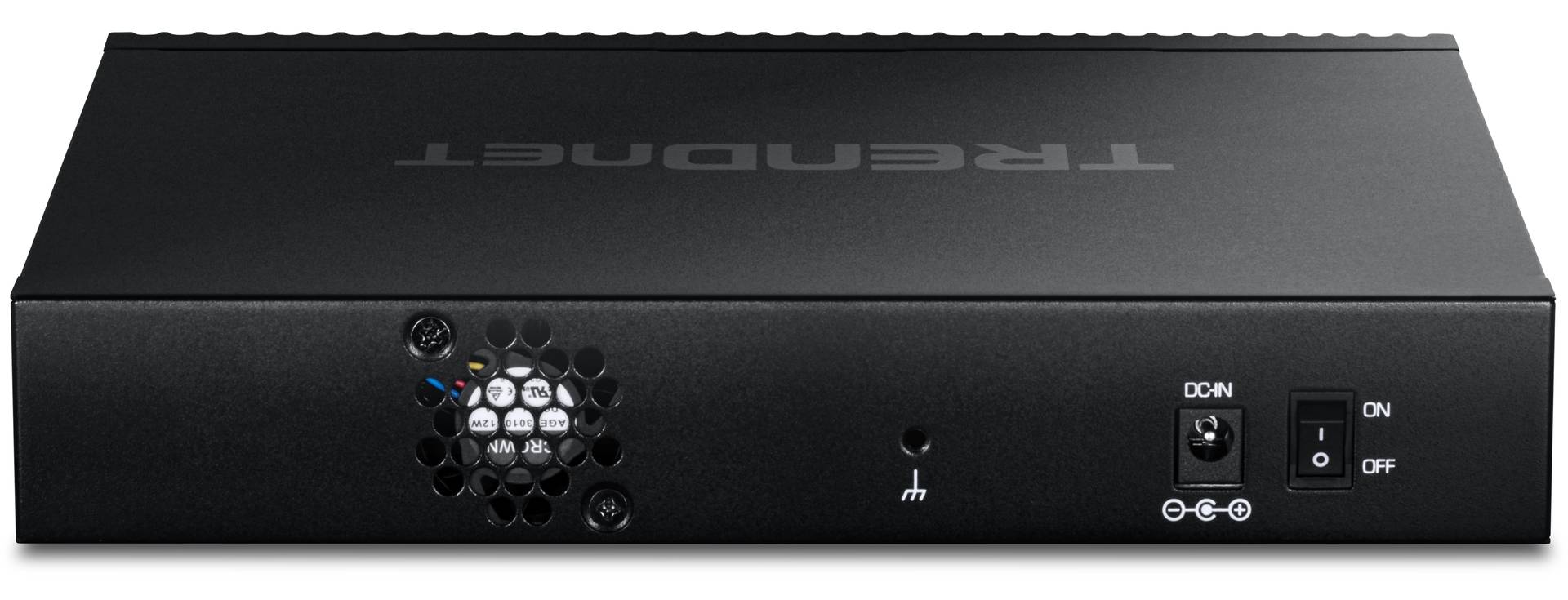

Included adapter and rack kit, with a smart cooling fan and separate serial console.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Count the SFP+ links and choose the modules before ordering. The console connector is for administration, while every network connection needs appropriate SFP/SFP+ link hardware. Check module compatibility, remote endpoints and cooling space together with the VLAN and static-routing plan.
Buyer’s Guide
✓ Buy it if You need eight managed SFP+ links at supported 1G or 10G speeds.
✕ Skip it if You need RJ45 Ethernet access ports, PoE, silent fanless operation or included optical modules.
→ Also consider Compatible optics or DACs, fiber type and distance, endpoint speed, rack layout and network configuration.
Features - Trendnet - TL2-F7080
Colour
black
Interface
- Ethernet
Standard
8-Port
Port Speed
- 1 Gbps,
- 10 Gbps
More Details
Product Code
04:603869
EAN Code
0710931141283
Manufacturer
Trendnet
