TRENDnet TC-P08C6AS 8-Port Cat6A Shielded Wall Mount Patch Panel 10 Gbps 110 IDC T568A/B Gold Contacts Grounding Wire

Brand:
Trendnet
TRENDnet TC-P08C6AS 8-Port Cat6A Shielded Patch Panel
TRENDnet TC-P08C6AS 8-Port Cat6A Shielded Wall Mount Patch Panel 10 Gbps 110 IDC T568A/B Gold Contacts Grounding Wire
€38.21 inc. VAT
Buy
TC-P08C6AS
€32.11
€38.21 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
04:302713
EAN Code
0710931401608
Manufacturer
Trendnet

Quick Specs

Ports
8 × RJ45 Cat6A
Format
Wall-mount panel
Termination
110 IDC
Shielding
Shielded
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

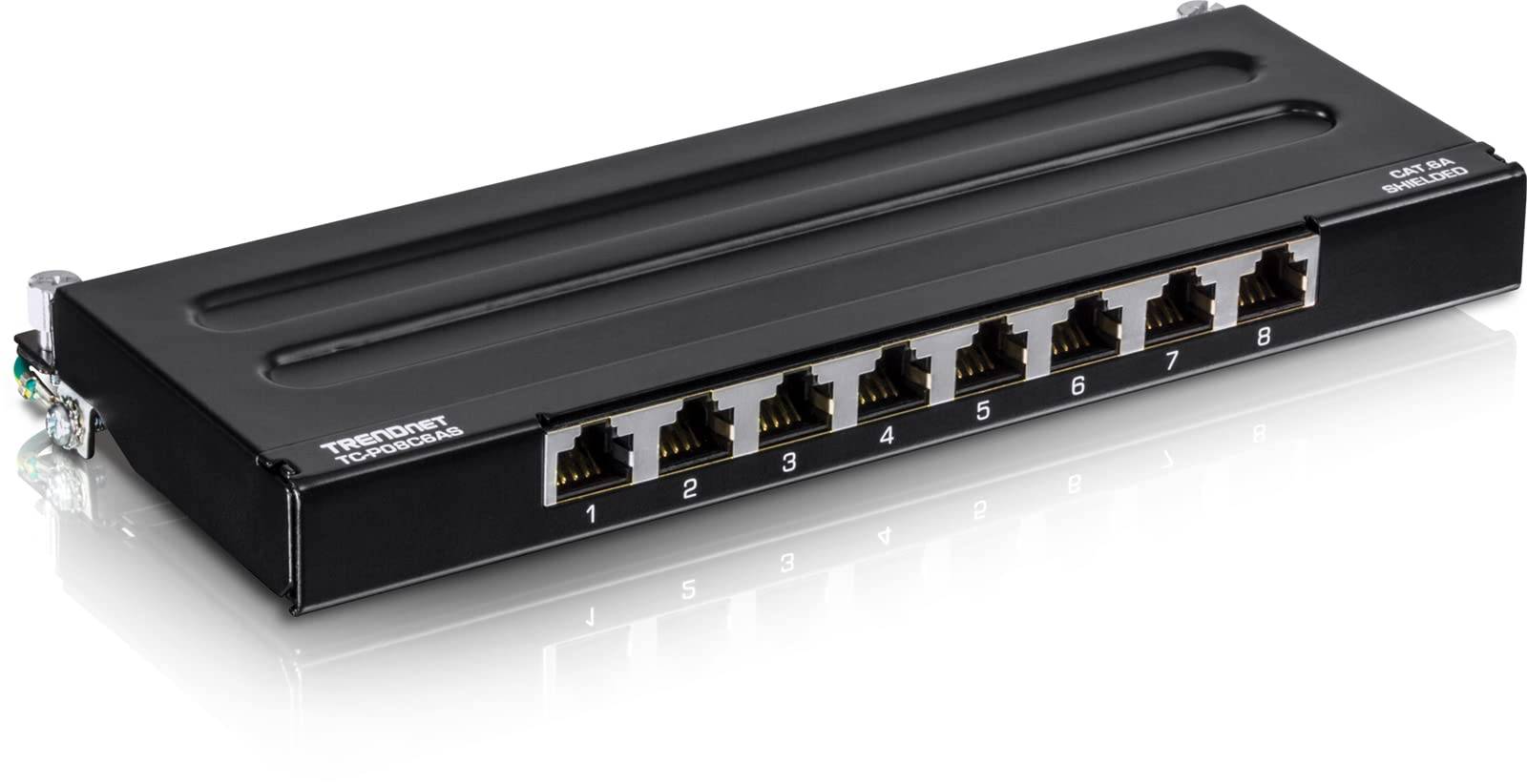

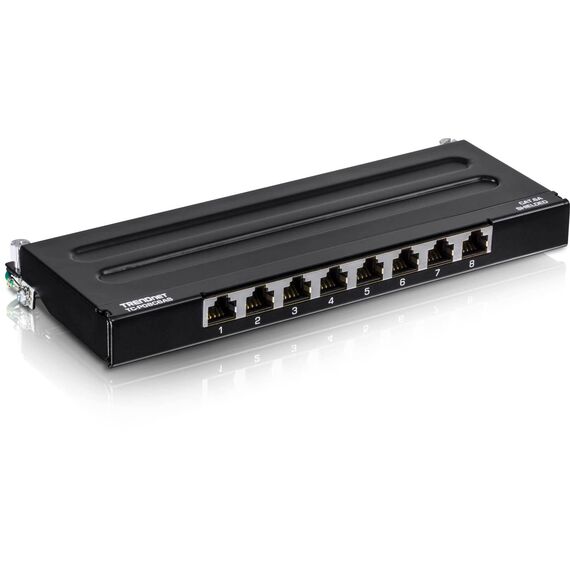

TRENDnet TC-P08C6AS — 8-Port Cat6A Shielded Wall-Mount Patch Panel

8 × RJ45 Cat6A10 GbpsWall mountShielded

The TRENDnet TC-P08C6AS is a 8-port Cat6A shielded patch panel for a wall, a desk side or anywhere there is no rack. It carries 8 shielded Cat6A RJ45 ports for 10 Gigabit, 110 IDC blocks colour-coded for T568A and T568B, gold-plated contacts and an 18 AWG grounding wire, in a compact SPCC steel housing that mounts on a wall. In practice every cable from the wall outlets is terminated once at the back and stays put, while short patch cords at the front connect the ports to your switch — so moving a desk or a phone is a one-cable change at the panel, not new cabling.

Compatibility — check before buying:
Check before buying: It is a wall-mount unit, not a 19″ rack panel. Shielding only helps with shielded cable (F/UTP, S/FTP) whose shield is terminated and the panel earthed; with UTP cable it works as a normal panel. The 12-port version is the TC-P12C6AS in the same housing. Not sure it suits your cabinet or cable? Send us the rack or cable type and we check it.

Best For

✓ Small offices without a rack
✓ Home network distribution
✓ Terminating cables on a wall
✓ Shops, clinics and branches
✓ Utility cupboards
✓ Patching to a small switch

Key Features


110 IDC blocks
The 110 IDC blocks take 22–26 AWG solid or stranded conductors with a standard 110 punch-down tool.

T568A / T568B colour coding
Each connector is colour-coded for both wiring schemes, so the installer terminates to the standard already used in the building.

Shielded design
A shielded SPCC steel housing with an 18 AWG grounding wire keeps screening continuous from cable to switch when shielded cable and earthing are used.

Wall mount, 0.5U
At 220 × 97 × 25 mm it fits on a wall or inside a small cabinet, with screws and cable ties in the box.

Technical Specifications

Identification
Brand TRENDnet
Product 8-Port Cat6A Shielded Wall Mount Patch Panel
Part Number TC-P08C6AS
EAN / GTIN 0710931401608
Connectivity
Ports 8 × RJ45
Category Cat6A — up to 10 Gbps
Speed 10 Gigabit Ethernet
Shielding Shielded
Termination 110 IDC blocks
Wiring T568A / T568B colour-coded
Cable 22–26 AWG solid or stranded
Contacts 50-micron gold-plated 8P8C
Grounding 18 AWG grounding wire
Mechanical
Format Wall-mount panel — 0.5U height
Dimensions 220 × 97 × 25 mm
Weight 474 g
Material Shielded SPCC steel
Standards & Compliance
Standards ANSI/TIA/EIA-568-B.2-1, EN 50173-1, ISO/IEC 11801
Compliance Not published by TRENDnet
Operating −25 to 50 °C, up to 90% RH
Installation Notes
Planning Match the number of panel ports to your switch ports and allow one short patch cord per port; leave spare ports for future outlets.
Terminating Strip only as much jacket as needed, keep the pairs twisted up to the contacts and follow one wiring scheme (T568A or T568B) throughout the building.
Testing Test every run with a cable tester before patching it into the switch — it finds swapped pairs and poor terminations before users do.
In the Box
Included TC-P08C6AS patch panel, cable ties, screws, Quick Installation Guide
Not Included Punch-down tool, patch cords, wall plugs for masonry
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term TRENDnet lists a 3-year warranty on its global product page for this model; terms vary by region. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Can I mount it in a rack?
No. It is a wall-mount panel for a wall, a desk side or anywhere there is no rack. It mounts on a wall with the screws supplied. If you have a 19-inch or 10-inch cabinet, ask us for the matching rack panel.
What tool do I need to terminate it?
A 110 punch-down tool for the 110 IDC blocks. No tool is included; screws and cable ties are.
Do I need shielded cable?
To benefit from the shielding, yes: use shielded cable (F/UTP or S/FTP), terminate the shield properly and earth the panel. With ordinary UTP cable it still works, but the shielding adds nothing.
Is it fast enough for my network?
It is rated up to 10 Gbps for 10 Gigabit Ethernet. The whole link — cable, outlets, patch cords — must be at least the same category to reach that speed. For 10 Gigabit over longer runs, the full link must be Cat6A.
Singular Expert Insight
We suggest the TC-P08C6AS where a few shielded Cat6A runs end on a wall — a small office, a camera room, a ceiling void — and 10 Gigabit must be kept. Earth it with the grounding wire; if you need 12 ports, take the TC-P12C6AS in the same housing. If you are planning a new cabinet, tell us the number of outlets and the switch you use and we suggest the panel, patch cords and tools together. Every order comes with Singular’s local support in Cyprus. See our patch panels for other formats and port counts, and the network switches to connect them to.

Buyer’s Guide

Buy it if

You have up to 8 shielded Cat6A runs to terminate on a wall for 10 Gigabit.

Skip it if

You need a 19″ rack panel, or your cabling is UTP Cat5e/Cat6.

Also consider

TRENDnet TC-P12C6AS, the 12-port version.
