TRENDnet TC-P16C6AS Cat6A Shielded Patch Panel 16-Port 19 Inch 1U 110 IDC 10G with Grounding Wire and Cover Plate

Brand:
Trendnet
TRENDnet TC-P16C6AS Cat6A Shielded 16-Port 1U Patch Panel
TRENDnet TC-P16C6AS Cat6A Shielded Patch Panel 16-Port 19 Inch 1U 110 IDC 10G with Grounding Wire and Cover Plate
€85.45 inc. VAT
Buy
TC-P16C6AS
€71.81
€85.45 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
04:302717
EAN Code
0710931401615
Manufacturer
Trendnet

Quick Specs

Ports
16 × RJ45
Category
Cat6A · shielded
Mounting
19" rack · 1U
Termination
Punch-down
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

TRENDnet TC-P16C6AS — 16-Port Cat6A Shielded Patch Panel, 19" 1U

16 portsCat6A shielded19" · 1U110 IDC

The TRENDnet TC-P16C6AS is a 16-port Cat 6A shielded 19-inch 1U patch panel. It mounts in a 19-inch rack or cabinet and takes up 1U. Installation cable is punched down on the back with a 110 or Krone punch-down tool, and the 16 RJ45 sockets on the front take ordinary patch cords, rated for 10 Gbit/s (10GBase-T). In practice it gives the cables coming from wall outlets and ceilings a fixed, labelled end point next to your switch, so that moves and changes are made with short patch cords at the panel instead of re-terminating installation cable. When the network grows, you add a panel and a few patch cords rather than pulling new cable to every desk, and a clearly numbered panel makes it quick to find which outlet a fault or a new device is on.

Compatibility — check before buying:
This is the 16-port model — the 24-port version of the same shielded Cat6A panel is TC-P24C6AS. The ports are fixed and terminated with a 110 or Krone punch-down tool, which is not in the box. As a shielded panel it only gives its full screening with shielded cable and a grounded rack or earth point; TRENDnet fits an 18 AWG grounding wire with screw terminal. It needs a standard 19-inch rack or cabinet with 1U free. Not sure it matches your cabling? Send us the cable type and the rack or cabinet model and we check it.

Best For

✓ 19-inch server and network racks
✓ Office floor distribution
✓ Structured cabling projects
✓ Patching wall outlets to switches
✓ Data centres and comms rooms
✓ Labelled, serviceable terminations

Key Features


110 IDC termination
110 IDC blocks at 90° with T568A/B colour-coded labels take a 110 or Krone tool. Once the cable is terminated, every move is made with a patch cord at the front.

Cat 6A performance
Cat6A, backward compatible with Cat5e and Cat6 cabling. The shielded design helps in electrically noisy rooms and with PoE-heavy cable bundles.

19-inch, 1U
Standard 19-inch width at 1U height, for any network rack or cabinet.

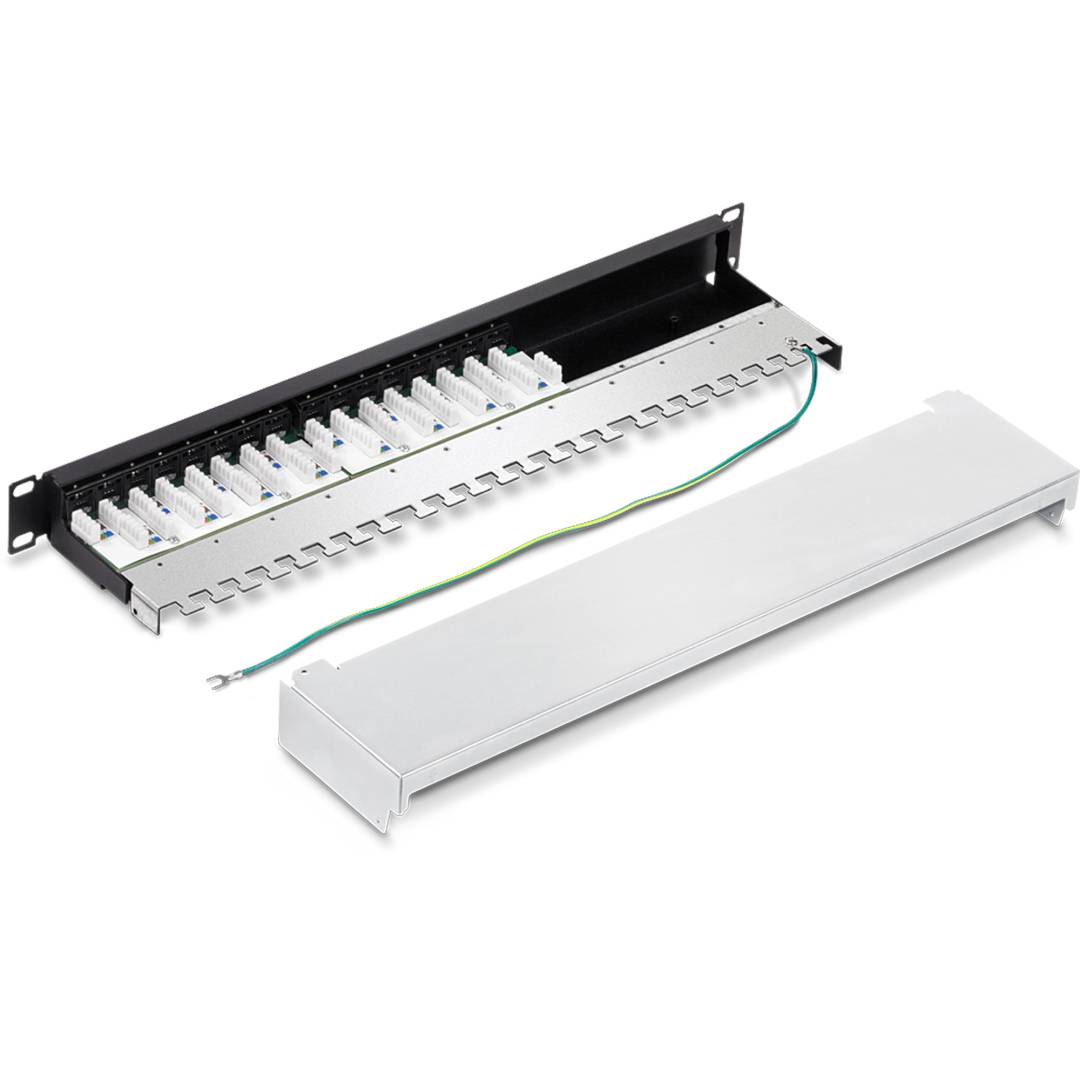

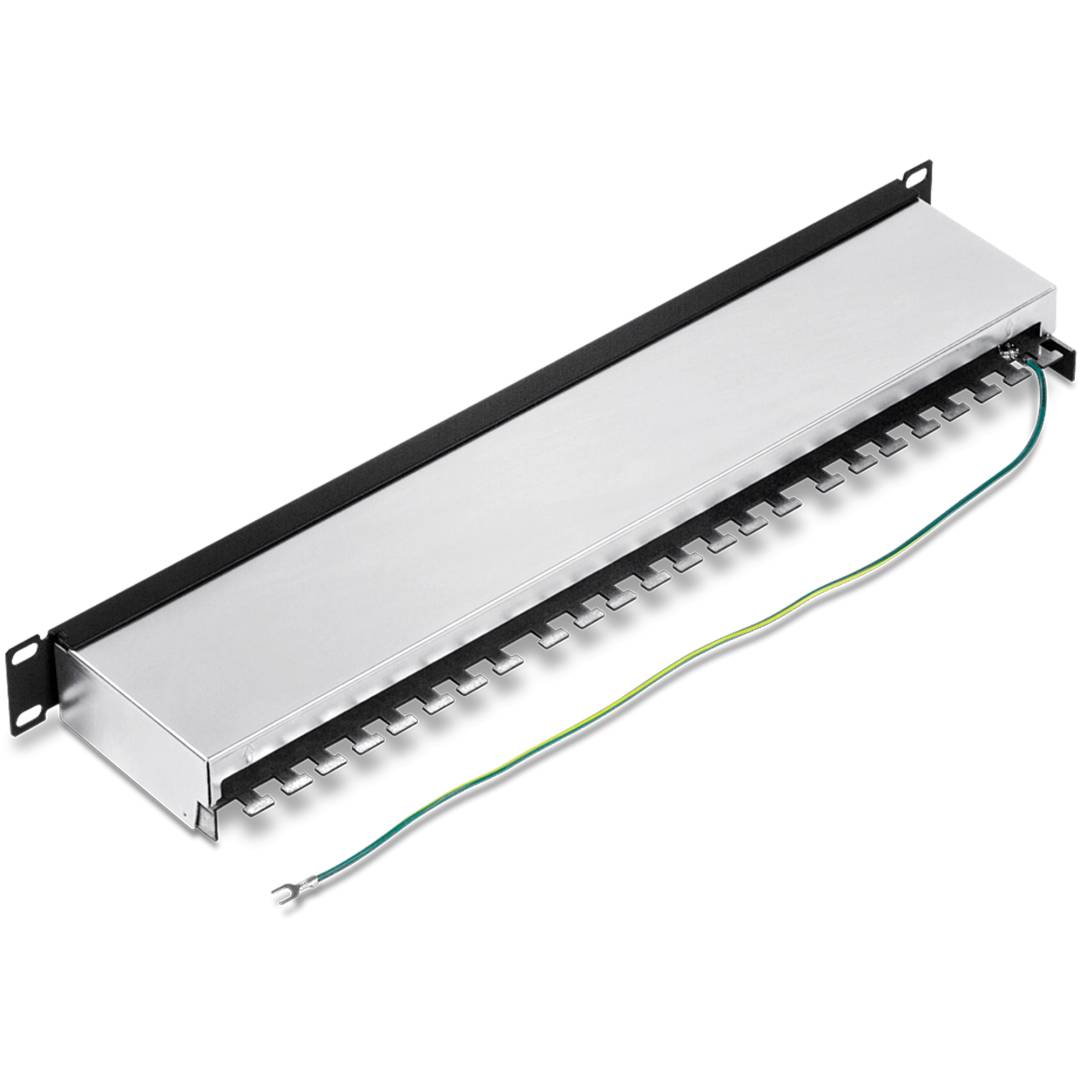

Cable management cover
An integrated cover plate with cable separation tidies and protects the terminations at the back, and screws and cable ties are in the box.

Technical Specifications

Identification
Brand TRENDnet
Product TRENDnet 16-Port Cat6A Shielded 1U Patch Panel
Part Number TC-P16C6AS
EAN / GTIN 0710931401615
Colour Not published by TRENDnet
Performance
Category Cat 6A
Transmission Cat6A, backward compatible with Cat5e and Cat6 cabling
Shielding Shielded
Standards ANSI/TIA/EIA-568-B.2-1, TIA/EIA-310-D, EN 50173-1, ISO/IEC 11801
Ports & Termination
Ports 16 × RJ45
Port Type Fixed
Termination 110 IDC terminal blocks at 90°, T568A/B colour-coded labels
Wire Gauge 22–26 AWG, solid or stranded
Tool Needed 110 or Krone punch-down tool
Mechanical
Mounting 19-inch rack mount
Height 1U
Dimensions 440 × 105 × 44.45 mm
Weight 1.6 kg
Material SGCC steel; 50 µ gold-plated contacts
Cable Management Integrated cover plate with cable separation
Grounding 18 AWG grounding wire with screw terminal
Operating Temperature −25 to 50 °C
Planning the Installation
Cable Shielded (F/UTP, S/FTP) Cat 6A installation cable, solid core, 22 to 26 AWG, solid or stranded
Patch Cords Shielded Cat 6A or higher, so the link is not held back at the front
Rack Space 1U in a 19-inch rack; plan a cable manager above or below for tidy patching
Labelling Number each port as it is terminated and keep a simple list of which outlet goes where
In the Box
Included Patch panel, quick installation guide, cable ties and screws
Not Included Punch-down tool (TRENDnet TC-PDT, sold separately), patch cords
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term TRENDnet publishes a 3-year warranty on this product on its product page. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Do I need a special tool?
Yes. The installation cable is terminated on the back with a 110 or Krone punch-down tool, which is not included. If you order the panel with cable, tell us and we add a suitable tool.
Will it carry 10 Gbit/s?
Yes, when the whole link is Cat 6A. TRENDnet rates the panel Cat 6A, but the weakest part of the link sets the speed, so use Cat 6A installation cable and Cat 6A patch cords too.
Does it fit my rack?
It fits standard 19-inch racks and cabinets and takes up 1U. Send us the rack model if you want us to check depth and free space.
Does it need to be grounded?
Yes, for the shield to work. Connect the panel to the rack or building earth; TRENDnet provides an 18 AWG grounding wire with screw terminal for it. With unshielded cable the shield has no effect.
Singular Expert Insight
We suggest the TC-P16C6AS for smaller shielded Cat6A installations where sixteen ports cover the room and the 3-year TRENDnet warranty matters. Plan the panel with cable and patch cords of the same category, and label the ports as you terminate them. Every order comes with Singular’s local support in Cyprus. See our patch panels or the network switches and network cables that complete the link.

Buyer’s Guide

Buy it if

You need 16 shielded Cat6A ports in 1U, with grounding and cable management included.

Skip it if

You need 24 ports (TC-P24C6AS) or an unshielded panel.

Also consider

TRENDnet TC-P24C6AS, the 24-port version.
