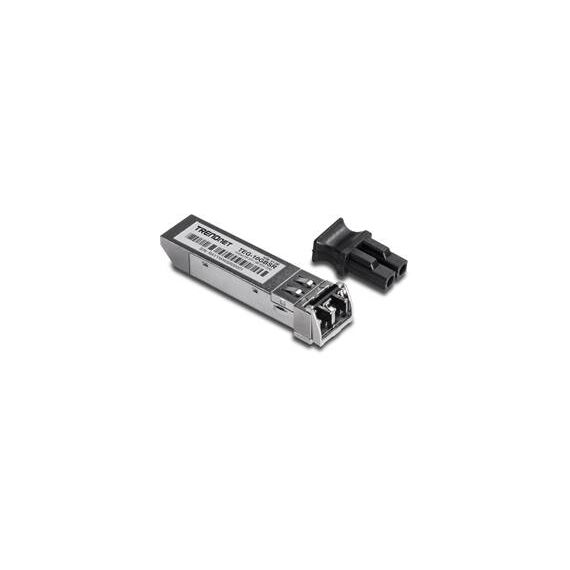

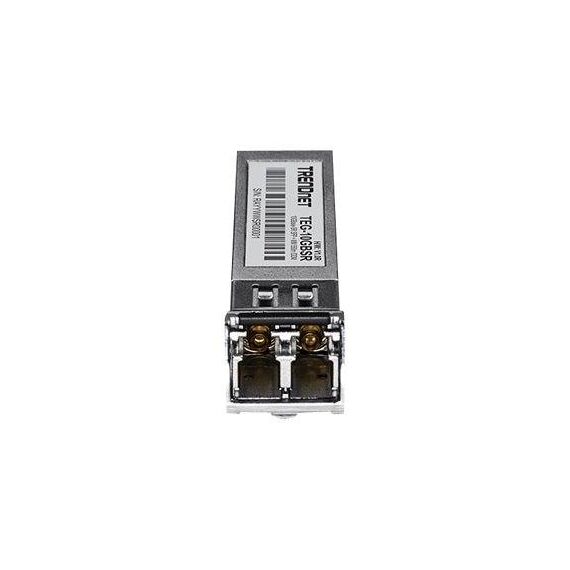

TRENDnet TEG-10GBSR SFP+ Transceiver 10GBASE-SR 850 nm Duplex LC Multimode up to 300 m on OM3 with DDM

Brand:
Trendnet
TRENDnet TEG 10GBSR SFP+ transceiver 10 GigE TEG10GBSR
TRENDnet TEG-10GBSR SFP+ Transceiver 10GBASE-SR 850 nm Duplex LC Multimode up to 300 m on OM3 with DDM
€43.1 inc. VAT
Buy
TEG-10GBSR
€36.22
€43.10 inc. VAT
Ships from EU stock: 7 item(s)
+ −
Add to wish list Ask a question
Product Code
04:190309
EAN Code
0710931140170
Manufacturer
Trendnet

Quick Specs

Standard
10GBASE-SR · 10 Gbps
Fibre & Reach
OM3 300 m · OM1 33 m
Connector
Duplex LC · 850 nm
Diagnostics
DDM
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

TRENDnet TEG-10GBSR — 10G SR SFP+, 300 m

10 Gbps10GBASE-SROM3 300 mDDM

The TRENDnet TEG-10GBSR is a 10 Gbit SFP+ transceiver of the 10GBASE-SR type, reaching 300 m on OM3 multimode fibre at 850 nm over a duplex LC connection, with digital diagnostics and a low 439 mW power draw. It is built to the SFP+ MSA for TRENDnet managed switches and other SFP+ ports, and is used for uplinks and server links inside a building. In practice, multimode optics are the cheaper choice for links inside one building: most server rooms and floor risers already carry OM3 or OM4 fibre, and the module plus a short patch cord is all a port needs. Before you order, check the fibre grade printed on the cable jacket and the real length of the run, including patch panels.

Compatibility — check before buying:
TRENDnet publishes 300 m on OM3 for the current version — not the 550 m sometimes quoted — and the reach drops to 82 m on OM2 and 33 m on OM1. It is a 10G module and will not link in a 1G-only SFP port or to a 1G SX module. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your device model and the cable run and we check it before you order.

Best For

✓ 10G uplinks inside one building
✓ TRENDnet managed switches with SFP+
✓ Server and NAS links at 10G
✓ OM3 multimode runs up to 300 m
✓ Low-power 10G optics
✓ Replacing a failed SR module

Key Features


Reach by fibre grade
TRENDnet publishes the reach per grade: 300 m on OM3, 82 m on OM2 and 33 m on OM1, so you can check a run before you order.

Multimode fibre, short reach
Built for the short runs inside a building or data room over OM-grade multimode fibre. Reach depends on the fibre grade — check what is actually in your walls before you plan a link.

Monitoring you can read
Digital diagnostics (DDM) let the host report temperature, laser power and received light, so a dirty connector or a failing link shows up before users call.

Hot-swappable
Modules plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch to remove it.

Technical Specifications

Identification
Brand TRENDnet
Model 10GBASE-SR SFP+ Multi Mode LC Module (300 m) with DDM
Part Number TEG-10GBSR
EAN / GTIN 0710931140170
Pack Size Single unit
Interface
Form Factor SFP+
Standard 10GBASE-SR (IEEE 802.3ae), also 10G Fibre Channel
Data Rate 8.5 to 10.5 Gbps
Connector Duplex LC
Optics & Reach
Wavelength 850 nm
Reach on OM3 300 m
Reach on OM2 82 m
Reach on OM1 33 m
Tx Power −7.5 to −1 dBm
Rx Sensitivity −14 dBm
Environment & Power
Operating Temperature 0 to 70 °C
Power Consumption 439 mW
Figures For Hardware version v2.1R, the current one
Hot-Swap Yes
Compatibility
Designed For SFP+ ports that accept MSA-compliant 10G modules, including TRENDnet managed switches
Link Partner Another 10GBASE-SR module on multimode fibre
In the Box
Included the TEG-10GBSR module
Not Included Fibre patch cords and cleaning tools
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term TRENDnet’s lifetime warranty applies to purchases in the US and Canada; TRENDnet does not publish a term for Europe on the pages we checked. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process.

Frequently Asked Questions

Does it reach 550 m?
No. TRENDnet publishes 300 m on OM3 for the current hardware version, 82 m on OM2 and 33 m on OM1. Measure the run and check the fibre grade.
Will it work in a 1G SFP port?
No. It is a 10G SFP+ module and needs a 10G port and a 10G SR module at the other end.
Are fibre patch cords included?
No. You get the TEG-10GBSR module. The patch cord for the Duplex LC connector, a matching module for the far end of the link and a fibre cleaning tool are bought separately. Tell us the distance and the fibre type and we quote the right cord.
Will it work in a switch from another brand?
TRENDnet builds the module to the SFP MSA. Switches that lock out third-party optics may refuse it — send us the model and we check it.
Singular Expert Insight
The TEG-10GBSR is the 10G multimode optic we suggest for TRENDnet and MSA-compliant switches. Check the fibre grade on the cable jacket first — on old OM1 fibre the link only reaches 33 m. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status and we help you find out whether it is the module, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.

Buyer’s Guide

Buy it if

You need 10G over OM3 multimode up to 300 m on an SFP+ port that accepts MSA optics.

Skip it if

Your fibre is old OM1/OM2 over a long run, the port is 1G-only, or the fibre is single-mode.

Also consider

TRENDnet TI-MGBSX for industrial Gigabit multimode links.
