TRENDnet TEG-MGBS10D5 BiDi SFP Transceiver 1000BASE Single Fibre Tx 1550 nm Rx 1310 nm LC Single-Mode 10 km

Brand:
Trendnet

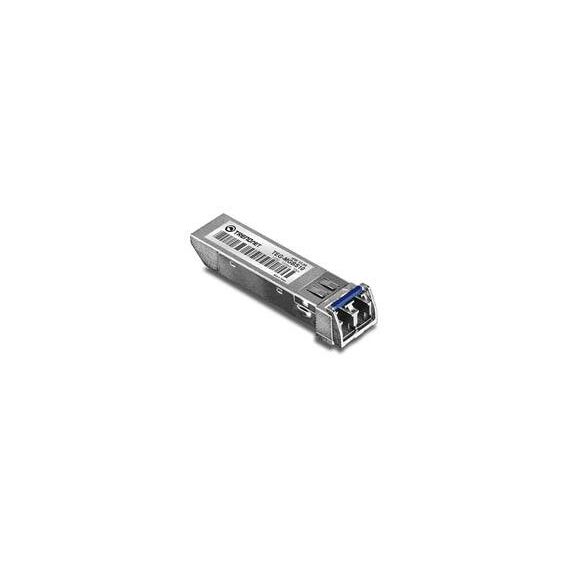

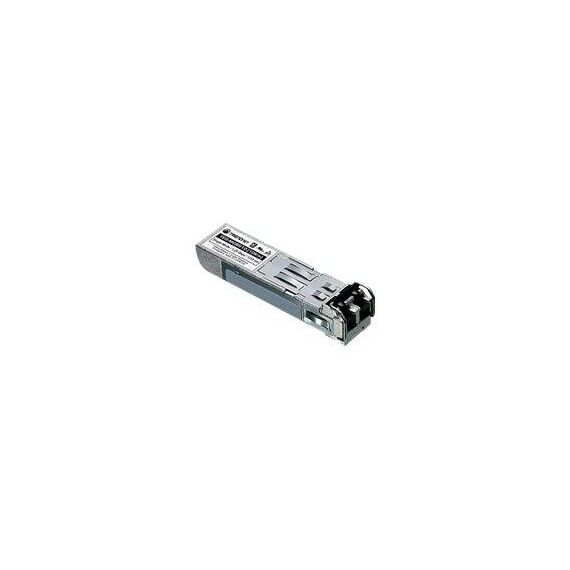

TRENDnet TEG MGBS10D5 SFP (miniGBIC) transceiver TEG-MGBS10D5
TRENDnet TEG-MGBS10D5 BiDi SFP Transceiver 1000BASE Single Fibre Tx 1550 nm Rx 1310 nm LC Single-Mode 10 km
€52.85 inc. VAT
Buy
TEG-MGBS10D5
€44.41
€52.85 inc. VAT
Ships from EU stock: 3 item(s)
+ −
Add to wish list Ask a question
Product Code
04:190306
EAN Code
0710931610284
Manufacturer
Trendnet

Quick Specs

Type
1G BiDi · one fibre
Wavelengths
Tx 1550 / Rx 1310 nm
Reach
Single-mode · 10 km
Pairs With
TEG-MGBS10D3
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

TRENDnet TEG-MGBS10D5 — 1G BiDi SFP, 1550 nm End

1 GbpsSingle fibreTx 1550 nmUp to 10 km

The TRENDnet TEG-MGBS10D5 is a Gigabit bidirectional SFP module that runs a full link over one single-mode fibre strand, up to 10 km, with a simplex LC connector. It transmits at 1550 nm and receives at 1310 nm, so it is one half of a pair: the other end of the link takes the TEG-MGBS10D3. In practice, bidirectional optics are used where fibre is scarce — a leased dark-fibre strand, a full duct or an old building link. Before you order, confirm which end of the strand gets which module type and that the fibre is single-mode all the way.

Compatibility — check before buying:
A link needs one D5 and one D3 — two D5 modules will not link, and it will not talk to a standard two-fibre LX module. The connector is a single LC/UPC, so use a simplex UPC patch cord, not APC. One article is one module; order the TEG-MGBS10D3 for the other end. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your device model and the cable run and we check it before you order.

Best For

✓ 1G links over a single fibre strand
✓ Leased dark fibre charged per strand
✓ Doubling the use of an existing fibre pair
✓ Building-to-building links up to 10 km
✓ CCTV and access-control backbones
✓ Replacing a failed D5 end of a link

Key Features


1G on a single fibre
Both directions share one single-mode strand up to 10 km, so a fibre pair can carry two separate Gigabit links.

One strand instead of two
A bidirectional optic sends and receives on different wavelengths over a single single-mode strand, which halves the fibre you need. The price of that is pairing: the two ends must be opposite types.

Hot-swappable
Modules plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch to remove it.

Plan both ends together
A link only comes up when both ends use the same standard, speed and media. Order the far-end module, the cable and any spares in one go and the link works on day one.

Technical Specifications

Identification
Brand TRENDnet
Model TEG-MGBS10D5 SFP Dual Wavelength Single Mode LC Module (10 km), V5
Part Number TEG-MGBS10D5
EAN / GTIN 0710931610284
Pack Size Single unit
Interface
Form Factor SFP (mini-GBIC)
Standard 1000BASE-BX (single-fibre bidirectional)
Data Rate 1.25 Gbps (Gigabit Ethernet)
Connector LC/UPC simplex
Optics & Reach
Wavelengths Transmits 1550 nm / receives 1310 nm
Fibre One single-mode strand
Reach Up to 10 km
Tx Power −9 to −3 dBm
Rx Sensitivity −24 dBm
Environment & Power
Operating Temperature 0 to 70 °C
Power Consumption Max. 0.8 W
Dimensions / Weight 58 × 13.4 × 12.6 mm · 18 g
Hot-Swap Yes
Compatibility
Designed For the SFP slots of MSA-compliant switches and media converters
Link Partner TEG-MGBS10D3 (transmits 1310 / receives 1550 nm) or another compatible module
In the Box
Included 1 module (one end of the link) and a quick installation guide
Not Included The partner TEG-MGBS10D3 module, the fibre and cleaning tools
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term TRENDnet’s EU product page lists a lifetime warranty, but TRENDnet’s warranty policy limits the lifetime term on fibre products to purchases in the United States and Canada, and no separate European term is stated. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process.

Frequently Asked Questions

What do I order for the other end?
The TEG-MGBS10D3, which transmits at 1310 nm and receives at 1550 nm. A D5 at one end and a D3 at the other make one link.
Will it link to a normal LX module?
No. A standard LX module uses two strands at 1310 nm. BiDi modules only link to their opposite partner on one strand.
Are fibre patch cords included?
No. You get 1 module (one end of the link) and a quick installation guide. The patch cord for the LC/UPC simplex connector, a matching module for the far end of the link and a fibre cleaning tool are bought separately. Tell us the distance and the fibre type and we quote the right cord.
Will it work in a switch from another brand?
TRENDnet builds this module to the SFP MSA and names no vendor-specific coding. Switches that accept standard third-party optics take it; switches that lock out third-party optics may refuse it — send us the model and we check it.
Singular Expert Insight
We fit the TEG-MGBS10D5 with its D3 partner when only one fibre strand is free between two sites, or when leased fibre is charged per strand. Order both ends together and label them — mixing up D3 and D5 is the most common reason a BiDi link stays dark. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status and we help you find out whether it is the module, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.

Buyer’s Guide

Buy it if

You need 1G over one single-mode strand up to 10 km and will fit a TEG-MGBS10D3 at the other end.

Skip it if

You have two strands (a standard LX pair is simpler), or your fibre is multimode.

Also consider

TRENDnet TEG-MGBS10D3 for the other end.
