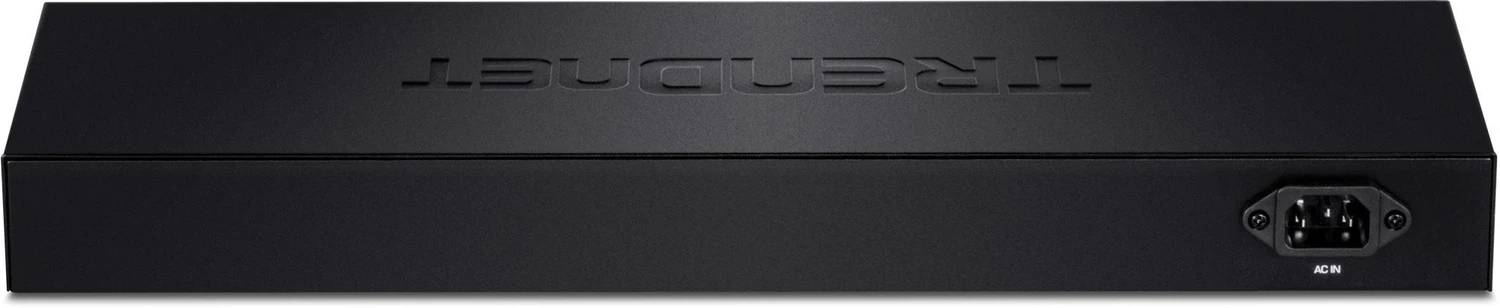

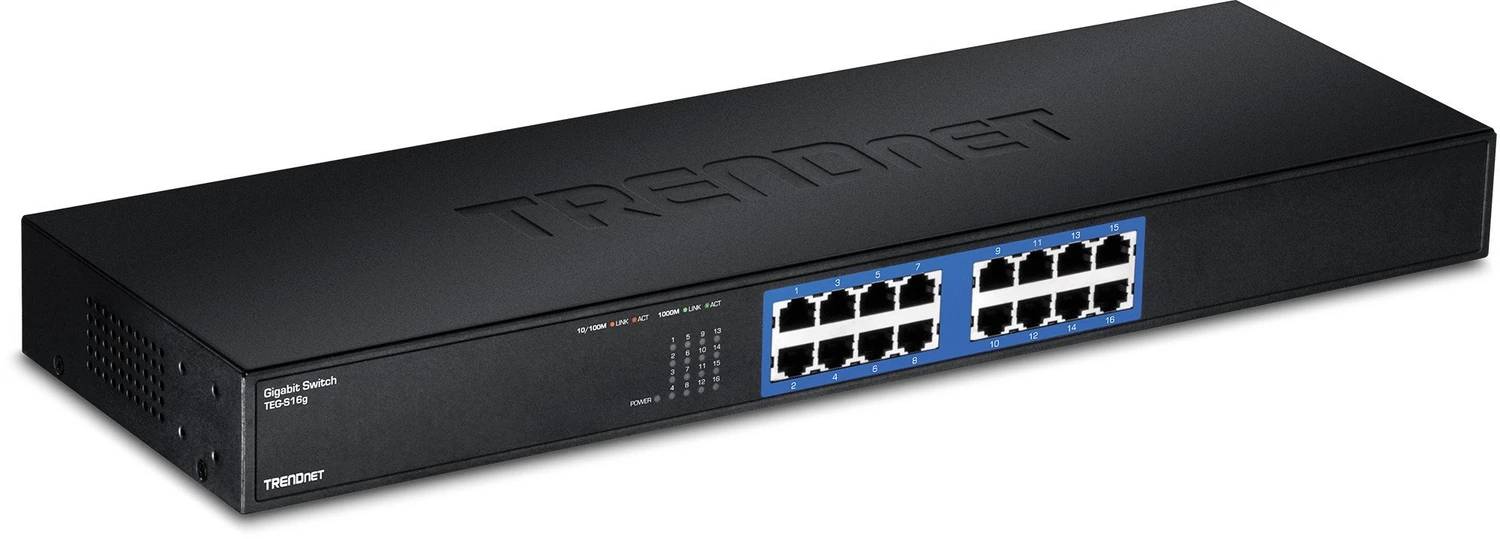

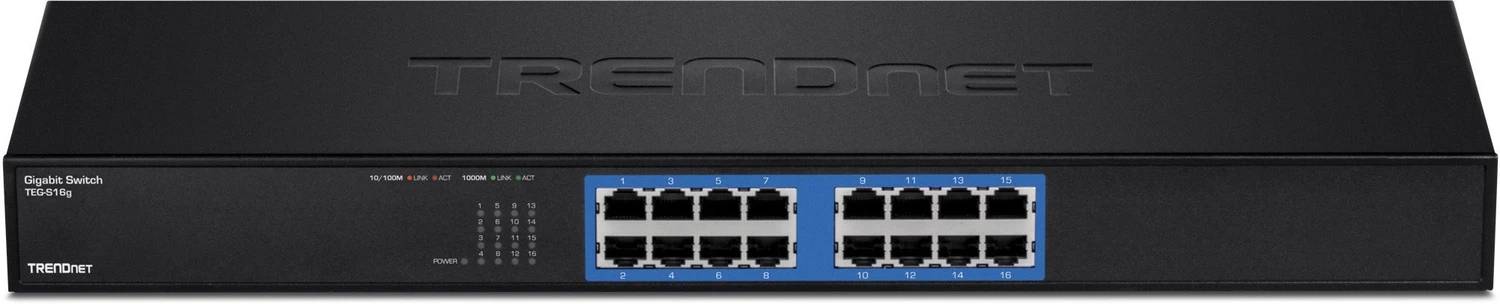

TRENDnet TEG S16g Switch 16-Port x 10/100/1000 rack-mountable

Brand: Trendnet

CODE (SKU):

TEG-S16G

€101.43

(€120.70 inc. VAT)

Availability: 13 item(s)

Standard delivery within 4 to 8 business days.

+ −

Ask a question

Find similar

Delivery

Payment options

Product Code04:190271 EAN Code0710931610239 ManufacturerTrendnet

Description
Features

Trendnet TEG-S16G TRENDnet TEG S16g Switch 16-Port x 10/100/1000 rack-mountable

TRENDnet TEG S16g Switch 16-Port x 10/100/1000 rack-mountable

- GREENnet technology reduces power consumption by up to 70%
- 16 x Gigabit Auto-MDIX RJ-45 ports
- Sturdy rackmount metal switch with built in power supply
- 32Gbps forwarding capacity

The 16-Port Gigabit GREENnet Switch, model TEG-S16g, provides high bandwidth performance, ease of use, and reliability, all while reducing power consumption by up to 70%*.

GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.

Boost office network efficiency and eliminate network congestion with Gigabit speeds and a total switching capacity of 32Gbps with Full-Duplex mode. A built in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.

Data transmission
Maximum data transfer rate	2 Gbit/s
Full duplex	Yes
Supported data transfer rates	10, 20, 100, 200, 2000
Switching capacity	32 Gbit/s
10G support	No
Networking
MAC address table	8000 entries
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Flow control support	Yes
Jumbo Frames support	Yes
Management features
Switch type	Unmanaged
Switch layer	N/A
Protocols
Supported network protocols	CSMA /CD, Star
Connectivity
Ports quantity	16
Ethernet LAN (RJ-45) ports quantity	16

Weight & dimensions
Rack mounting	N/A
Dimensions W x D x H	440 x 140 x 45 mm
Weight	1600 g
Stackable	No
Energy management
Power over Ethernet (PoE) Support	No
Power consumption	7.2 W
Input frequency	50-60 Hz
Input voltage	10-240 V
Environmental conditions
Operating temperature range (T-T)	0 - 40 °C
Storage temperature range (T-T)	-10 - 70 °C
Non-operating relative humidity (non-condensing)	0 - 90 %
Technical details
Connectivity technology	Wired
Colour
Colour of product	Black
Material
Housing material	Metal
Illumination/Alarms
LED indicators	Yes
