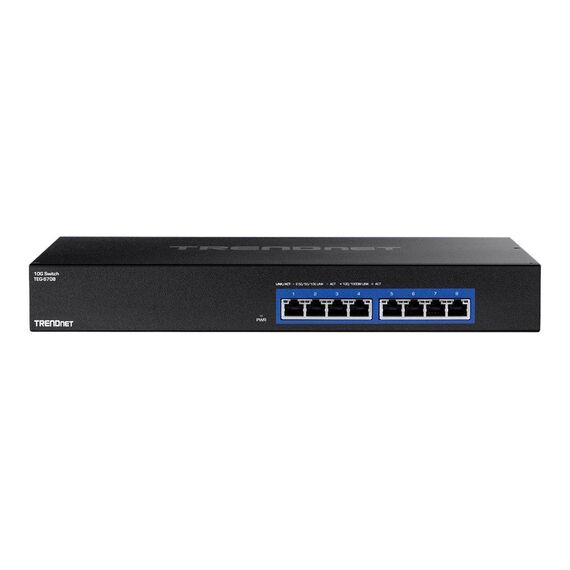

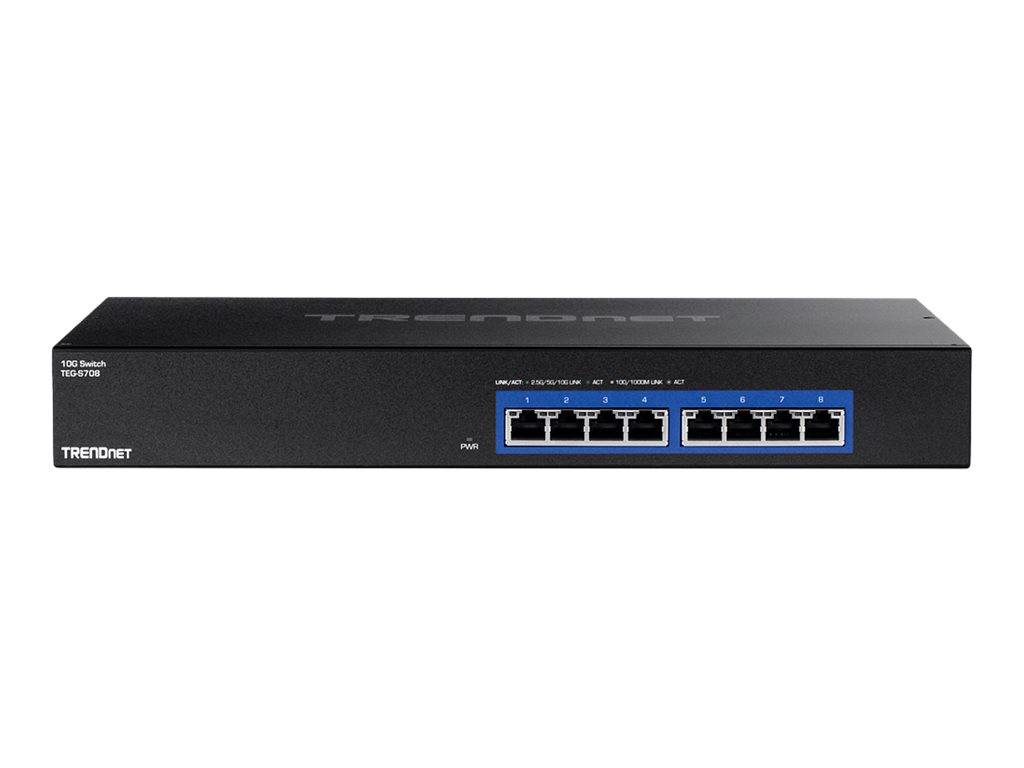

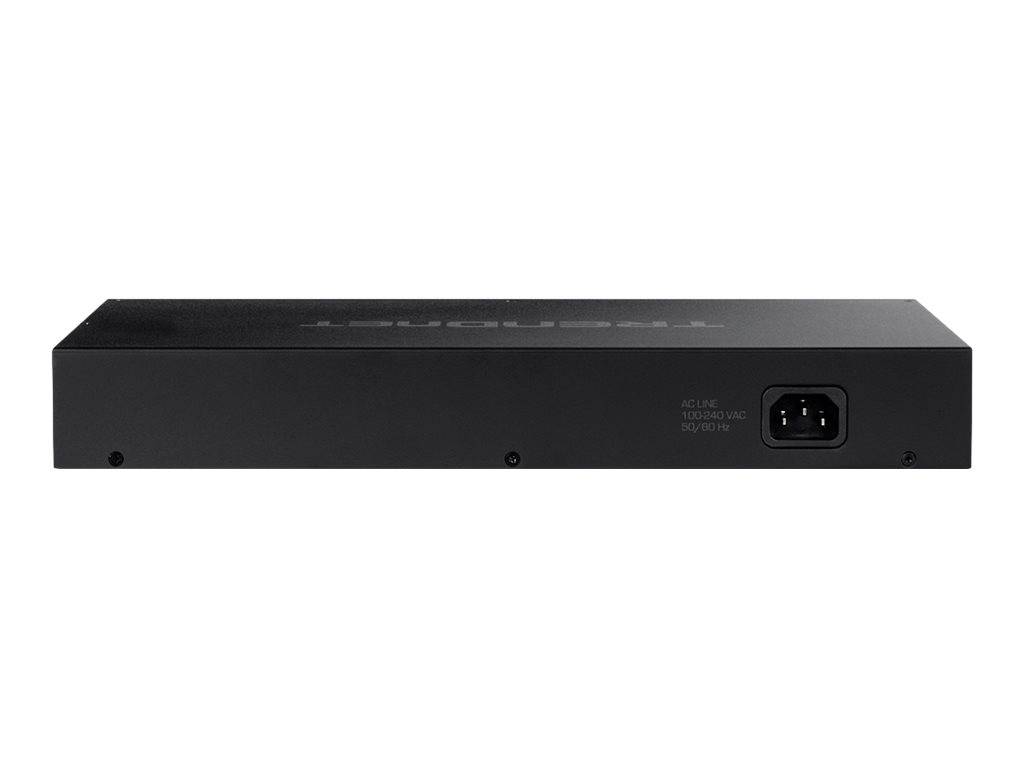

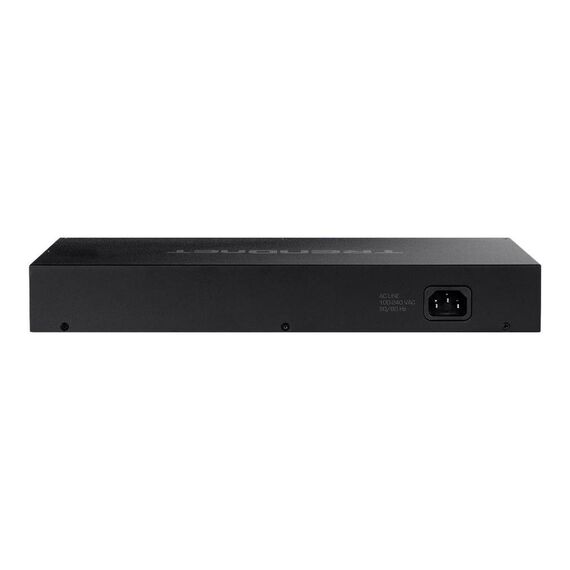

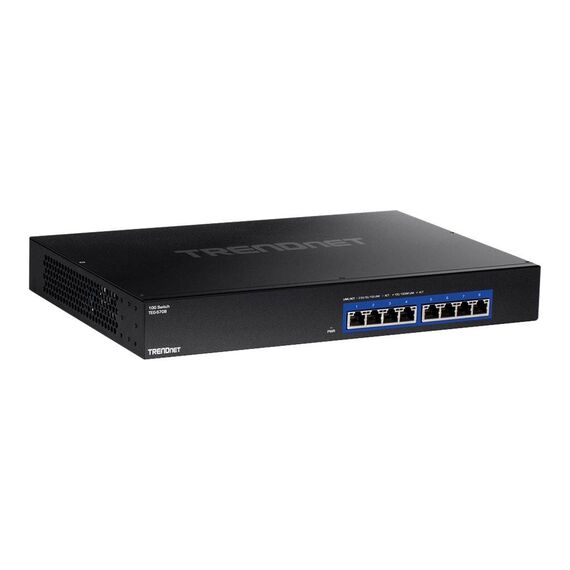

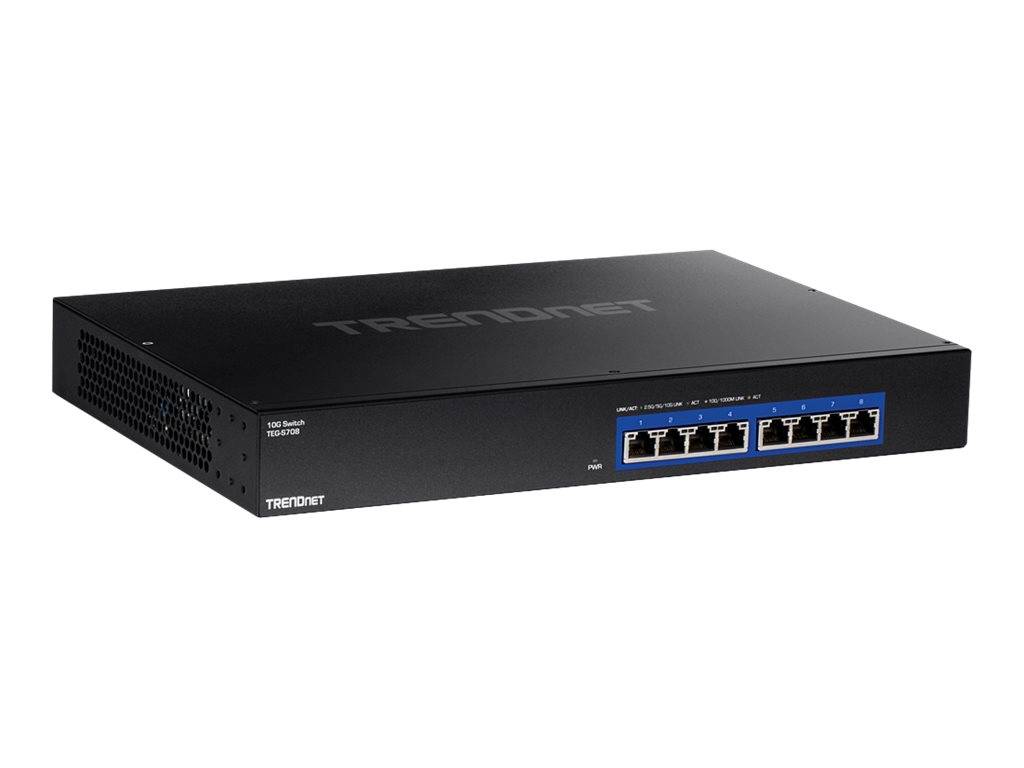

TRENDnet TEG S708 / Switch / 8 x 100/1000/2.5G/5G/10GBase-T / desktop, rack-mountable / TAA Compliant | TEG-S708

Product Features

10G ports
Eight 10G ports for high-speed network connections provide a cost-effective solution in adding 10G link capability.
2.5G/5G support
Supports 2.5G/5GBASE-T RJ-45 multi-gigabit speeds capable of up to 2.5Gbps or 5Gbps over existing Cat5e or better cabling.
Rackmount design
With a sturdy metal housing and included rackmount brackets, this switch is well-suited for 19" 1U rack installations.

Special Features

Product Specification

Device Type	Switch - 8 ports
Enclosure Type	Desktop, rack-mountable 1U
Subtype	10 Gigabit Ethernet
Ports	8 x 100/1000/2.5G/5G/10GBase-T
Performance	Switching capacity: 160 Gbps Â¦ Forwarding rate (64-byte packets): 115.9 Mpps
MAC Address Table Size	16K entries
Jumbo Frame Support	12KB
Features	Half duplex mode, full duplex mode, metal housing, 1.5MB packet buffer, 1 fan
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3an, IEEE 802.3bz
Built-in Devices	Led panel
Expansion / Connectivity	Expansion / Connectivity
Interfaces	8 x 100/1000/2.5G/5G/10GBase-T RJ-45
Power	Power
Power Device	Internal power supply
Voltage Required	AC 100-240 V (50/60 Hz)
Electric Current Required	0.5 A
Miscellaneous	Miscellaneous
Rack Mounting Kit	Included
MTBF	674,176 hours
Compliant Standards	FCC, ETL
TAA Compliant	Yes
Dimensions & Weight	Dimensions & Weight
Width	16 cm
Depth	10.9 cm
Height	2.5 cm
Weight	414 g
Manufacturer Warranty	Manufacturer Warranty
Service & Support	Limited warranty - lifetime
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 Â°C
Max Operating Temperature	40 Â°C
Humidity Range Operating	0 - 90% (non-condensing)
