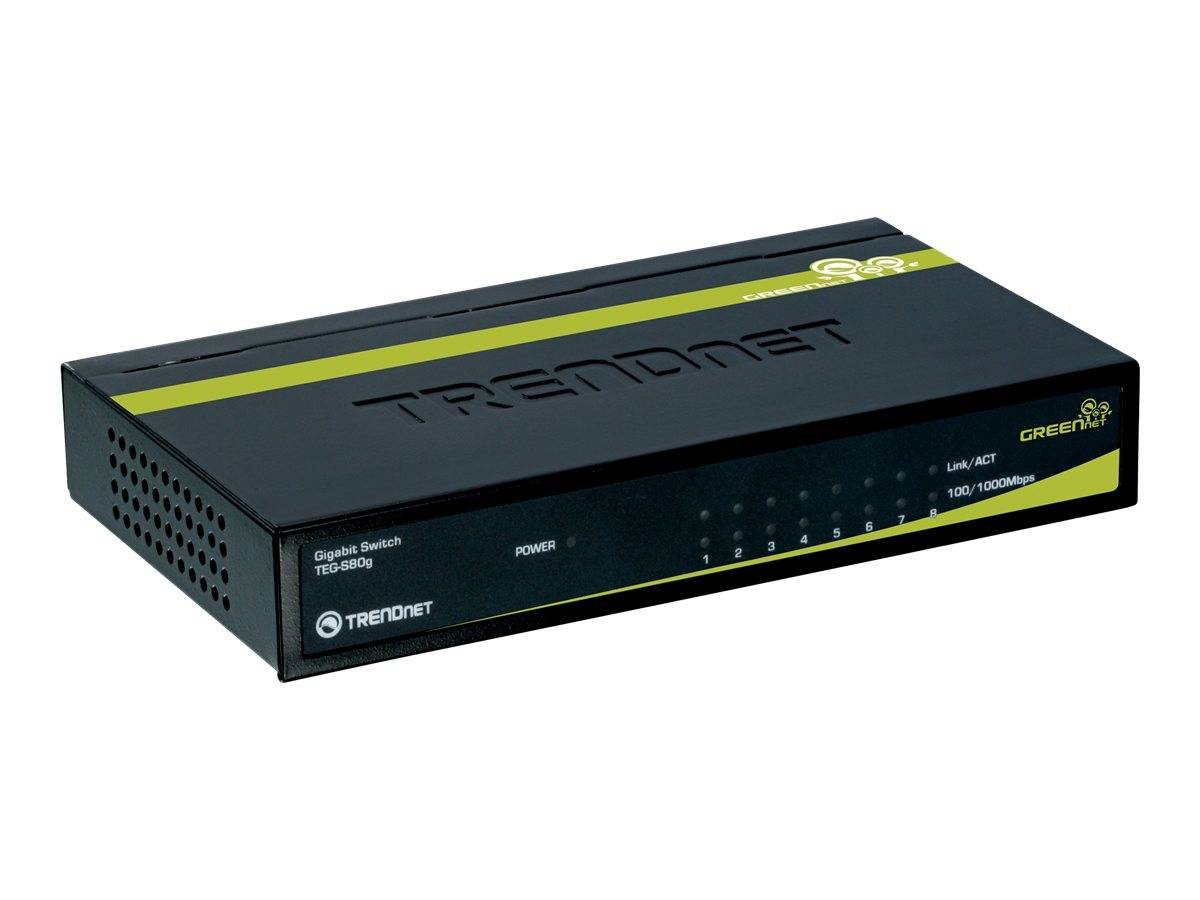

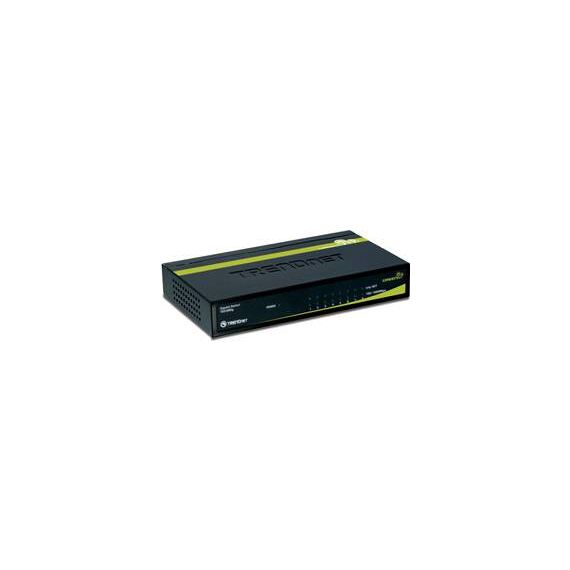

TRENDnet TEG S80G / Switch / 8 x 10/100/1000 / desktop | TEG-S80G
TEG-S80g
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- GREENnet technology reduces power consumption by up to 70%
- 8 x auto-negotiation gigabit ports
- Build a high performance energy efficient gigabit network in minutes
- Sturdy metal switch with a simple plug and play installation
- Store-and-forward switching architecture with non-blocking wire-speed performance
- IEEE 802.3x flow control for full-duplex mode
- Back pressure flow control for half-duplex mode
- Integrated address look-up engine with 4K absolute MAC address table and 128KBytes RAM data buffering
- Operates and maximizes packet filtering and forwarding rate
- Jumbo frame support up to 9612Bytes
- Sturdy metal housing
- Diagnostic LEDs and plug and play
Product Specification
| Device Type | Switch - 8 ports |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 |
| Performance | Switching fabric bandwidth: 16 Gbps |
| MAC Address Table Size | 8K entries |
| Features | Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, GREENnet technology, Jumbo Frames support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az |
| RAM | 256 KB |

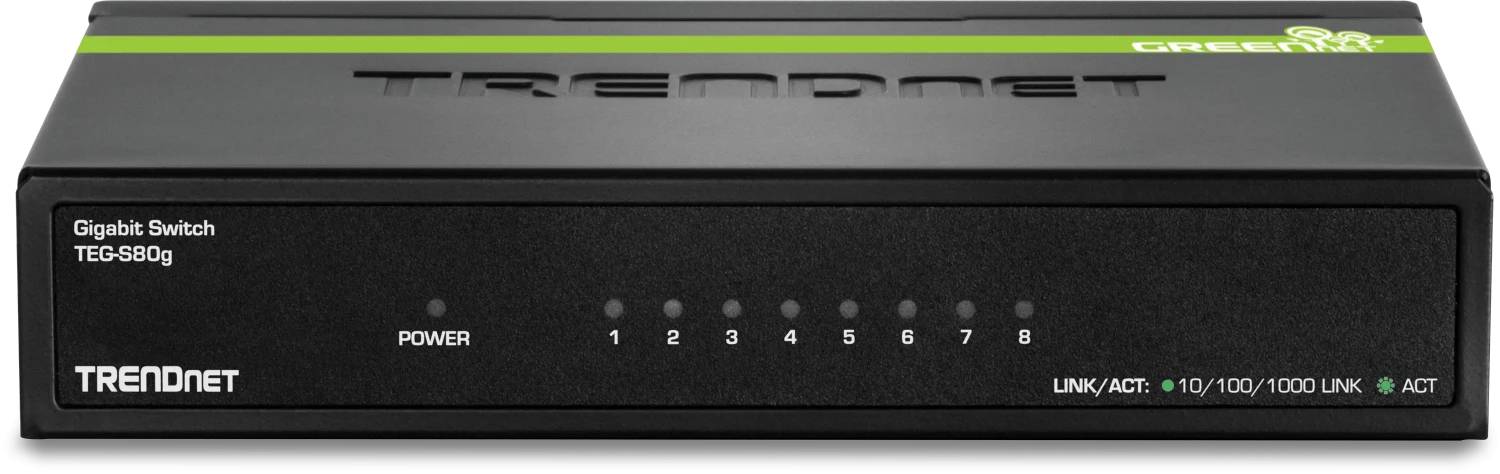

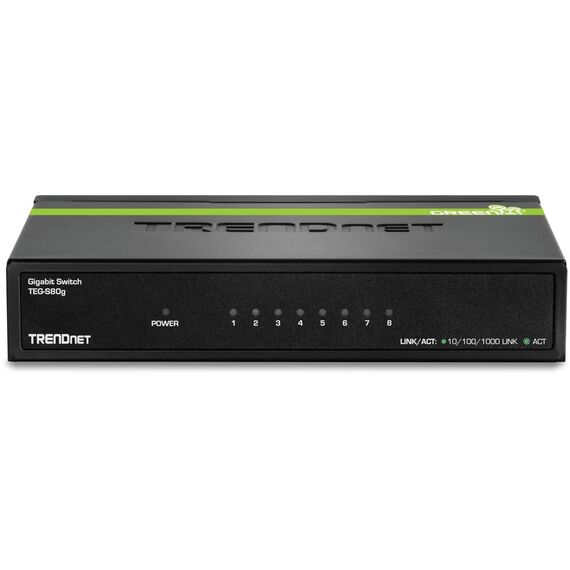

| Status Indicators | Port transmission speed, power, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |

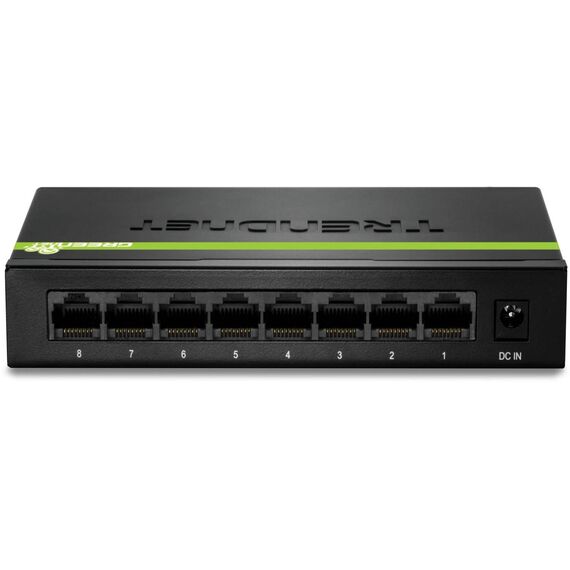

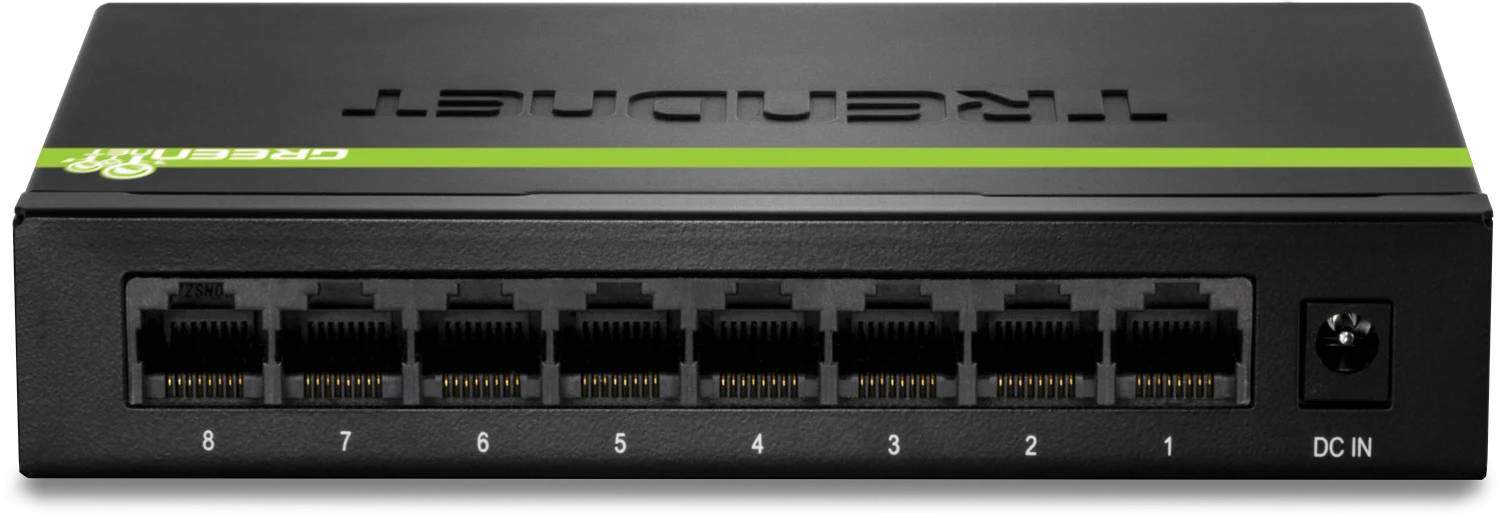

| Interfaces | 8 x 1000Base-T RJ-45 |
| Power | Power |
| Power Device | External power adapter |
| Installed Qty | 1 |
| ENERGY STAR Certified | Yes |
| Miscellaneous | Miscellaneous |
| Compliant Standards | Plug and Play, FCC, RoHS, ROSTEST |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 9.7 cm |
| Height | 2.8 cm |
| Weight | 365 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 90% |
| Min Storage Temperature | -10 °C |
| Max Storage Temperature | -70 °C |
Features - Trendnet - TEG-S80g
General
8-Port
More Details
Product Code
04:399758
EAN Code
0710931610154
Manufacturer
Trendnet
