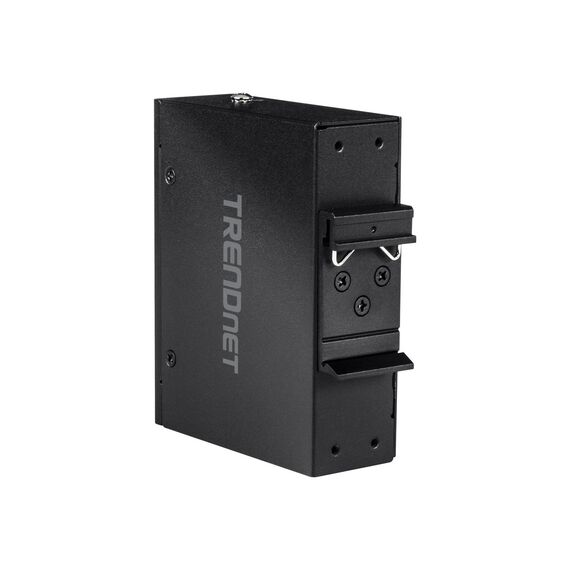

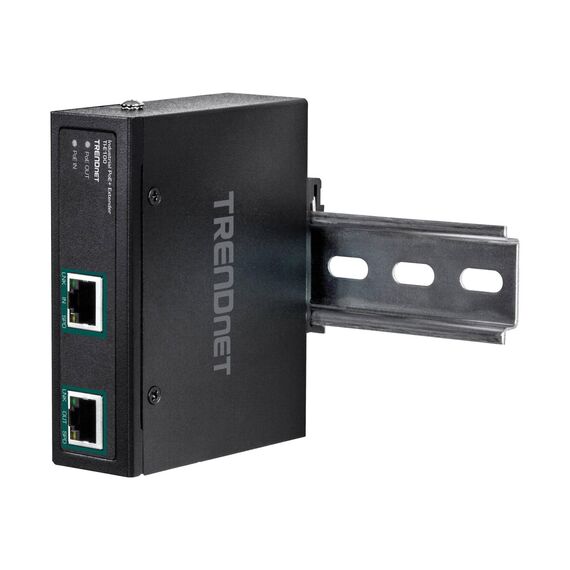

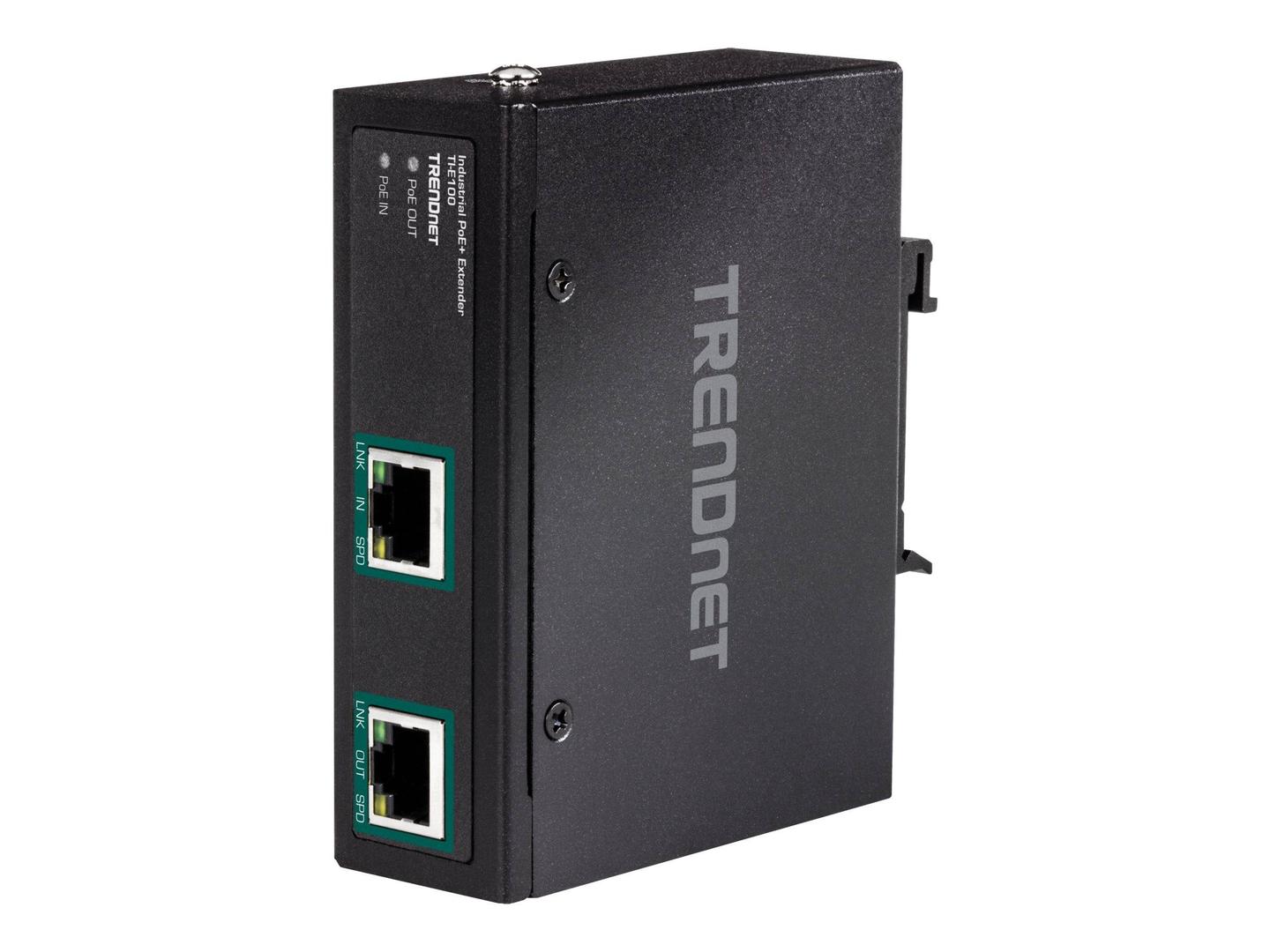

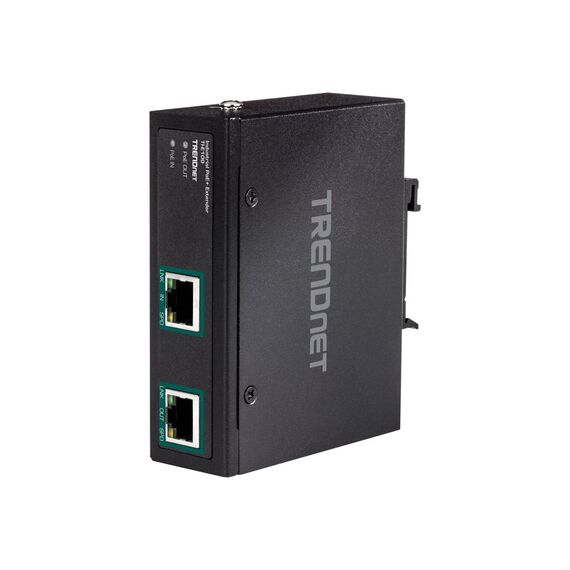

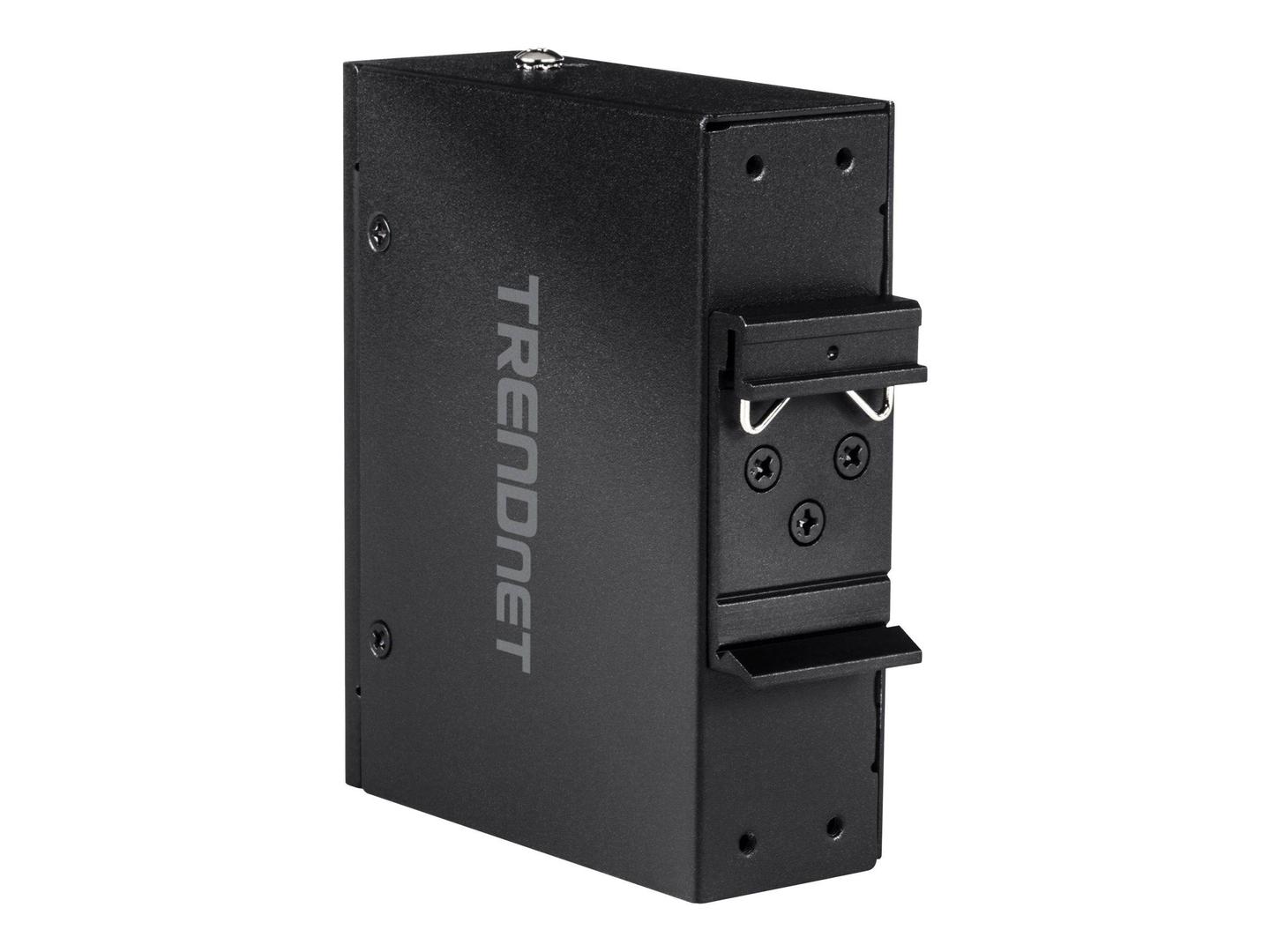

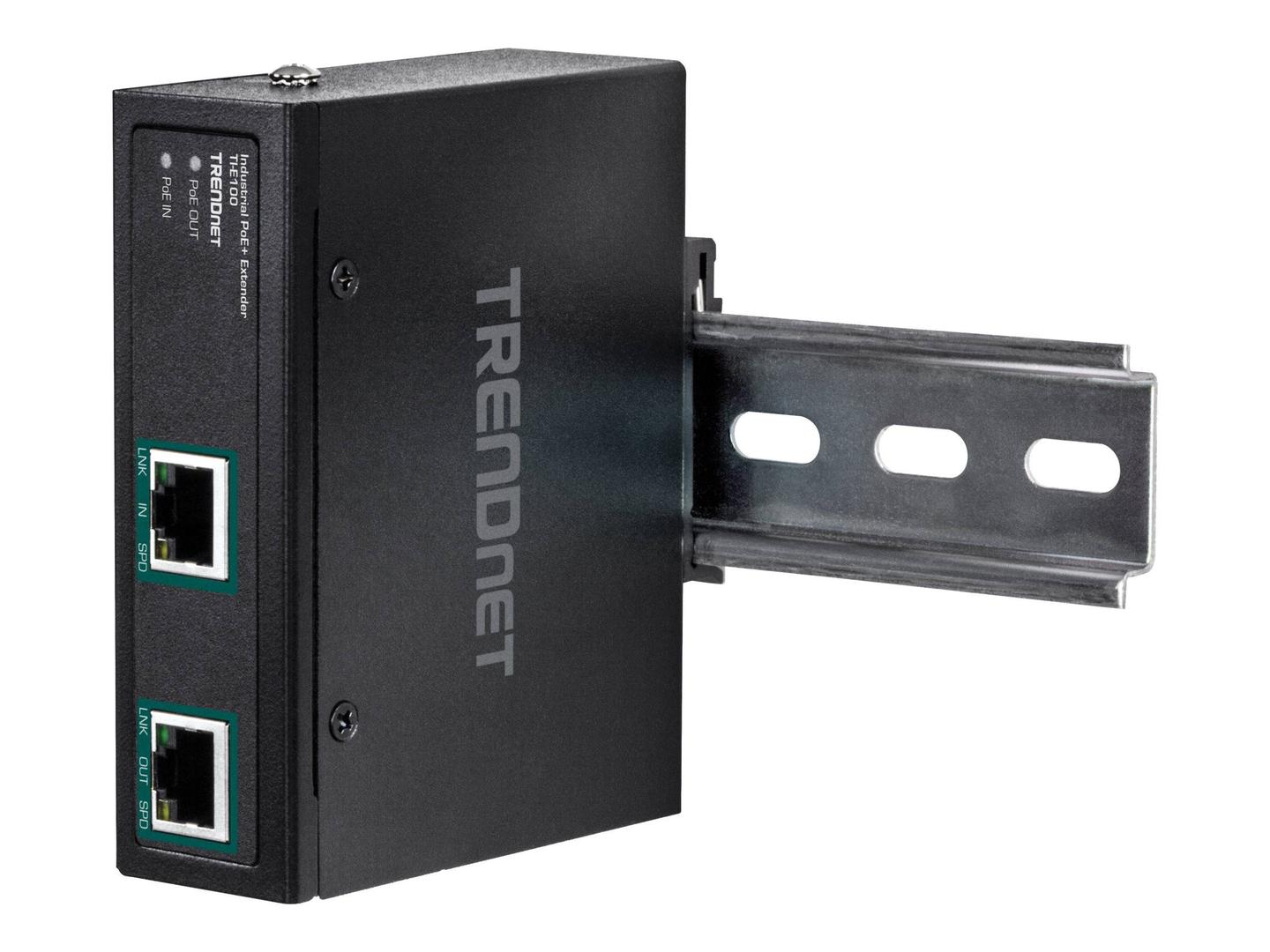

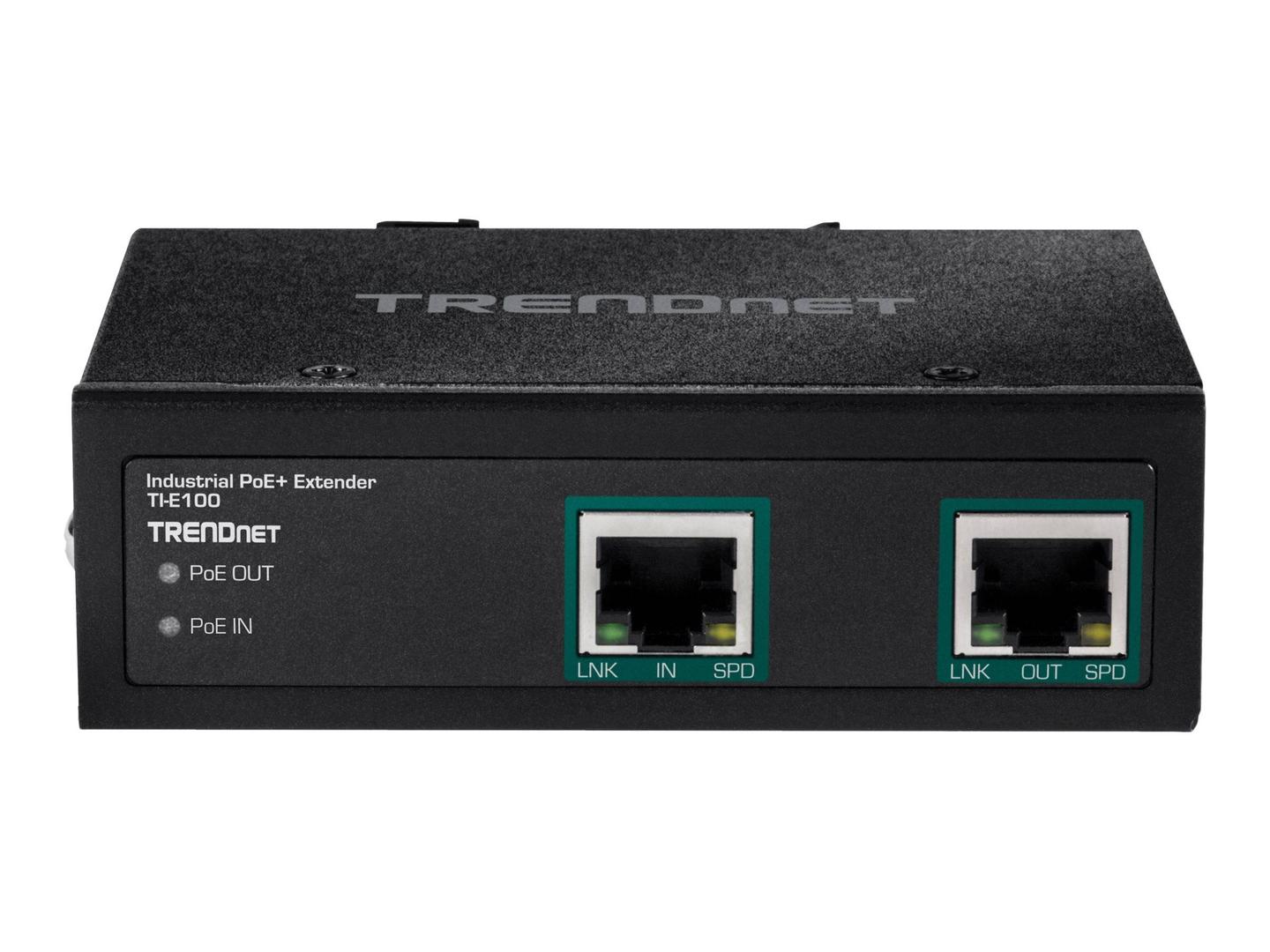

TRENDnet TI-E100 Gigabit PoE+ Extender / Network extender / GigE / 10Base-T, 100Base-TX, 1000Base-T / up to 100 m | TI-E100
Please sign in so that we can notify you about a reply
Special Features
- Easy installation
- Extends 100m for a total distance of up to 200m (656 ft.)
- Daisy chain up to 2 units for a total PoE network extension of up to 300m (984 ft.)
- Supports PoE (15.4W) and PoE+ (30W)
- Wide operating temperature range of -40° - 75° C (-40° - 167° F)
- Durable IP30 rated metal housing
- Convenient wall mountable design
- No external power adapter required
Product Specification
| Device Type | Network extender |
| Form Factor | External |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| MAC Address Table Size | 2K entries |
| Max Transfer Distance | 100 m |
| Features | Half duplex mode, full duplex mode, wall mountable, DIN rail mountable, metal housing, 2KV Surge protection, Jumbo Frames support (up to 9000 bytes), 8KV ESD Protector (air-gap discharge), daisy-chaining support, 6KV ESD Protector (contact discharge) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+ input) - RJ-45 female ¦ 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+ output) - RJ-45 female - 30 W |
| Miscellaneous | Miscellaneous |
| Included Accessories | DIN-rail mounting kit, wall mounting kit |
| Compliant Standards | FCC, IEC 60950-1, EN 60950-1, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30 |
| Power | Power |
| Power Over Ethernet (PoE) | PoE+ |
| Dimensions & Weight | Dimensions & Weight |
| Width | 3.2 cm |
| Depth | 8 cm |
| Height | 10.3 cm |
| Weight | 158 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 0 - 90% (non-condensing) |
Features - Trendnet - TI-E100
Length
>50m
More Details
Product Code
04:328600
EAN Code
0710931161809
Manufacturer
Trendnet
