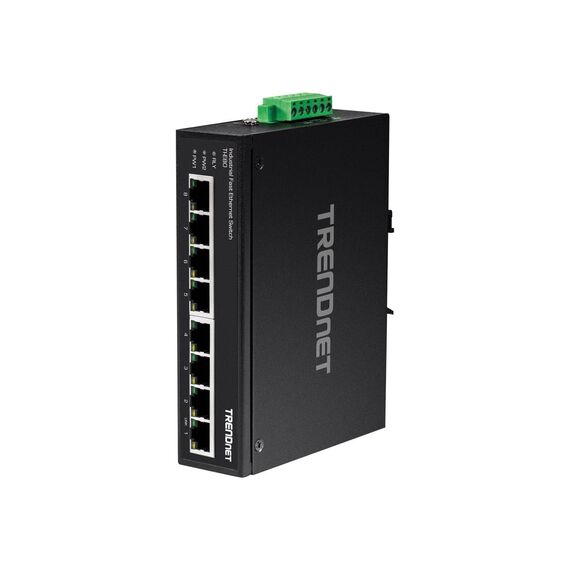

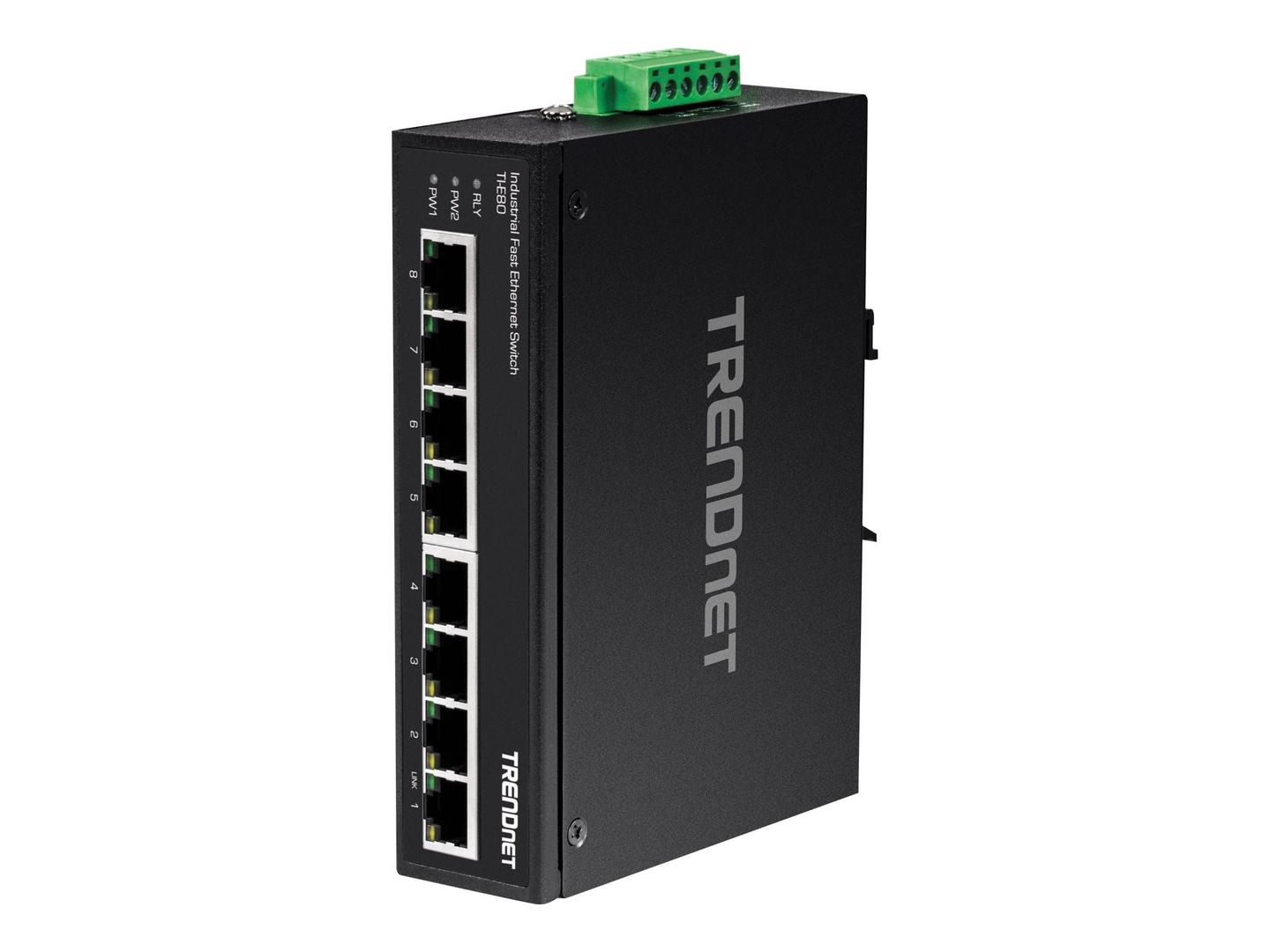

TRENDnet TI-E80 8-Port Unmanaged Fast Ethernet DIN-Rail Switch
The TRENDnet TI-E80 is an unmanaged 8-port Fast Ethernet switch for industrial networking setups. It combines DIN-rail or wall mounting with an IP30 metal enclosure, redundant power support and a wide 12-56 V DC input range.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Switch - 8 ports - unmanaged |
| Subtype | Fast Ethernet |

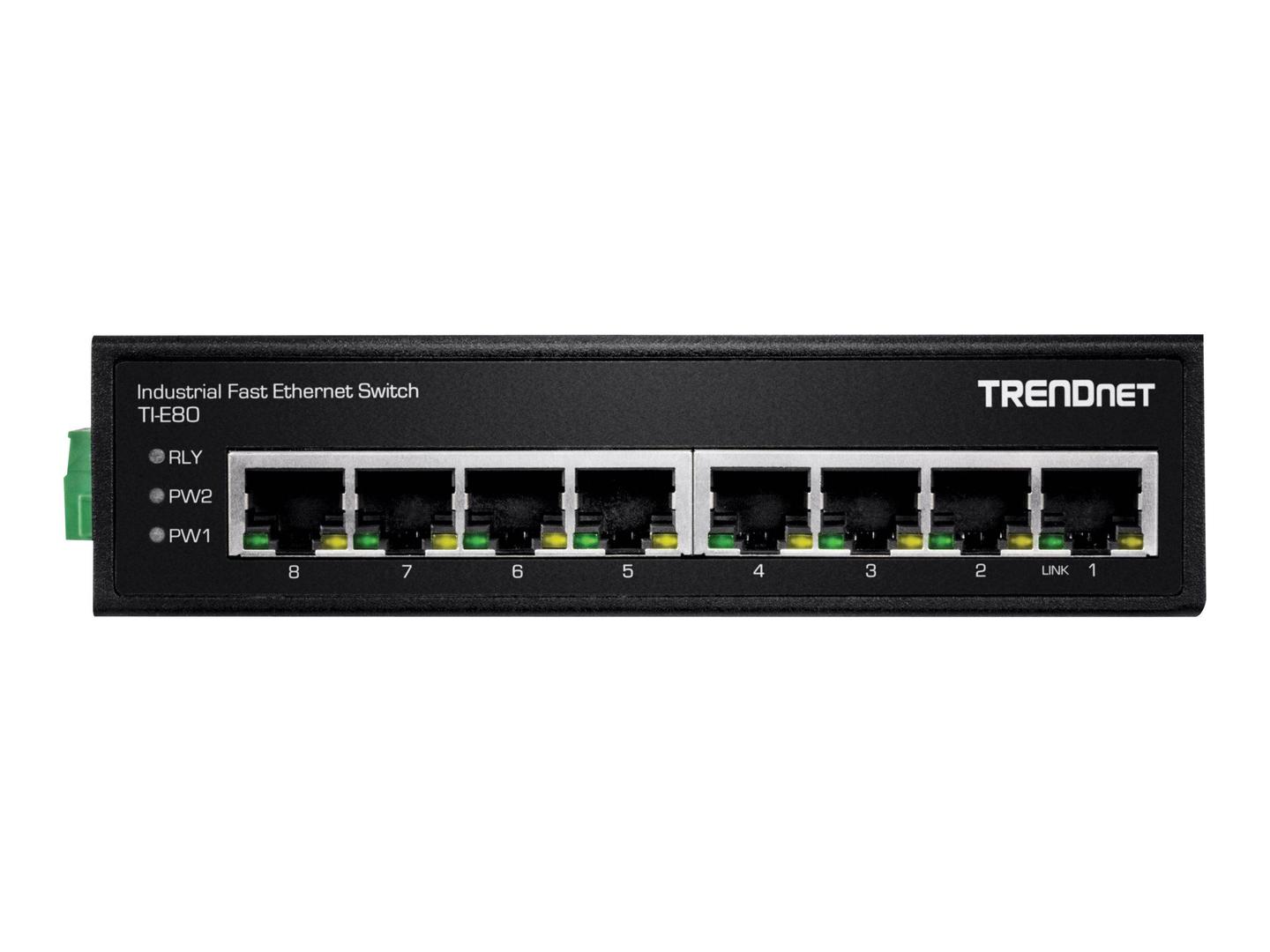

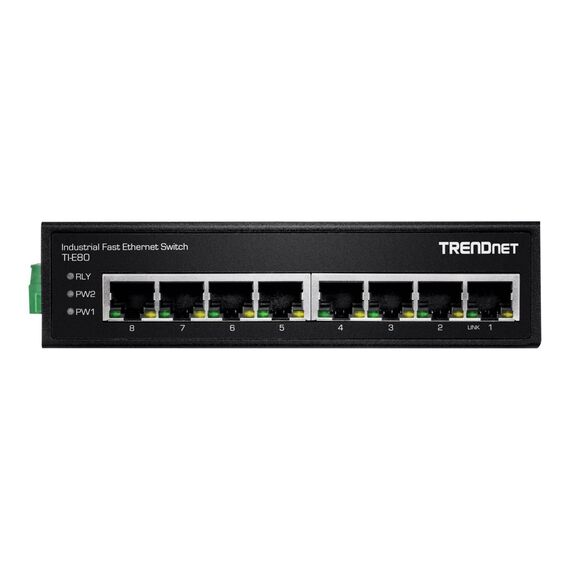

| Ports | 8 x 10/100 |
| Switching Capacity | 1.6 Gbit/s |
| Forwarding Rate | 1.19 Mpps |
| MAC Address Table | 1000 entries |
| Packet Buffer Memory | 0.056 MB |
| Full Duplex | Yes |
| Half Duplex Mode | Yes |
| Fanless | Yes |
| ESD Protection | 8KV ESD Protector |
| Networking Standards | IEEE 802.3 | IEEE 802.3ab | IEEE 802.3u | IEEE 802.3x |
| Power | 3 W |
| DC Input Voltage | 12 - 56 V |

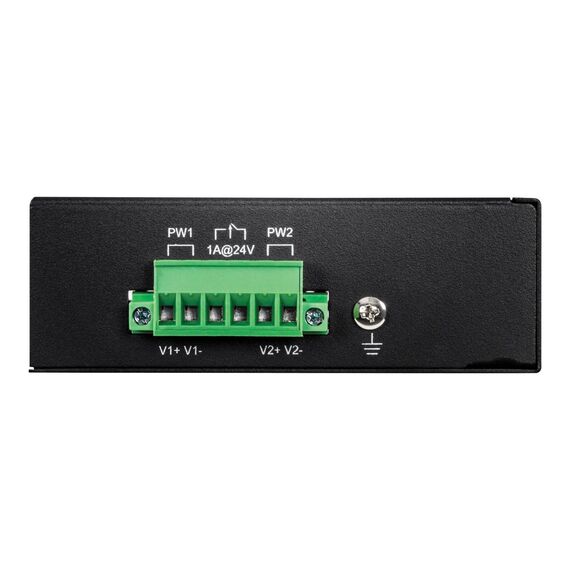

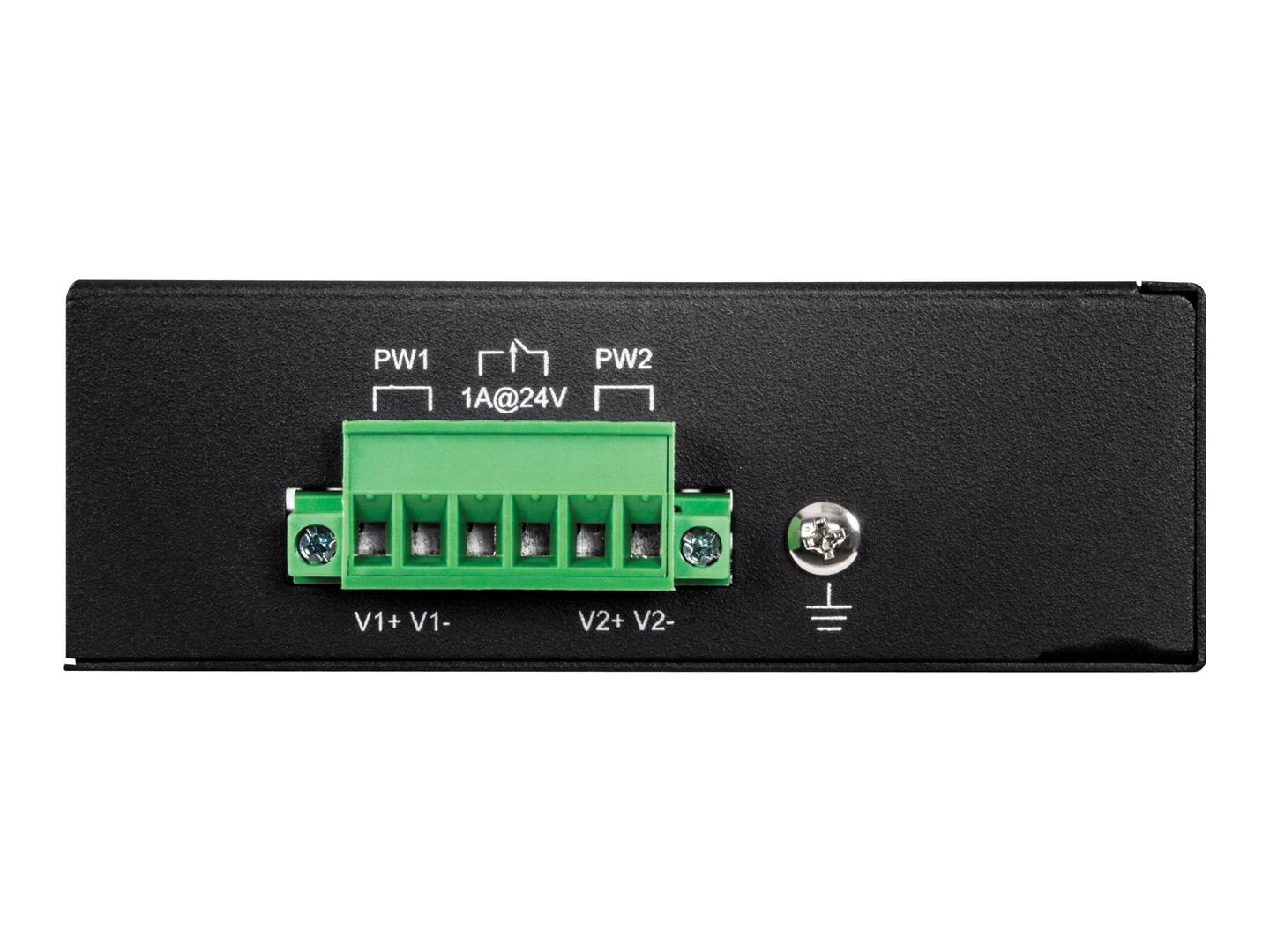

| Power Redundancy | Yes |
| Power over Ethernet (PoE) | No |

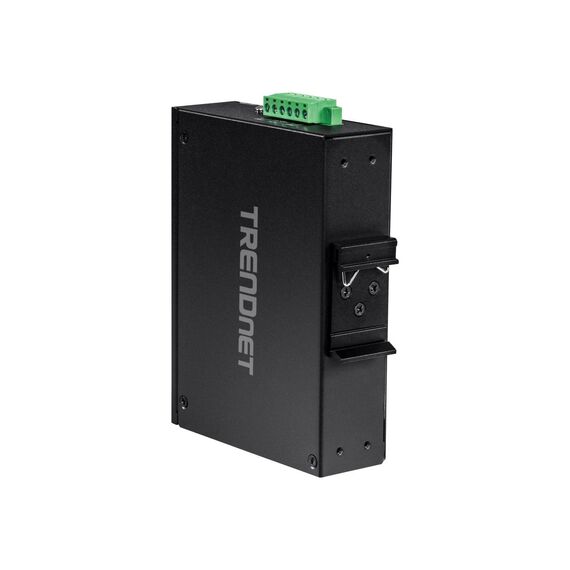

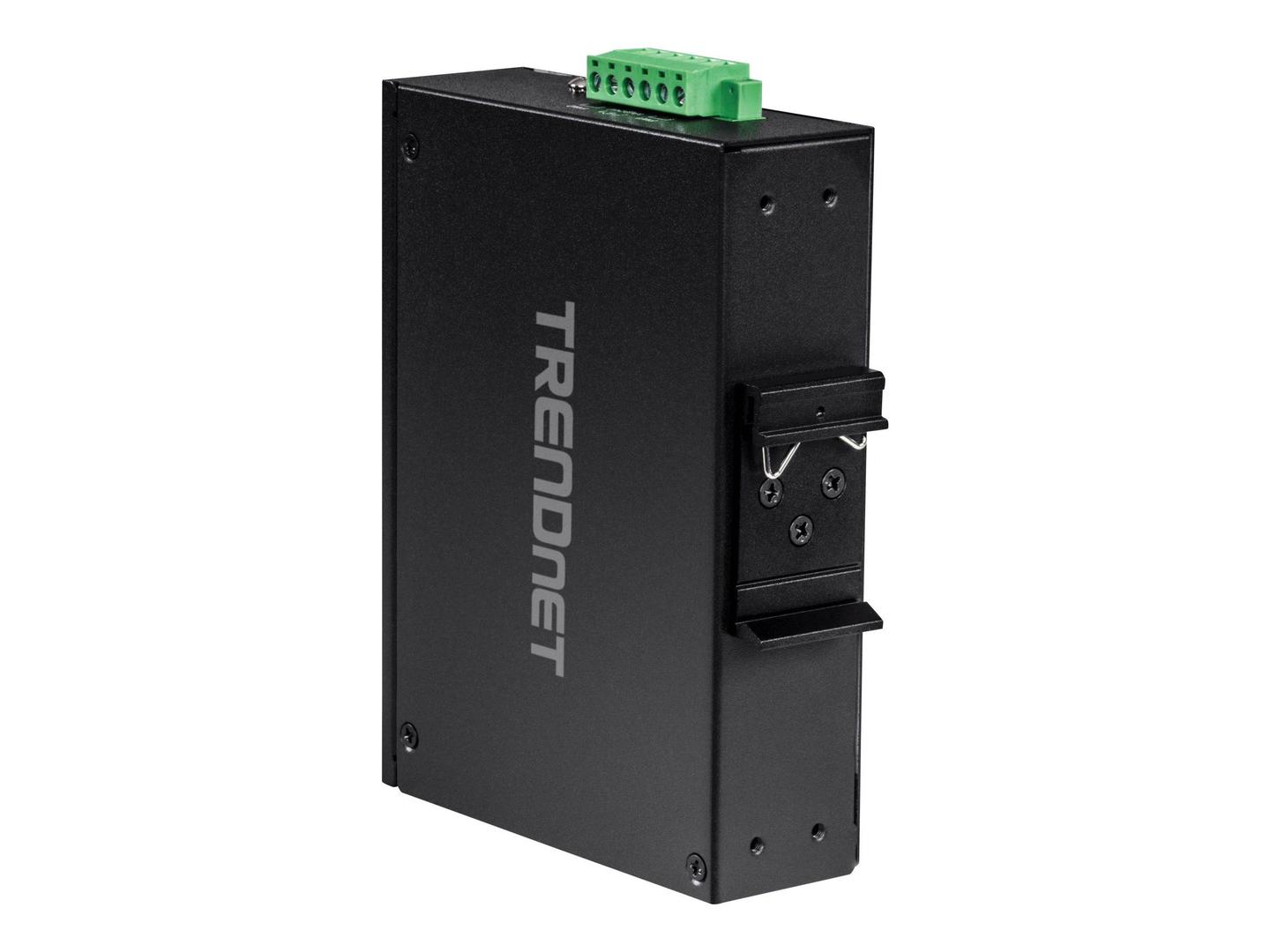

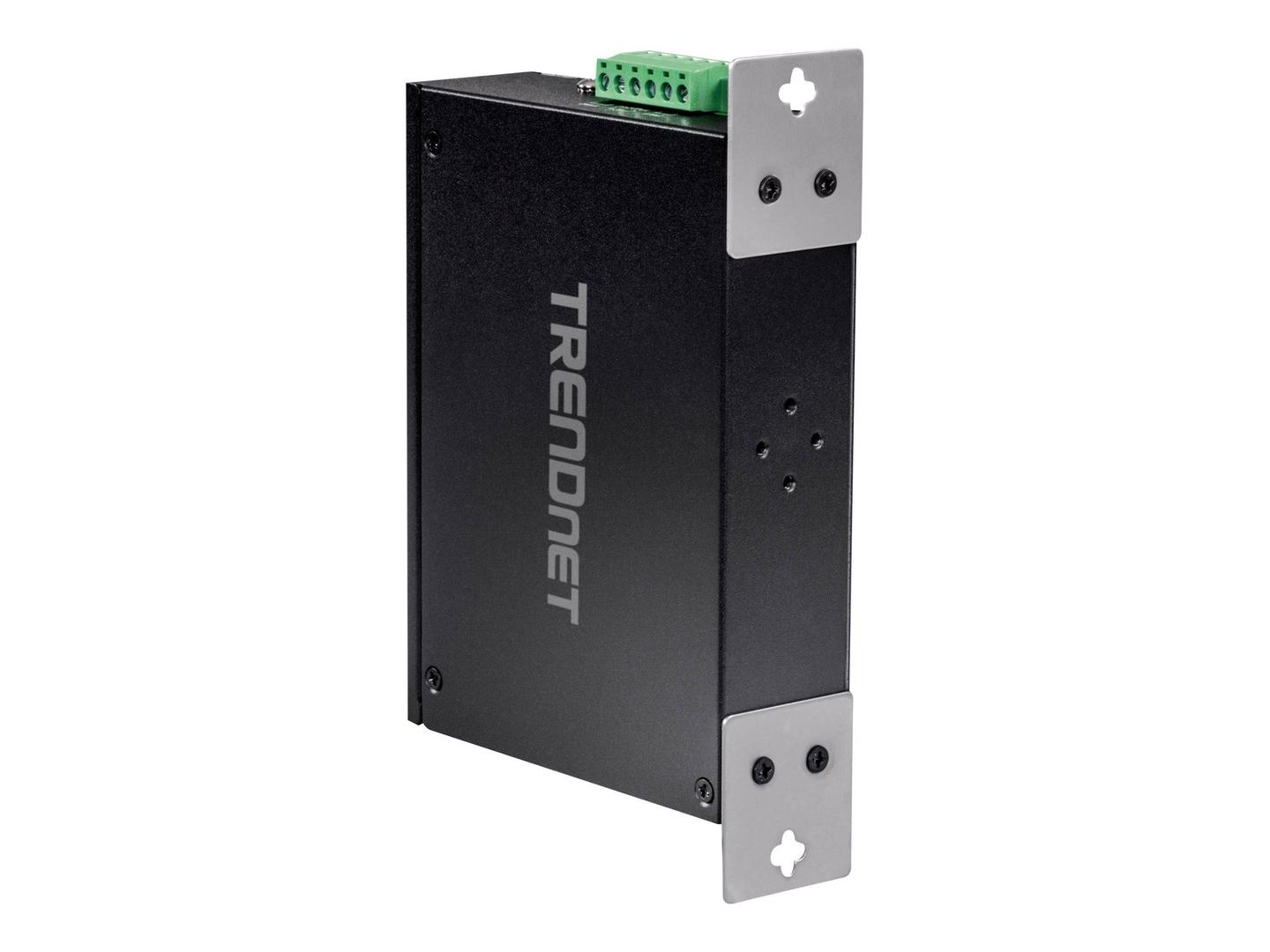

| Enclosure Type | DIN rail mountable | wall-mountable |
| Housing Material | Metal |
| IP Rating | IP30 |
| Product Colour | Black |
| LED Indicators | Yes |
| DIN Rail Mounting | Yes |

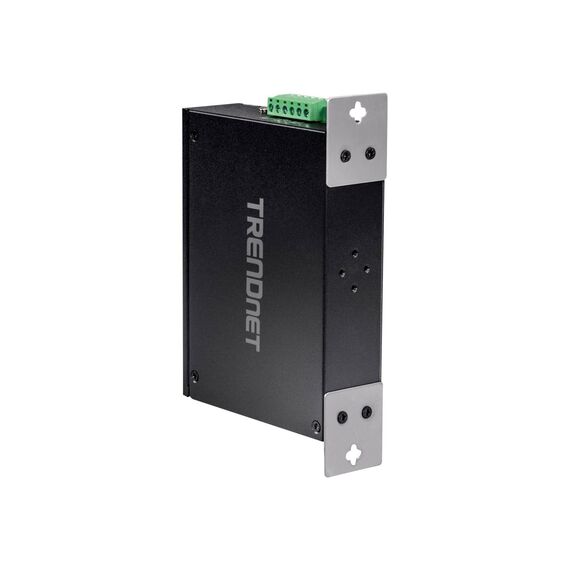

| Wall Mountable | Yes |
| Rack Mounting | No |
| Dimensions | 3.7 cm x 10.5 cm x 14.2 cm |
| Weight | 486 g |
| Operating Temperature | -40 - 75 °C |
| Operating Relative Humidity | 0 - 95 % |
| TAA Compliant | Yes |
| Certification | CE FCC UL IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 |
| Quick Start Guide | Yes |
| Interfaces | 8 x 10/100 |
| SKU / EAN | TI-E80 | 0710931161762 |
SINGULAR RECOMMENDS
For who
For buyers who need a compact unmanaged industrial switch for DIN-rail or wall-mounted Fast Ethernet networking with redundant power support.
Real reason to buy it
It offers a rugged IP30 metal enclosure, redundant power support and a wide 12-56 V DC input in a compact 8-port format.
Know before
This is a Fast Ethernet switch with 10/100 ports, not Gigabit, and PoE is not supported. Power adapter is not included.
