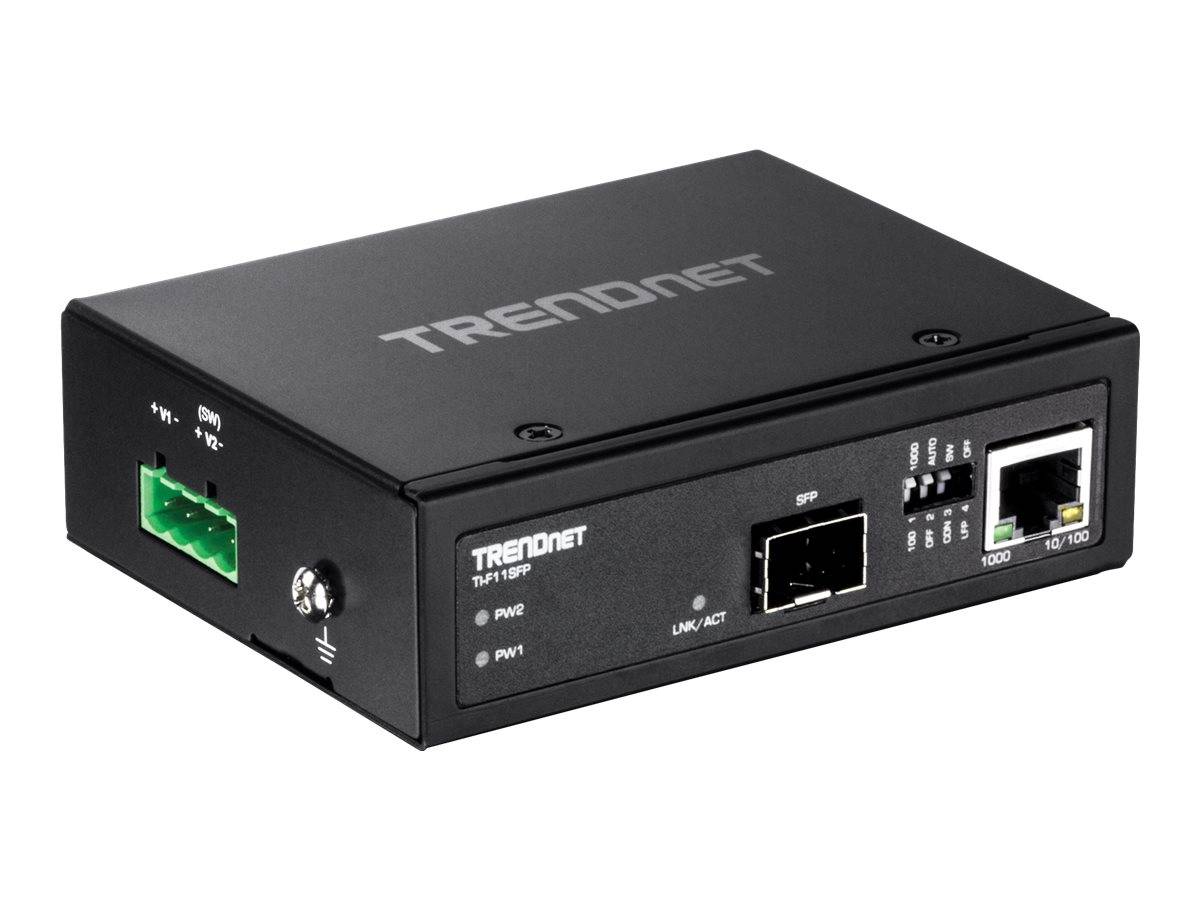

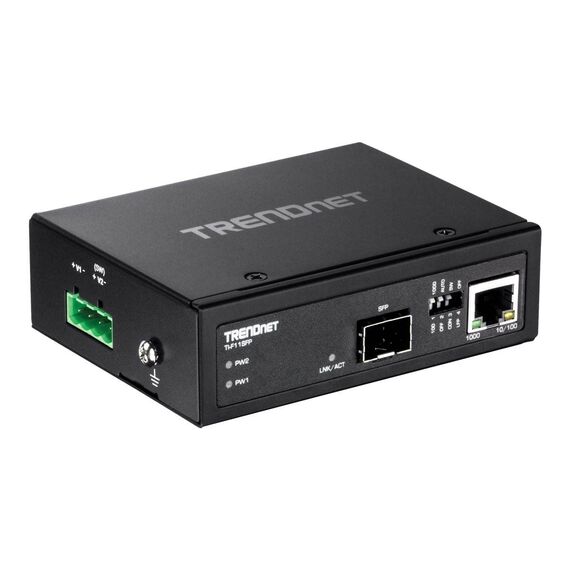

TRENDnet TI-F11SFP / Media converter / GigE / 10Base-T, 100Base-TX, 1000Base-T / RJ-45 / SFP (mini-GBIC) | TI-F11SFP
Brand:
Trendnet
TRENDnet TI-F11SFP / Media converter / GigE / 10Base-T, 100Base-TX, 1000Base-T / RJ-45 / SFP (mini-GBIC) | TI-F11SFP
€83.55 inc. VAT
TI-F11SFP
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Special Features
- 2 Gbps switching capacity
- Dual redundant power inputs with overload current protection
- Sends larger packets, or jumbo frames, for increased performance
- Extreme temperatures
- Electro magnetic compliance
- Shock and vibration resistant
- Grounding point
Product Specification
| Device Type | Media converter |
| Form Factor | DIN rail mountable |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Data Transfer Rate | 2 Gbps |
| Features | Auto-negotiation, store and forward, half duplex mode, full duplex mode, Link Fault Pass Through function (LFP), wall mountable, Jumbo Frames support, built-in DIP switch, 8KV ESD Protector, 6KV Surge protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 female ¦ 1 x - SFP |
| Miscellaneous | Miscellaneous |
| Included Accessories | DIN-rail mounting kit, wall mounting kit, removable terminal block |
| MTBF | 510,304 hours |
| Compliant Standards | EN55022, EN55024, RoHS, WEEE, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, EN 55011, FCC Part 15 B Class A, IP30 |
| Power | Power |
| Power Device | External power adapter |
| Installed Qty | 0 |
| Power Redundancy | Yes |
| Max Supported Qty | 2 |
| Voltage Required | DC 12 - 56 V |
| Power Consumption Operational | 3 Watt |
| Dimensions & Weight | Dimensions & Weight |
| Width | 11.3 cm |
| Depth | 3.1 cm |
| Height | 8.2 cm |
| Weight | 152 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
Features - Trendnet - TI-F11SFP
More Details
Product Code
04:190431
EAN Code
0710931160369
Manufacturer
Trendnet
