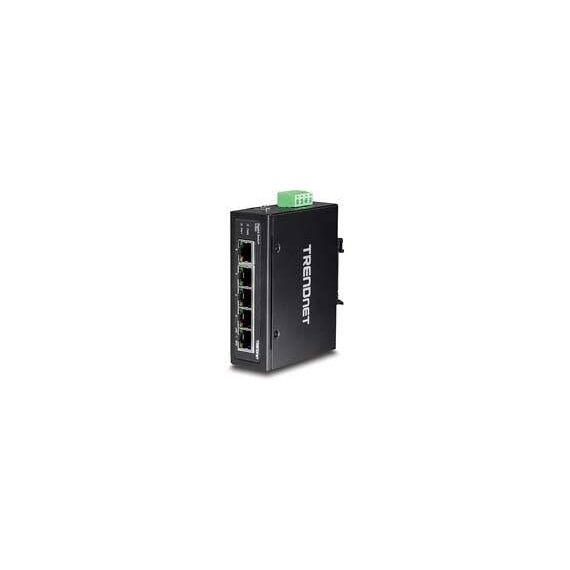

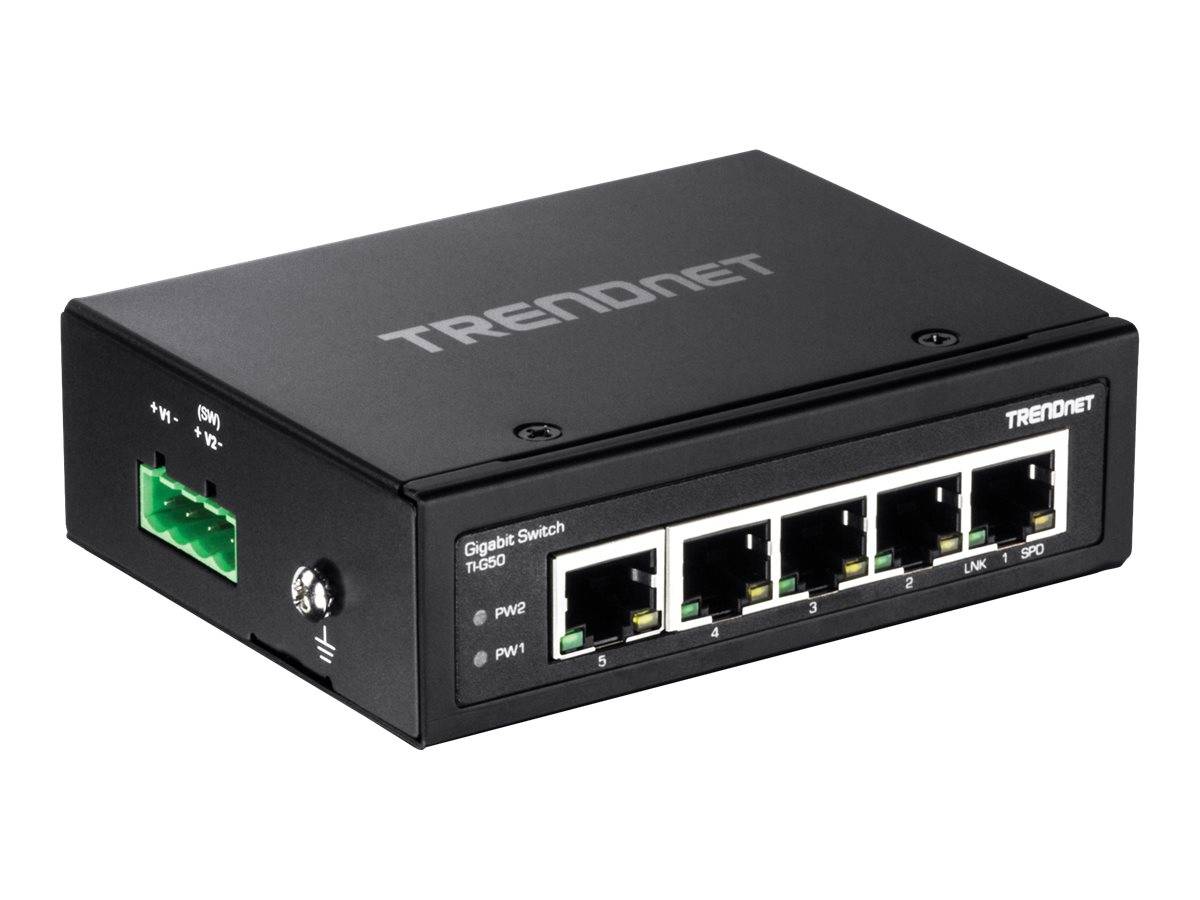

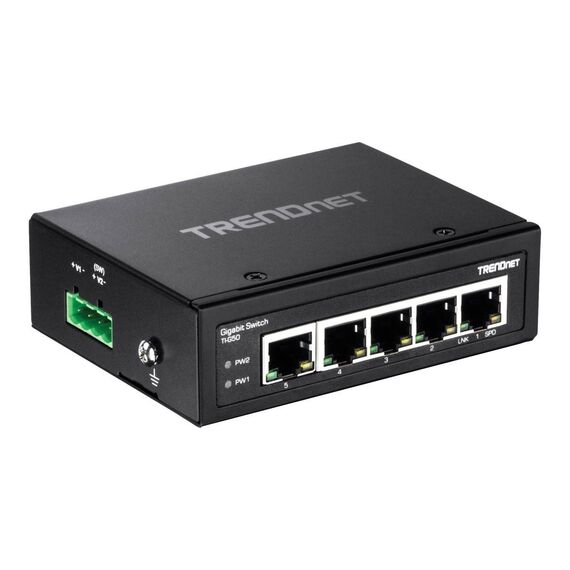

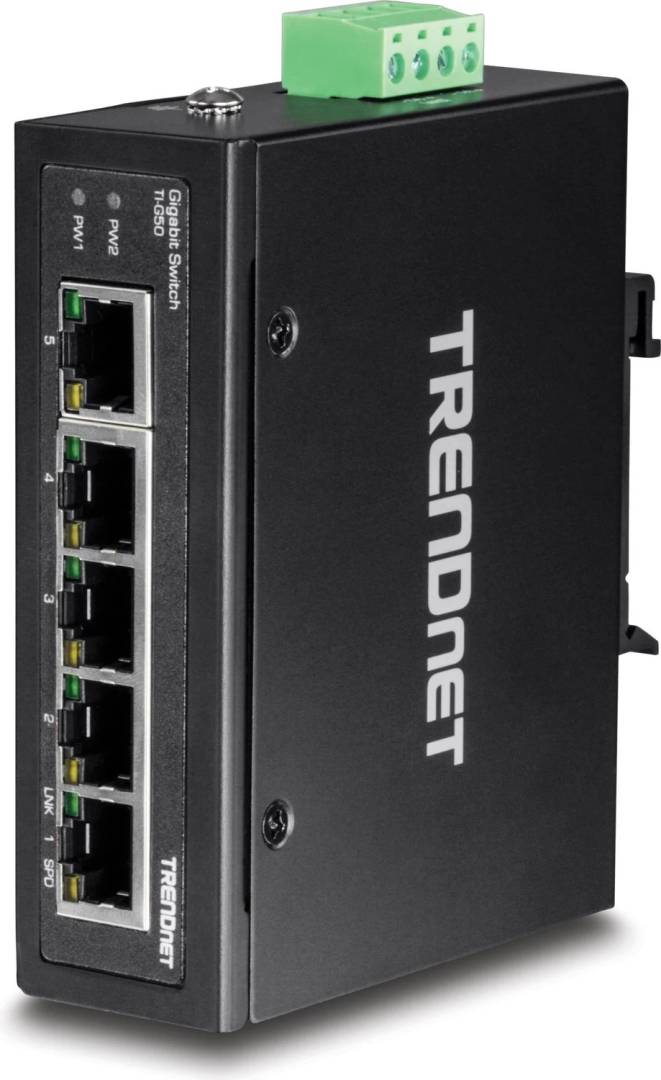

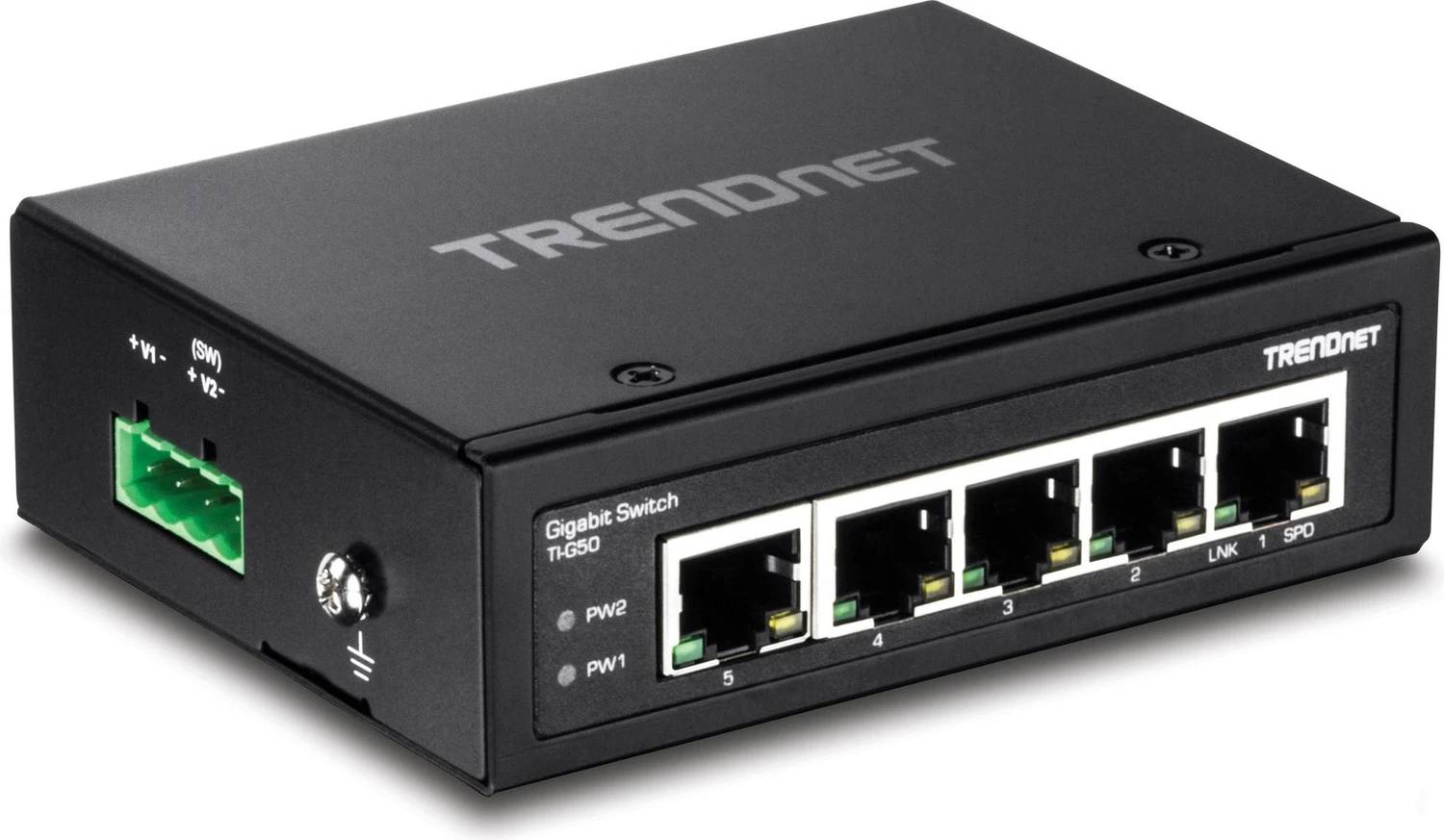

TRENDnet TI-G50 / Switch / unmanaged / 5 x 100/1000/10000 / DIN rail mountable, wall-mountable / DC power | TI-G50
Please sign in so that we can notify you about a reply
Special Features
- 5 x Gigabit Ethernet ports
- 10 Gbps switching capacity
- Hardened IP30 rated metal switch
- Includes DIN-rail and wall mounts
- Extreme -40 to 75 ºC operating temperature range
- Dual redundant power inputs with overload current protection
- Shock, freefall and vibration resistant
- Grounding point protecting equipment from external electrical surges
Product Specification
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 100/1000/10000 |
| Performance | Switching fabric bandwidth: 10 Gbps ¦ Forwarding performance (64-byte packet size): 7.44 Mpps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9KB |
| Features | Auto-negotiation, store and forward, half duplex mode, full duplex mode, 8KV ESD Protector, 6KV Surge protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| RAM | 1024 KB |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 5 x 1000Base-T RJ-45 |
| Power | Power |
| Power Device | External power adapter |
| Installed Qty | 0 (installed) / 2 (max) |
| Power Redundancy | Yes |
| Voltage Required | DC 12 - 56 V |
| Power Consumption Operational | 2.76 Watt |
| Miscellaneous | Miscellaneous |

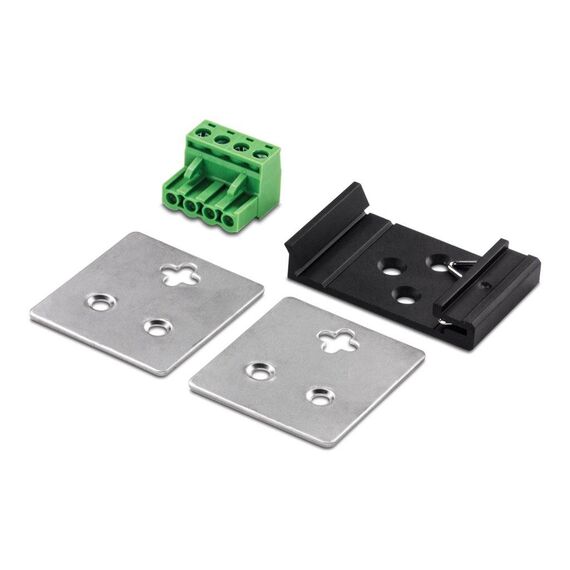

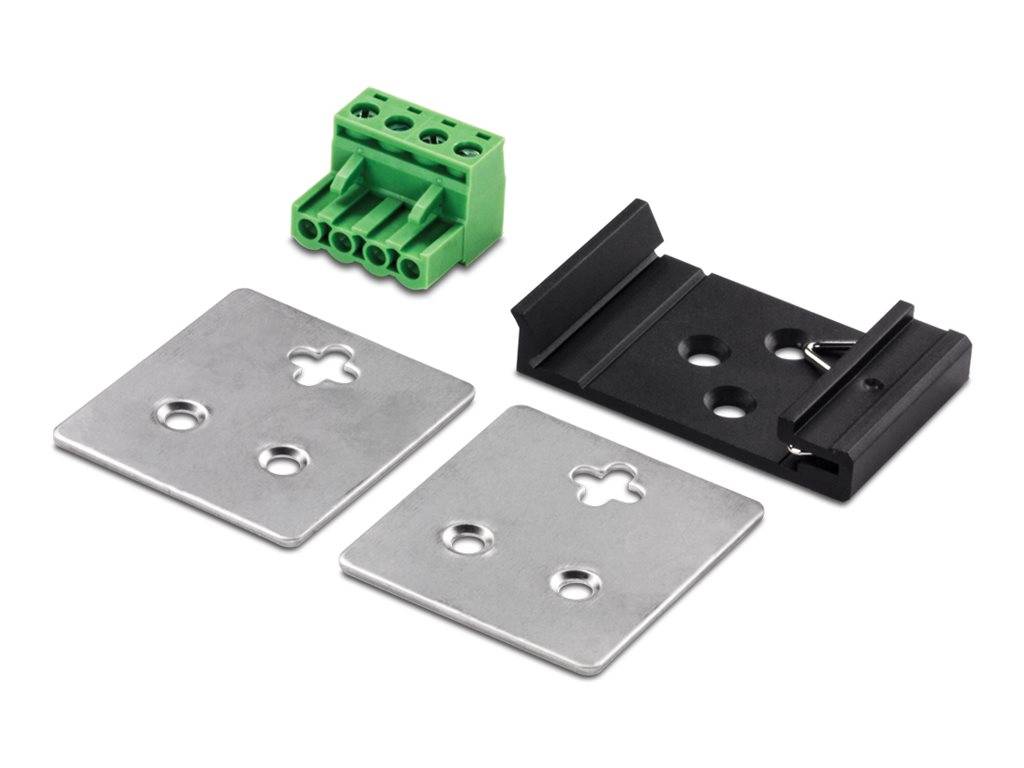

| Included Accessories | DIN-rail mounting kit, wall mounting kit, removable terminal block |
| MTBF | 510,304 hours |
| Compliant Standards | EN55022, EN55024, RoHS, WEEE, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, EN 55011, FCC Part 15 B Class A, IP30 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 11.3 cm |
| Depth | 8.2 cm |
| Height | 3.1 cm |
| Weight | 168 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
Features - Trendnet - TI-G50
General
5-Port
More Details
Product Code
04:190434
EAN Code
0710931160321
Manufacturer
Trendnet
