TRENDnet TI-G642i — 6-Port Industrial Gigabit L2 Managed DIN-Rail Switch
L2 Managed · ERPS ring4x Gigabit RJ45 + 2x SFP20-60V DC dual inputs-40 to 75°C · fanless IP30

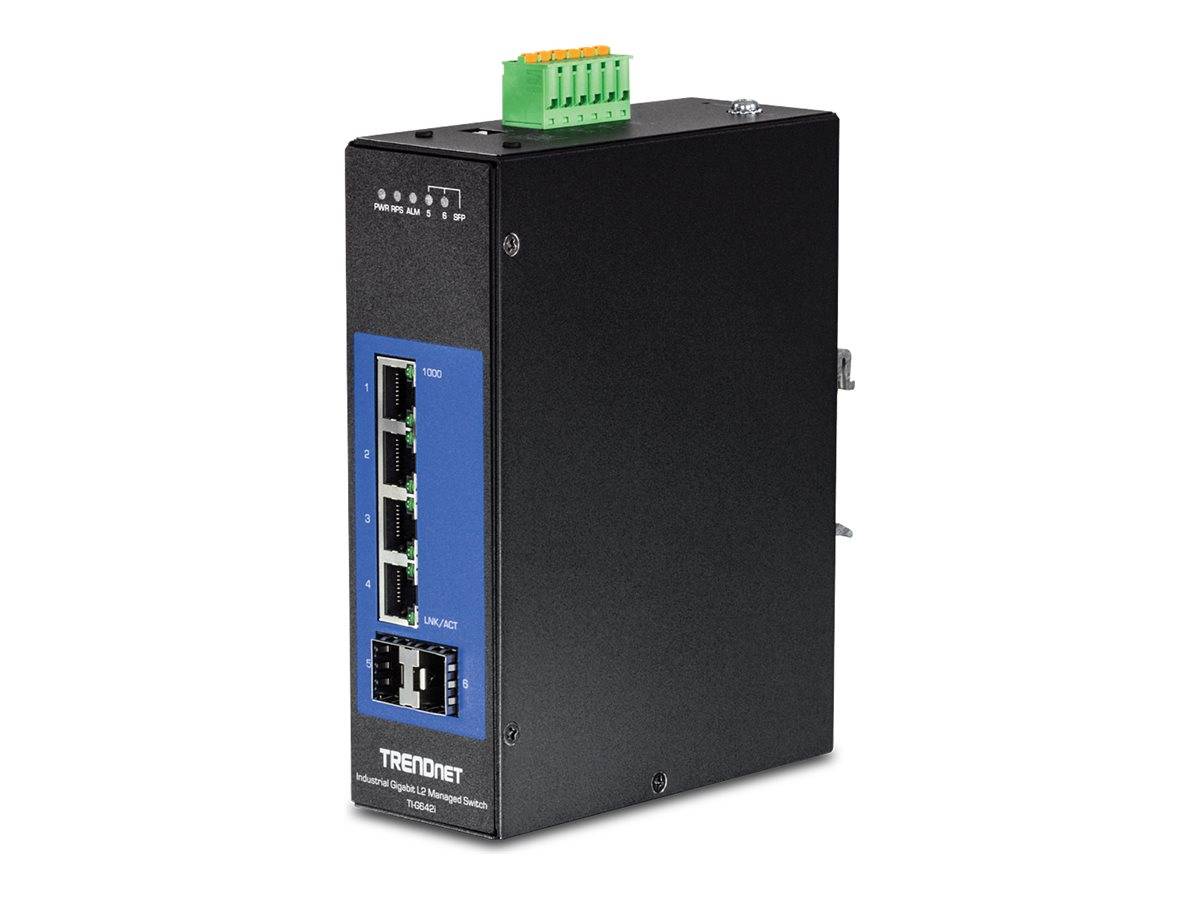

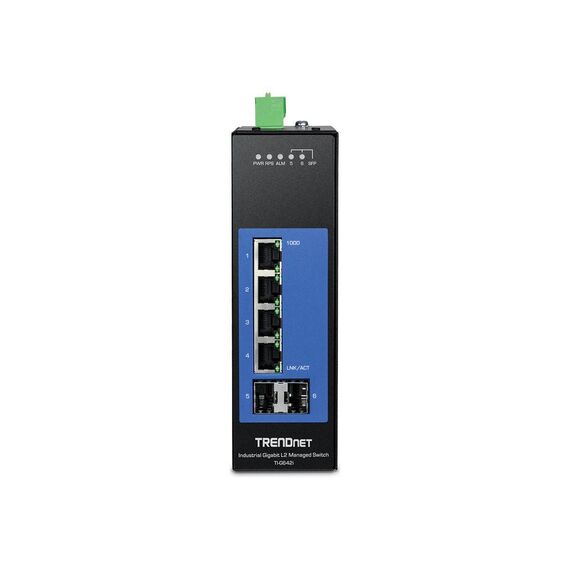

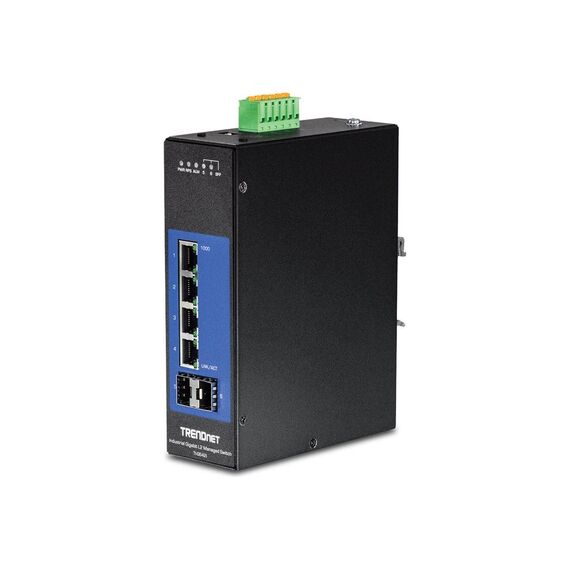

The TRENDnet TI-G642i is a Layer 2 managed industrial switch with four Gigabit RJ45 ports and two 100/1000 SFP slots, designed for DIN-rail control cabinets where you need VLANs, QoS and fast ring redundancy rather than simple plug-and-play switching.
It supports ERPS (G.8032v2) rings, RSTP, Modbus/TCP and SNMP monitoring, runs fanless from -40 to 75°C in an IP30 metal case, and takes 20-60V DC on dual inputs with an alarm relay. Typical uses: SCADA and PLC networks, traffic and utility cabinets, fibre rings between buildings.
Before you order: No power supply is included — connect a 20-60V DC source (TRENDnet lists TI-M6024, TI-S12024, TI-S12048, TI-S24048). There is no PoE on any port.
What's in the Box
- TI-G642i industrial switch
- Removable 6-pin power terminal block
- DIN-rail mounting bracket
- Quick Installation Guide
What It Means in Practice
- Build a self-healing fibre or copper ring: with ERPS, a cut cable is bypassed in a fraction of a second, so the process network stays up.
- Separate machine, camera and office traffic with 802.1Q VLANs (256 groups) and prioritise control traffic with QoS.
- Modbus/TCP and SNMP let your SCADA or NMS read port and power status; SFP DDMI shows fibre module health.
- Manage it by web GUI, CLI (Telnet/SSHv2) or SNMP v1/v2c/v3.
What Will Not Work
- No PoE — it will not power cameras or access points.
- Not a router: there is no Layer 3 routing between VLANs.
- No AC input — it needs a DC supply; 12V DC is below its input range.

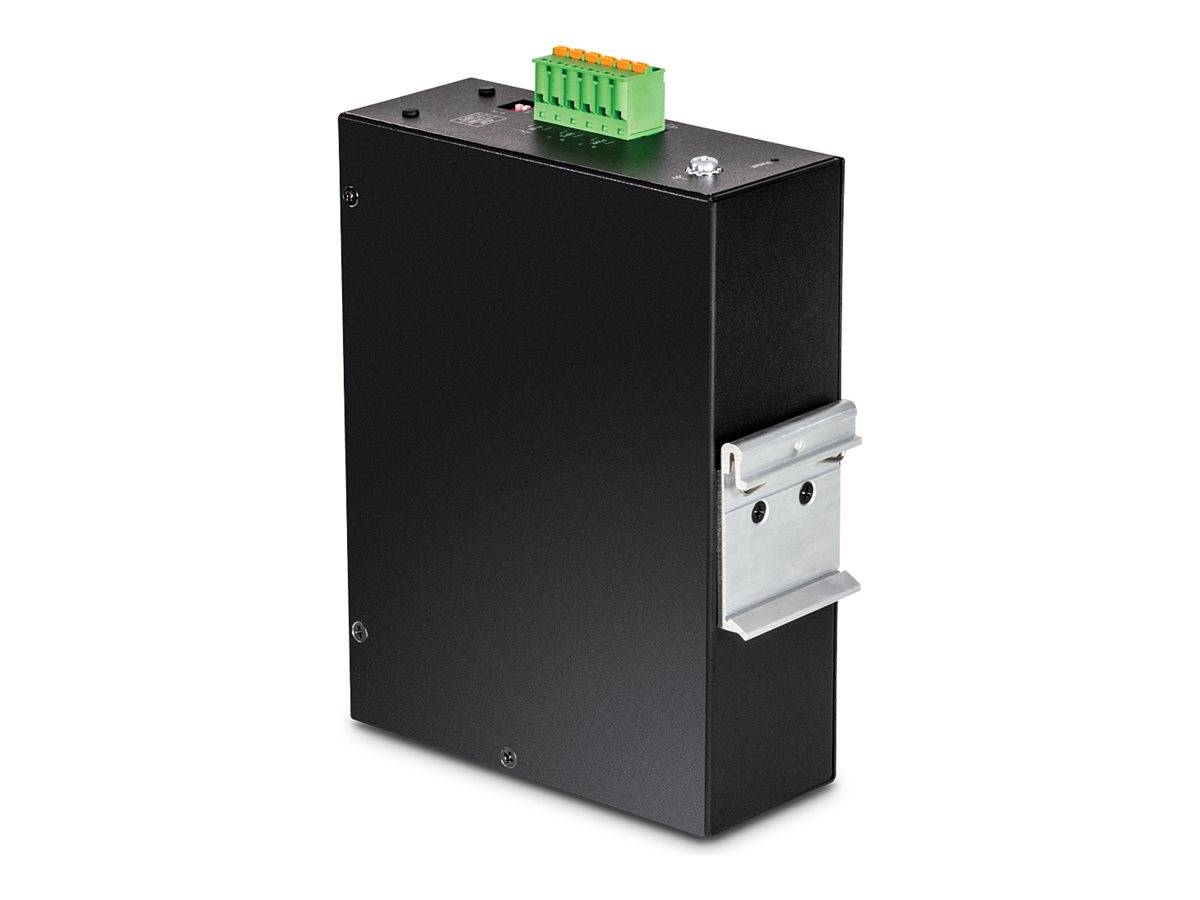

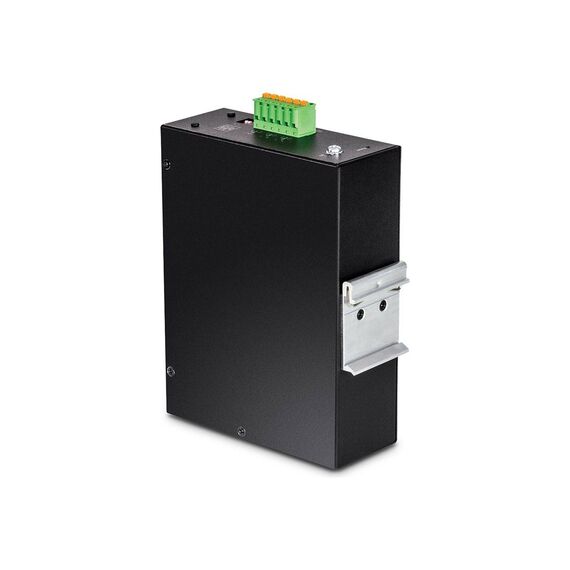

- Wall mounting is not listed by TRENDnet — DIN rail only.
- SFP modules are not included.
Key Features
Ring redundancy
ERPS G.8032v2 and STP/RSTP with BPDU/root guard keep industrial rings running when a link fails.
Full L2 management
802.1Q VLAN, CoS/DSCP QoS, LACP, IGMP snooping with querier, storm control, port mirroring, DHCP relay/Option 82.
Industrial integration
Modbus/TCP, SNMP traps, RMON, LLDP, SMTP alerts, syslog, ONVIF discovery.
Hardened & fanless

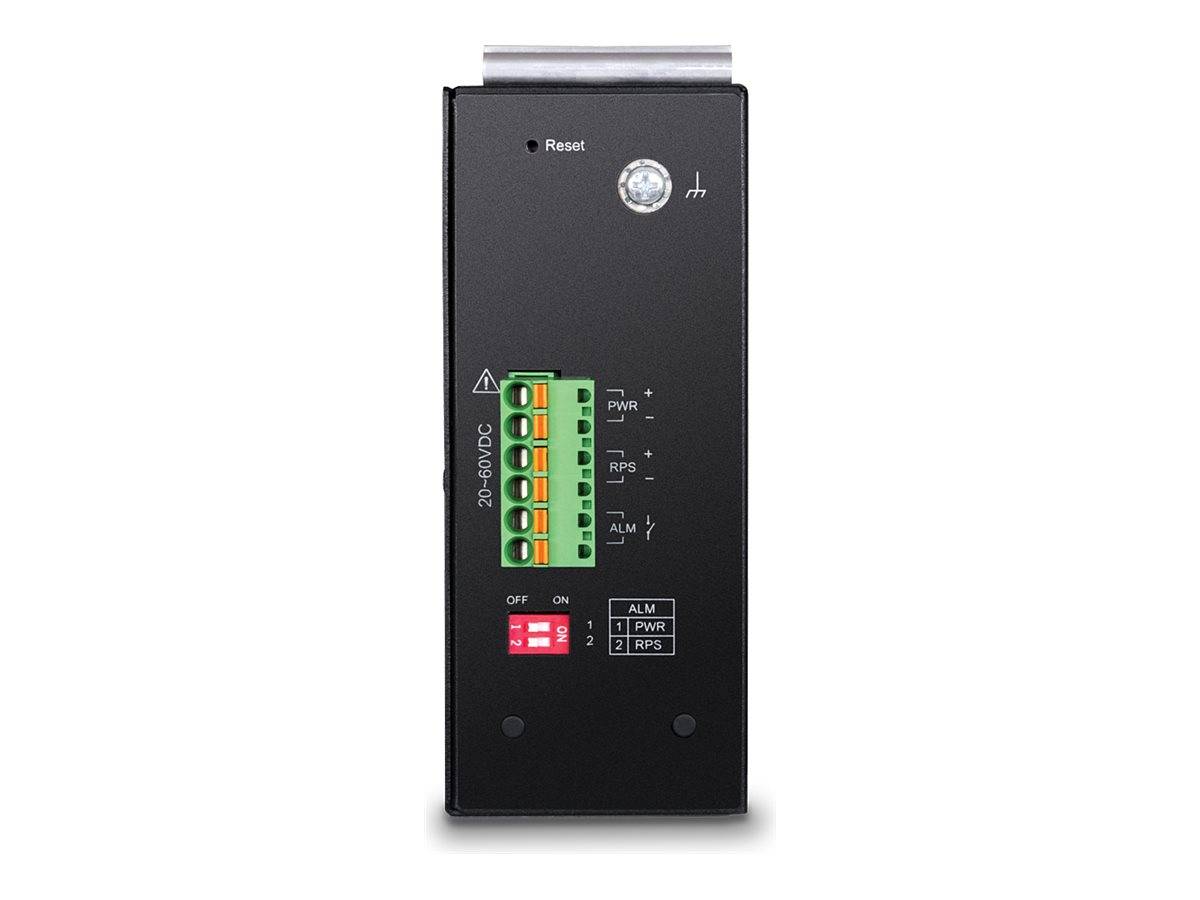

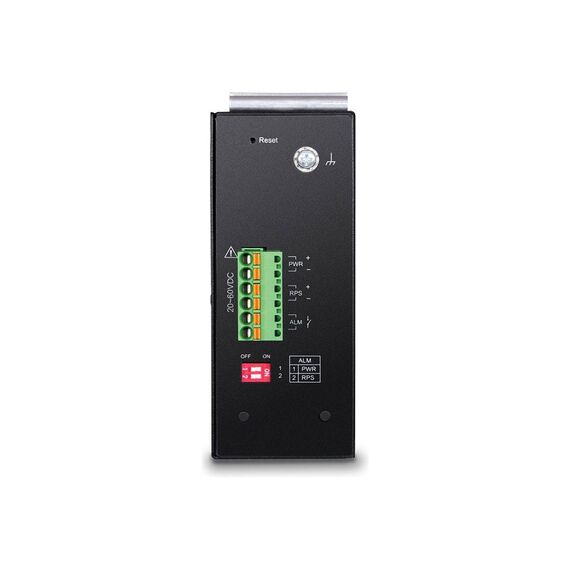

IP30 metal, passive cooling, -40 to 75°C, dual 20-60V DC inputs with alarm relay.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Choose the TI-G642i when the cabinet network matters enough to need monitoring and redundancy: ERPS rings, VLAN separation and Modbus/SNMP visibility are what separate it from unmanaged DIN-rail switches. It does not carry PoE, so pair it with a PoE model if you also have cameras. See all our network switches.
✓ Buy it if you need a managed, ring-capable Gigabit switch on DC power in a cabinet.
✕ Skip it if you need PoE or Layer 3 routing, or a simple unmanaged switch is enough.
→ Also consider TRENDnet TI-G62 (unmanaged, 5x RJ45 + 2x SFP) or TI-PG62B for PoE+.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
